Re: Connection problem with eBay board

i'm doing nothing else. it will run using the USB to the rusefi console. There is no need for a bootloader and im using new blank chips. Ahh, I was under the impression you needed the USB BL to talk to TS - I guess when you don't know anything you say the wrong thing -. So just load rus with the ST...
by Old Grey
Mon Jun 29, 2020 7:05 am
Forum: Hello World
Topic: Connection problem with eBay board
Replies: 30
Views: 1134

Re: Connection problem with eBay board

It must be the same bootloader as you are using to get native USB on your custom board because it's the same STM32F407VG chip on all the boards. Sorry for not looking into it - when you are old confusion is demotivating :? - but where did you get the bootloader from.

Thanks
by Old Grey
Sun Jun 28, 2020 11:26 pm
Forum: Hello World
Topic: Connection problem with eBay board
Replies: 30
Views: 1134

Re: Connection problem with eBay board

Hey NickZ, did you get the little boards running.

And what bootloader did you use to flash it to get the USB working.
by Old Grey
Sat Jun 27, 2020 11:49 am
Forum: Hello World
Topic: Connection problem with eBay board
Replies: 30
Views: 1134

Re: Connection problem with eBay board

I was watching Blue Pill bootloader vids last week and it comes with the serial bootloader, and if you want to use the USB you need to load the USB bootloader first. I assume these board are the same. This is the old one. https://youtu.be/wGbiT6IxGP0 This is the updated one. https://youtu.be/Myon8H1...
by Old Grey
Sat Jun 27, 2020 4:59 am
Forum: Hello World
Topic: Connection problem with eBay board
Replies: 30
Views: 1134

Re: Connection problem with eBay board

The Discovery uses the VG STM32F407VG, so that chip should be more compatible - I don't know about ZE, but the VE has less memory -.

NickZ got his running.

https://rusefi.com/forum/viewtopic.php?f=4&t=1498&start=30
by Old Grey
Mon Jun 22, 2020 12:07 pm
Forum: Hello World
Topic: Connection problem with eBay board
Replies: 30
Views: 1134

Re: Connection problem with eBay board

I looked into a simpler version of this type of board a while back, but gave up because it looked too hard. Now you've made me interested again ;) I don't think I can help, but I watched some vids today and it looks like this might be shipped with the serial firmware, and to get the USB working you ...
by Old Grey
Sat Feb 29, 2020 11:00 am
Forum: Hello World
Topic: rusEfi map: who is where? map in the first message
Replies: 57
Views: 26772

Re: rusEfi map: who is where?

What no OZ, where's Mr TAS. lol

I guess someone has to be first.
Sydney 2200
by Old Grey
Thu Jan 02, 2020 11:34 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

The $6 chip from Ali is a VG and looks real - it should be a goer ;) -, but if you get the on-board STM32 working on the FK can you easily disable it and go back to the Discovery board.
by Old Grey
Mon Dec 23, 2019 10:35 am
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

I used a ST-Link v2 to upload the firmware before being able to use the USB on pins PA11 and PA12. It's starting to get a bit clearer. as far as i can see the Supplied USB socket doesn't do anything. That's weird. Maybe it's because it doesn't have PA9 The usb won't work without the PA9 to VCC, I t...
by Old Grey
Mon Dec 23, 2019 5:51 am
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

I should've known NickZ would've been ahead of the game. :D Looking at the VG Dev board SCH it says the USB is connected to PA12, PA11, but PA9 to VCC I don't know about. F-ken is PA9 to VBUS, so it must be a thing. These things would make great baby Fsteins. Like make a shield the same size for 1-2...
by Old Grey
Sun Dec 22, 2019 1:28 pm
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

I'm not good at that stuff, and I don't have a board, but I might do some reading tomorrow.

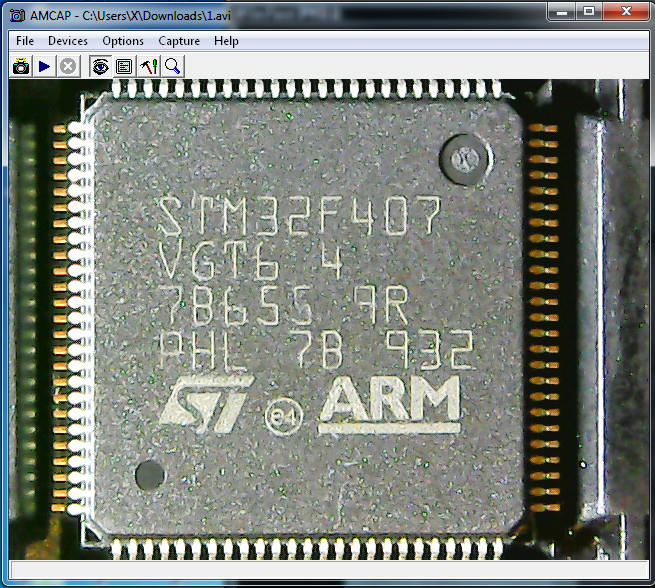

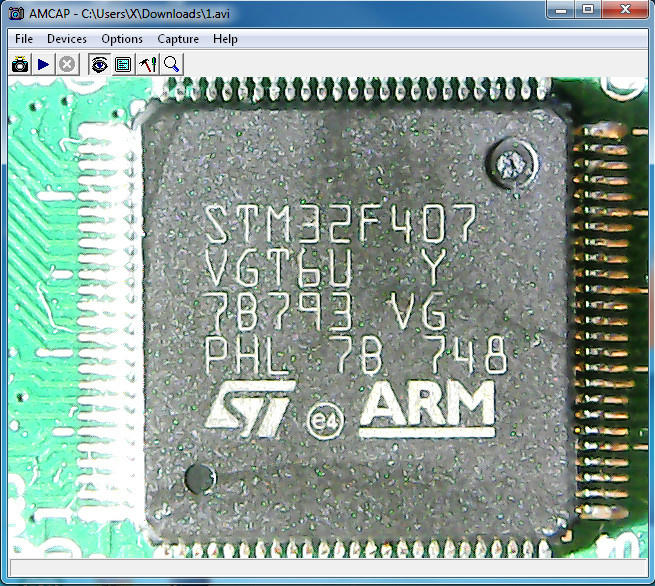

Does the writing and font on the chip look like this genuine chip. Does the indent top right have that broken centre.
by Old Grey
Sun Dec 22, 2019 1:06 pm
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

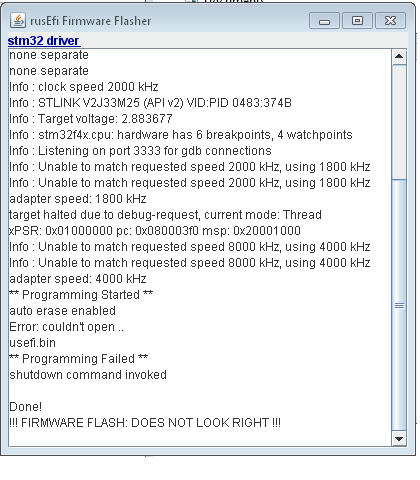

From the above it sounds like it's being programmed, but you never know. Does it run a simple blink sketch. I'm not much help because I've only DFU-ed one MEGA2560 once. Clutching at straws here. :lol: Is there anyway to get a memory report out of it, ie, is it really a VG. I've got a VG chip on the...
by Old Grey
Sun Dec 22, 2019 12:13 pm
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

Are you sure about the 28MHz crystal. I found this dwg, if this is the correct one, and there is a 2 in front of the 8M. But that looks like pin 2 of the crystal. http://dubstylee.net/v/wp-content/uploads/2017/08/DIY-More-STM32F407VGT6.png It's from this post. https://community.st.com/s/question/0D5...
by Old Grey
Sat Dec 21, 2019 7:44 pm
Forum: Hardware
Topic: STM32F407VET6 Mini Development Board System Board
Replies: 34
Views: 9608

Re: STM32F407VET6 Mini Development Board System Board

Any word if the black Mini STM32F407VGT6 Development Board with the larger VG chip would work if you make an adaptor to the Frank's. I was thinking about getting another Disc but at $41 for the cheapest down here, that ain't going to happen. The VG Mini is about $15 down here. The VE Mini would be a...
by Old Grey
Mon Dec 16, 2019 7:33 pm
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

Anyone know if this will work with the smaller 512Kb STM32F407VET6
by Old Grey
Mon Dec 02, 2019 3:05 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

That last vid took a bit of time. I don't know how well Frankenso kits sell, but after making one it seems a bit too much trouble. You're kind-of better off just paying the small amount extra for the pre-assembled FK, but what would be better is a PnP FK for the different car models. The problem is ...
by Old Grey
Sat Nov 30, 2019 5:51 pm
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

You legend. :D I thought it was something simple like a selectable jumper, but I couldn't see one in the pic. I could see a black thing between the holes, and was thinking it was a 0ohm resistor, but when I look at the KiCAD I get lost when it switches layers. I just don't use KC enough to be good a...
by Old Grey
Sat Nov 30, 2019 10:40 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

I'm feeding the FK with 12V, and I'm getting 5V at the reg, but the other 5V points on the PCB are only getting 0.4V. Are there any links that have to be made to get the 5V to the internal PWR plane.

by Old Grey
Sat Oct 12, 2019 11:32 am
Forum: Software
Topic: ETB or 36/1 performance issue?
Replies: 31
Views: 8070

Re: ETB or 36/1 performance issue?

Not that I know anything about it, but does it have a variable ratio activation table, ie, 0-50% on the pedal is 1:1, but 50-100 is 4:1. I know it was common in Supercars, but they did it mechanically with changing rate pulleys. I don't even know about the sensors or actuators, but is there a mech r...
by Old Grey
Mon Sep 30, 2019 12:16 am
Forum: Software
Topic: Setup settings for Holden V8 #52
Replies: 22
Views: 3008

Re: Setup settings for Holden V8

I wish I had your enthusiasm, because this must be your 20th ECU.
by Old Grey
Tue Sep 24, 2019 10:01 pm
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

I was just thinking that the pad is 1.4mm, and a 1206 is 1.5mm, so I thought it would be wise to link them to the 0.070" pins on the Denso connector. If it does 2 High-Z with a single 0805 it's probably not necessary. 8-)
by Old Grey
Mon Sep 23, 2019 10:58 pm
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

The missing assembly photo https://rusefi.com/images/Frankenso/frankenso_0_5_full_bundle.jpg This pic wasn't in this topic, and I was guessing stuff until I found this hard to find photo I didn't bother making the correct part, but will the centre combination work with the flybacks. The diodes are 2...
by Old Grey
Wed Aug 07, 2019 9:48 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

I found C103(10uF) on page 8 of the SCH PDF, and it kind-of looks necessary in filtering the input 5V to the MAX9926. Luckily I have one here already.
by Old Grey
Tue Aug 06, 2019 9:46 pm
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

So even a 1206 will hang upside down. I've got enough spares so I might as well run a test to be sure. Any chance of getting the "frankenso-cache.lib" file, as I'm having that missing part problem in SCH with KC5. I'm trying to sort out why there are parts on the iBOM but none in the kit, like C103,...
by Old Grey
Tue Aug 06, 2019 1:11 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

When you get the Frankenso pre made, can you see red dots of glue under the 0805s on the underside. I hear that 0603 and smaller will stay on the underside without glue with a 2 oven process - oven solder bottom side parts and re oven for the top side parts -, due to the solder surface tension, but ...
by Old Grey
Wed Jul 10, 2019 12:53 am
Forum: Hardware
Topic: Frankenso - ECU shield compatible with OEM case / official
Replies: 550
Views: 174173

Re: Frankenso - ECU shield compatible with OEM case / official

Are there any plastic parts in the Frankenso kit that aren't oven temp proof. I assume all the THTs get put on after, but how about the USBs, coin cell holder, etc.
by Old Grey
Tue Jul 09, 2019 9:53 pm
Forum: Misc
Topic: Snap on programming header like the OEM's do
Replies: 30
Views: 8955

Re: Snap on programming header like the OEM's do

If it's that 6 pin header row in the middle of the Frankenso, it's going to have to be a robust 3D print to clamp 80mm away on it's own. One of those cheap plastic clamps in my video with more reach would make it easier. https://rusefi.com/images/Frankenso/frankenso_0_5_assembled_as_recieved_front.j...
by Old Grey
Tue Jul 09, 2019 12:57 pm
Forum: Misc
Topic: Snap on programming header like the OEM's do
Replies: 30
Views: 8955

Re: Snap on programming header like the OEM's do

Yeah I've only seen bad 3D prints when they were done wrong, like the high temp filaments, ie: ABS etc, delaminate if not done in an enclosed printer that can keep it hot. I'm not really sure what configuration you want, but I was thinking of just pushing the pins into the female IDC connector of th...
by Old Grey
Tue Jul 09, 2019 12:59 am
Forum: Misc
Topic: Snap on programming header like the OEM's do
Replies: 30
Views: 8955

Re: Snap on programming header like the OEM's do

Seams like they do make a 0.5mm pogo, so I suppose you could just slide it in a female header if that is what is on the programmer. Other wise it's a PCB breakout with pogo on one end and the IDE connector on the other. 0.5mm and 0.68mm pogos. https://www.ebay.com.au/itm/100-Pcs-Spring-Test-Probe-Po...
by Old Grey
Mon Jul 08, 2019 7:40 pm
Forum: Misc
Topic: Snap on programming header like the OEM's do
Replies: 30
Views: 8955

Re: Snap on programming header like the OEM's do

I was thinking yesterday that you could just make a breakout PCB and stack and glue 3 on top of each other, and then I found this. http://dangerousprototypes.com/blog/wp-content/media/2013/02/IMG_1796.jpg I'm not sure the stub on the back of those pins will reach in an IDC, but I think they can be s...
