ford_aspire.h File Reference

Detailed Description

1996 Ford Aspire default engine configuration

Date

Aug 30, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

http://rusefi.com/forum/viewtopic.php?t=375

Definition in file ford_aspire.h.

Functions
void	setFordAspireEngineConfiguration ()

Function Documentation

setFordAspireEngineConfiguration()

void setFordAspireEngineConfiguration

(

)

18K Ohm @ -20C 2.1K Ohm @ 24C 1K Ohm @ 49C

Definition at line 46 of file ford_aspire.cpp.

                                        {
    engineConfiguration->tpsMin = 100;
    engineConfiguration->tpsMax = 750;

    engineConfiguration->rpmHardLimit = 7000;
#if EFI_PROD_CODE && defined(HW_FRANKENSO)
  engineConfiguration->triggerInputPins[1] = Gpio::A5;
#endif

    /**
     * 18K Ohm @ -20C
     * 2.1K Ohm @ 24C
     * 1K Ohm @ 49C
     */
    // that's my custom resistor value!
    engineConfiguration->clt.config = {-20, 23.8889, 48.8889, 18000, 2100, 1000, 3300};

//  engineConfiguration->ignitionPinMode = OM_INVERTED;

    engineConfiguration->cylindersCount = 4;
    engineConfiguration->displacement = 1.3;
    // Denso 195500-2110
    engineConfiguration->injector.flow = 119.8;

    engineConfiguration->firingOrder = FO_1_3_4_2;
    engineConfiguration->globalTriggerAngleOffset = 175;

    setDefaultAspireMaps();
    // set cranking_timing_angle 37
    engineConfiguration->crankingTimingAngle = -37;

    setSingleCoilDwell();
    engineConfiguration->ignitionMode = IM_ONE_COIL;
    engineConfiguration->trigger.type = trigger_type_e::TT_FORD_ASPIRE;

    engineConfiguration->triggerInputDebugPins[0] = Gpio::C15;

    engineConfiguration->injectionPins[4] = Gpio::Unassigned;
    engineConfiguration->injectionPins[5] = Gpio::Unassigned;

    // Frankenstein analog input #1: adc1
    // Frankenstein analog input #2: adc3
    // Frankenstein analog input #3: adc13
    // Frankenstein analog input #4: adc11
    // Frankenstein analog input #5: adc
    // Frankenstein analog input #6: adc
    // Frankenstein analog input #7: adc
    // Frankenstein analog input #8: adc
    // Frankenstein analog input #9: adc
    // Frankenstein analog input #10: adc
    // Frankenstein analog input #11: adc
    // Frankenstein analog input #12: adc


    engineConfiguration->tps1_1AdcChannel = EFI_ADC_3;
    engineConfiguration->vbattAdcChannel = EFI_ADC_0;
    engineConfiguration->map.sensor.hwChannel = EFI_ADC_4;
    engineConfiguration->mafAdcChannel = EFI_ADC_1;
    engineConfiguration->clt.adcChannel = EFI_ADC_11;
//  engineConfiguration->iat.adcChannel =

    engineConfiguration->map.sensor.type = MT_DENSO183;

    engineConfiguration->engineSnifferRpmThreshold = 13000;
    engineConfiguration->sensorSnifferRpmThreshold = 13000;
}

Referenced by resetConfigurationExt().

Here is the call graph for this function:

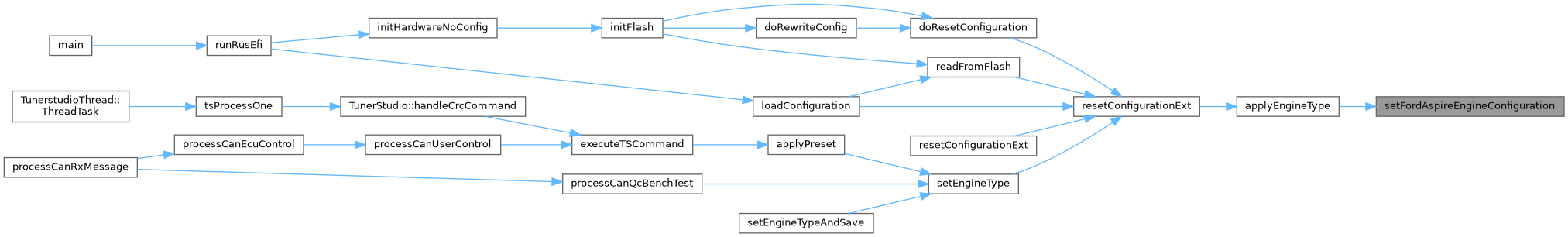

Here is the caller graph for this function:
