WS2812.h File Reference

Detailed Description

Date

25.03.2025

Author

Benas Brazdziunas

Definition in file WS2812.h.

Data Structures
struct	WS2812_RGB_t

Functions
void	initWS2812 ()
void	clearWS2812One (uint32_t num)
void	clearWS2812All ()
void	setWS2812One (uint32_t num, WS2812_RGB_t rgb_col)
void	setWS2812All (WS2812_RGB_t rgb_col)
void	setWS2812Brightness (uint8_t num)
void	calcBuf ()

Function Documentation

calcBuf()

void calcBuf

(

)

Calculate Timer DMA buffer

Definition at line 130 of file WS2812.cpp.

{
    uint32_t pos = 0;
    // set timings for all LEDs
    for (uint32_t num = 0; num < WS2812_LED_N; num++)
    {
        WS2812_RGB_t led = WS2812_LED_BUF[num];
        float brightness = WS2812_BRIGHTNESS / 100.0;

        led.red = (uint8_t)(led.red * brightness);
        led.green = (uint8_t)(led.green * brightness);
        led.blue = (uint8_t)(led.blue * brightness);

        // Col:Green , Bit:7..0
        WS2812_TIM_BUF[pos++] = ((led.green & 0x80) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x40) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x20) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x10) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x08) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x04) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x02) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.green & 0x01) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;

        // Col:Red , Bit:7..0
        WS2812_TIM_BUF[pos++] = ((led.red & 0x80) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x40) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x20) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x10) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x08) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x04) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x02) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.red & 0x01) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;

        // Col:Blue , Bit:7..0
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x80) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x40) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x20) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x10) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x08) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x04) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x02) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
        WS2812_TIM_BUF[pos++] = ((led.blue & 0x01) != 0) ? WS2812_DUTYCYCLE_1 : WS2812_DUTYCYCLE_0;
    }
}

Referenced by clearWS2812All(), clearWS2812One(), setWS2812All(), setWS2812Brightness(), and setWS2812One().

Here is the caller graph for this function:

clearWS2812All()

void clearWS2812All

(

)

Set all LEDs to 0 (off)

Definition at line 83 of file WS2812.cpp.

{
    for (uint16_t num = 0; num < WS2812_LED_N; num++)
    {
        WS2812_LED_BUF[num] = (WS2812_RGB_t){0, 0, 0};
    }
    calcBuf();
}

Referenced by initWS2812().

Here is the call graph for this function:

Here is the caller graph for this function:

clearWS2812One()

void clearWS2812One

(

uint32_t

num

)

Set one LEDs to 0 (off)

Definition at line 71 of file WS2812.cpp.

{
    if (num < WS2812_LED_N)
    {
        WS2812_LED_BUF[num] = (WS2812_RGB_t){0, 0, 0};
    }
    calcBuf();
}

Referenced by initWS2812().

Here is the call graph for this function:

Here is the caller graph for this function:

initWS2812()

void initWS2812

(

)

Definition at line 21 of file WS2812.cpp.

{
    palSetPadMode(WS2812_PORT, WS2812_PIN, PAL_MODE_ALTERNATE(1));

    static const PWMConfig ws2812_pwm_config = {
        .frequency = WS2812_PWM_FREQUENCY,
        .period = WS2812_PWM_PERIOD,
        .callback = NULL,
        .channels = {
            [0] = {.mode = WS2812_TIM_CH == 0 ? PWM_OUTPUT_ACTIVE_HIGH : PWM_OUTPUT_DISABLED, .callback = NULL}, // Turn on the channel we care about
            [1] = {.mode = WS2812_TIM_CH == 1 ? PWM_OUTPUT_ACTIVE_HIGH : PWM_OUTPUT_DISABLED, .callback = NULL}, // Turn on the channel we care about
            [2] = {.mode = WS2812_TIM_CH == 2 ? PWM_OUTPUT_ACTIVE_HIGH : PWM_OUTPUT_DISABLED, .callback = NULL}, // Turn on the channel we care about
            [3] = {.mode = WS2812_TIM_CH == 3 ? PWM_OUTPUT_ACTIVE_HIGH : PWM_OUTPUT_DISABLED, .callback = NULL}, // Turn on the channel we care about
        },
        .cr2 = 0,
        .bdtr = 0,
        .dier = TIM_DIER_UDE, // DMA on update event for next period
    };

    const stm32_dma_stream_t *dma = dmaStreamAlloc(WS2812_DMA_STREAM, 10, NULL, NULL);
    dmaStreamSetPeripheral(dma, &(WS2812_PWM_DRIVER.tim->CCR[WS2812_TIM_CH]));
    dmaStreamSetMemory0(dma, WS2812_TIM_BUF);
    dmaStreamSetTransactionSize(dma, WS2812_BUFLEN);
    // M2P: Memory 2 Periph; PL: Priority Level
    dmaStreamSetMode(dma,
                     STM32_DMA_CR_CHSEL(WS2812_DMA_CHANNEL) |
                     STM32_DMA_CR_DIR_M2P |
                     STM32_DMA_CR_PSIZE_WORD |
                     STM32_DMA_CR_MSIZE_WORD |
                     STM32_DMA_CR_MINC |
                     STM32_DMA_CR_CIRC |
                     STM32_DMA_CR_PL(3)
                    );

    dmaStreamEnable(dma);
    pwmStart(&PWMD1, &ws2812_pwm_config);
    pwmEnableChannel(&PWMD1, WS2812_TIM_CH, 0); //(WS2812_PWM_PERIOD/2)

    //TEST FUNCTIONALITY
    clearWS2812All();
    setWS2812Brightness(5);
    setWS2812All((WS2812_RGB_t){255, 0, 0});
    setWS2812One(19,(WS2812_RGB_t){0, 0, 255});
    setWS2812One(9,(WS2812_RGB_t){0, 255, 0});
    clearWS2812One(18);
}

Referenced by initHardware().

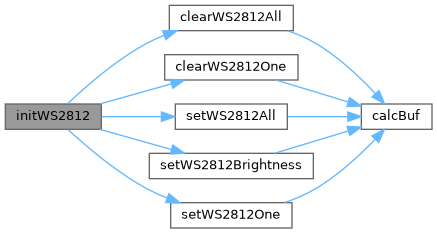

Here is the call graph for this function:

Here is the caller graph for this function:

setWS2812All()

void setWS2812All

(

WS2812_RGB_t

rgb_col

)

Set all LEDs (R, G, B values).

Definition at line 107 of file WS2812.cpp.

{
    for (uint16_t num = 0; num < WS2812_LED_N; num++)
    {
        WS2812_LED_BUF[num] = rgb_col;
    }
    calcBuf();
}

Referenced by initWS2812().

Here is the call graph for this function:

Here is the caller graph for this function:

setWS2812Brightness()

void setWS2812Brightness

(

uint8_t

num

)

Set all LEDs Brightness.

Definition at line 119 of file WS2812.cpp.

{
    num = num >= 100 ? 100 : num;
    num = num <= 0 ? 0 : num;
    WS2812_BRIGHTNESS = num;
    calcBuf();
}

Referenced by initWS2812().

Here is the call graph for this function:

Here is the caller graph for this function:

setWS2812One()

void setWS2812One	(	uint32_t	num,
		WS2812_RGB_t	rgb_col
	)

Set one LED (R, G, B values).

Definition at line 95 of file WS2812.cpp.

{
    if (num < WS2812_LED_N)
    {
        WS2812_LED_BUF[num] = rgb_col;
    }
    calcBuf();
}

Referenced by initWS2812().

Here is the call graph for this function:

Here is the caller graph for this function:
