FuelSchedule Class Reference

#include <fuel_schedule.h>

Collaboration diagram for FuelSchedule:

Public Member Functions
	FuelSchedule ()
void	invalidate ()
void	onTriggerTooth (efitick_t nowNt, float currentPhase, float nextPhase)
void	addFuelEvents ()

Static Public Member Functions
static void	resetOverlapping ()

Data Fields
InjectionEvent	elements [MAX_CYLINDER_COUNT]
bool	isReady = false

Detailed Description

This class knows about when to inject fuel

Definition at line 61 of file fuel_schedule.h.

Constructor & Destructor Documentation

FuelSchedule()

FuelSchedule::FuelSchedule

(

)

Definition at line 33 of file fuel_schedule.cpp.

                           {
    for (int cylinderIndex = 0; cylinderIndex < MAX_CYLINDER_COUNT; cylinderIndex++) {
        elements[cylinderIndex].setIndex(cylinderIndex);
    }
}

Here is the call graph for this function:

Member Function Documentation

addFuelEvents()

void FuelSchedule::addFuelEvents

(

)

this method schedules all fuel events for an engine cycle Calculate injector opening angle, pins, and mode for all injectors

Definition at line 202 of file fuel_schedule.cpp.

                                 {
    for (size_t cylinderIndex = 0; cylinderIndex < engineConfiguration->cylindersCount; cylinderIndex++) {
        bool result = elements[cylinderIndex].update();

        if (!result) {
            invalidate();
            return;
        }
    }

    // We made it through all cylinders, mark the schedule as ready so it can be used
    isReady = true;
}

Referenced by commonInitEngineController(), handleFuel(), and RpmCalculator::setRpmValue().

Here is the call graph for this function:

Here is the caller graph for this function:

invalidate()

void FuelSchedule::invalidate

(

)

Definition at line 43 of file fuel_schedule.cpp.

                              {
    isReady = false;
}

Referenced by addFuelEvents(), and prepareOutputSignals().

Here is the caller graph for this function:

onTriggerTooth()

void FuelSchedule::onTriggerTooth	(	efitick_t	nowNt,
		float	currentPhase,
		float	nextPhase
	)

Definition at line 216 of file fuel_schedule.cpp.

                                                                                      {
    // Wait for schedule to be built - this happens the first time we get RPM
    if (!isReady) {
        return;
    }

    for (size_t i = 0; i < engineConfiguration->cylindersCount; i++) {
        elements[i].onTriggerTooth(nowNt, currentPhase, nextPhase);
    }
}

Referenced by handleFuel().

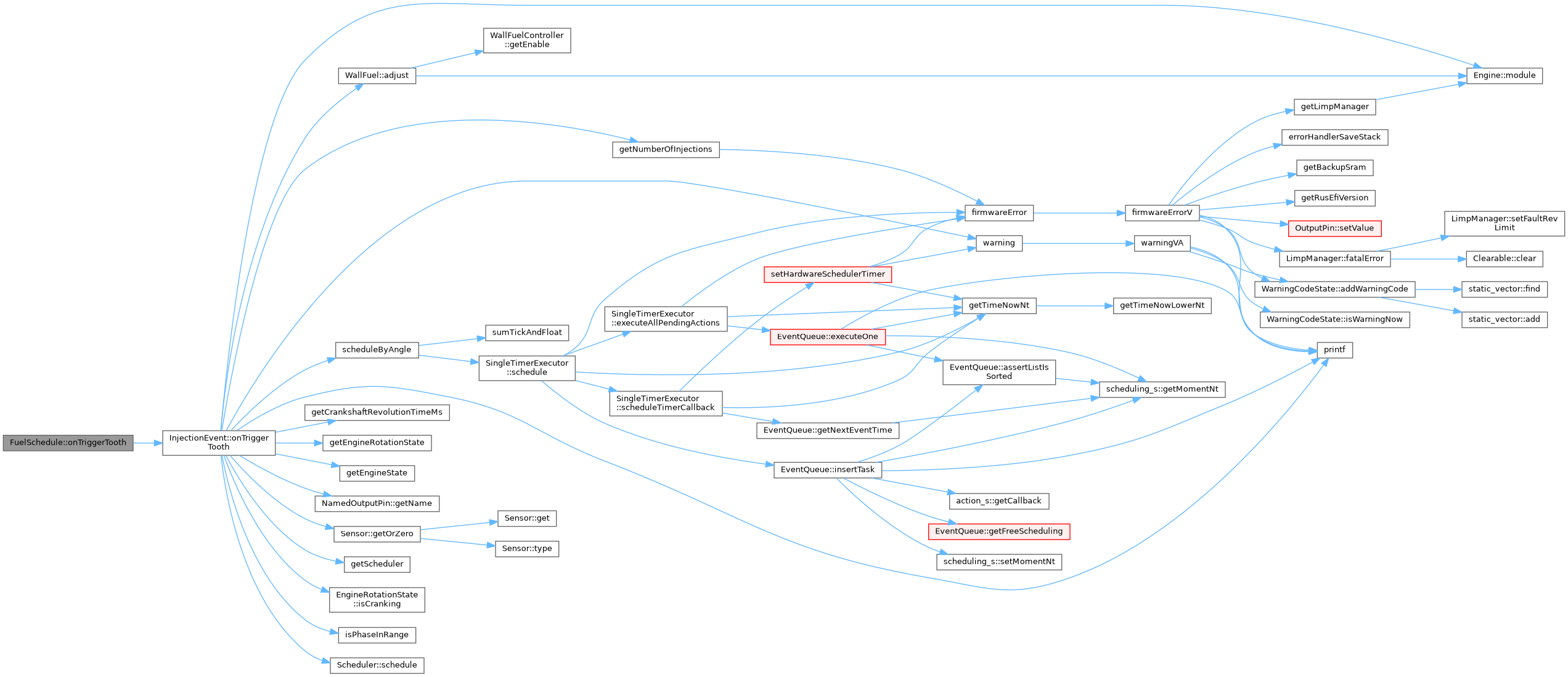

Here is the call graph for this function:

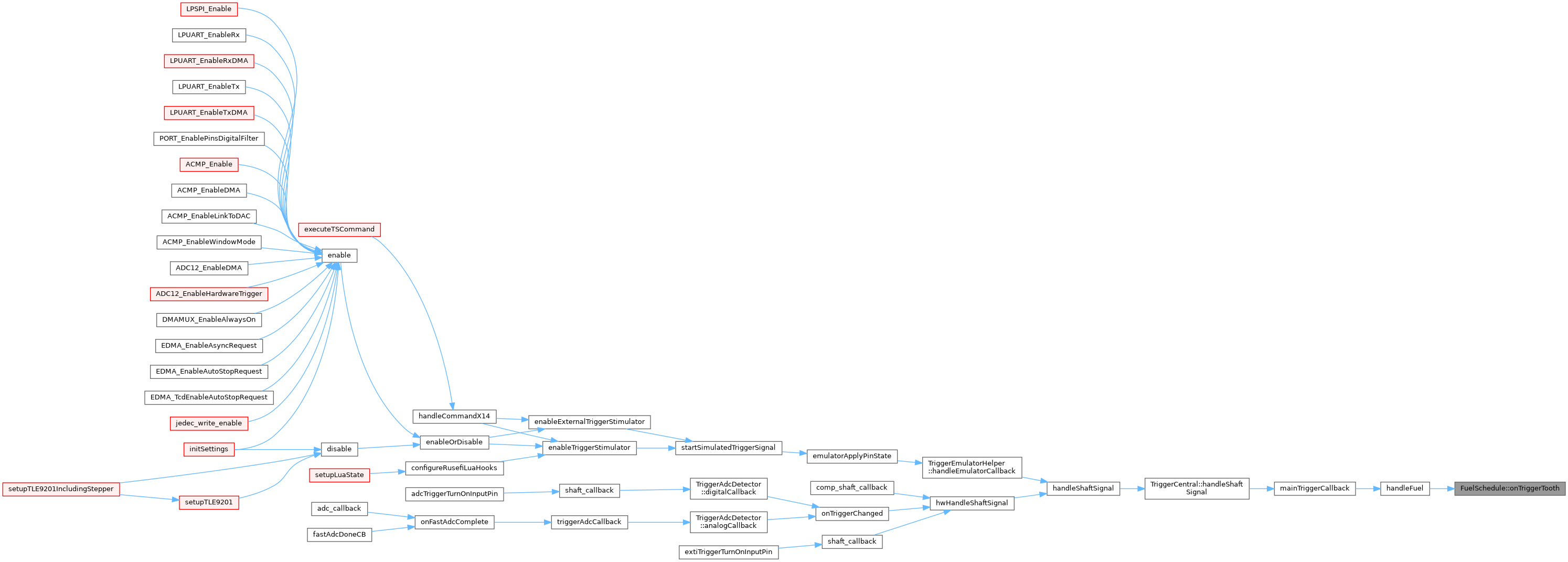

Here is the caller graph for this function:

resetOverlapping()

void FuelSchedule::resetOverlapping ( )

static

Definition at line 47 of file fuel_schedule.cpp.

                                    {
    for (auto& inj : enginePins.injectors) {
        inj.reset();
    }
}

Referenced by RpmCalculator::setRpmValue().

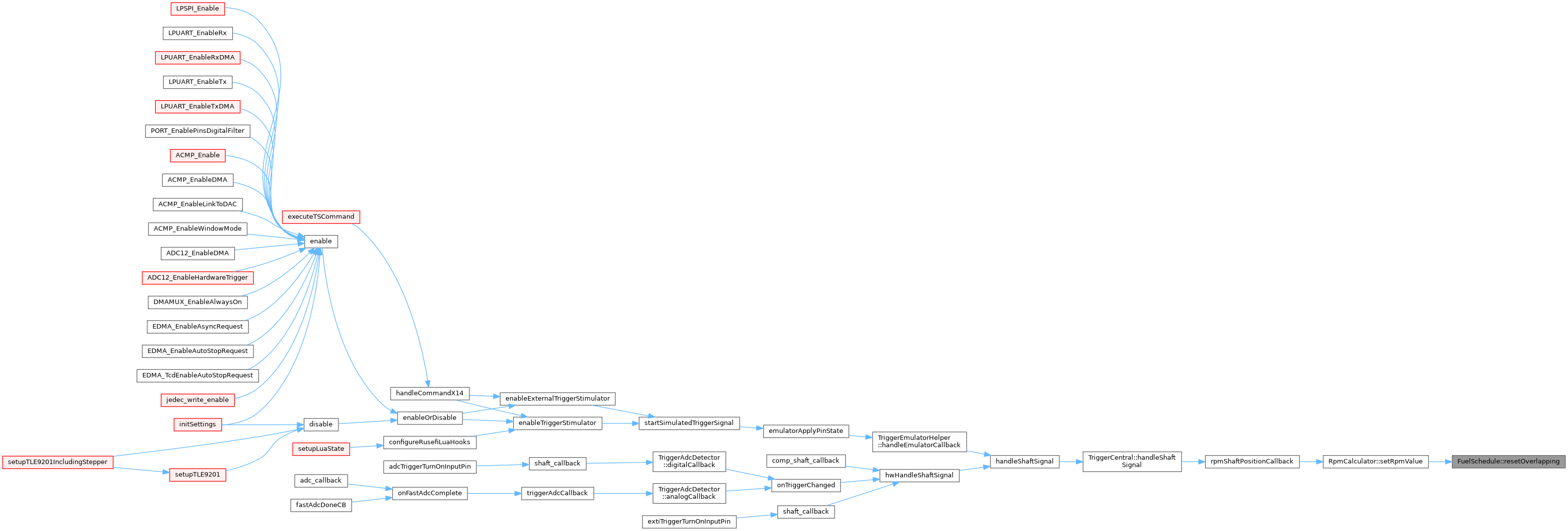

Here is the caller graph for this function:

Field Documentation

elements

InjectionEvent FuelSchedule::elements[MAX_CYLINDER_COUNT]

injection events, per cylinder

Definition at line 82 of file fuel_schedule.h.

Referenced by addFuelEvents(), FuelSchedule(), getLiveData(), onTriggerTooth(), resetAccel(), and updateFuelInfo().

isReady

bool FuelSchedule::isReady = false

Definition at line 83 of file fuel_schedule.h.

Referenced by addFuelEvents(), handleFuel(), invalidate(), mainTriggerCallback(), and onTriggerTooth().

---

The documentation for this class was generated from the following files:

• controllers/engine_cycle/fuel_schedule.h
• controllers/engine_cycle/fuel_schedule.cpp
