SpeedDensityBase Class Reference

#include <speed_density_base.h>

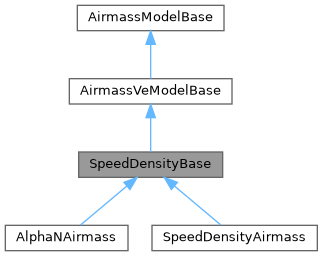

Inheritance diagram for SpeedDensityBase:

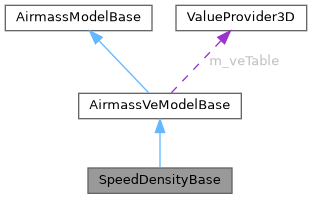

Collaboration diagram for SpeedDensityBase:

Static Public Member Functions
static mass_t	getAirmassImpl (float ve, float manifoldPressure, float temperature)

Protected Member Functions
	SpeedDensityBase (const ValueProvider3D &veTable)

Additional Inherited Members
Public Member Functions inherited from AirmassVeModelBase
	AirmassVeModelBase (const ValueProvider3D &veTable)
float	getVe (float rpm, percent_t load, bool postState) const
Public Member Functions inherited from AirmassModelBase
virtual AirmassResult	getAirmass (float rpm, bool postState)=0

Detailed Description

Definition at line 19 of file speed_density_base.h.

Constructor & Destructor Documentation

SpeedDensityBase()

SpeedDensityBase::SpeedDensityBase ( const ValueProvider3D &  veTable )

inlineexplicitprotected

Definition at line 21 of file speed_density_base.h.

: AirmassVeModelBase(veTable) {}

Member Function Documentation

getAirmassImpl()

mass_t SpeedDensityBase::getAirmassImpl ( float  ve, float  manifoldPressure, float  temperature  )

static

Definition at line 26 of file speed_density_base.cpp.

                                                                                             {
    mass_t cycleAir = ve * idealGasLaw(engineConfiguration->displacement, manifoldPressure, temperature);
    return cycleAir / engineConfiguration->cylindersCount;
}

Referenced by AlphaNAirmass::getAirmass(), and SpeedDensityAirmass::getAirmass().

Here is the call graph for this function:

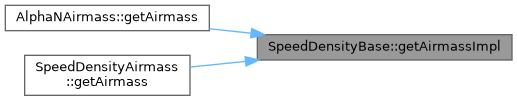

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• controllers/algo/airmass/speed_density_base.h
• controllers/algo/airmass/speed_density_base.cpp
