TableFunc< TBin, TValue, TSize, TOutputScale > Class Template Reference

#include <table_func.h>

Inheritance diagram for TableFunc< TBin, TValue, TSize, TOutputScale >:

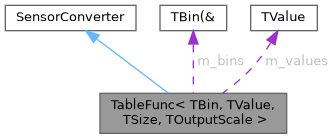

Collaboration diagram for TableFunc< TBin, TValue, TSize, TOutputScale >:

Public Member Functions
	TableFunc (TBin(&bins)[TSize], TValue(&values)[TSize])
SensorResult	convert (float inputValue) const override
void	showInfo (float) const override
Public Member Functions inherited from SensorConverter
	SensorConverter (const SensorConverter &)=delete
	SensorConverter ()=default

Private Attributes
TBin(&	m_bins )[TSize]
TValue(&	m_values )[TSize]

Detailed Description

template<class TBin, class TValue, int TSize, typename TOutputScale = efi::ratio<1>>
class TableFunc< TBin, TValue, TSize, TOutputScale >

Author

Matthew Kennedy, (c) 2021

A function to convert input voltage output value based on a 2d table.

Definition at line 15 of file table_func.h.

Constructor & Destructor Documentation

TableFunc()

template<class TBin , class TValue , int TSize, typename TOutputScale = efi::ratio<1>>

TableFunc< TBin, TValue, TSize, TOutputScale >::TableFunc ( TBin(&)  bins[TSize], TValue(&)  values[TSize]  )

inline

Definition at line 17 of file table_func.h.

        : m_bins(bins)
        , m_values(values)
    {
    }

Member Function Documentation

convert()

template<class TBin , class TValue , int TSize, typename TOutputScale = efi::ratio<1>>

SensorResult TableFunc< TBin, TValue, TSize, TOutputScale >::convert ( float  inputValue ) const

inlineoverridevirtual

Implements SensorConverter.

Definition at line 23 of file table_func.h.

                                                          {
        return interpolate2d(inputValue, m_bins, m_values) * TOutputScale::asFloat();
    }

showInfo()

template<class TBin , class TValue , int TSize, typename TOutputScale = efi::ratio<1>>

void TableFunc< TBin, TValue, TSize, TOutputScale >::showInfo ( float  ) const

inlineoverridevirtual

Reimplemented from SensorConverter.

Definition at line 27 of file table_func.h.

{ }

Field Documentation

m_bins

template<class TBin , class TValue , int TSize, typename TOutputScale = efi::ratio<1>>

TBin(& TableFunc< TBin, TValue, TSize, TOutputScale >::m_bins)[TSize]

private

Definition at line 30 of file table_func.h.

Referenced by TableFunc< TBin, TValue, TSize, TOutputScale >::convert().

m_values

template<class TBin , class TValue , int TSize, typename TOutputScale = efi::ratio<1>>

TValue(& TableFunc< TBin, TValue, TSize, TOutputScale >::m_values)[TSize]

private

Definition at line 31 of file table_func.h.

Referenced by TableFunc< TBin, TValue, TSize, TOutputScale >::convert().

---

The documentation for this class was generated from the following file:

• controllers/sensors/converters/table_func.h
