ego.cpp File Reference

Functions
bool	hasAfrSensor ()
float	getAfr (SensorType type)
static void	initEgoSensor (afr_sensor_s *sensor, ego_sensor_e type)
void	setEgoSensor (ego_sensor_e type)

Variables
StoredValueSensor	smoothedLambda1Sensor (SensorType::SmoothedLambda1, MS2NT(500))
StoredValueSensor	smoothedLambda2Sensor (SensorType::SmoothedLambda2, MS2NT(500))
ExpAverage	expAverageLambda1
ExpAverage	expAverageLambda2

Function Documentation

getAfr()

float getAfr

(

SensorType

type

)

Definition at line 25 of file ego.cpp.

                              {
    afr_sensor_s * sensor = &engineConfiguration->afr;

    if (!isAdcChannelValid(type == SensorType::Lambda1 ? engineConfiguration->afr.hwChannel : engineConfiguration->afr.hwChannel2)) {
        return 0;
    }

    auto volts = adcGetScaledVoltage("ego", type == SensorType::Lambda1 ? sensor->hwChannel : sensor->hwChannel2);

    float interpolatedAfr = interpolateMsg("AFR", sensor->v1, sensor->value1, sensor->v2, sensor->value2, volts.value_or(0));

    switch (type) {
        case SensorType::Lambda1: {
            expAverageLambda1.setSmoothingFactor(engineConfiguration->afrExpAverageAlpha);
            smoothedLambda1Sensor.setValidValue(expAverageLambda1.initOrAverage(interpolatedAfr), getTimeNowNt());
            break;
        }
        case SensorType::Lambda2: {
            expAverageLambda2.setSmoothingFactor(engineConfiguration->afrExpAverageAlpha);
            smoothedLambda2Sensor.setValidValue(expAverageLambda2.initOrAverage(interpolatedAfr), getTimeNowNt());
            break;
        }
        default:
            break;
    }

    return interpolateMsg("AFR", sensor->v1, sensor->value1, sensor->v2, sensor->value2, volts.value_or(0))
            + engineConfiguration->egoValueShift;
}

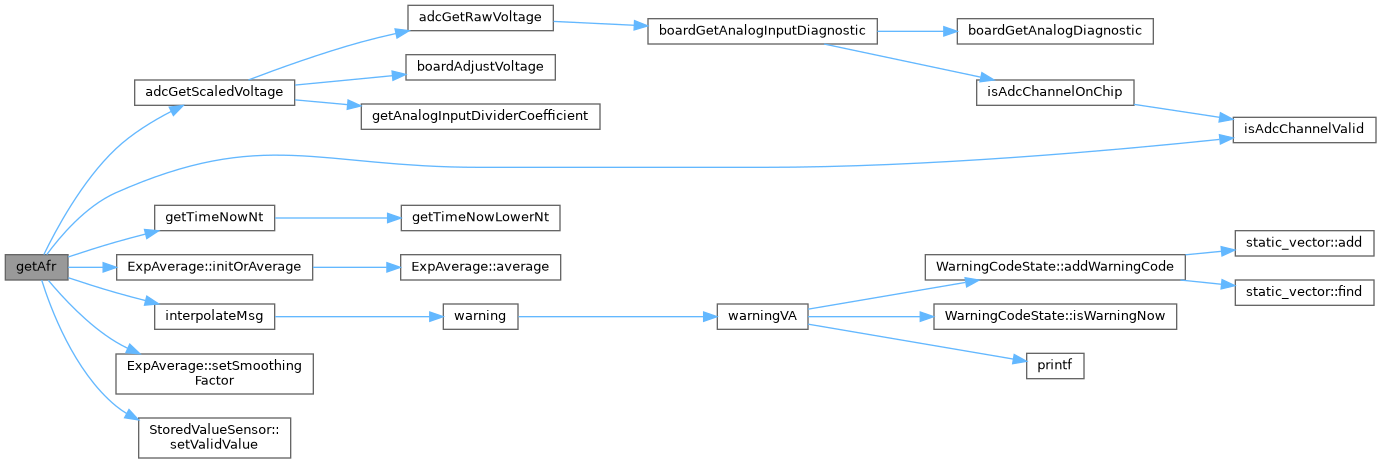

Here is the call graph for this function:

hasAfrSensor()

bool hasAfrSensor

(

)

Definition at line 17 of file ego.cpp.

                    {
    if (engineConfiguration->enableAemXSeries) {
        return true;
    }

    return isAdcChannelValid(engineConfiguration->afr.hwChannel);
}

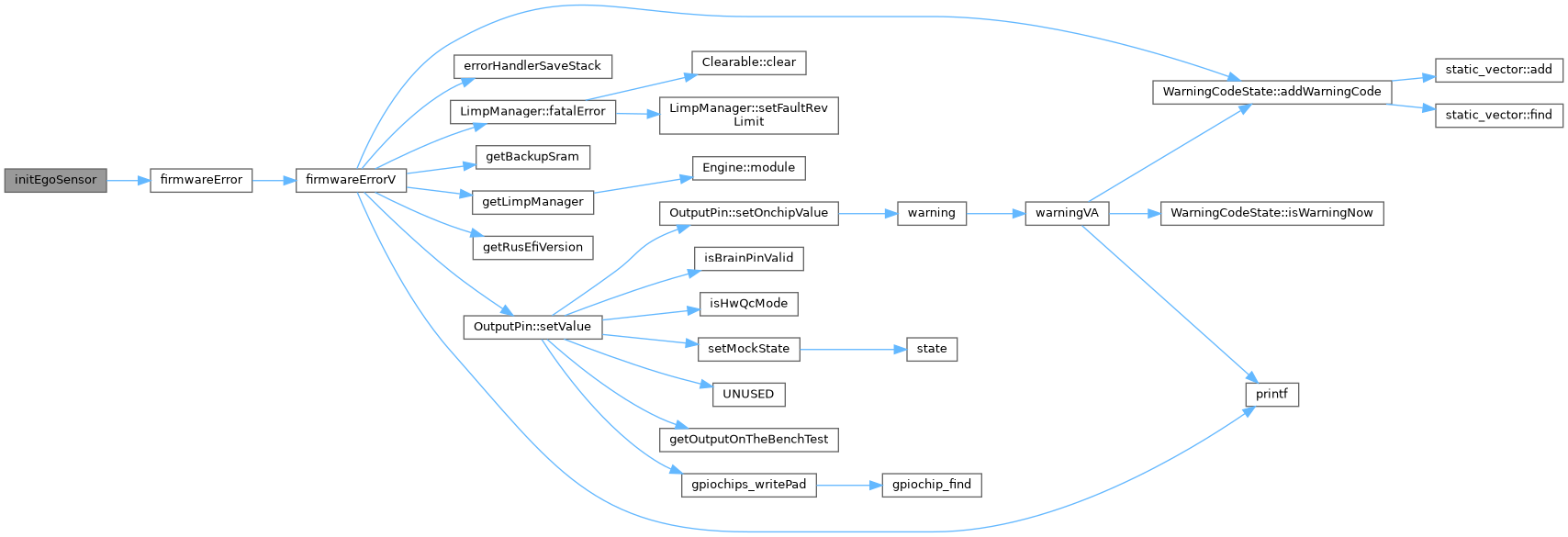

Here is the call graph for this function:

initEgoSensor()

static void initEgoSensor ( afr_sensor_s *  sensor, ego_sensor_e  type  )

static

This decodes BPSX D1 Wideband Controller analog signal

Definition at line 56 of file ego.cpp.

                                                                   {

    switch (type) {
    case ES_BPSX_D1:
        /**
         * This decodes BPSX D1 Wideband Controller analog signal
         */
        sensor->v1 = 0;
        sensor->value1 = 9;
        sensor->v2 = 5;
        sensor->value2 = 19;
        break;

    case ES_Innovate_MTX_L:
        sensor->v1 = 0;
        sensor->value1 = 7.35;
        sensor->v2 = 5;
        sensor->value2 = 22.39;
        break;
    case ES_14Point7_Free:
        sensor->v1 = 0;
        sensor->value1 = 9.996;
        sensor->v2 = 5;
        sensor->value2 = 19.992;
        break;
        // technically 14Point7 and PLX use the same scale
    case ES_PLX:
        sensor->v1 = 0;
        sensor->value1 = 10;
        sensor->v2 = 5;
        sensor->value2 = 20;
        break;
    case ES_AEM:
        sensor->v1 = 0.5;
        sensor->value1 = 8.5;
        sensor->v2 = 4.5;
        sensor->value2 = 18;
        break;
    default:
        firmwareError(ObdCode::CUSTOM_EGO_TYPE, "Unexpected EGO %d", type);
        break;
    }
}

Referenced by setEgoSensor().

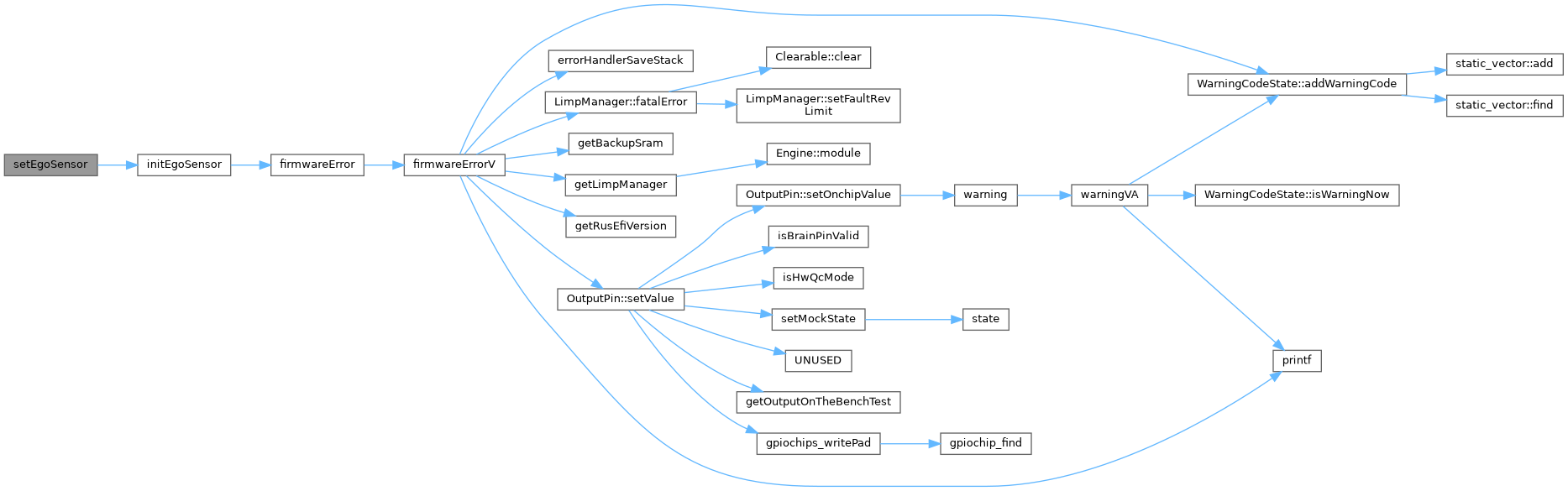

Here is the call graph for this function:

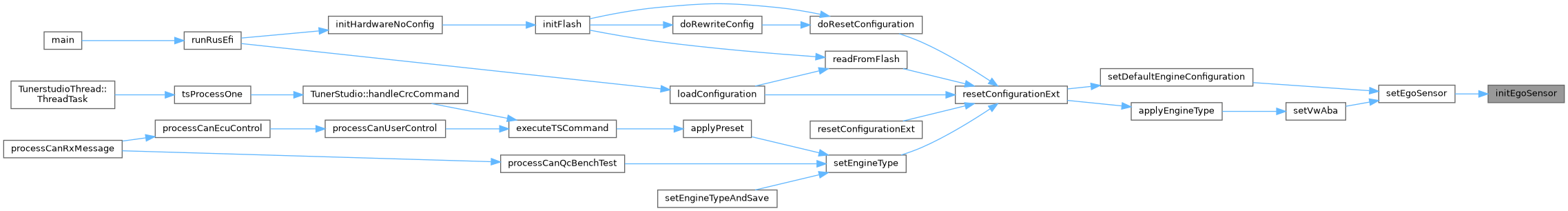

Here is the caller graph for this function:

setEgoSensor()

void setEgoSensor

(

ego_sensor_e

type

)

Definition at line 100 of file ego.cpp.

                                     {
    engineConfiguration->afr_type = type;
    initEgoSensor(&engineConfiguration->afr, type);
}

Referenced by setDefaultEngineConfiguration(), and setVwAba().

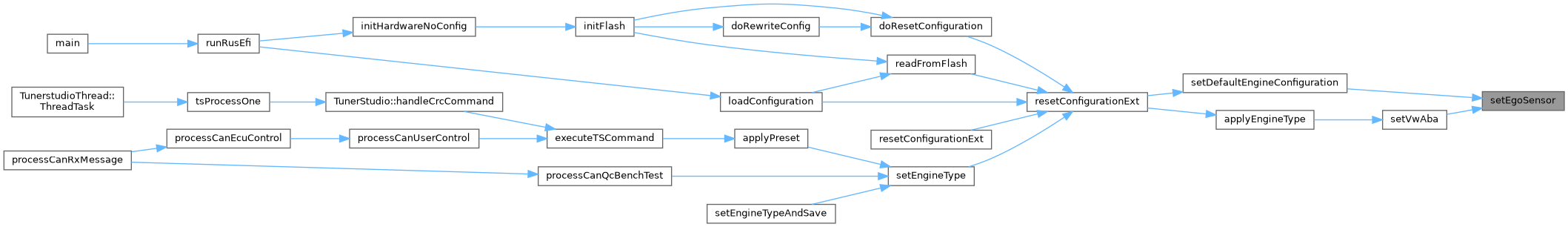

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

expAverageLambda1

ExpAverage expAverageLambda1

Definition at line 12 of file ego.cpp.

Referenced by getAfr(), and AemXSeriesWideband::refreshSmoothedLambda().

expAverageLambda2

ExpAverage expAverageLambda2

Definition at line 13 of file ego.cpp.

Referenced by getAfr(), and AemXSeriesWideband::refreshSmoothedLambda().

smoothedLambda1Sensor

StoredValueSensor smoothedLambda1Sensor(SensorType::SmoothedLambda1, MS2NT(500))	(	SensorType::SmoothedLambda1	,
		MS2NT(500)
	)

Author

Andrey Belomutskiy, (c) 2012-2020

EGO Exhaust Gas Oxygen, also known as AFR Air/Fuel Ratio :) connectet over analog input

Referenced by getAfr(), initLambda(), and AemXSeriesWideband::refreshSmoothedLambda().

smoothedLambda2Sensor

StoredValueSensor smoothedLambda2Sensor(SensorType::SmoothedLambda2, MS2NT(500))	(	SensorType::SmoothedLambda2	,
		MS2NT(500)
	)

Referenced by getAfr(), initLambda(), and AemXSeriesWideband::refreshSmoothedLambda().

Go to the source code of this file.
