firing_order.cpp File Reference

Functions
static size_t	getFiringOrderLength ()
static const uint8_t *	getFiringOrderTable ()
size_t	getCylinderNumberAtIndex (size_t index)
size_t	getNextFiringCylinderId (size_t prevCylinderId)

Variables
static const uint8_t	order_1 [] = {1}
static const uint8_t	order_1_2 [] = {1, 2}
static const uint8_t	order_1_2_3 [] = {1, 2, 3}
static const uint8_t	order_1_3_2 [] = {1, 3, 2}
static const uint8_t	order_1_THEN_3_THEN_4_THEN2 [] = { 1, 3, 4, 2 }
static const uint8_t	order_1_THEN_2_THEN_4_THEN3 [] = { 1, 2, 4, 3 }
static const uint8_t	order_1_THEN_3_THEN_2_THEN4 [] = { 1, 3, 2, 4 }
static const uint8_t	order_1_THEN_4_THEN_3_THEN2 [] = { 1, 4, 3, 2 }
static const uint8_t	order_1_2_4_5_3 [] = {1, 2, 4, 5, 3}
static const uint8_t	order_1_THEN_5_THEN_3_THEN_6_THEN_2_THEN_4 [] = { 1, 5, 3, 6, 2, 4 }
static const uint8_t	order_1_THEN_4_THEN_2_THEN_5_THEN_3_THEN_6 [] = { 1, 4, 2, 5, 3, 6 }
static const uint8_t	order_1_THEN_2_THEN_3_THEN_4_THEN_5_THEN_6 [] = { 1, 2, 3, 4, 5, 6 }
static const uint8_t	order_1_6_3_2_5_4 [] = {1, 6, 3, 2, 5, 4}
static const uint8_t	order_1_4_3_6_2_5 [] = {1, 4, 3, 6, 2, 5}
static const uint8_t	order_1_6_2_4_3_5 [] = {1, 6, 2, 4, 3, 5}
static const uint8_t	order_1_6_5_4_3_2 [] = {1, 6, 5, 4, 3, 2}
static const uint8_t	order_1_4_5_2_3_6 [] = {1, 4, 5, 2, 3, 6}
static const uint8_t	order_1_8_4_3_6_5_7_2 [] = { 1, 8, 4, 3, 6, 5, 7, 2 }
static const uint8_t	order_1_8_7_2_6_5_4_3 [] = { 1, 8, 7, 2, 6, 5, 4, 3 }
static const uint8_t	order_1_5_4_2_6_3_7_8 [] = { 1, 5, 4, 2, 6, 3, 7, 8 }
static const uint8_t	order_1_2_7_8_4_5_6_3 [] = { 1, 2, 7, 8, 4, 5, 6, 3 }
static const uint8_t	order_1_3_7_2_6_5_4_8 [] = { 1, 3, 7, 2, 6, 5, 4, 8 }
static const uint8_t	order_1_2_3_4_5_6_7_8 [] = { 1, 2, 3, 4, 5, 6, 7, 8 }
static const uint8_t	order_1_5_4_8_6_3_7_2 [] = { 1, 5, 4, 8, 6, 3, 7, 2 }
static const uint8_t	order_1_8_7_3_6_5_4_2 [] = { 1, 8, 7, 3, 6, 5, 4, 2 }
static const uint8_t	order_1_5_4_8_3_7_2_6 [] = { 1, 5, 4, 8, 3, 7, 2, 6 }
static const uint8_t	order_1_8_6_2_7_3_4_5 [] = { 1, 8, 6, 2, 7, 3, 4, 5 }
static const uint8_t	order_1_2_3_4_5_6_7_8_9 [] = { 1, 2, 3, 4, 5, 6, 7, 8, 9 }
static const uint8_t	order_1_10_9_4_3_6_5_8_7_2 [] = {1, 10, 9, 4, 3, 6, 5, 8, 7, 2}
static const uint8_t	order_1_6_5_10_2_7_3_8_4_9 [] = {1, 6, 5, 10, 2, 7, 3, 8, 4, 9}
static const uint8_t	order_1_7_5_11_3_9_6_12_2_8_4_10 [] = {1, 7, 5, 11, 3, 9, 6, 12, 2, 8, 4, 10}
static const uint8_t	order_1_7_4_10_2_8_6_12_3_9_5_11 [] = {1, 7, 4, 10, 2, 8, 6, 12, 3, 9, 5, 11}
static const uint8_t	order_1_12_5_8_3_10_6_7_2_11_4_9 [] = {1, 12, 5, 8, 3, 10, 6, 7, 2, 11, 4, 9}
static const uint8_t	order_1_2_3_4_5_6_7_8_9_10_11_12 [] = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12}
static const uint8_t	order_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10 [] = {1, 14, 9, 4, 7, 12, 15, 6, 13, 8, 3, 16, 11, 2, 5, 10}

Function Documentation

getCylinderNumberAtIndex()

size_t getCylinderNumberAtIndex

(

size_t

index

)

Parameters

index

from zero to cylindersCount - 1

Returns

cylinderId from one to cylindersCount

Definition at line 229 of file firing_order.cpp.

                                              {
    const size_t firingOrderLength = getFiringOrderLength();

    if (firingOrderLength < 1 || firingOrderLength > MAX_CYLINDER_COUNT) {
        firmwareError(ObdCode::CUSTOM_FIRING_LENGTH, "fol %d", firingOrderLength);
        return 0;
    }
    if (engineConfiguration->cylindersCount != firingOrderLength) {
        // May 2020 this somehow still happens with functional tests, maybe race condition?
        firmwareError(ObdCode::CUSTOM_OBD_WRONG_FIRING_ORDER, "Wrong cyl count for firing order, expected %d cylinders, got %d", firingOrderLength, engineConfiguration->cylindersCount);
        return 0;
    }

    if (index >= firingOrderLength) {
        // May 2020 this somehow still happens with functional tests, maybe race condition?
        warning(ObdCode::CUSTOM_ERR_6686, "firing order index %d", index);
        return 0;
    }

    if (auto firingOrderTable = getFiringOrderTable()) {
        return firingOrderTable[index] - 1;
    } else {
        // error already reported
        return 0;
    }
}

Referenced by prepareCylinderIgnitionSchedule(), InjectionEvent::update(), and EngineCylinders::updateCylinders().

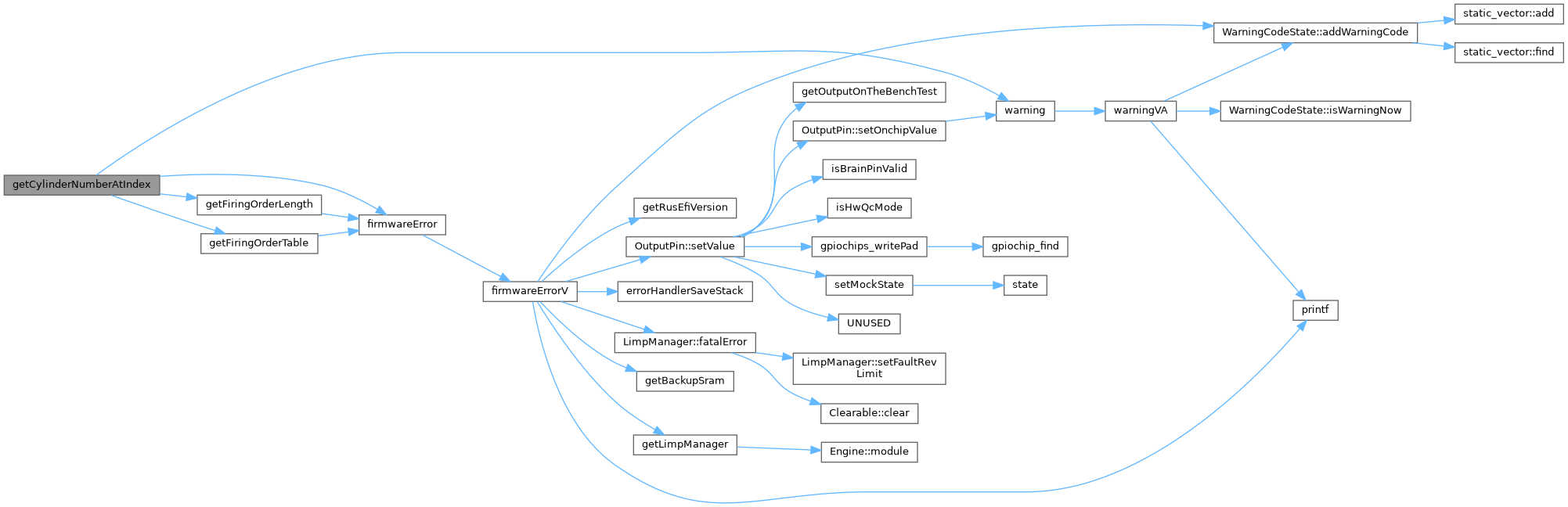

Here is the call graph for this function:

Here is the caller graph for this function:

getFiringOrderLength()

static size_t getFiringOrderLength ( )

static

Definition at line 57 of file firing_order.cpp.

                                     {

    switch (engineConfiguration->firingOrder) {
    case FO_1:
        return 1;
// 2 cylinder
    case FO_1_2:
        return 2;
// 3 cylinder
    case FO_1_2_3:
    case FO_1_3_2:
        return 3;
// 4 cylinder
    case FO_1_3_4_2:
    case FO_1_2_4_3:
    case FO_1_3_2_4:
    case FO_1_4_3_2:
        return 4;
// 5 cylinder
    case FO_1_2_4_5_3:
        return 5;

// 6 cylinder
    case FO_1_5_3_6_2_4:
    case FO_1_4_2_5_3_6:
    case FO_1_2_3_4_5_6:
    case FO_1_6_3_2_5_4:
    case FO_1_4_3_6_2_5:
    case FO_1_6_2_4_3_5:
    case FO_1_6_5_4_3_2:
    case FO_1_4_5_2_3_6:
        return 6;

// 8 cylinder
    case FO_1_8_4_3_6_5_7_2:
    case FO_1_8_7_2_6_5_4_3:
    case FO_1_5_4_2_6_3_7_8:
    case FO_1_2_7_8_4_5_6_3:
    case FO_1_3_7_2_6_5_4_8:
    case FO_1_2_3_4_5_6_7_8:
    case FO_1_5_4_8_6_3_7_2:
    case FO_1_8_7_3_6_5_4_2:
    case FO_1_5_4_8_3_7_2_6:
    case FO_1_8_6_2_7_3_4_5:
        return 8;

// 9 cylinder radial
    case FO_1_2_3_4_5_6_7_8_9:
        return 9;

// 10 cylinder
    case FO_1_10_9_4_3_6_5_8_7_2:
    case FO_1_6_5_10_2_7_3_8_4_9:
        return 10;

// 12 cylinder
    case FO_1_7_5_11_3_9_6_12_2_8_4_10:
    case FO_1_7_4_10_2_8_6_12_3_9_5_11:
    case FO_1_12_5_8_3_10_6_7_2_11_4_9:
    case FO_1_2_3_4_5_6_7_8_9_10_11_12:
        return 12;

    case FO_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10:
        return 16;

    default:
        firmwareError(ObdCode::CUSTOM_OBD_UNKNOWN_FIRING_ORDER, "Invalid firing order: %d", engineConfiguration->firingOrder);
    }
    return 1;
}

Referenced by getCylinderNumberAtIndex(), and getNextFiringCylinderId().

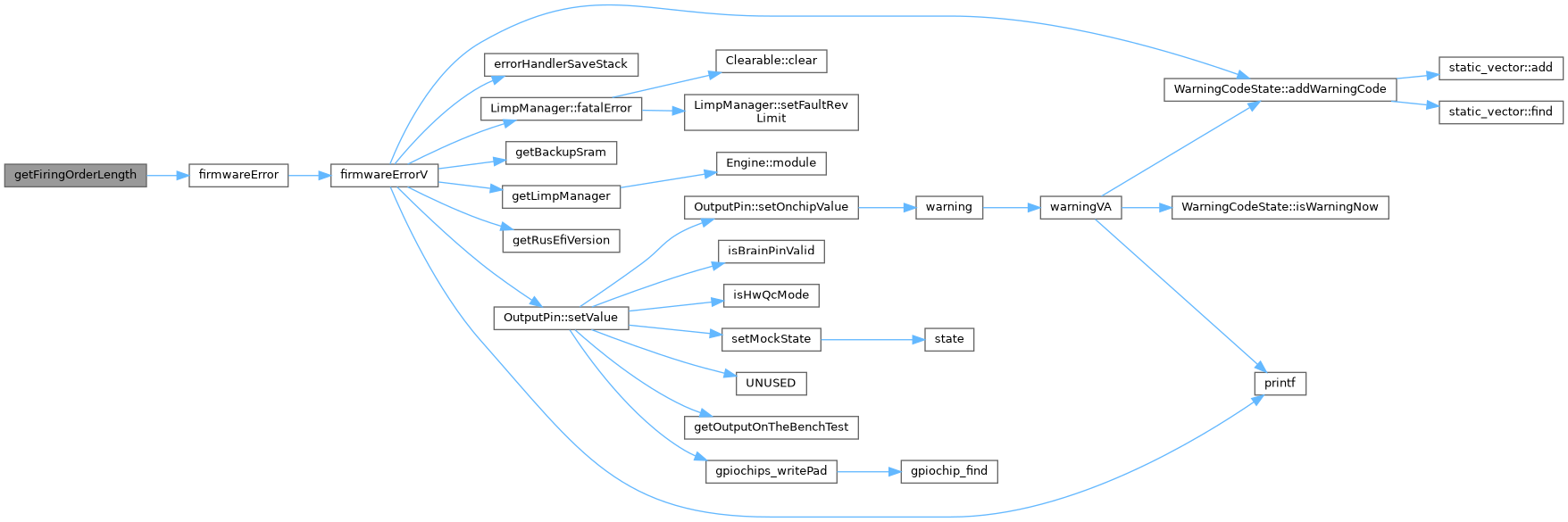

Here is the call graph for this function:

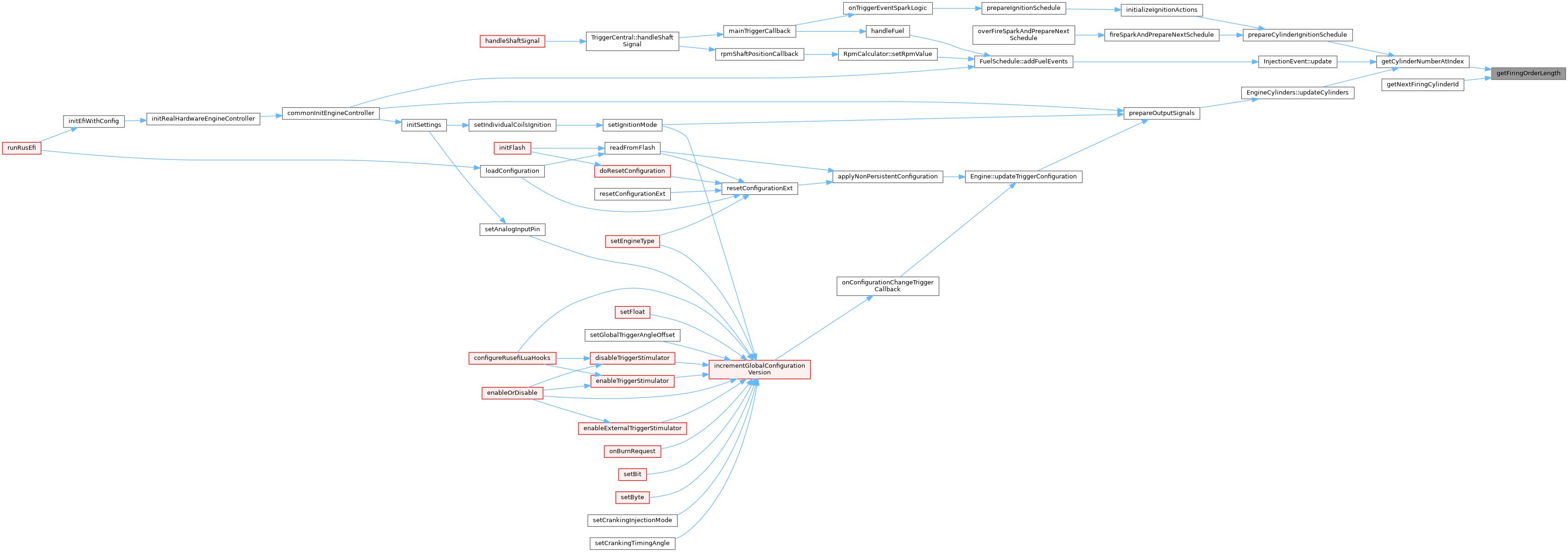

Here is the caller graph for this function:

getFiringOrderTable()

static const uint8_t * getFiringOrderTable ( )

static

Definition at line 128 of file firing_order.cpp.

                                            {
    switch (engineConfiguration->firingOrder) {
    case FO_1:
        return order_1;
// 2 cylinder
    case FO_1_2:
        return order_1_2;
// 3 cylinder
    case FO_1_2_3:
        return order_1_2_3;
    case FO_1_3_2:
        return order_1_3_2;
// 4 cylinder
    case FO_1_3_4_2:
        return order_1_THEN_3_THEN_4_THEN2;
    case FO_1_2_4_3:
        return order_1_THEN_2_THEN_4_THEN3;
    case FO_1_3_2_4:
        return order_1_THEN_3_THEN_2_THEN4;
    case FO_1_4_3_2:
        return order_1_THEN_4_THEN_3_THEN2;
// 5 cylinder
    case FO_1_2_4_5_3:
        return order_1_2_4_5_3;

// 6 cylinder
    case FO_1_5_3_6_2_4:
        return order_1_THEN_5_THEN_3_THEN_6_THEN_2_THEN_4;
    case FO_1_4_2_5_3_6:
        return order_1_THEN_4_THEN_2_THEN_5_THEN_3_THEN_6;
    case FO_1_2_3_4_5_6:
        return order_1_THEN_2_THEN_3_THEN_4_THEN_5_THEN_6;
    case FO_1_6_3_2_5_4:
        return order_1_6_3_2_5_4;
    case FO_1_4_3_6_2_5:
        return order_1_4_3_6_2_5;
    case FO_1_6_2_4_3_5:
        return order_1_6_2_4_3_5;
    case FO_1_6_5_4_3_2:
        return order_1_6_5_4_3_2;
    case FO_1_4_5_2_3_6:
        return order_1_4_5_2_3_6;

// 8 cylinder
    case FO_1_8_4_3_6_5_7_2:
        return order_1_8_4_3_6_5_7_2;
    case FO_1_8_7_2_6_5_4_3:
        return order_1_8_7_2_6_5_4_3;
    case FO_1_5_4_2_6_3_7_8:
        return order_1_5_4_2_6_3_7_8;
    case FO_1_2_7_8_4_5_6_3:
        return order_1_2_7_8_4_5_6_3;
    case FO_1_3_7_2_6_5_4_8:
        return order_1_3_7_2_6_5_4_8;
    case FO_1_2_3_4_5_6_7_8:
        return order_1_2_3_4_5_6_7_8;
    case FO_1_5_4_8_6_3_7_2:
        return order_1_5_4_8_6_3_7_2;
    case FO_1_8_7_3_6_5_4_2:
        return order_1_8_7_3_6_5_4_2;
    case FO_1_5_4_8_3_7_2_6:
        return order_1_5_4_8_3_7_2_6;
    case FO_1_8_6_2_7_3_4_5:
        return order_1_5_4_8_3_7_2_6;

// 9 cylinder
    case FO_1_2_3_4_5_6_7_8_9:
        return order_1_2_3_4_5_6_7_8_9;


// 10 cylinder
    case FO_1_10_9_4_3_6_5_8_7_2:
        return order_1_10_9_4_3_6_5_8_7_2;
    case FO_1_6_5_10_2_7_3_8_4_9:
        return order_1_6_5_10_2_7_3_8_4_9;

// 12 cylinder
    case FO_1_7_5_11_3_9_6_12_2_8_4_10:
        return order_1_7_5_11_3_9_6_12_2_8_4_10;
    case FO_1_7_4_10_2_8_6_12_3_9_5_11:
        return order_1_7_4_10_2_8_6_12_3_9_5_11;
    case FO_1_12_5_8_3_10_6_7_2_11_4_9:
        return order_1_12_5_8_3_10_6_7_2_11_4_9;
    case FO_1_2_3_4_5_6_7_8_9_10_11_12:
        return order_1_2_3_4_5_6_7_8_9_10_11_12;

// do not ask
    case FO_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10:
        return order_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10;

    default:
        firmwareError(ObdCode::CUSTOM_OBD_UNKNOWN_FIRING_ORDER, "Invalid firing order: %d", engineConfiguration->firingOrder);
    }

    return NULL;
}

Referenced by getCylinderNumberAtIndex(), and getNextFiringCylinderId().

Here is the call graph for this function:

Here is the caller graph for this function:

getNextFiringCylinderId()

size_t getNextFiringCylinderId

(

size_t

prevCylinderId

)

Parameters

prevCylinderId

from one to cylindersCount

Returns

cylinderId from one to cylindersCount

Definition at line 260 of file firing_order.cpp.

                                                      {
    const size_t firingOrderLength = getFiringOrderLength();
    auto firingOrderTable = getFiringOrderTable();

    if (firingOrderTable) {
        for (size_t i = 0; i < firingOrderLength; i++) {
            if (firingOrderTable[i] == prevCylinderId) {
                return firingOrderTable[(i + 1) % firingOrderLength];
            }
        }
    }

    return 1;
}

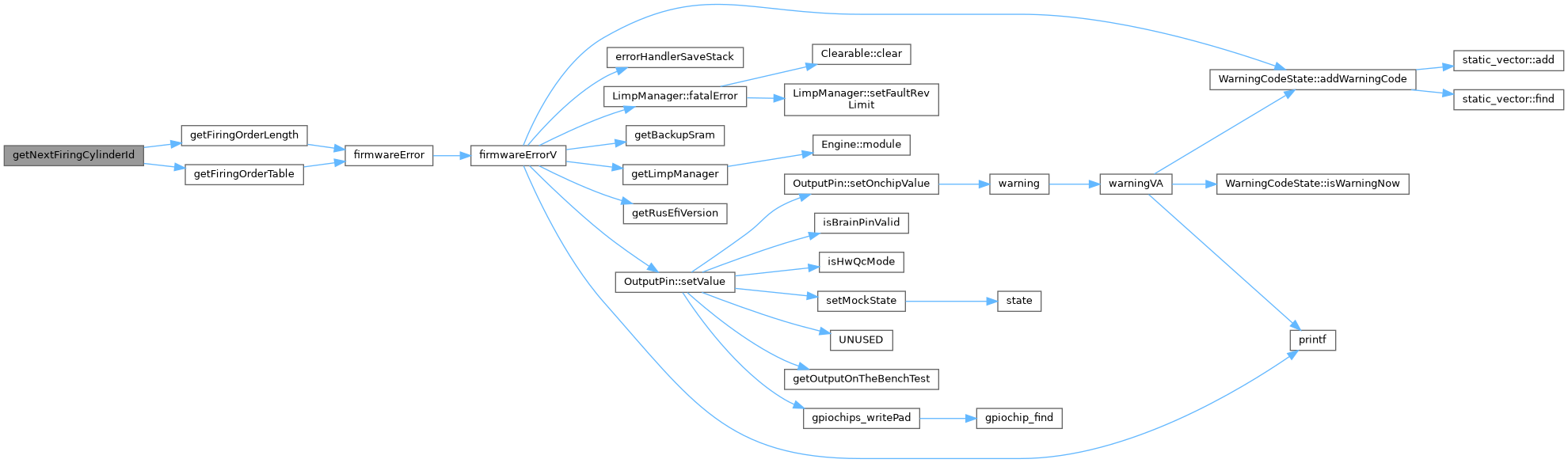

Here is the call graph for this function:

Variable Documentation

order_1

const uint8_t order_1[] = {1}

static

Definition at line 3 of file firing_order.cpp.

{1};

Referenced by getFiringOrderTable().

order_1_10_9_4_3_6_5_8_7_2

const uint8_t order_1_10_9_4_3_6_5_8_7_2[] = {1, 10, 9, 4, 3, 6, 5, 8, 7, 2}

static

Definition at line 45 of file firing_order.cpp.

{1, 10, 9, 4, 3, 6, 5, 8, 7, 2};

Referenced by getFiringOrderTable().

order_1_12_5_8_3_10_6_7_2_11_4_9

const uint8_t order_1_12_5_8_3_10_6_7_2_11_4_9[] = {1, 12, 5, 8, 3, 10, 6, 7, 2, 11, 4, 9}

static

Definition at line 51 of file firing_order.cpp.

{1, 12, 5, 8, 3, 10, 6, 7, 2, 11, 4, 9};

Referenced by getFiringOrderTable().

order_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10

const uint8_t order_1_14_9_4_7_12_15_6_13_8_3_16_11_2_5_10[] = {1, 14, 9, 4, 7, 12, 15, 6, 13, 8, 3, 16, 11, 2, 5, 10}

static

Definition at line 55 of file firing_order.cpp.

{1, 14, 9, 4, 7, 12, 15, 6, 13, 8, 3, 16, 11, 2, 5, 10};

Referenced by getFiringOrderTable().

order_1_2

const uint8_t order_1_2[] = {1, 2}

static

Definition at line 5 of file firing_order.cpp.

{1, 2};

Referenced by getFiringOrderTable().

order_1_2_3

const uint8_t order_1_2_3[] = {1, 2, 3}

static

Definition at line 7 of file firing_order.cpp.

{1, 2, 3};

Referenced by getFiringOrderTable().

order_1_2_3_4_5_6_7_8

const uint8_t order_1_2_3_4_5_6_7_8[] = { 1, 2, 3, 4, 5, 6, 7, 8 }

static

Definition at line 35 of file firing_order.cpp.

{ 1, 2, 3, 4, 5, 6, 7, 8 };

Referenced by getFiringOrderTable().

order_1_2_3_4_5_6_7_8_9

const uint8_t order_1_2_3_4_5_6_7_8_9[] = { 1, 2, 3, 4, 5, 6, 7, 8, 9 }

static

Definition at line 42 of file firing_order.cpp.

{ 1, 2, 3, 4, 5, 6, 7, 8, 9 };

Referenced by getFiringOrderTable().

order_1_2_3_4_5_6_7_8_9_10_11_12

const uint8_t order_1_2_3_4_5_6_7_8_9_10_11_12[] = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12}

static

Definition at line 52 of file firing_order.cpp.

{1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12};

Referenced by getFiringOrderTable().

order_1_2_4_5_3

const uint8_t order_1_2_4_5_3[] = {1, 2, 4, 5, 3}

static

Definition at line 17 of file firing_order.cpp.

{1, 2, 4, 5, 3};

Referenced by getFiringOrderTable().

order_1_2_7_8_4_5_6_3

const uint8_t order_1_2_7_8_4_5_6_3[] = { 1, 2, 7, 8, 4, 5, 6, 3 }

static

Definition at line 33 of file firing_order.cpp.

{ 1, 2, 7, 8, 4, 5, 6, 3 };

Referenced by getFiringOrderTable().

order_1_3_2

const uint8_t order_1_3_2[] = {1, 3, 2}

static

Definition at line 8 of file firing_order.cpp.

{1, 3, 2};

Referenced by getFiringOrderTable().

order_1_3_7_2_6_5_4_8

const uint8_t order_1_3_7_2_6_5_4_8[] = { 1, 3, 7, 2, 6, 5, 4, 8 }

static

Definition at line 34 of file firing_order.cpp.

{ 1, 3, 7, 2, 6, 5, 4, 8 };

Referenced by getFiringOrderTable().

order_1_4_3_6_2_5

const uint8_t order_1_4_3_6_2_5[] = {1, 4, 3, 6, 2, 5}

static

Definition at line 24 of file firing_order.cpp.

{1, 4, 3, 6, 2, 5};

Referenced by getFiringOrderTable().

order_1_4_5_2_3_6

const uint8_t order_1_4_5_2_3_6[] = {1, 4, 5, 2, 3, 6}

static

Definition at line 27 of file firing_order.cpp.

{1, 4, 5, 2, 3, 6};

Referenced by getFiringOrderTable().

order_1_5_4_2_6_3_7_8

const uint8_t order_1_5_4_2_6_3_7_8[] = { 1, 5, 4, 2, 6, 3, 7, 8 }

static

Definition at line 32 of file firing_order.cpp.

{ 1, 5, 4, 2, 6, 3, 7, 8 };

Referenced by getFiringOrderTable().

order_1_5_4_8_3_7_2_6

const uint8_t order_1_5_4_8_3_7_2_6[] = { 1, 5, 4, 8, 3, 7, 2, 6 }

static

Definition at line 38 of file firing_order.cpp.

{ 1, 5, 4, 8, 3, 7, 2, 6 };

Referenced by getFiringOrderTable().

order_1_5_4_8_6_3_7_2

const uint8_t order_1_5_4_8_6_3_7_2[] = { 1, 5, 4, 8, 6, 3, 7, 2 }

static

Definition at line 36 of file firing_order.cpp.

{ 1, 5, 4, 8, 6, 3, 7, 2 };

Referenced by getFiringOrderTable().

order_1_6_2_4_3_5

const uint8_t order_1_6_2_4_3_5[] = {1, 6, 2, 4, 3, 5}

static

Definition at line 25 of file firing_order.cpp.

{1, 6, 2, 4, 3, 5};

Referenced by getFiringOrderTable().

order_1_6_3_2_5_4

const uint8_t order_1_6_3_2_5_4[] = {1, 6, 3, 2, 5, 4}

static

Definition at line 23 of file firing_order.cpp.

{1, 6, 3, 2, 5, 4};

Referenced by getFiringOrderTable().

order_1_6_5_10_2_7_3_8_4_9

const uint8_t order_1_6_5_10_2_7_3_8_4_9[] = {1, 6, 5, 10, 2, 7, 3, 8, 4, 9}

static

Definition at line 46 of file firing_order.cpp.

{1, 6, 5, 10, 2, 7, 3, 8, 4, 9};

Referenced by getFiringOrderTable().

order_1_6_5_4_3_2

const uint8_t order_1_6_5_4_3_2[] = {1, 6, 5, 4, 3, 2}

static

Definition at line 26 of file firing_order.cpp.

{1, 6, 5, 4, 3, 2};

Referenced by getFiringOrderTable().

order_1_7_4_10_2_8_6_12_3_9_5_11

const uint8_t order_1_7_4_10_2_8_6_12_3_9_5_11[] = {1, 7, 4, 10, 2, 8, 6, 12, 3, 9, 5, 11}

static

Definition at line 50 of file firing_order.cpp.

{1, 7, 4, 10, 2, 8, 6, 12, 3, 9, 5, 11};

Referenced by getFiringOrderTable().

order_1_7_5_11_3_9_6_12_2_8_4_10

const uint8_t order_1_7_5_11_3_9_6_12_2_8_4_10[] = {1, 7, 5, 11, 3, 9, 6, 12, 2, 8, 4, 10}

static

Definition at line 49 of file firing_order.cpp.

{1, 7, 5, 11, 3, 9, 6, 12, 2, 8, 4, 10};

Referenced by getFiringOrderTable().

order_1_8_4_3_6_5_7_2

const uint8_t order_1_8_4_3_6_5_7_2[] = { 1, 8, 4, 3, 6, 5, 7, 2 }

static

Definition at line 30 of file firing_order.cpp.

{ 1, 8, 4, 3, 6, 5, 7, 2 };

Referenced by getFiringOrderTable().

order_1_8_6_2_7_3_4_5

const uint8_t order_1_8_6_2_7_3_4_5[] = { 1, 8, 6, 2, 7, 3, 4, 5 }

static

Definition at line 39 of file firing_order.cpp.

{ 1, 8, 6, 2, 7, 3, 4, 5 };

order_1_8_7_2_6_5_4_3

const uint8_t order_1_8_7_2_6_5_4_3[] = { 1, 8, 7, 2, 6, 5, 4, 3 }

static

Definition at line 31 of file firing_order.cpp.

{ 1, 8, 7, 2, 6, 5, 4, 3 };

Referenced by getFiringOrderTable().

order_1_8_7_3_6_5_4_2

const uint8_t order_1_8_7_3_6_5_4_2[] = { 1, 8, 7, 3, 6, 5, 4, 2 }

static

Definition at line 37 of file firing_order.cpp.

{ 1, 8, 7, 3, 6, 5, 4, 2 };

Referenced by getFiringOrderTable().

order_1_THEN_2_THEN_3_THEN_4_THEN_5_THEN_6

const uint8_t order_1_THEN_2_THEN_3_THEN_4_THEN_5_THEN_6[] = { 1, 2, 3, 4, 5, 6 }

static

Definition at line 22 of file firing_order.cpp.

{ 1, 2, 3, 4, 5, 6 };

Referenced by getFiringOrderTable().

order_1_THEN_2_THEN_4_THEN3

const uint8_t order_1_THEN_2_THEN_4_THEN3[] = { 1, 2, 4, 3 }

static

Definition at line 12 of file firing_order.cpp.

{ 1, 2, 4, 3 };

Referenced by getFiringOrderTable().

order_1_THEN_3_THEN_2_THEN4

const uint8_t order_1_THEN_3_THEN_2_THEN4[] = { 1, 3, 2, 4 }

static

Definition at line 13 of file firing_order.cpp.

{ 1, 3, 2, 4 };

Referenced by getFiringOrderTable().

order_1_THEN_3_THEN_4_THEN2

const uint8_t order_1_THEN_3_THEN_4_THEN2[] = { 1, 3, 4, 2 }

static

Definition at line 11 of file firing_order.cpp.

{ 1, 3, 4, 2 };

Referenced by getFiringOrderTable().

order_1_THEN_4_THEN_2_THEN_5_THEN_3_THEN_6

const uint8_t order_1_THEN_4_THEN_2_THEN_5_THEN_3_THEN_6[] = { 1, 4, 2, 5, 3, 6 }

static

Definition at line 21 of file firing_order.cpp.

{ 1, 4, 2, 5, 3, 6 };

Referenced by getFiringOrderTable().

order_1_THEN_4_THEN_3_THEN2

const uint8_t order_1_THEN_4_THEN_3_THEN2[] = { 1, 4, 3, 2 }

static

Definition at line 14 of file firing_order.cpp.

{ 1, 4, 3, 2 };

Referenced by getFiringOrderTable().

order_1_THEN_5_THEN_3_THEN_6_THEN_2_THEN_4

const uint8_t order_1_THEN_5_THEN_3_THEN_6_THEN_2_THEN_4[] = { 1, 5, 3, 6, 2, 4 }

static

Definition at line 20 of file firing_order.cpp.

{ 1, 5, 3, 6, 2, 4 };

Referenced by getFiringOrderTable().

Go to the source code of this file.
