init_input_shaft_speed_sensor.cpp File Reference

Functions
void	initInputShaftSpeedSensor ()
void	deinitInputShaftSpeedSensor ()

Variables
FrequencySensor	inputShaftSpeedSensor (SensorType::InputShaftSpeed, MS2NT(500))
static InputShaftSpeedConverter	inputSpeedConverter

Function Documentation

deinitInputShaftSpeedSensor()

void deinitInputShaftSpeedSensor

(

)

Definition at line 26 of file init_input_shaft_speed_sensor.cpp.

                                   {
    inputShaftSpeedSensor.deInit();
}

Referenced by stopSensors().

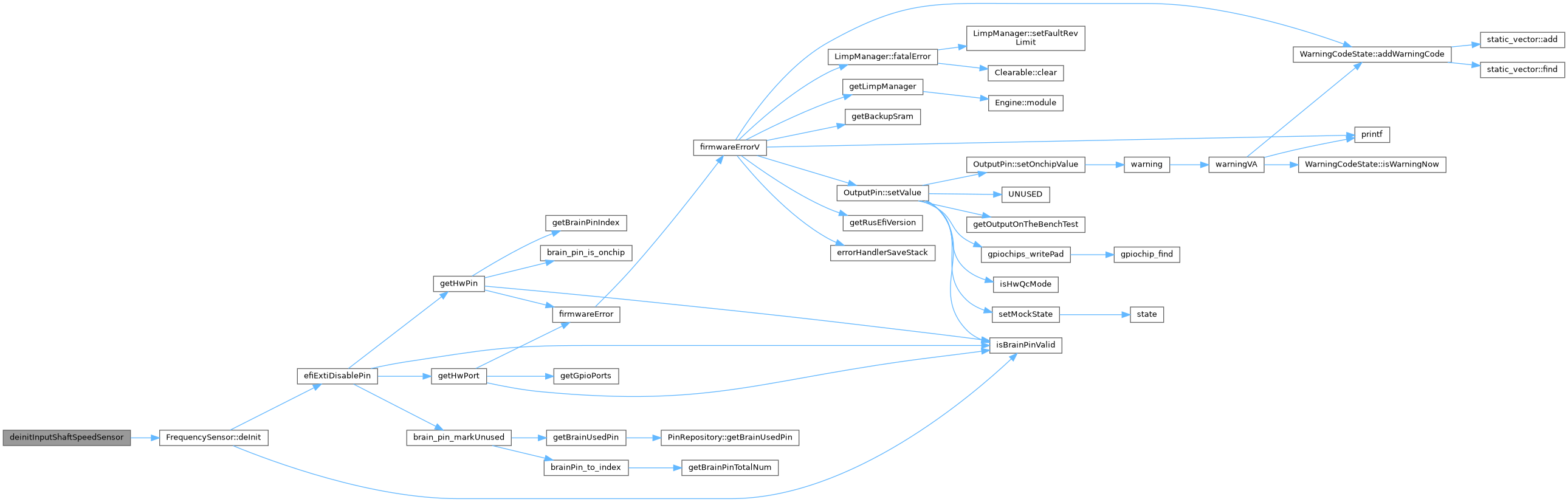

Here is the call graph for this function:

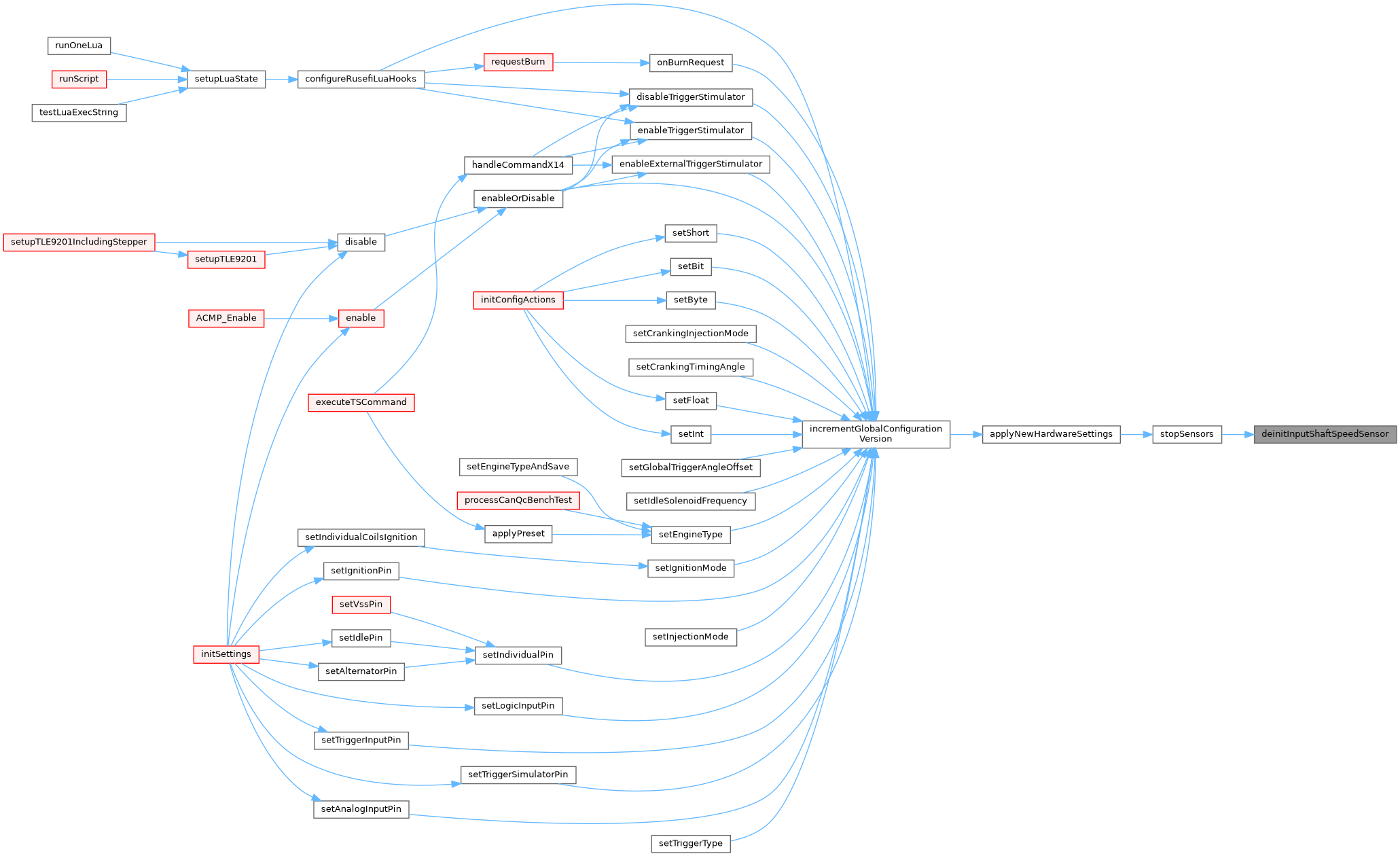

Here is the caller graph for this function:

initInputShaftSpeedSensor()

void initInputShaftSpeedSensor

(

)

Definition at line 15 of file init_input_shaft_speed_sensor.cpp.

                                 {
    int parameter = engineConfiguration->issFilterReciprocal;

    if (parameter < 3 || parameter > 200) {
        parameter = 3;
    }

    float filterParameter = 1.0f / parameter;
    inputShaftSpeedSensor.initIfValid(engineConfiguration->tcuInputSpeedSensorPin, inputSpeedConverter, filterParameter);
}

Referenced by sensorStartUpOrReconfiguration().

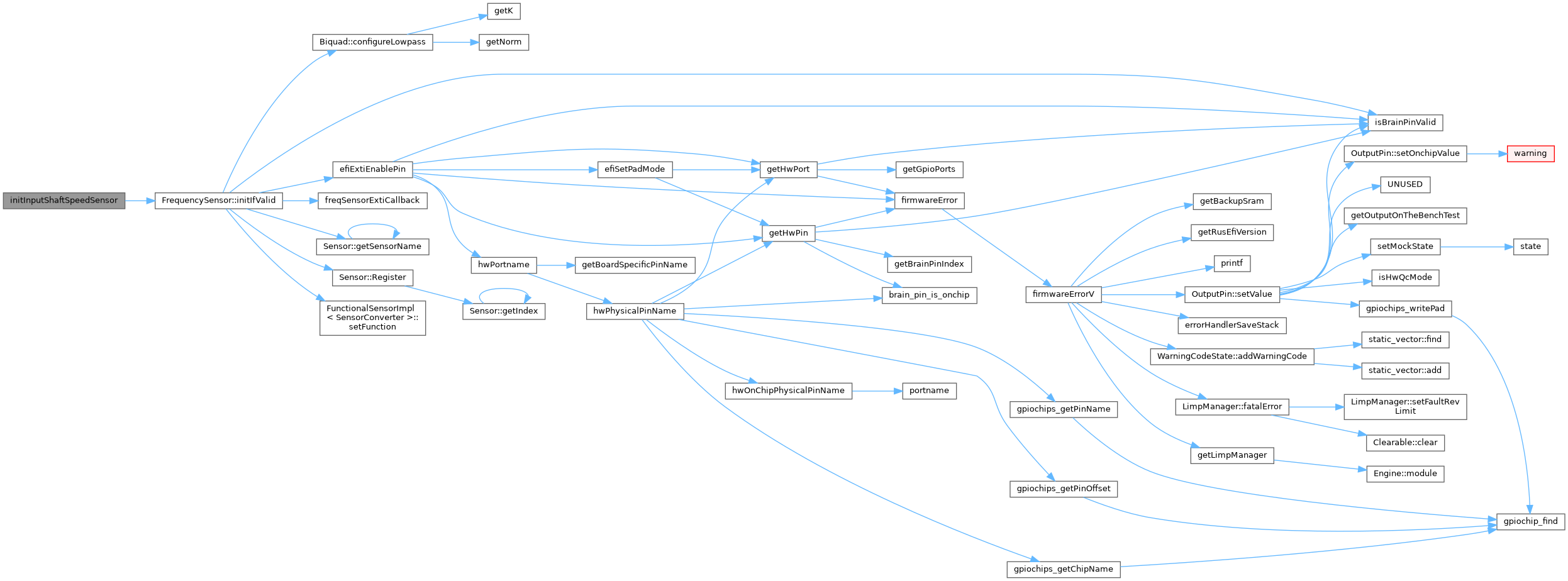

Here is the call graph for this function:

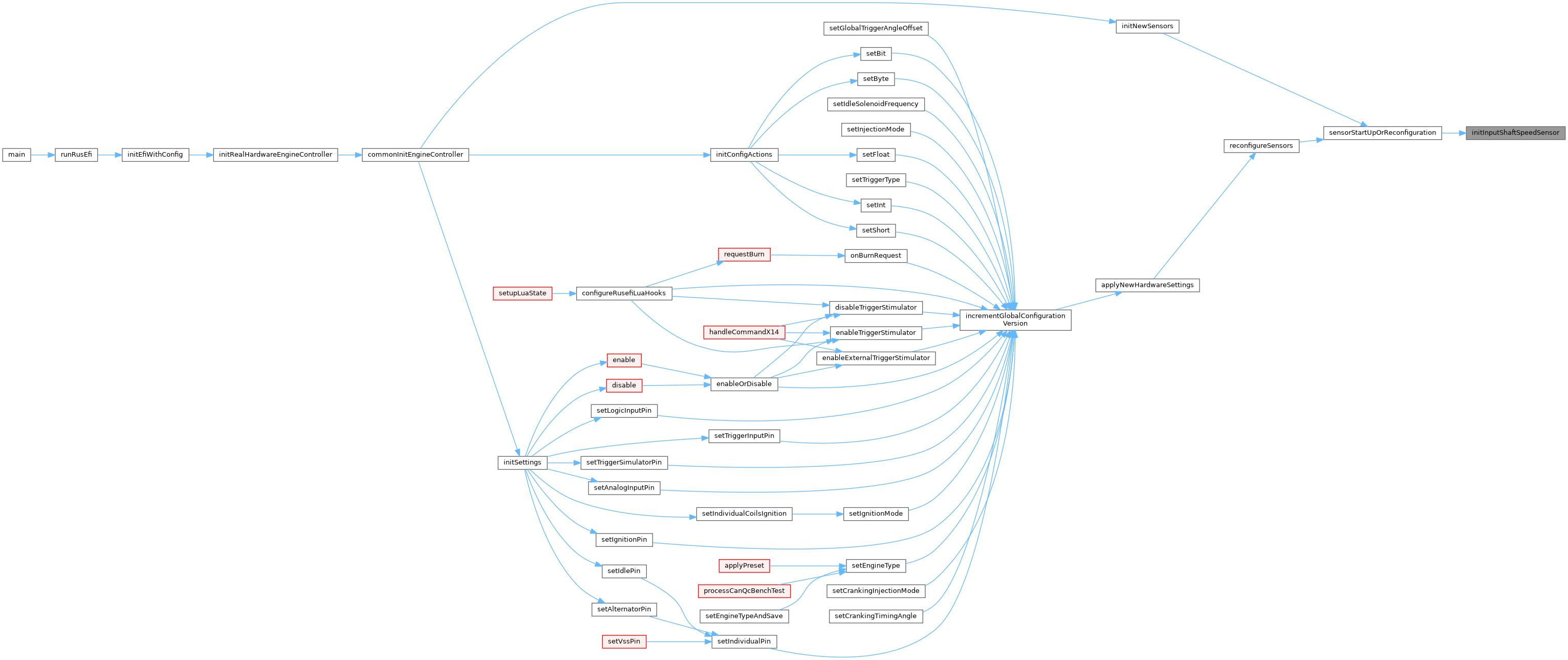

Here is the caller graph for this function:

Variable Documentation

inputShaftSpeedSensor

FrequencySensor inputShaftSpeedSensor(SensorType::InputShaftSpeed, MS2NT(500))	(	SensorType::InputShaftSpeed	,
		MS2NT(500)
	)

We were NOT able to get this code working reliable it could be that biquad parameter or biquad overall is part of the problem

Referenced by deinitInputShaftSpeedSensor(), initInputShaftSpeedSensor(), and updateTunerStudioState().

inputSpeedConverter

InputShaftSpeedConverter inputSpeedConverter

static

Definition at line 13 of file init_input_shaft_speed_sensor.cpp.

Referenced by initInputShaftSpeedSensor().

Go to the source code of this file.
