main_hardfault.c File Reference

Detailed Description

This black magic improves hard fault debugging experience

http://www.chibios.com/forum/viewtopic.php?t=2506

Definition in file main_hardfault.c.

Enumerations
enum	FaultType {   Reset = 1 , NMI = 2 , HardFault = 3 , MemManage = 4 ,   BusFault = 5 , UsageFault = 6 }

Functions
void	NMI_Handler (void)
void	logHardFault (uint32_t type, uintptr_t faultAddress, void *sp, struct port_extctx *ctx, uint32_t csfr)
void	HardFault_Handler_C (void *sp)
void	UsageFault_Handler_C (void *sp)
void	MemManage_Handler_C (void *sp)

Enumeration Type Documentation

FaultType

enum FaultType

Enumerator
Reset
NMI
HardFault
MemManage
BusFault
UsageFault

Definition at line 23 of file main_hardfault.c.

              {
    Reset = 1,
    NMI = 2,
    HardFault = 3,
    MemManage = 4,
    BusFault = 5,
    UsageFault = 6,
} FaultType;

Function Documentation

HardFault_Handler_C()

void HardFault_Handler_C

(

void *

sp

)

Definition at line 34 of file main_hardfault.c.

                                   {
    //Copy to local variables (not pointers) to allow GDB "i loc" to directly show the info
    //Get thread context. Contains main registers including PC and LR
    struct port_extctx ctx;
    memcpy(&ctx, sp, sizeof(struct port_extctx));

    //Interrupt status register: Which interrupt have we encountered, e.g. HardFault?
    volatile FaultType faultType = (FaultType)__get_IPSR();
    (void)faultType;
    //For HardFault/BusFault this is the address that was accessed causing the error
    volatile uint32_t faultAddress = SCB->BFAR;

    //Flags about hardfault / busfault
    //See http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.dui0552a/Cihdjcfc.html for reference
    volatile bool isFaultPrecise = ((SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos) & (1 << 1) ? true : false);
    volatile bool isFaultImprecise = ((SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos) & (1 << 2) ? true : false);
    volatile bool isFaultOnUnstacking = ((SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos) & (1 << 3) ? true : false);
    volatile bool isFaultOnStacking = ((SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos) & (1 << 4) ? true : false);
    volatile bool isFaultAddressValid = ((SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos) & (1 << 7) ? true : false);
    (void)isFaultPrecise;
    (void)isFaultImprecise;
    (void)isFaultOnUnstacking;
    (void)isFaultOnStacking;
    (void)isFaultAddressValid;

    logHardFault(faultType, faultAddress, sp, &ctx, SCB->CFSR >> SCB_CFSR_BUSFAULTSR_Pos);

    // check if debugger is connected
    if (CoreDebug->DHCSR & CoreDebug_DHCSR_C_DEBUGEN_Msk)
    {
        bkpt();
    }
    NVIC_SystemReset();
}

Here is the call graph for this function:

logHardFault()

void logHardFault	(	uint32_t	type,
		uintptr_t	faultAddress,
		void *	sp,
		struct port_extctx *	ctx,
		uint32_t	csfr
	)

Definition at line 16 of file bootloader_stubs.cpp.

{ }

Referenced by HardFault_Handler_C(), MemManage_Handler_C(), and UsageFault_Handler_C().

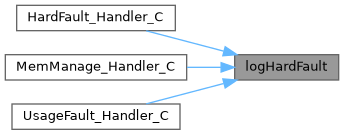

Here is the call graph for this function:

Here is the caller graph for this function:

MemManage_Handler_C()

void MemManage_Handler_C

(

void *

sp

)

Definition at line 103 of file main_hardfault.c.

                                   {
    //Copy to local variables (not pointers) to allow GDB "i loc" to directly show the info
    //Get thread context. Contains main registers including PC and LR
    struct port_extctx ctx;
    memcpy(&ctx, sp, sizeof(struct port_extctx));

    //Interrupt status register: Which interrupt have we encountered, e.g. HardFault?
    FaultType faultType = (FaultType)__get_IPSR();
    (void)faultType;
    //For HardFault/BusFault this is the address that was accessed causing the error
    volatile uint32_t faultAddress = SCB->MMFAR;

    //Flags about hardfault / busfault
    //See http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.dui0552a/Cihdjcfc.html for reference
    volatile bool isInstructionAccessViolation = ((SCB->CFSR >> SCB_CFSR_MEMFAULTSR_Pos) & (1 << 0) ? true : false);
    volatile bool isDataAccessViolation = ((SCB->CFSR >> SCB_CFSR_MEMFAULTSR_Pos) & (1 << 1) ? true : false);
    volatile bool isExceptionUnstackingFault = ((SCB->CFSR >> SCB_CFSR_MEMFAULTSR_Pos) & (1 << 3) ? true : false);
    volatile bool isExceptionStackingFault = ((SCB->CFSR >> SCB_CFSR_MEMFAULTSR_Pos) & (1 << 4) ? true : false);
    volatile bool isFaultAddressValid = ((SCB->CFSR >> SCB_CFSR_MEMFAULTSR_Pos) & (1 << 7) ? true : false);
    (void)isInstructionAccessViolation;
    (void)isDataAccessViolation;
    (void)isExceptionUnstackingFault;
    (void)isExceptionStackingFault;
    (void)isFaultAddressValid;

    logHardFault(faultType, faultAddress, sp, &ctx, SCB->CFSR);

    // check if debugger is connected
    if (CoreDebug->DHCSR & CoreDebug_DHCSR_C_DEBUGEN_Msk)
    {
        bkpt();
    }
    NVIC_SystemReset();
}

Here is the call graph for this function:

NMI_Handler()

void NMI_Handler

(

void

)

Definition at line 18 of file main_hardfault.c.

                       {
    NVIC_SystemReset();
}

UsageFault_Handler_C()

void UsageFault_Handler_C

(

void *

sp

)

Definition at line 69 of file main_hardfault.c.

                                    {
    //Copy to local variables (not pointers) to allow GDB "i loc" to directly show the info
    //Get thread context. Contains main registers including PC and LR
    struct port_extctx ctx;
    memcpy(&ctx, sp, sizeof(struct port_extctx));

    //Interrupt status register: Which interrupt have we encountered, e.g. HardFault?
    volatile FaultType faultType = (FaultType)__get_IPSR();
    (void)faultType;
    //Flags about hardfault / busfault
    //See http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.dui0552a/Cihdjcfc.html for reference
    volatile bool isUndefinedInstructionFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 0) ? true : false);
    volatile bool isEPSRUsageFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 1) ? true : false);
    volatile bool isInvalidPCFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 2) ? true : false);
    volatile bool isNoCoprocessorFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 3) ? true : false);
    volatile bool isUnalignedAccessFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 8) ? true : false);
    volatile bool isDivideByZeroFault = ((SCB->CFSR >> SCB_CFSR_USGFAULTSR_Pos) & (1 << 9) ? true : false);
    (void)isUndefinedInstructionFault;
    (void)isEPSRUsageFault;
    (void)isInvalidPCFault;
    (void)isNoCoprocessorFault;
    (void)isUnalignedAccessFault;
    (void)isDivideByZeroFault;

    logHardFault(faultType, 0, sp, &ctx, SCB->CFSR);

    // check if debugger is connected
    if (CoreDebug->DHCSR & CoreDebug_DHCSR_C_DEBUGEN_Msk)
    {
        bkpt();
    }
    NVIC_SystemReset();
}

Here is the call graph for this function:
