Functions
void	clearWarnings (void)

static int	find_position (ObdCode e_code)

void	addError (ObdCode errorCode)
	Adds an error code into the set of current errors. The error code is placed into the fixed-size data structure if it fits into it. The error code stays in the data structure till it is removed by 'clearError'.

void	removeError (ObdCode errorCode)
	Removed the error code from the set of current errors.

void	getErrorCodes (error_codes_set_s *copy)
	Copies the current set of errors into the specified buffer.

bool	hasErrorCodes (void)

Variables
static error_codes_set_s	error_codes_set

Function Documentation

◆ addError()

void addError ( ObdCode errorCode )

Adds an error code into the set of current errors. The error code is placed into the fixed-size data structure if it fits into it. The error code stays in the data structure till it is removed by 'clearError'.

Definition at line 35 of file malfunction_central.cpp.

                                 {
    if (error_codes_set.count < MAX_ERROR_CODES_COUNT && find_position(errorCode) == -1) {
        error_codes_set.error_codes[error_codes_set.count] = errorCode;
        error_codes_set.count++;
    }
}

Referenced by testMil().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearWarnings()

void clearWarnings ( void )

Definition at line 17 of file malfunction_central.cpp.

                         {
    error_codes_set.count = 0;
}

Referenced by executeTSCommand().

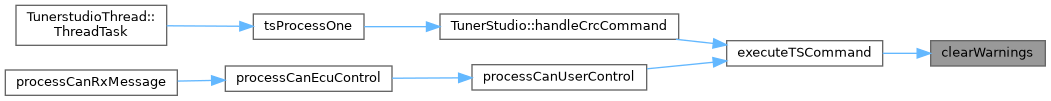

Here is the caller graph for this function:

◆ find_position()

static int find_position ( ObdCode e_code )

static

Search if code is present

Returns: -1 if code not found

Definition at line 27 of file malfunction_central.cpp.

                                         {
    // cycle for searching element equal seaching code
    for (int t = 0; t < error_codes_set.count; t++)
        if (error_codes_set.error_codes[t] == e_code)
            return t;           // we found position where this code is present
    return -1;                                                      // -1 if code not found
}

Referenced by addError(), and removeError().

Here is the caller graph for this function:

◆ getErrorCodes()

void getErrorCodes ( error_codes_set_s * copy )

Copies the current set of errors into the specified buffer.

Definition at line 55 of file malfunction_central.cpp.

                                             {
    copy->count = error_codes_set.count;
    copyArray(copy->error_codes, error_codes_set.error_codes);
}

◆ hasErrorCodes()

bool hasErrorCodes ( void )

Definition at line 60 of file malfunction_central.cpp.

                         {
    return error_codes_set.count > 0;
}

Referenced by updateTunerStudioState().

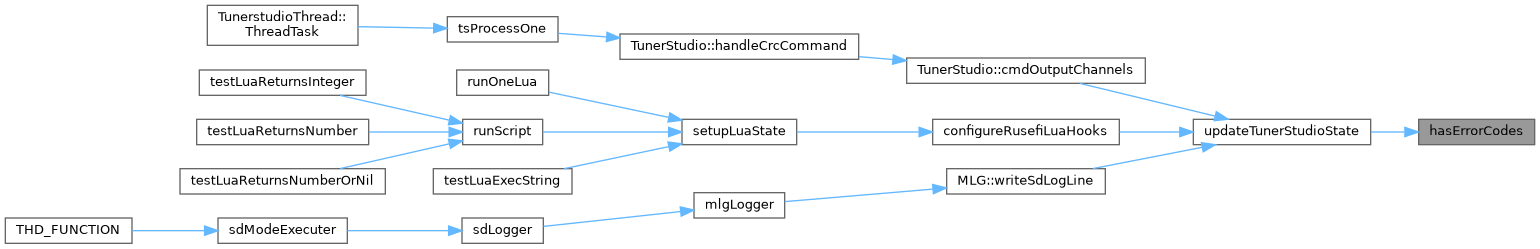

Here is the caller graph for this function:

◆ removeError()

void removeError ( ObdCode errorCode )

Removed the error code from the set of current errors.

Definition at line 42 of file malfunction_central.cpp.

                                    {
    int pos = find_position(errorCode);
    if (pos >= 0) {
        // shift all right elements to one pos left
        for (int t = pos; t < error_codes_set.count - 1; t++) {
            error_codes_set.error_codes[t] = error_codes_set.error_codes[t + 1];
        }

        error_codes_set.error_codes[--error_codes_set.count] = (ObdCode)0;              // place 0
    }
}
