openblt_usb.cpp File Reference

Functions
void	Rs232Init ()
static blt_bool	Rs232ReceiveByte (blt_int8u *data)
static void	Rs232TransmitByte (blt_int8u data)
void	Rs232TransmitPacket (blt_int8u *data, blt_int8u len)
	Transmits a packet formatted for the communication interface.
PUBLIC_API_WEAK void	openBltUnexpectedByte (blt_int8u firstByte)
blt_bool	Rs232ReceivePacket (blt_int8u *data, blt_int8u *len)
	Receives a communication interface packet if one is present.

Variables
blt_bool	stayInBootloader

Function Documentation

openBltUnexpectedByte()

PUBLIC_API_WEAK void openBltUnexpectedByte

(

blt_int8u

firstByte

)

Definition at line 49 of file openblt_usb.cpp.

                                                                {
#if defined(OPEN_BLT_TEST_COMMAND)
// 'z' is right at the end of 128 ascii range
static_assert(BOOT_COM_RS232_RX_MAX_DATA < 'z');
  if (firstByte == 'z') {
  const char * bltTest = "openblt\n";
    chnWriteTimeout(&SDU1, (const uint8_t*)bltTest, sizeof(bltTest), TIME_INFINITE);
  }
#endif // OPEN_BLT_TEST_COMMAND
}

Referenced by Rs232ReceivePacket().

Here is the caller graph for this function:

Rs232Init()

void Rs232Init

(

)

Definition at line 12 of file openblt_usb.cpp.

                 {
#if (BOOT_BACKDOOR_ENTRY_TIMEOUT_MS == 0)
    if (stayInBootloader || (NvmVerifyChecksum() == BLT_FALSE))
#endif
    {
      // Set up USB serial
    usb_serial_start();
    }
}

Here is the call graph for this function:

Rs232ReceiveByte()

static blt_bool Rs232ReceiveByte ( blt_int8u *  data )

static

Definition at line 131 of file openblt_usb.cpp.

{
    if (!is_usb_serial_ready()) {
        return BLT_FALSE;
    }

    auto bytesRead = chnReadTimeout(&SDU1, data, 1, TIME_IMMEDIATE);

    return bytesRead == 0 ? BLT_FALSE : BLT_TRUE;
}

Referenced by Rs232ReceivePacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Rs232ReceivePacket()

blt_bool Rs232ReceivePacket	(	blt_int8u *	data,
		blt_int8u *	len
	)

Receives a communication interface packet if one is present.

Parameters

data	Pointer to byte array where the data is to be stored.
len	Pointer where the length of the packet is to be stored.

Returns

BLT_TRUE if a packet was received, BLT_FALSE otherwise.

Definition at line 67 of file openblt_usb.cpp.

{
  static blt_int8u xcpCtoReqPacket[BOOT_COM_RS232_RX_MAX_DATA+1];  /* one extra for length */
  static blt_int8u xcpCtoRxLength;
  static blt_bool  xcpCtoRxInProgress = BLT_FALSE;
  static blt_int32u xcpCtoRxStartTime = 0;

  /* start of cto packet received? */
  if (xcpCtoRxInProgress == BLT_FALSE)
  {
    /* store the message length when received */
    if (Rs232ReceiveByte(&xcpCtoReqPacket[0]) == BLT_TRUE)
    {
      if ( (xcpCtoReqPacket[0] > 0) &&
           (xcpCtoReqPacket[0] <= BOOT_COM_RS232_RX_MAX_DATA) )
      {
        /* store the start time */
        xcpCtoRxStartTime = TimerGet();
        /* reset packet data count */
        xcpCtoRxLength = 0;
        /* indicate that a cto packet is being received */
        xcpCtoRxInProgress = BLT_TRUE;
      } else {
        openBltUnexpectedByte(xcpCtoReqPacket[0]);
      }
    }
  }
  else
  {
    /* store the next packet byte */
    if (Rs232ReceiveByte(&xcpCtoReqPacket[xcpCtoRxLength+1]) == BLT_TRUE)
    {
      /* increment the packet data count */
      xcpCtoRxLength++;

      /* check to see if the entire packet was received */
      if (xcpCtoRxLength == xcpCtoReqPacket[0])
      {
        /* copy the packet data */
        CpuMemCopy((blt_int32u)data, (blt_int32u)&xcpCtoReqPacket[1], xcpCtoRxLength);
        /* done with cto packet reception */
        xcpCtoRxInProgress = BLT_FALSE;
        /* set the packet length */
        *len = xcpCtoRxLength;
        /* packet reception complete */
        return BLT_TRUE;
      }
    }
    else
    {
      /* check packet reception timeout */
      if (TimerGet() > (xcpCtoRxStartTime + RS232_CTO_RX_PACKET_TIMEOUT_MS))
      {
        /* cancel cto packet reception due to timeout. note that that automaticaly
         * discards the already received packet bytes, allowing the host to retry.
         */
        xcpCtoRxInProgress = BLT_FALSE;
      }
    }
  }
  /* packet reception not yet complete */
  return BLT_FALSE;
} /*** end of Rs232ReceivePacket ***/

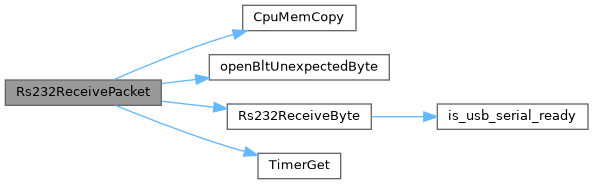

Here is the call graph for this function:

Rs232TransmitByte()

static void Rs232TransmitByte ( blt_int8u  data )

static

Definition at line 142 of file openblt_usb.cpp.

{
    chnWriteTimeout(&SDU1, &data, 1, TIME_INFINITE);
}

Referenced by Rs232TransmitPacket().

Here is the caller graph for this function:

Rs232TransmitPacket()

void Rs232TransmitPacket	(	blt_int8u *	data,
		blt_int8u	len
	)

Transmits a packet formatted for the communication interface.

Parameters

data	Pointer to byte array with data that it to be transmitted.
len	Number of bytes that are to be transmitted.

Returns

none.

Definition at line 34 of file openblt_usb.cpp.

{

  /* verify validity of the len-paramenter */
  // ASSERT_RT(len <= BOOT_COM_RS232_TX_MAX_DATA);

  /* first transmit the length of the packet */
  Rs232TransmitByte(len);

  chnWriteTimeout(&SDU1, data, len, TIME_INFINITE);

  /* wait for transmission ends */
  usb_serial_flush();
} /*** end of Rs232TransmitPacket ***/

Here is the call graph for this function:

Variable Documentation

stayInBootloader

blt_bool stayInBootloader

extern

Definition at line 17 of file bootloader_main.cpp.

Referenced by main(), and Rs232Init().

Go to the source code of this file.
