shared_params.h File Reference

Functions
void	SharedParamsInit (void)
	Initializes the shared RAM parameters module.
bool	SharedParamsReadByIndex (uint32_t idx, uint8_t *value)
	Reads a data byte from the shared parameter buffer at the specified index.
bool	SharedParamsWriteByIndex (uint32_t idx, uint8_t value)
	Writes a data byte to the shared parameter buffer at the specified index.

Function Documentation

SharedParamsInit()

void SharedParamsInit

(

void

)

Initializes the shared RAM parameters module.

Returns

none.

Definition at line 83 of file shared_params.c.

{
  uint32_t byteIdx;

  /* The shared parameter buffer does not get initialized by the C-startup code. Another
   * previously running program could have initialized it, in which case it is ready
   * for use and nothing more needs to be done.
   */
  if (!SharedParamsValidateBuffer())
  {
    /* The shared parameter buffer was not yet initialized by a running program. This
     * typically happens after a cold reset where the RAM contents were lost. In this
     * case we need to explicitly configure and initialize it, since the C-startup code
     * was configured to not do this.
     *
     * The initialization consists of setting the buffer identifier, zeroing the
     * actual parameter data and updating the checksum at the end.
     */
    sharedParamsBuffer.identifier = SHARED_PARAMS_BUFFER_ID;
    for (byteIdx=0; byteIdx < SHARED_PARAMS_CFG_BUFFER_DATA_LEN; byteIdx++)
    {
      sharedParamsBuffer.data[byteIdx] = 0;
    }
    SharedParamsWriteChecksum();
  }
} /*** end of SharedParamsInit ***/

Referenced by jump_to_openblt(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

SharedParamsReadByIndex()

bool SharedParamsReadByIndex	(	uint32_t	idx,
		uint8_t *	value
	)

Reads a data byte from the shared parameter buffer at the specified index.

Parameters

idx	Index into the parameter data array. A valid value is between 0 and (SHARED_PARAMS_CFG_BUFFER_DATA_LEN - 1).
value	Pointer to where the read data value is stored.

Returns

True if successful, false otherwise.

Definition at line 119 of file shared_params.c.

{
  bool result = false;

  /* Only continue if the buffer and the specified parameters are valid. */
  if ( (SharedParamsValidateBuffer()) &&
       (idx < SHARED_PARAMS_CFG_BUFFER_DATA_LEN)  &&
       (value != NULL) )
  {
    /* Read the value and update the result. */
    *value = sharedParamsBuffer.data[idx];
    result = true;
  }
  /* Give the result back to the caller. */
  return result;
} /*** end of SharedParamsReadByIndex ***/

Referenced by checkIfRebootIntoOpenBltRequested(), and checkIfResetLoop().

Here is the call graph for this function:

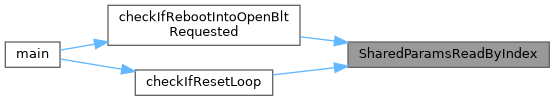

Here is the caller graph for this function:

SharedParamsWriteByIndex()

bool SharedParamsWriteByIndex	(	uint32_t	idx,
		uint8_t	value
	)

Writes a data byte to the shared parameter buffer at the specified index.

Parameters

idx	Index into the parameter data array. A valid value is between 0 and (SHARED_PARAMS_CFG_BUFFER_DATA_LEN - 1).
value	Value to write.

Returns

True if successful, false otherwise.

Definition at line 145 of file shared_params.c.

{
  bool result = false;

  /* Only continue if the buffer and the specified parameters are valid. */
  if ( (SharedParamsValidateBuffer()) &&
       (idx < SHARED_PARAMS_CFG_BUFFER_DATA_LEN) )
  {
    /* Write the value. */
    sharedParamsBuffer.data[idx] = value;
    /* Update the checksum since the contents were just changed. */
    SharedParamsWriteChecksum();
    /* Update the result. */
    result = true;
    #if CORTEX_MODEL == 7
      // If we have a cache, drop the relevant cache lines.
      SCB_CleanDCache_by_Addr((uint32_t*)&sharedParamsBuffer, sizeof(sharedParamsBuffer));
    #endif
  }
  /* Give the result back to the caller. */
  return result;
} /*** end of SharedParamsWriteByIndex ***/

Referenced by checkIfRebootIntoOpenBltRequested(), checkIfResetLoop(), jump_to_openblt(), and tryResetWatchdog().

Here is the call graph for this function:

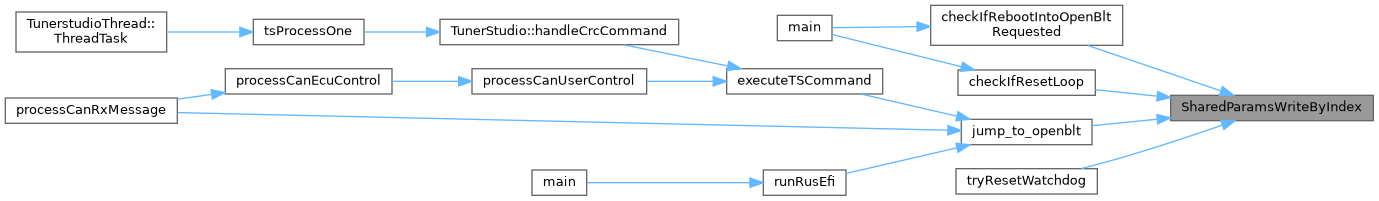

Here is the caller graph for this function:
