stm32_icu.cpp File Reference

Detailed Description

Port implementation for the STM32 timer units in ICU mode found on the STM32F4 and STM32F7.

Date

October 20, 2022

Author

Andrey Gusakov, (c) 2022

Andrey Belomutskiy, (c) 2012-2020

Definition in file stm32_icu.cpp.

Functions
bool	getIcuParams (brain_pin_e hwPin, iomode_t *af_ptr, ICUDriver **icu_ptr, icuchannel_t *channel_ptr, uint32_t *clock_ptr)

Function Documentation

getIcuParams()

bool getIcuParams	(	brain_pin_e	hwPin,
		iomode_t *	af_ptr,
		ICUDriver **	icu_ptr,
		icuchannel_t *	channel_ptr,
		uint32_t *	clock_ptr
	)

ChibiOS limitation is that only channels #1 and #2 could be used for input capture Could this be unified with getConfigForPin() method?

Definition at line 122 of file stm32_icu.cpp.

                                                                                                                             {
    switch (hwPin) {
        case Gpio::A0:
            RETURN_ICU5(ICU_CHANNEL_1);
            return false;
        case Gpio::A1:
            RETURN_ICU2(ICU_CHANNEL_2);
            RETURN_ICU5(ICU_CHANNEL_2);
            return false;
        case Gpio::A2:
            RETURN_ICU9(ICU_CHANNEL_1);
            return false;
        case Gpio::A3:
            RETURN_ICU9(ICU_CHANNEL_2);
            return false;
        case Gpio::A5:
            RETURN_ICU2(ICU_CHANNEL_1);
            return false;
        case Gpio::A6:
            RETURN_ICU3(ICU_CHANNEL_1);
            RETURN_ICU13(ICU_CHANNEL_1);
            return false;
        case Gpio::A7:
            RETURN_ICU3(ICU_CHANNEL_2);
            RETURN_ICU14(ICU_CHANNEL_1);
            return false;
        case Gpio::A8:
            RETURN_ICU1(ICU_CHANNEL_1);
            return false;
        case Gpio::A9:
            RETURN_ICU1(ICU_CHANNEL_2);
            return false;
        case Gpio::A15:
            RETURN_ICU2(ICU_CHANNEL_1);
            return false;
        case Gpio::B3:
            RETURN_ICU2(ICU_CHANNEL_2);
            return false;
        case Gpio::B4:
            RETURN_ICU3(ICU_CHANNEL_1);
            return false;
        case Gpio::B5:
            RETURN_ICU3(ICU_CHANNEL_2);
            return false;
        case Gpio::B6:
            RETURN_ICU4(ICU_CHANNEL_1);
            return false;
        case Gpio::B7:
            RETURN_ICU4(ICU_CHANNEL_2);
            return false;
        case Gpio::B8:
            RETURN_ICU10(ICU_CHANNEL_1);
            return false;
        case Gpio::B9:
            RETURN_ICU11(ICU_CHANNEL_1);
            return false;
        case Gpio::B14:
            RETURN_ICU12(ICU_CHANNEL_1);
            return false;
        case Gpio::B15:
            RETURN_ICU12(ICU_CHANNEL_2);
            return false;
        case Gpio::C6:
            RETURN_ICU3(ICU_CHANNEL_1);
            RETURN_ICU8(ICU_CHANNEL_1);
            return false;
        case Gpio::C7:
            RETURN_ICU3(ICU_CHANNEL_2);
            RETURN_ICU8(ICU_CHANNEL_2);
            return false;
        case Gpio::D12:
            RETURN_ICU4(ICU_CHANNEL_1);
            return false;
        case Gpio::D13:
            RETURN_ICU4(ICU_CHANNEL_2);
            return false;
        case Gpio::E5:
            RETURN_ICU9(ICU_CHANNEL_1);
            return false;
        case Gpio::E6:
            RETURN_ICU9(ICU_CHANNEL_2);
            return false;
        case Gpio::E9:
            RETURN_ICU1(ICU_CHANNEL_1);
            return false;
        case Gpio::E11:
            RETURN_ICU1(ICU_CHANNEL_2);
            return false;
        case Gpio::E14:
            RETURN_ICU1(ICU_CHANNEL_4);
            return false;
        case Gpio::F6:
            RETURN_ICU10(ICU_CHANNEL_1);
            return false;
        case Gpio::F7:
            RETURN_ICU11(ICU_CHANNEL_1);
            return false;
        case Gpio::F8:
            RETURN_ICU13(ICU_CHANNEL_1);
            return false;
        case Gpio::F9:
            RETURN_ICU14(ICU_CHANNEL_1);
            return false;
        case Gpio::H6:
            RETURN_ICU12(ICU_CHANNEL_1);
            return false;
        case Gpio::H9:
            RETURN_ICU12(ICU_CHANNEL_2);
            return false;
        case Gpio::H10:
            RETURN_ICU5(ICU_CHANNEL_1);
            return false;
        case Gpio::H11:
            RETURN_ICU5(ICU_CHANNEL_2);
            return false;
        case Gpio::I5:
            RETURN_ICU8(ICU_CHANNEL_1);
            return false;
        case Gpio::I6:
            RETURN_ICU8(ICU_CHANNEL_2);
            return false;

        default:
            return false;
    }

    return false;
}

Referenced by startSent(), and stopSent().

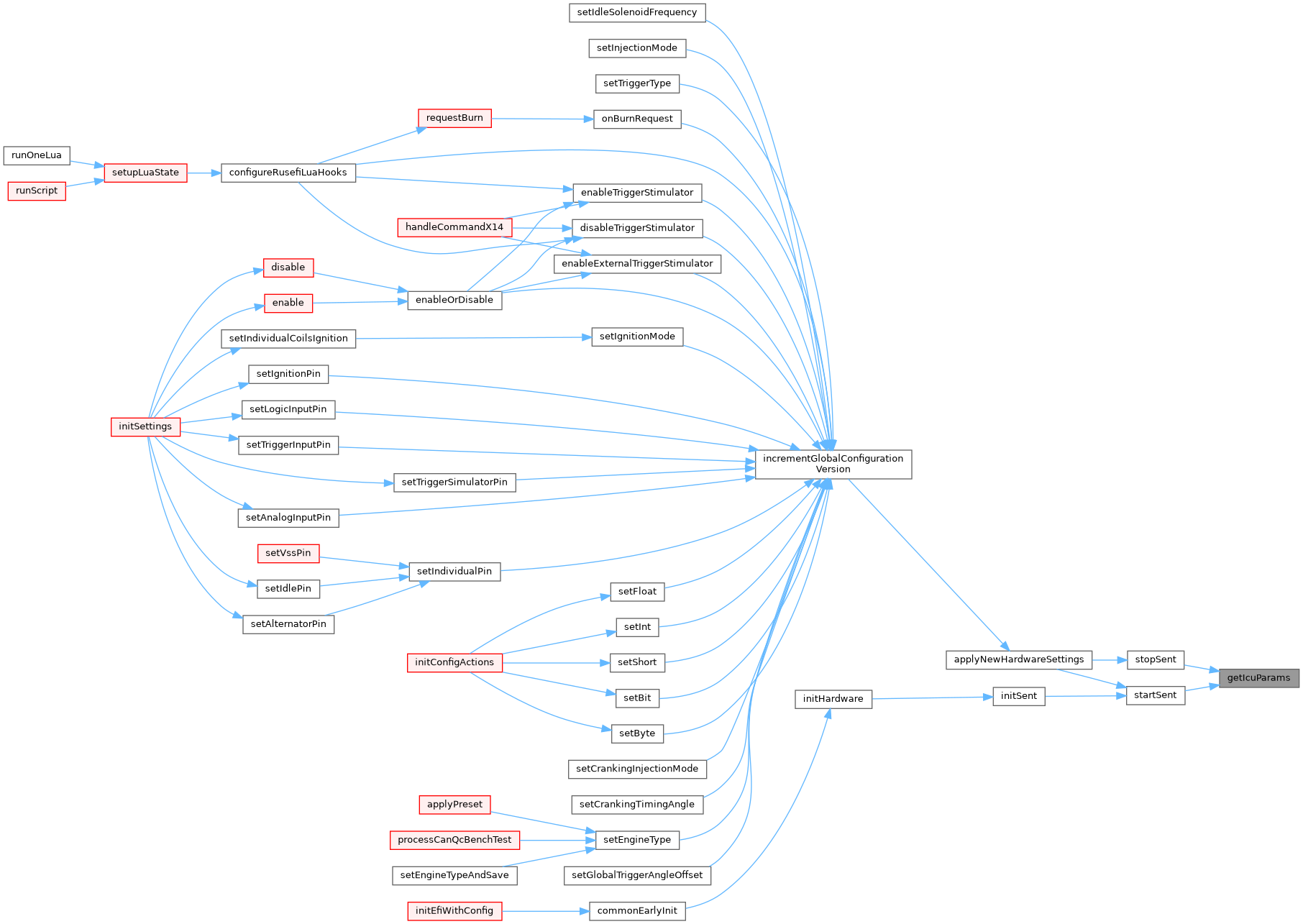

Here is the caller graph for this function:
