Flash IFR memory descriptor. More...
#include <fsl_ftfx_controller.h>

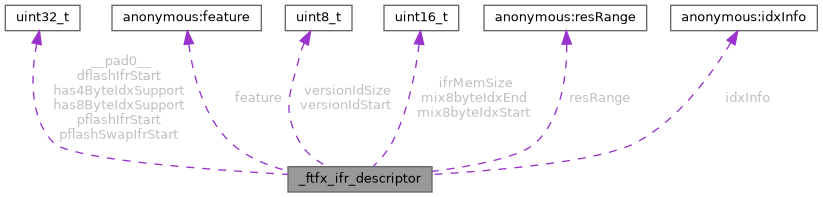

Collaboration diagram for _ftfx_ifr_descriptor:
Data Fields | ||
| struct { | ||
| uint32_t has4ByteIdxSupport:1 | ||
| uint32_t has8ByteIdxSupport:1 | ||
| uint32_t :30 | ||
| } | feature | |
| struct { | ||
| uint8_t versionIdStart | ||
| uint8_t versionIdSize | ||
| uint16_t ifrMemSize | ||
| uint32_t pflashIfrStart | ||
| uint32_t dflashIfrStart | ||
| uint32_t pflashSwapIfrStart | ||
| } | resRange | |
| struct { | ||
| uint16_t mix8byteIdxStart | ||
| uint16_t mix8byteIdxEnd | ||
| } | idxInfo | |
Detailed Description
Flash IFR memory descriptor.
Definition at line 292 of file fsl_ftfx_controller.h.
Field Documentation
◆ __pad0__
| uint32_t _ftfx_ifr_descriptor::__pad0__ |
Definition at line 297 of file fsl_ftfx_controller.h.
◆ dflashIfrStart
| uint32_t _ftfx_ifr_descriptor::dflashIfrStart |
Definition at line 304 of file fsl_ftfx_controller.h.
◆ [struct]
| struct { ... } _ftfx_ifr_descriptor::feature |
◆ has4ByteIdxSupport
| uint32_t _ftfx_ifr_descriptor::has4ByteIdxSupport |
Definition at line 295 of file fsl_ftfx_controller.h.
◆ has8ByteIdxSupport
| uint32_t _ftfx_ifr_descriptor::has8ByteIdxSupport |
Definition at line 296 of file fsl_ftfx_controller.h.
◆ [struct]
| struct { ... } _ftfx_ifr_descriptor::idxInfo |
◆ ifrMemSize
| uint16_t _ftfx_ifr_descriptor::ifrMemSize |
Definition at line 302 of file fsl_ftfx_controller.h.
◆ mix8byteIdxEnd
| uint16_t _ftfx_ifr_descriptor::mix8byteIdxEnd |
Definition at line 309 of file fsl_ftfx_controller.h.
◆ mix8byteIdxStart
| uint16_t _ftfx_ifr_descriptor::mix8byteIdxStart |
Definition at line 308 of file fsl_ftfx_controller.h.
◆ pflashIfrStart
| uint32_t _ftfx_ifr_descriptor::pflashIfrStart |
Definition at line 303 of file fsl_ftfx_controller.h.
◆ pflashSwapIfrStart
| uint32_t _ftfx_ifr_descriptor::pflashSwapIfrStart |
Definition at line 305 of file fsl_ftfx_controller.h.
◆ [struct]
| struct { ... } _ftfx_ifr_descriptor::resRange |
◆ versionIdSize
| uint8_t _ftfx_ifr_descriptor::versionIdSize |
Definition at line 301 of file fsl_ftfx_controller.h.
◆ versionIdStart
| uint8_t _ftfx_ifr_descriptor::versionIdStart |
Definition at line 300 of file fsl_ftfx_controller.h.
The documentation for this struct was generated from the following file:
- config/boards/kinetis/OS/os/hal/ports/KINETIS/KE1xF/fsl/fsl_ftfx_controller.h
