COMPConfig Struct Reference

Driver configuration structure. More...

#include <hal_comp_lld.h>

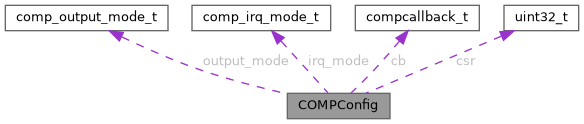

Collaboration diagram for COMPConfig:

Data Fields
comp_output_mode_t	output_mode
	Ouput mode.
comp_irq_mode_t	irq_mode
	Ouput mode.
compcallback_t	cb
	Callback.
uint32_t	csr
	COMP CSR register initialization data.

Detailed Description

Driver configuration structure.

Note

It could be empty on some architectures.

Definition at line 160 of file hal_comp_lld.h.

Field Documentation

cb

compcallback_t COMPConfig::cb

Callback.

Definition at line 174 of file hal_comp_lld.h.

Referenced by comp_lld_irq_handler().

csr

uint32_t COMPConfig::csr

COMP CSR register initialization data.

Note

The value of this field should normally be equal to zero.

Definition at line 182 of file hal_comp_lld.h.

irq_mode

comp_irq_mode_t COMPConfig::irq_mode

Ouput mode.

Definition at line 169 of file hal_comp_lld.h.

Referenced by comp_lld_enable().

output_mode

comp_output_mode_t COMPConfig::output_mode

Ouput mode.

Definition at line 164 of file hal_comp_lld.h.

Referenced by comp_lld_start().

---

The documentation for this struct was generated from the following file:

• config/boards/kinetis/OS/os/hal/ports/KINETIS/LLD/COMPv2/hal_comp_lld.h
