FLASH handle Structure definition
More...
#include <stm32f4xx_hal_flash.h>

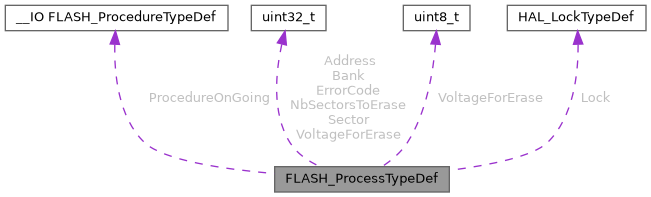

Data Fields | |
| __IO FLASH_ProcedureTypeDef | ProcedureOnGoing |
| __IO uint32_t | NbSectorsToErase |
| __IO uint8_t | VoltageForErase |
| __IO uint32_t | Sector |
| __IO uint32_t | Bank |
| __IO uint32_t | Address |
| HAL_LockTypeDef | Lock |
| __IO uint32_t | ErrorCode |
| __IO uint32_t | VoltageForErase |
Detailed Description
FLASH handle Structure definition
FLASH handle Structure definition.
Definition at line 76 of file stm32f4xx_hal_flash.h.
Field Documentation
◆ Address
| __IO uint32_t FLASH_ProcessTypeDef::Address |
Internal variable to save address selected for program
Definition at line 88 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), and HAL_FLASH_Program_IT().
◆ Bank
| __IO uint32_t FLASH_ProcessTypeDef::Bank |
Definition at line 86 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), and HAL_FLASHEx_Erase_IT().
◆ ErrorCode
| __IO uint32_t FLASH_ProcessTypeDef::ErrorCode |
FLASH error code
Definition at line 92 of file stm32f4xx_hal_flash.h.
Referenced by FLASH_CRC_WaitForLastOperation(), FLASH_OB_WaitForLastOperation(), FLASH_SetErrorCode(), FLASH_WaitForLastOperation(), HAL_FLASH_GetError(), HAL_FLASH_Program(), and HAL_FLASH_Program_IT().
◆ Lock
| HAL_LockTypeDef FLASH_ProcessTypeDef::Lock |
FLASH locking object
Definition at line 90 of file stm32f4xx_hal_flash.h.
◆ NbSectorsToErase
| __IO uint32_t FLASH_ProcessTypeDef::NbSectorsToErase |
Internal variable to save the remaining sectors to erase in IT context
Definition at line 80 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), and HAL_FLASHEx_Erase_IT().
◆ ProcedureOnGoing
| __IO FLASH_ProcedureTypeDef FLASH_ProcessTypeDef::ProcedureOnGoing |
Internal variable to indicate which procedure is ongoing or not in IT context
Definition at line 78 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), HAL_FLASH_Program_IT(), and HAL_FLASHEx_Erase_IT().
◆ Sector
| __IO uint32_t FLASH_ProcessTypeDef::Sector |
Internal variable to define the current sector which is erasing
Definition at line 84 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), and HAL_FLASHEx_Erase_IT().
◆ VoltageForErase [1/2]
| __IO uint8_t FLASH_ProcessTypeDef::VoltageForErase |
Definition at line 82 of file stm32f4xx_hal_flash.h.
Referenced by HAL_FLASH_IRQHandler(), and HAL_FLASHEx_Erase_IT().
◆ VoltageForErase [2/2]
| __IO uint32_t FLASH_ProcessTypeDef::VoltageForErase |
Internal variable to provide voltage range selected by user in IT context
Definition at line 69 of file stm32h7xx_hal_flash.h.
The documentation for this struct was generated from the following files:
- hw_layer/ports/stm32/stm32f4/stm32f4xx_hal_flash.h
- hw_layer/ports/stm32/stm32f7/stm32f7xx_hal_flash.h
- hw_layer/ports/stm32/stm32h7/stm32h7xx_hal_flash.h
