FanControl1 Struct Reference

#include <fan_control.h>

Inheritance diagram for FanControl1:

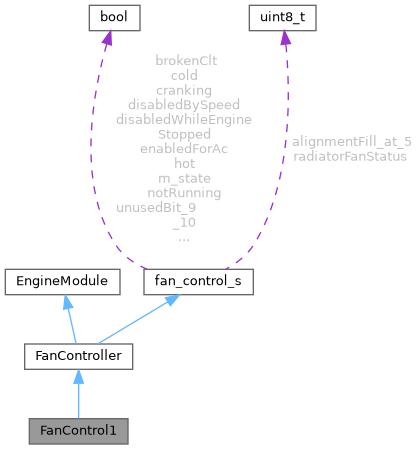

Collaboration diagram for FanControl1:

Public Member Functions
OutputPin &	getPin ()
float	getFanOnTemp ()
float	getFanOffTemp ()
bool	enableWithAc ()
bool	disableWhenStopped ()
int	disableAtSpeed ()
Public Member Functions inherited from FanController
void	onSlowCallback () override
void	setDefaultConfiguration () override
Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()
virtual void	onConfigurationChange (engine_configuration_s const *)
virtual void	onFastCallback ()
virtual void	onEngineStop ()
virtual void	onIgnitionStateChanged (bool)
virtual bool	needsDelayedShutoff ()
virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)

Additional Inherited Members
Data Fields inherited from fan_control_s
bool	cranking: 1 {}
bool	notRunning: 1 {}
bool	disabledWhileEngineStopped: 1 {}
bool	brokenClt: 1 {}
bool	enabledForAc: 1 {}
bool	hot: 1 {}
bool	cold: 1 {}
bool	disabledBySpeed: 1 {}
bool	m_state: 1 {}
bool	unusedBit_9_9: 1 {}
bool	unusedBit_9_10: 1 {}
bool	unusedBit_9_11: 1 {}
bool	unusedBit_9_12: 1 {}
bool	unusedBit_9_13: 1 {}
bool	unusedBit_9_14: 1 {}
bool	unusedBit_9_15: 1 {}
bool	unusedBit_9_16: 1 {}
bool	unusedBit_9_17: 1 {}
bool	unusedBit_9_18: 1 {}
bool	unusedBit_9_19: 1 {}
bool	unusedBit_9_20: 1 {}
bool	unusedBit_9_21: 1 {}
bool	unusedBit_9_22: 1 {}
bool	unusedBit_9_23: 1 {}
bool	unusedBit_9_24: 1 {}
bool	unusedBit_9_25: 1 {}
bool	unusedBit_9_26: 1 {}
bool	unusedBit_9_27: 1 {}
bool	unusedBit_9_28: 1 {}
bool	unusedBit_9_29: 1 {}
bool	unusedBit_9_30: 1 {}
bool	unusedBit_9_31: 1 {}
uint8_t	radiatorFanStatus = (uint8_t)0
uint8_t	alignmentFill_at_5 [3] = {}

Detailed Description

Definition at line 35 of file fan_control.h.

Member Function Documentation

disableAtSpeed()

int FanControl1::disableAtSpeed ( )

inlinevirtual

Implements FanController.

Definition at line 56 of file fan_control.h.

                         {
        return engineConfiguration->disableFan1AtSpeed;
    }

disableWhenStopped()

bool FanControl1::disableWhenStopped ( )

inlinevirtual

Implements FanController.

Definition at line 52 of file fan_control.h.

                              {
        return engineConfiguration->disableFan1WhenStopped;
    }

enableWithAc()

bool FanControl1::enableWithAc ( )

inlinevirtual

Implements FanController.

Definition at line 48 of file fan_control.h.

                        {
        return engineConfiguration->enableFan1WithAc;
    }

getFanOffTemp()

float FanControl1::getFanOffTemp ( )

inlinevirtual

Implements FanController.

Definition at line 44 of file fan_control.h.

                          {
        return engineConfiguration->fanOffTemperature;
    }

getFanOnTemp()

float FanControl1::getFanOnTemp ( )

inlinevirtual

Implements FanController.

Definition at line 40 of file fan_control.h.

                         {
        return engineConfiguration->fanOnTemperature;
    }

getPin()

OutputPin & FanControl1::getPin ( )

inlinevirtual

Implements FanController.

Definition at line 36 of file fan_control.h.

                        {
        return enginePins.fanRelay;
    }

---

The documentation for this struct was generated from the following file:

• controllers/modules/fan_control/fan_control.h
