Structure representing a GPT driver. More...
#include <hal_gpt_lld.h>

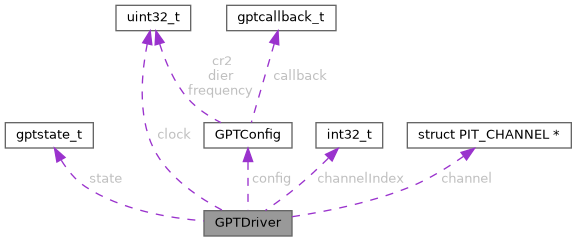

Collaboration diagram for GPTDriver:
Data Fields | |
| gptstate_t | state |
| Driver state. | |
| const GPTConfig * | config |
| Current configuration data. | |
| GPT_DRIVER_EXT_FIELDS uint32_t | clock |
| Timer base clock. | |
| int32_t | channelIndex |
| Channel index. | |
| struct PIT_CHANNEL * | channel |
| Channel structure in PIT registers block. | |
Detailed Description
Structure representing a GPT driver.
Definition at line 239 of file hal_gpt_lld.h.
The documentation for this struct was generated from the following file:
- config/boards/kinetis/OS/os/hal/ports/KINETIS/LLD/PITv2/hal_gpt_lld.h
