McpAdcState Struct Reference

MCP3208 ADC chip driver structure. More...

#include <mcp3208.h>

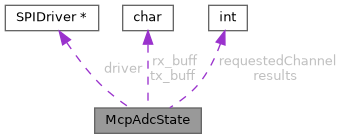

Collaboration diagram for McpAdcState:

Data Fields
SPIDriver *	driver
unsigned char	tx_buff [3]
unsigned char	rx_buff [3]
int	requestedChannel
int	results [8]

Detailed Description

MCP3208 ADC chip driver structure.

Definition at line 28 of file mcp3208.h.

Field Documentation

driver

SPIDriver* McpAdcState::driver

Definition at line 29 of file mcp3208.h.

requestedChannel

int McpAdcState::requestedChannel

Definition at line 32 of file mcp3208.h.

results

int McpAdcState::results[8]

Definition at line 33 of file mcp3208.h.

Referenced by getValue().

rx_buff

unsigned char McpAdcState::rx_buff[3]

Definition at line 31 of file mcp3208.h.

Referenced by spiCallback().

tx_buff

unsigned char McpAdcState::tx_buff[3]

Definition at line 30 of file mcp3208.h.

---

The documentation for this struct was generated from the following file:

• hw_layer/drivers/adc/mcp3208.h
