#include <vvt.h>

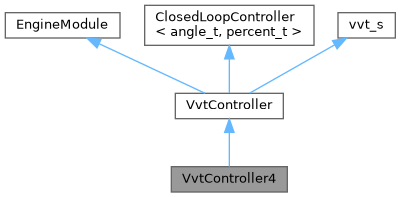

Inheritance diagram for VvtController4:

[legend]

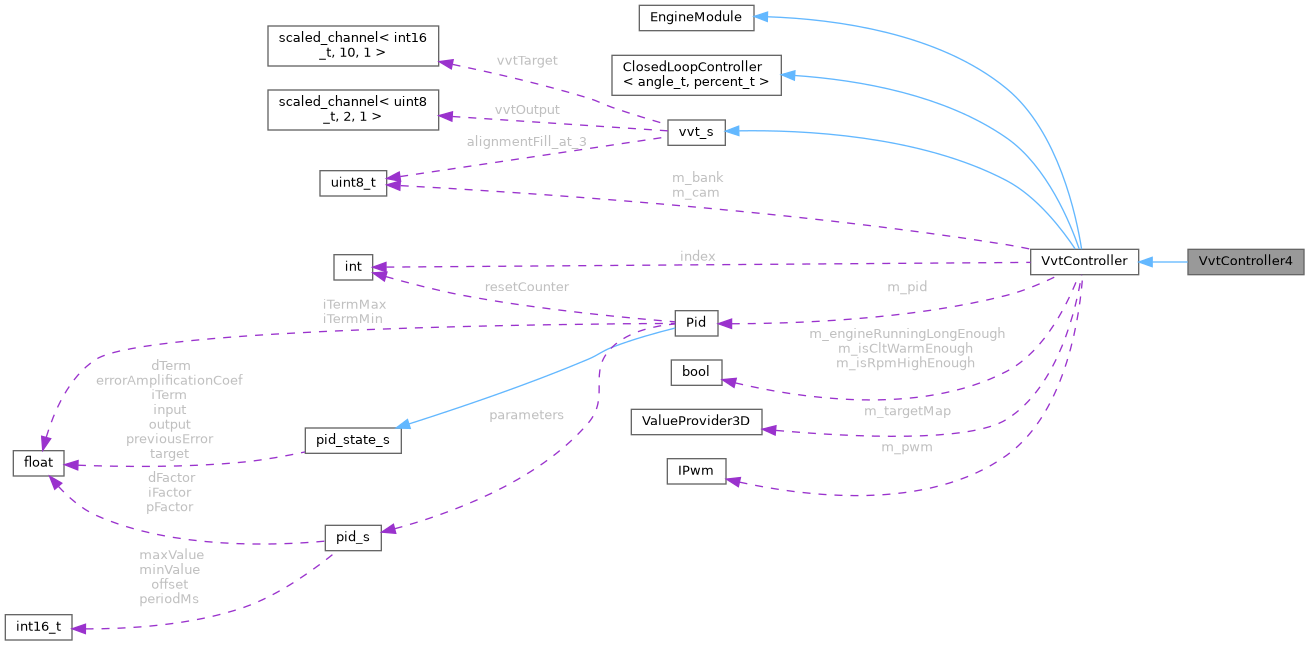

Collaboration diagram for VvtController4:

[legend]

Public Member Functions
	VvtController4 ()

Public Member Functions inherited from VvtController
	VvtController (int index)

void	init (const ValueProvider3D targetMap, IPwm pwm)

void	onFastCallback () override

void	onConfigurationChange (engine_configuration_s const *previousConfig) override

expected< angle_t >	observePlant () override

expected< angle_t >	getSetpoint () override

expected< percent_t >	getOpenLoop (angle_t target) override

expected< percent_t >	getClosedLoop (angle_t setpoint, angle_t observation) override

void	setOutput (expected< percent_t > outputValue) override

uint8_t	getCamIndex ()

Public Member Functions inherited from EngineModule
virtual void	initNoConfiguration ()

virtual void	setDefaultConfiguration ()

virtual void	onSlowCallback ()

virtual void	onEngineStop ()

virtual void	onIgnitionStateChanged (bool)

virtual bool	needsDelayedShutoff ()

virtual void	onEnginePhase (float, efitick_t, angle_t, angle_t)

Public Member Functions inherited from ClosedLoopController< angle_t, percent_t >
void	update ()

Additional Inherited Members
Data Fields inherited from vvt_s
scaled_channel< int16_t, 10, 1 >	vvtTarget = (int16_t)0

scaled_channel< uint8_t, 2, 1 >	vvtOutput = (uint8_t)0

uint8_t	alignmentFill_at_3 [1] = {}

Detailed Description

Definition at line 79 of file vvt.h.

Constructor & Destructor Documentation

VvtController4::VvtController4 ( )

inline

Definition at line 80 of file vvt.h.

80: VvtController(3) { }

Definition vvt.h:26
