pid_status_s Struct Reference

#include <output_channels_generated.h>

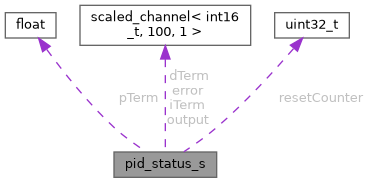

Collaboration diagram for pid_status_s:

Data Fields
float	pTerm = (float)0
scaled_channel< int16_t, 100, 1 >	iTerm = (int16_t)0
scaled_channel< int16_t, 100, 1 >	dTerm = (int16_t)0
scaled_channel< int16_t, 100, 1 >	output = (int16_t)0
scaled_channel< int16_t, 100, 1 >	error = (int16_t)0
uint32_t	resetCounter = (uint32_t)0

Detailed Description

Definition at line 7 of file output_channels_generated.h.

Field Documentation

dTerm

scaled_channel<int16_t, 100, 1> pid_status_s::dTerm = (int16_t)0

offset 6

Definition at line 19 of file output_channels_generated.h.

Referenced by getOutputValueByHash(), and Pid::postState().

error

scaled_channel<int16_t, 100, 1> pid_status_s::error = (int16_t)0

offset 10

Definition at line 27 of file output_channels_generated.h.

Referenced by getOutputValueByHash(), and Pid::postState().

iTerm

scaled_channel<int16_t, 100, 1> pid_status_s::iTerm = (int16_t)0

offset 4

Definition at line 15 of file output_channels_generated.h.

Referenced by getOutputValueByHash(), and Pid::postState().

output

scaled_channel<int16_t, 100, 1> pid_status_s::output = (int16_t)0

offset 8

Definition at line 23 of file output_channels_generated.h.

Referenced by getOutputValueByHash(), and Pid::postState().

pTerm

float pid_status_s::pTerm = (float)0

offset 0

Definition at line 11 of file output_channels_generated.h.

Referenced by getOutputValueByHash(), and Pid::postState().

resetCounter

uint32_t pid_status_s::resetCounter = (uint32_t)0

offset 12

Definition at line 31 of file output_channels_generated.h.

Referenced by getOutputValueByHash().

---

The documentation for this struct was generated from the following file:

• live_data_generated/output_channels_generated.h
