tle8888_config Struct Reference

#include <tle8888.h>

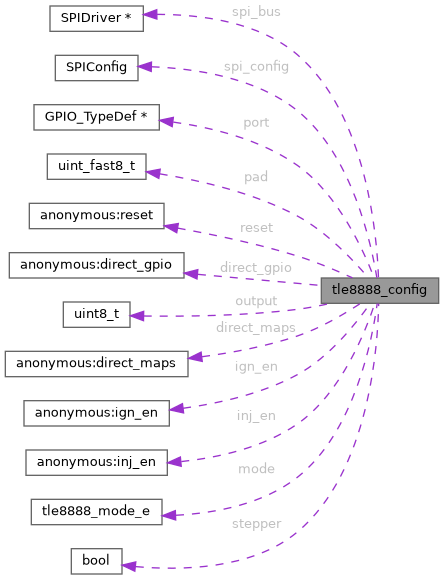

Collaboration diagram for tle8888_config:

Data Fields
SPIDriver *	spi_bus
SPIConfig	spi_config
struct {
ioportid_t   port
uint_fast8_t   pad
}	reset
struct {
ioportid_t   port
uint_fast8_t   pad
}	direct_gpio [TLE8888_DIRECT_OUTPUTS]
struct {
uint8_t   output
}	direct_maps [TLE8888_DIRECT_MISC]
struct {
ioportid_t   port
uint_fast8_t   pad
}	ign_en
struct {
ioportid_t   port
uint_fast8_t   pad
}	inj_en
tle8888_mode_e	mode
bool	stepper

Detailed Description

Definition at line 41 of file tle8888.h.

Field Documentation

[struct]

struct { ... } tle8888_config::direct_gpio[TLE8888_DIRECT_OUTPUTS]

[struct]

struct { ... } tle8888_config::direct_maps[TLE8888_DIRECT_MISC]

[struct]

struct { ... } tle8888_config::ign_en

[struct]

struct { ... } tle8888_config::inj_en

mode

tle8888_mode_e tle8888_config::mode

Definition at line 69 of file tle8888.h.

Referenced by initSmartGpio().

output

uint8_t tle8888_config::output

Definition at line 59 of file tle8888.h.

pad

uint_fast8_t tle8888_config::pad

Definition at line 49 of file tle8888.h.

port

ioportid_t tle8888_config::port

Definition at line 48 of file tle8888.h.

[struct]

struct { ... } tle8888_config::reset

spi_bus

SPIDriver* tle8888_config::spi_bus

Definition at line 43 of file tle8888.h.

Referenced by initSmartGpio(), and tle8888_add().

spi_config

SPIConfig tle8888_config::spi_config

Definition at line 44 of file tle8888.h.

Referenced by initSmartGpio(), and tle8888_add().

stepper

bool tle8888_config::stepper

Definition at line 72 of file tle8888.h.

Referenced by initSmartGpio().

---

The documentation for this struct was generated from the following file:

• hw_layer/drivers/gpio/tle8888.h
