Detailed Description

Date: Dec 24, 2013

Author: Andrey Belomutskiy, (c) 2012-2020

enable trigger_details

This file is part of rusEfi - see http://rusefi.com

rusEfi is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 3 of the License, or (at your option) any later version.

rusEfi is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

Definition in file trigger_decoder.cpp.

Functions
const char *	getTrigger_event_e (trigger_event_e value)

const char *	getTrigger_value_e (TriggerValue value)

PUBLIC_API_WEAK bool	isTriggerCounterError (int8_t triggerCountersError)

static bool	shouldConsiderEdge (const TriggerWaveform &triggerShape, TriggerWheel triggerWheel, TriggerValue edge)

Variables
bool	printTriggerDebug = false

bool	printTriggerTrace = false

static TriggerWheel	eventIndex [4] = { TriggerWheel::T_PRIMARY, TriggerWheel::T_PRIMARY, TriggerWheel::T_SECONDARY, TriggerWheel::T_SECONDARY }

static TriggerValue	eventType [4] = { TriggerValue::FALL, TriggerValue::RISE, TriggerValue::FALL, TriggerValue::RISE }

int	tooManyTeethCounter = 0

Function Documentation

◆ getTrigger_event_e()

const char * getTrigger_event_e ( trigger_event_e value )

Definition at line 290 of file trigger_decoder.cpp.

                                                     {
switch(value) {
case SHAFT_PRIMARY_FALLING:
  return "SHAFT_PRIMARY_FALLING";
case SHAFT_PRIMARY_RISING:
  return "SHAFT_PRIMARY_RISING";
case SHAFT_SECONDARY_FALLING:
  return "SHAFT_SECONDARY_FALLING";
case SHAFT_SECONDARY_RISING:
  return "SHAFT_SECONDARY_RISING";
  }
 return NULL;
}

Referenced by TriggerDecoderBase::decodeTriggerEvent().

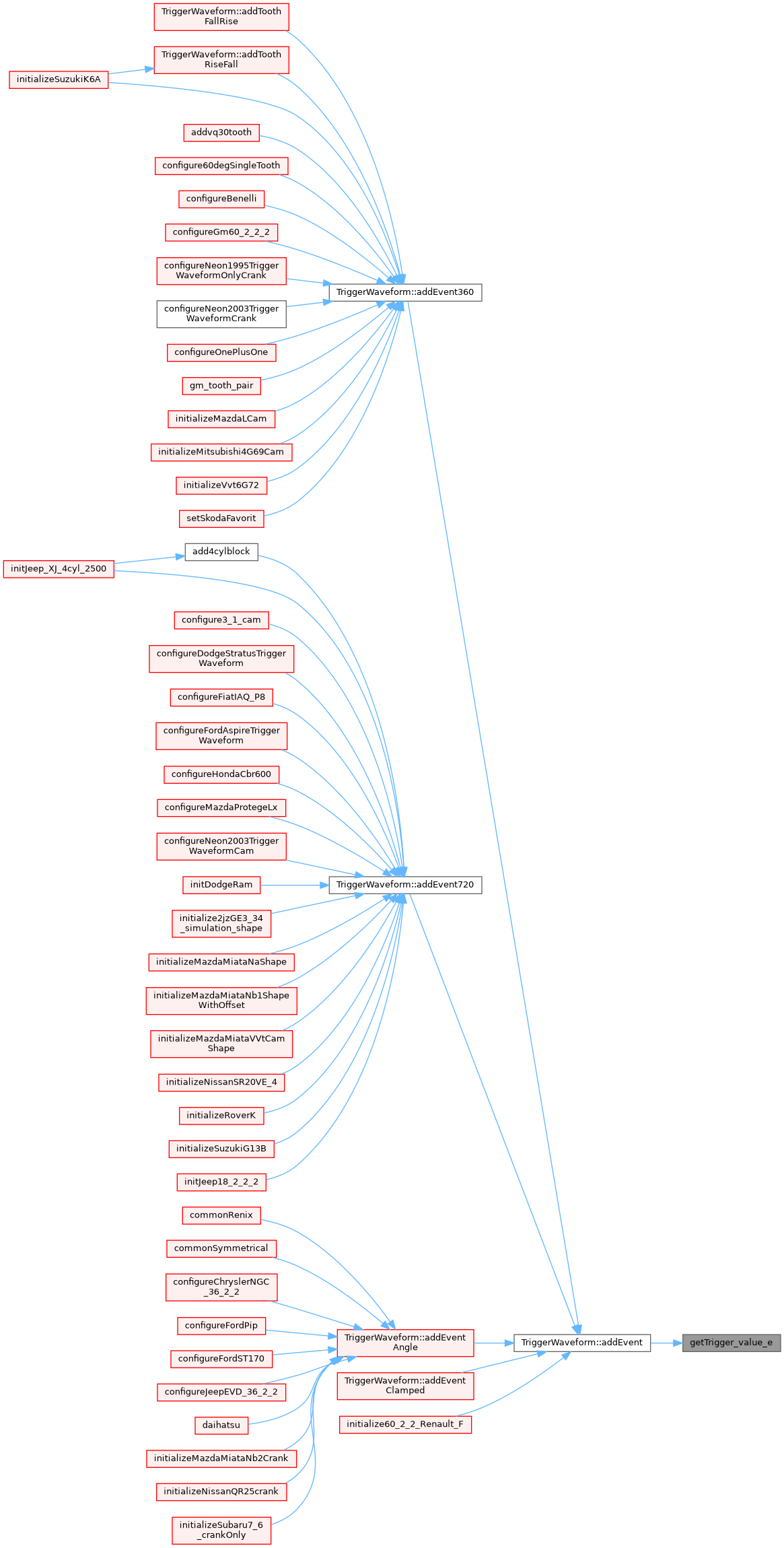

Here is the caller graph for this function:

◆ getTrigger_value_e()

const char * getTrigger_value_e ( TriggerValue value )

Definition at line 303 of file trigger_decoder.cpp.

                                                  {
switch(value) {
case TriggerValue::FALL:
  return "TriggerValue::FALL";
case TriggerValue::RISE:
  return "TriggerValue::RISE";
  }
 return NULL;
}

Referenced by TriggerWaveform::addEvent().

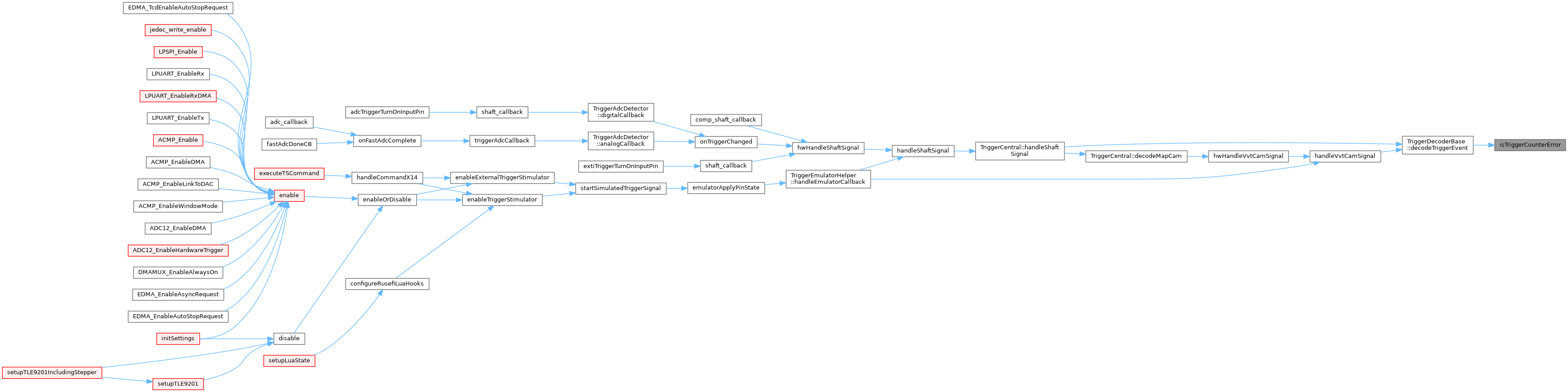

Here is the caller graph for this function:

◆ isTriggerCounterError()

PUBLIC_API_WEAK bool isTriggerCounterError ( int8_t triggerCountersError )

Definition at line 321 of file trigger_decoder.cpp.

                                                                        {
  return triggerCountersError != 0;
}

Referenced by TriggerDecoderBase::decodeTriggerEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ shouldConsiderEdge()

static bool shouldConsiderEdge	(	const TriggerWaveform &	triggerShape,
		TriggerWheel	triggerWheel,
		TriggerValue	edge
	)

static

Definition at line 372 of file trigger_decoder.cpp.

                                                                                                                  {
    if (triggerWheel != TriggerWheel::T_PRIMARY && triggerShape.useOnlyPrimaryForSync) {
        // Non-primary events ignored
        return false;
    }

    switch (triggerShape.syncEdge) {
        case SyncEdge::Both: return true;
        case SyncEdge::RiseOnly:
        case SyncEdge::Rise: return edge == TriggerValue::RISE;
        case SyncEdge::Fall: return edge == TriggerValue::FALL;
    }

    // how did we get here?
    // assert(false)?

    return false;
}
