trigger_structure.h File Reference

Detailed Description

rusEFI defines trigger shape programmatically in C code For integration we have exportAllTriggers export

Date

Dec 22, 2013

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file trigger_structure.h.

Data Structures
class	TriggerWaveform
	Trigger shape has all the fields needed to describe and decode trigger signal. More...
class	TriggerFormDetails

Functions
void	wrapAngle (angle_t &angle, const char *msg, ObdCode code)
angle_t	wrapAngleMethod (angle_t param, const char *msg="", ObdCode code=ObdCode::OBD_PCM_Processor_Fault)

Function Documentation

wrapAngle()

void wrapAngle	(	angle_t &	angle,
		const char *	msg,
		ObdCode	code
	)

Definition at line 43 of file trigger_structure.cpp.

                                                              {
    if (std::isnan(angle)) {
        firmwareError(ObdCode::CUSTOM_ERR_ANGLE, "a NaN %s", msg);
        angle = 0;
    }

    assertAngleRange(angle, msg, code);
    float engineCycle = getEngineState()->engineCycle;

    while (angle < 0) {
        angle += engineCycle;
    }

    while (angle >= engineCycle) {
        angle -= engineCycle;
    }
}

Referenced by auxPlainPinTurnOn(), InstantRpmCalculator::calculateInstantRpm(), InjectionEvent::computeInjectionAngle(), TriggerCentral::findNextTriggerToothAngle(), getInjectionOffset(), IgnitionState::getWrappedAdvance(), TriggerCentral::handleShaftSignal(), MapAveragingModule::onFastCallback(), EngineState::periodicFastCallback(), prepareCylinderIgnitionSchedule(), TriggerFormDetails::prepareEventAngles(), reportWave(), HpfpController::scheduleNextCycle(), tdcMarkCallback(), and wrapAngleMethod().

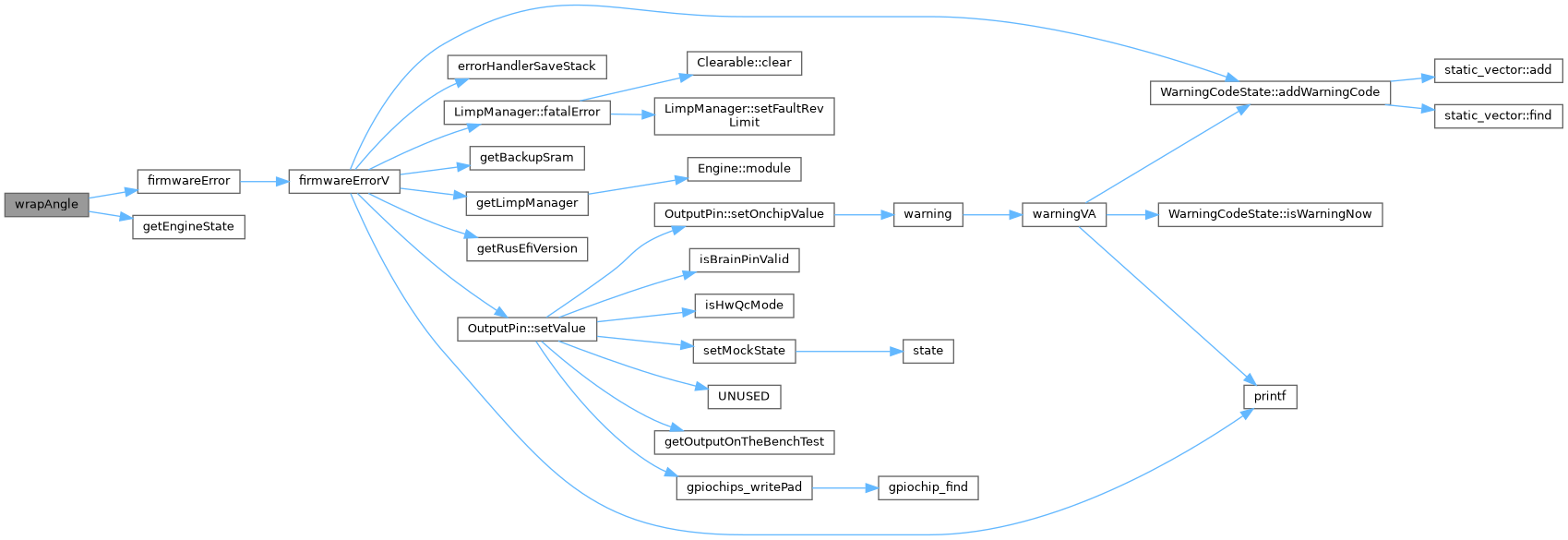

Here is the call graph for this function:

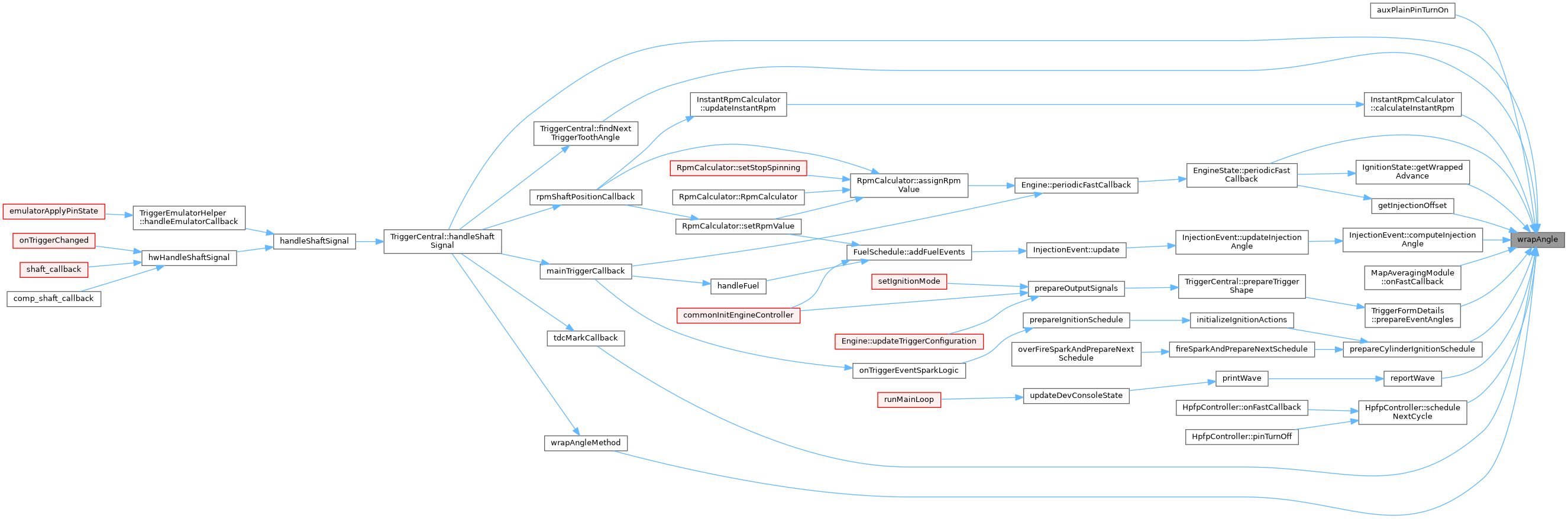

Here is the caller graph for this function:

wrapAngleMethod()

angle_t wrapAngleMethod ( angle_t  param, const char *  msg = "", ObdCode  code = ObdCode::OBD_PCM_Processor_Fault  )

inline

Definition at line 32 of file trigger_structure.h.

                                                                                                                   {
    wrapAngle(param, msg, code);
    return param;
}

Referenced by TriggerCentral::handleShaftSignal().

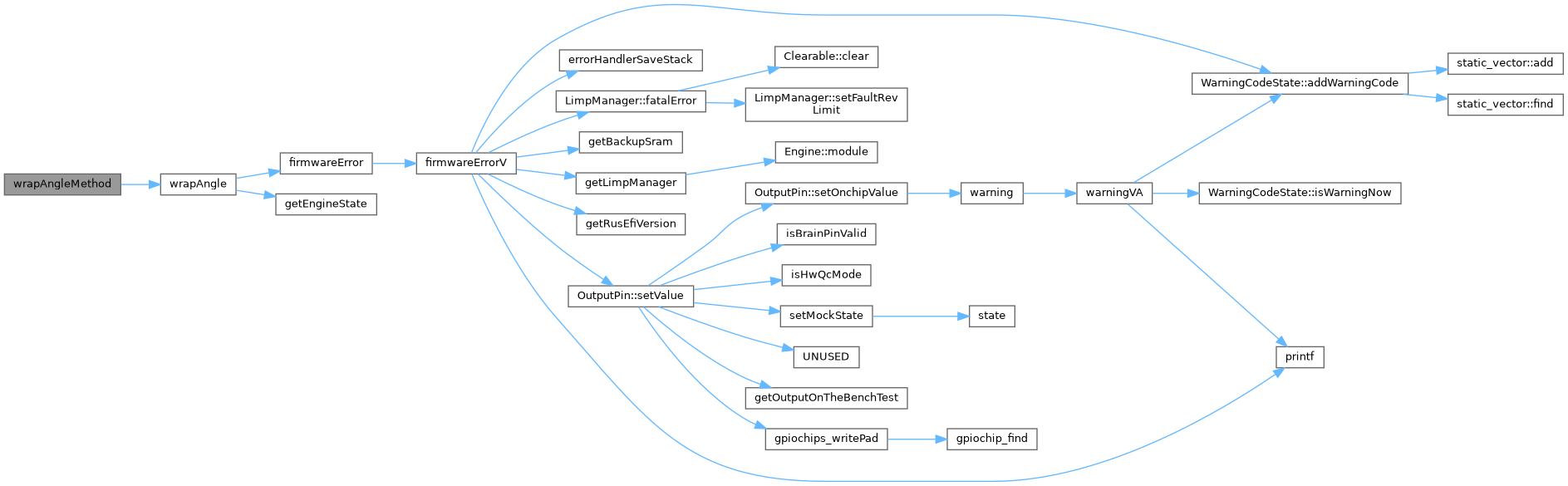

Here is the call graph for this function:

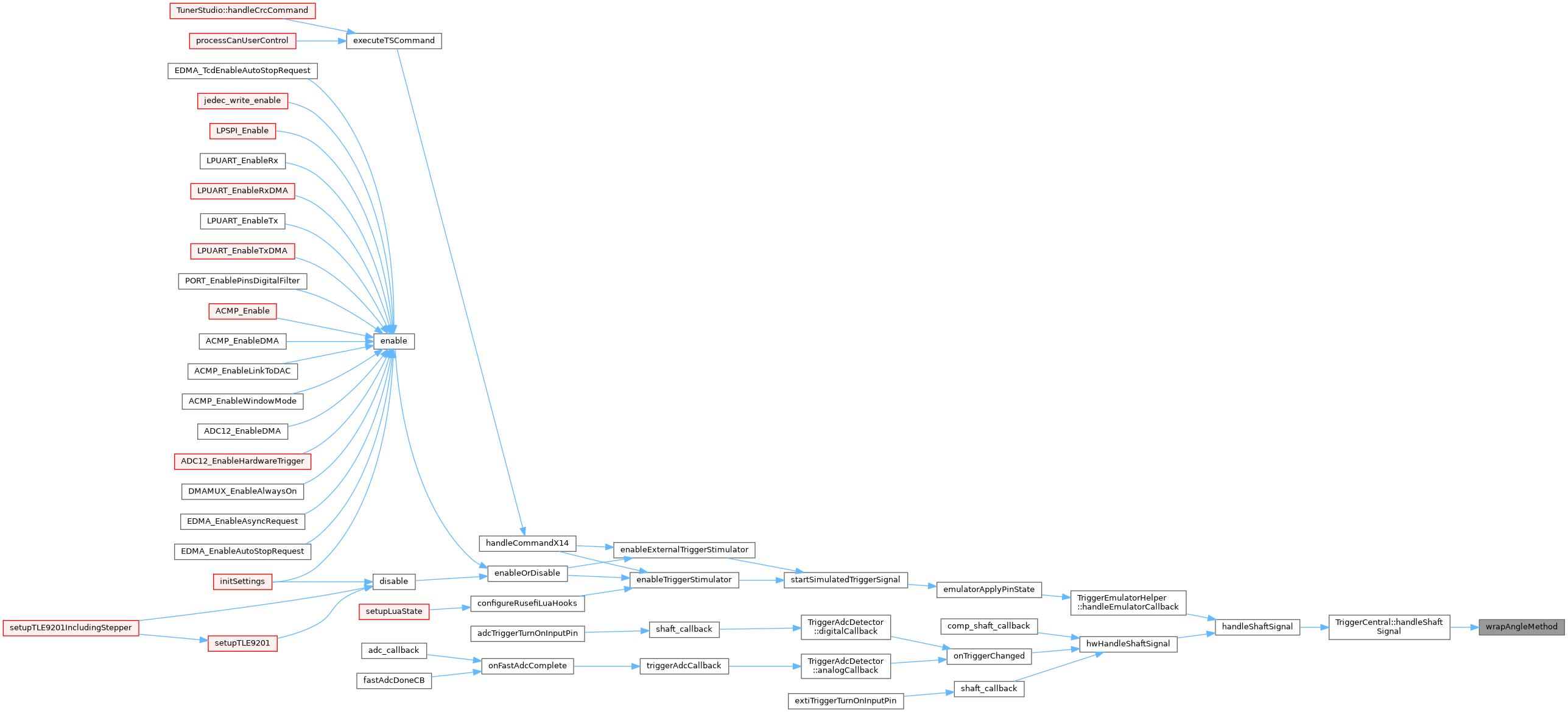

Here is the caller graph for this function:

Go to the source code of this file.
