CanCycle Class Reference

#include <can.h>

Collaboration diagram for CanCycle:

Public Member Functions
	CanCycle (uint32_t cycleCounter200hz)
bool	isInterval (CanInterval interval)

Static Private Member Functions
static CanInterval	computeFlags (uint32_t cycleCount)

Private Attributes
const CanInterval	m_cycleFlags

Detailed Description

Definition at line 86 of file can.h.

Constructor & Destructor Documentation

CanCycle()

CanCycle::CanCycle ( uint32_t  cycleCounter200hz )

inlineexplicit

Definition at line 88 of file can.h.

        : m_cycleFlags(computeFlags(cycleCounter200hz))
    {
    }

Member Function Documentation

computeFlags()

CanInterval CanCycle::computeFlags ( uint32_t  cycleCount )

staticprivate

Definition at line 113 of file can_tx.cpp.

                                                      {
    CanInterval cycleMask = CanInterval::_5ms;

    if ((cycleCount % 2) == 0) {
        cycleMask |= CI::_10ms;
    }

    if ((cycleCount % 4) == 0) {
        cycleMask |= CI::_20ms;
    }

    if ((cycleCount % 10) == 0) {
        cycleMask |= CI::_50ms;
    }

    if ((cycleCount % 20) == 0) {
        cycleMask |= CI::_100ms;
    }

    if ((cycleCount % 40) == 0) {
        cycleMask |= CI::_200ms;
    }

    if ((cycleCount % 50) == 0) {
        cycleMask |= CI::_250ms;
    }

    if ((cycleCount % 100) == 0) {
        cycleMask |= CI::_500ms;
    }

    if ((cycleCount % 200) == 0) {
        cycleMask |= CI::_1000ms;
    }

    return cycleMask;
}

isInterval()

bool CanCycle::isInterval ( CanInterval  interval )

inline

Definition at line 93 of file can.h.

                                          {
        return CanInterval::None != (m_cycleFlags & interval);
    }

Referenced by canDashboardAim(), canDashboardBmwE46(), canDashboardBmwE90(), canDashboardFiat(), canDashboardGenesisCoupe(), canDashboardHaltech(), canDashboardHondaK(), canDashboardNissanVQ(), canDashboardTS(), canDashboardVAG(), canDashboardVagMqb(), canDashboardW202(), canMazdaRX8(), and CanWrite::PeriodicTask().

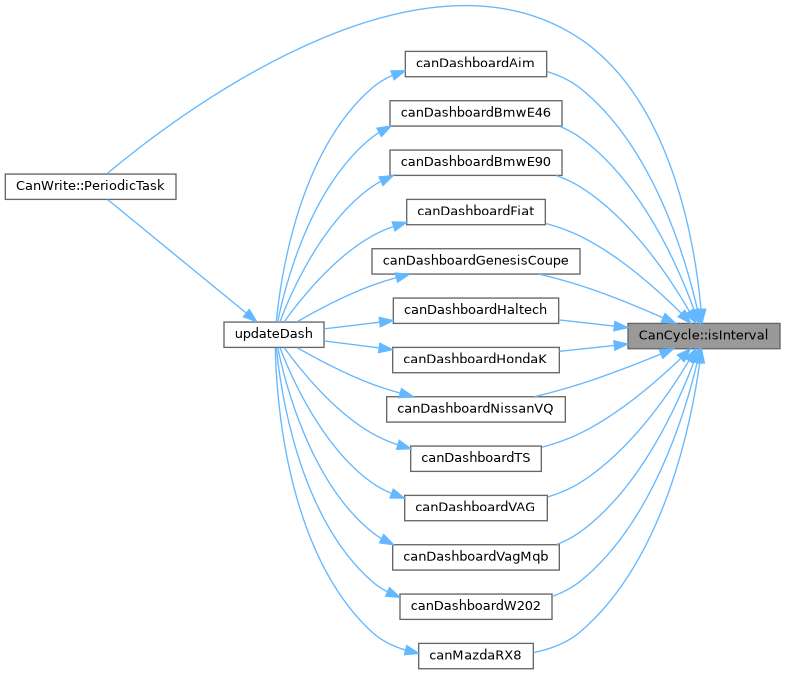

Here is the caller graph for this function:

Field Documentation

m_cycleFlags

const CanInterval CanCycle::m_cycleFlags

private

Definition at line 100 of file can.h.

Referenced by isInterval().

---

The documentation for this class was generated from the following files:

• controllers/can/can.h
• controllers/can/can_tx.cpp
