#include <instant_rpm_calculator.h>

Collaboration diagram for InstantRpmCalculator:

[legend]

Public Member Functions
	InstantRpmCalculator ()

float	getInstantRpm () const

void	updateInstantRpm (uint32_t current_index, TriggerWaveform const &triggerShape, TriggerFormDetails *triggerFormDetails, uint32_t index, efitick_t nowNt)

void	setLastEventTimeForInstantRpm (efitick_t nowNt)

void	movePreSynchTimestamps ()

void	resetInstantRpm ()

Data Fields
uint32_t	timeOfLastEvent [PWM_PHASE_MAX_COUNT]

size_t	spinningEventIndex = 0

uint32_t	spinningEvents [120]

float	instantRpmValue [PWM_PHASE_MAX_COUNT]

float	prevInstantRpmValue = 0

float	m_instantRpm = 0

Private Member Functions
float	calculateInstantRpm (TriggerWaveform const &triggerShape, TriggerFormDetails *triggerFormDetails, uint32_t index, efitick_t nowNt)

Private Attributes
float	m_instantRpmRatio = 0

Detailed Description

instant_rpm_calculator.h

Definition at line 8 of file instant_rpm_calculator.h.

Constructor & Destructor Documentation

◆ InstantRpmCalculator()

InstantRpmCalculator::InstantRpmCalculator ( )

Definition at line 16 of file instant_rpm_calculator.cpp.

                                           :
            //https://en.cppreference.com/w/cpp/language/zero_initialization
            timeOfLastEvent()
            , instantRpmValue()
    {
}

Member Function Documentation

◆ calculateInstantRpm()

float InstantRpmCalculator::calculateInstantRpm	(	TriggerWaveform const &	triggerShape,
		TriggerFormDetails *	triggerFormDetails,
		uint32_t	index,
		efitick_t	nowNt
	)

private

Definition at line 46 of file instant_rpm_calculator.cpp.

                                             {

    // It's OK to truncate from 64b to 32b, ARM with single precision FPU uses an expensive
    // software function to convert 64b int -> float, while 32b int -> float is very cheap hardware conversion
    // The difference is guaranteed to be short (it's 90 degrees of engine rotation!), so it won't overflow.
    uint32_t nowNt32 = nowNt;

    assertIsInBoundsWithResult(current_index, timeOfLastEvent, "calc timeOfLastEvent", 0);

    // Save previous timestamp before overwriting - needed for single-tooth triggers
    // where prevIndex == current_index (see below)
    uint32_t previousTimeAtIndex = timeOfLastEvent[current_index];

    // Record the time of this event so we can calculate RPM from it later
    timeOfLastEvent[current_index] = nowNt32;

    // Determine where we currently are in the revolution
    angle_t currentAngle = triggerFormDetails->eventAngles[current_index];
    efiAssert(ObdCode::OBD_PCM_Processor_Fault, !std::isnan(currentAngle), "eventAngles", 0);

    // Hunt for a tooth ~90 degrees ago to compare to the current time
    angle_t previousAngle = currentAngle - 90;
    wrapAngle(previousAngle, "prevAngle", ObdCode::CUSTOM_ERR_TRIGGER_ANGLE_RANGE);
    int prevIndex = triggerShape.findAngleIndex(triggerFormDetails, previousAngle);

    // now let's get precise angle for that event
    angle_t prevIndexAngle = triggerFormDetails->eventAngles[prevIndex];
    auto time90ago = timeOfLastEvent[prevIndex];
    angle_t angleDiff = currentAngle - prevIndexAngle;

    // Wrap the angle in to the correct range (ie, could be -630 when we want +90)
    wrapAngle(angleDiff, "angleDiff", ObdCode::CUSTOM_ERR_6561);

    // For single-tooth triggers, all event angles map to the same value, so
    // findAngleIndex returns current_index. This causes two problems:
    // 1) time90ago was just overwritten with nowNt32, yielding time=0
    // 2) angleDiff is 0 since both angles are identical
    // Fix: use the saved previous timestamp and the full engine cycle as angle delta,
    // effectively measuring RPM from one revolution to the next.
    if (prevIndex == (int)current_index) {
        time90ago = previousTimeAtIndex;
        angleDiff = getEngineState()->engineCycle;
    }

    // No previous timestamp, instant RPM isn't ready yet
    if (time90ago == 0) {
        return prevInstantRpmValue;
    }

    uint32_t time = nowNt32 - time90ago;

    // just for safety, avoid divide-by-0
    if (time == 0) {
        return prevInstantRpmValue;
    }

    float instantRpm = (60000000.0 / 360 * US_TO_NT_MULTIPLIER) * angleDiff / time;
    assertIsInBoundsWithResult(current_index, instantRpmValue, "instantRpmValue", 0);
    instantRpmValue[current_index] = instantRpm;

    // This fixes early RPM instability based on incomplete data
    if (instantRpm < RPM_LOW_THRESHOLD) {
        return prevInstantRpmValue;
    }

    prevInstantRpmValue = instantRpm;

    m_instantRpmRatio = instantRpm / instantRpmValue[prevIndex];

    return instantRpm;
}

Referenced by updateInstantRpm().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getInstantRpm()

float InstantRpmCalculator::getInstantRpm ( ) const

inline

Definition at line 11 of file instant_rpm_calculator.h.

                                {
        return m_instantRpm;
    }

Referenced by getAdvanceCorrections(), IdleController::onFastCallback(), rpmShaftPositionCallback(), and updateTunerStudioState().

Here is the caller graph for this function:

◆ movePreSynchTimestamps()

void InstantRpmCalculator::movePreSynchTimestamps ( )

Definition at line 23 of file instant_rpm_calculator.cpp.

                                                  {
    // here we take timestamps of events which happened prior to synchronization and place them
    // at appropriate locations
    auto triggerSize = getTriggerCentral()->triggerShape.getLength();

    size_t eventsToCopy = minI(spinningEventIndex, triggerSize);

    size_t firstSrc;
    size_t firstDst;

    if (eventsToCopy >= triggerSize) {
        // Only copy one trigger length worth of events, filling the whole buffer
        firstSrc = spinningEventIndex - triggerSize;
        firstDst = 0;
    } else {
        // There is less than one full cycle, copy to the end of the buffer
        firstSrc = 0;
        firstDst = triggerSize - spinningEventIndex;
    }

    memcpy(timeOfLastEvent + firstDst, spinningEvents + firstSrc, eventsToCopy * sizeof(timeOfLastEvent[0]));
}

Referenced by rpmShaftPositionCallback().

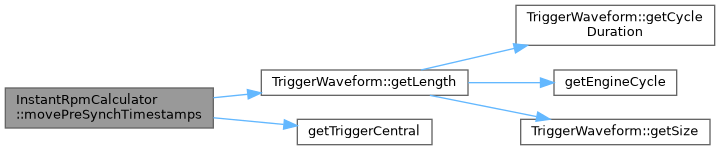

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resetInstantRpm()

void InstantRpmCalculator::resetInstantRpm ( )

inline

Definition at line 29 of file instant_rpm_calculator.h.

                           {
        setArrayValues(timeOfLastEvent, 0);
        setArrayValues(spinningEvents, 0);
        spinningEventIndex = 0;
        prevInstantRpmValue = 0;
        m_instantRpm = 0;
    }

Referenced by PrimaryTriggerDecoder::onTriggerError(), Engine::OnTriggerSynchronizationLost(), and TriggerCentral::syncEnginePhaseAndReport().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLastEventTimeForInstantRpm()

void InstantRpmCalculator::setLastEventTimeForInstantRpm ( efitick_t nowNt )

Update timeOfLastEvent[] on every trigger event - even without synchronization Needed for early spin-up RPM detection.

Definition at line 120 of file instant_rpm_calculator.cpp.

                                                                        {
    // here we remember tooth timestamps which happen prior to synchronization
    if (spinningEventIndex >= efi::size(spinningEvents)) {
        // too many events while trying to find synchronization point
        // todo: better implementation would be to shift here or use cyclic buffer so that we keep last
        // 'PRE_SYNC_EVENTS' events
        return;
    }

    uint32_t nowNt32 = nowNt;
    spinningEvents[spinningEventIndex] = nowNt32;

    // If we are using only rising edges, we never write in to the odd-index slots that
    // would be used by falling edges
    // TODO: don't reach across to trigger central to get this info
    spinningEventIndex += getTriggerCentral()->triggerShape.useOnlyRisingEdges ? 2 : 1;
}

Referenced by RpmCalculator::setSpinningUp().

Here is the call graph for this function:

Here is the caller graph for this function:

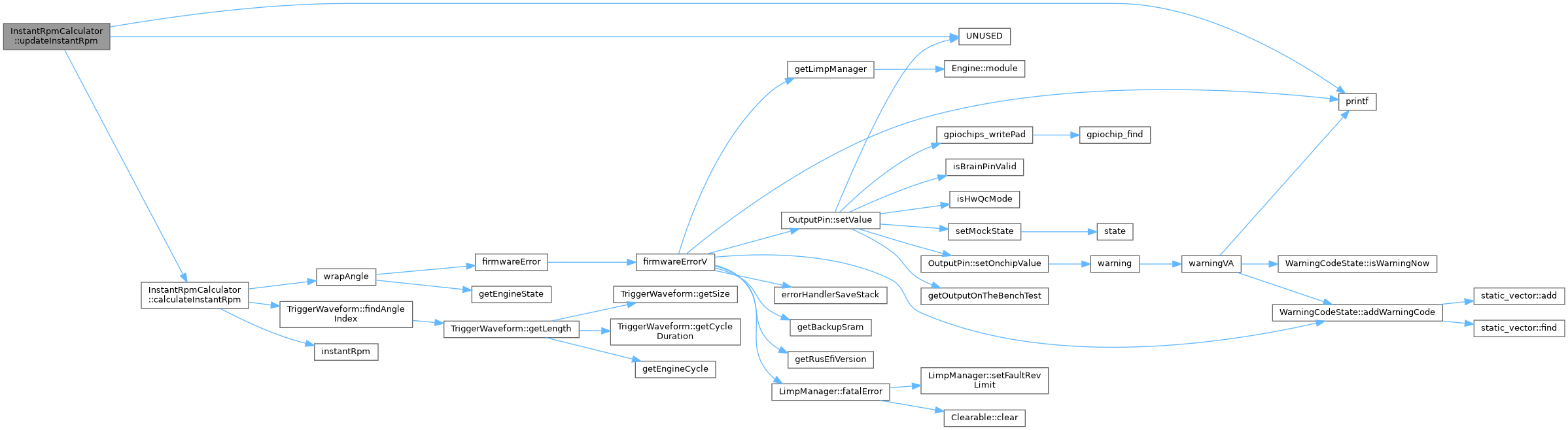

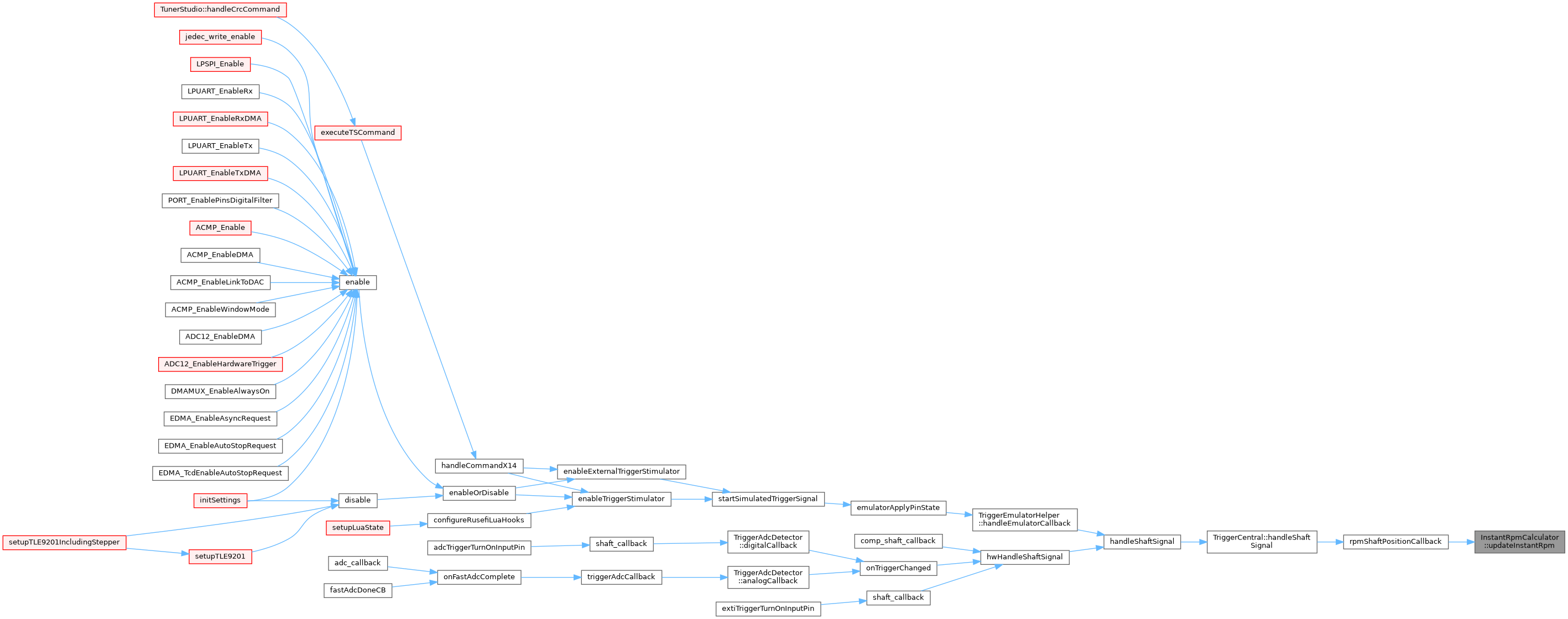

◆ updateInstantRpm()

void InstantRpmCalculator::updateInstantRpm	(	uint32_t	current_index,
		TriggerWaveform const &	triggerShape,
		TriggerFormDetails *	triggerFormDetails,
		uint32_t	index,
		efitick_t	nowNt
	)

Definition at line 138 of file instant_rpm_calculator.cpp.

                                         {
    UNUSED(current_index);

    m_instantRpm = calculateInstantRpm(triggerShape, triggerFormDetails, index,
                       nowNt);
#if EFI_UNIT_TEST
    if (printTriggerDebug) {
        printf("instantRpm = %f\n", m_instantRpm);
    }
#endif

}
