sensors.java File Reference

Functions
	RPMValue ("RPM", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 4, 1.0, 0.0, 8000.0, "RPM")
	rpmAcceleration ("dRPM", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 6, 1.0, 0.0, 5.0, "RPM acceleration/Rate of Change/ROC")
	speedToRpmRatio ("Gearbox Ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 8, 0.01, 0.0, 0.0, "value")
	unusedVehicleSpeedKph ("Vehicle Speed", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 10, 1.0, 0.0, 0.0, "kph")
	internalMcuTemperature ("ECU: CPU Temperature", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 11, 1.0, 0.0, 0.0, "deg C")
	internalVref ("internalVref", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 12, 0.001, 0.0, 5.0, "V")
	coolant ("CLT", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 14, 0.01, 0.0, 0.0, "deg C")
	intake ("IAT", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 16, 0.01, 0.0, 0.0, "deg C")
	auxTemp1 ("auxTemp1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 18, 0.01, 0.0, 0.0, "deg C")
	auxTemp2 ("auxTemp2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 20, 0.01, 0.0, 0.0, "deg C")
	TPSValue ("TPS", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 22, 0.01, 0.0, 0.0, "%")
	throttlePedalPosition ("Throttle pedal position", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 24, 0.01, 0.0, 0.0, "%")
	tpsADC ("tpsADC", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 26, 1.0, 0.0, 0.0, "ADC")
	rawMaf ("rawMaf", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 28, 0.001, 0.0, 5.0, "V")
	mafMeasured ("MAF", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 30, 0.1, 0.0, 0.0, "kg/h")
	MAPValue ("MAP", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 32, 0.03333333333333333, 0.0, 0.0, "kPa")
	baroPressure ("baroPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 34, 0.03333333333333333, 0.0, 0.0, "kPa")
	lambdaValue ("Lambda", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 36, 1.0E-4, 0.0, 0.0, "")
	VBatt ("VBatt", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 38, 0.001, 0.0, 0.0, "V")
	oilPressure ("Oil Pressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 40, 0.03333333333333333, 0.0, 0.0, "kPa")
	vvtPositionB1I ("VVT: bank 1 intake", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 42, 0.02, 0.0, 0.0, "deg")
	actualLastInjection ("Fuel: Last inj pulse width"\nActual last injection time - including all compensation and injection mode, SensorCategory.SENSOR_INPUTS, FieldType.INT16, 44, 0.0033333333333333335, 0.0, 0.0, "ms")
	alignmentFill_at_46 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 46, 1.0, 0.0, 100.0, "units")
	actualLastInjectionRatio ("Fuel: Last inj pulse growth"\nLast injection time divided to previous injection time, SensorCategory.SENSOR_INPUTS, FieldType.INT, 48, 1.0, 0.0, 0.0, "")
	stopEngineCode ("stopEngineCode", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 52, 1.0, -1.0, -1.0, "")
	injectorDutyCycle ("Fuel: injector duty cycle", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 53, 0.5, 0.0, 0.0, "%")
	tempLogging1 ("tempLogging1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 54, 1.0, -1.0, -1.0, "")
	alignmentFill_at_55 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 55, 1.0, 0.0, 100.0, "units")
	injectionOffset ("Fuel: Injection timing SOI", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 56, 1.0, 0.0, 0.0, "deg")
	engineMakeCodeNameCrc16 ("Engine CRC16", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 58, 1.0, 0.0, 0.0, "crc16")
	wallFuelAmount ("Fuel: wall amount", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 60, 0.01, 0.0, 0.0, "mg")
	wallFuelCorrectionValue ("Fuel: wall correction", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 62, 0.01, 0.0, 0.0, "mg")
	revolutionCounterSinceStart ("revolutionCounterSinceStart", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 64, 1.0, 0.0, 0.0, "")
	canReadCounter ("CAN: Rx", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 66, 1.0, 0.0, 64000.0, "")
	tpsAccelFuel ("Fuel: TPS acceleration add fuel ms", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 68, 0.0033333333333333335, 0.0, 0.0, "ms")
	currentIgnitionMode ("Ignition: Mode", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 70, 1.0, -1.0, -1.0, "")
	currentInjectionMode ("Fuel: Injection mode", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 71, 1.0, -1.0, -1.0, "")
	coilDutyCycle ("Ignition: coil duty cycle", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 72, 0.01, 0.0, 0.0, "%")
	etb1DutyCycle ("ETB: Duty", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 74, 0.01, 0.0, 0.0, "%")
	fuelTankLevel ("Fuel level", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 76, 0.01, 0.0, 0.0, "%")
	totalFuelConsumption ("Fuel: Total consumed", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 78, 1.0, 0.0, 0.0, "grams")
	fuelFlowRate ("Fuel: Flow rate", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 80, 0.005, 0.0, 0.0, "gram/s")
	TPS2Value ("TPS2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 82, 0.01, 0.0, 0.0, "%")
	tuneCrc16 ("Tune CRC16", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 84, 1.0, 0.0, 0.0, "crc16")

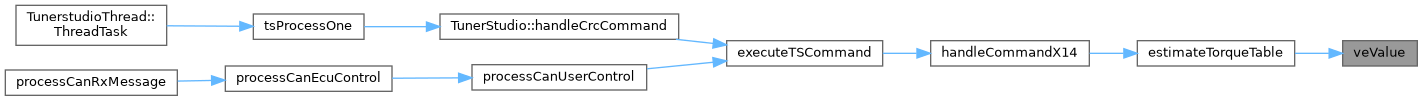

	veValue ("Fuel: VE", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 86, 0.1, 0.0, 0.0, "ratio")
	seconds ("Uptime", SensorCategory.SENSOR_INPUTS, FieldType.INT, 88, 1.0, 0.0, 0.0, "sec")
	engineMode ("Engine Mode", SensorCategory.SENSOR_INPUTS, FieldType.INT, 92, 1.0, 0.0, 0.0, "em")
	firmwareVersion ("firmware", SensorCategory.SENSOR_INPUTS, FieldType.INT, 96, 1.0, 0.0, 0.0, "version_f")
	rawIdlePositionSensor ("rawIdlePositionSensor", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 100, 0.001, 0.0, 5.0, "V")
	rawWastegatePosition ("rawWastegatePosition", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 102, 0.001, 0.0, 5.0, "V")
	accelerationLat ("Accel: Lateral", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 104, 0.001, 0.0, 0.0, "G")
	accelerationLon ("Accel: Longitudinal", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 106, 0.001, 0.0, 0.0, "G")
	detectedGear ("Detected Gear", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 108, 1.0, 0.0, 10.0, "")
	maxTriggerReentrant ("maxTriggerReentrant", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 109, 1.0, 0.0, 100.0, "")
	rawLowFuelPressure ("rawLowFuelPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 110, 0.001, 0.0, 5.0, "V")
	rawHighFuelPressure ("rawHighFuelPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 112, 0.001, 0.0, 5.0, "V")
	lowFuelPressure ("Fuel pressure (low)", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 114, 0.03333333333333333, 0.0, 0.0, "kpa")
	tcuDesiredGear ("TCU: Desired Gear", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 116, 1.0, -1.0, 10.0, "gear")
	flexPercent ("Flex Ethanol %", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 117, 0.5, 0.0, 0.0, "%")
	wastegatePositionSensor ("Wastegate position sensor", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 118, 0.01, 0.0, 0.0, "%")
	highFuelPressure ("Fuel pressure (high)", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 120, 0.1, 0.0, 0.0, "bar")
	tempLogging3 ("tempLogging3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 122, 1.0, -1.0, -1.0, "")
	tempLogging4 ("tempLogging4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 123, 1.0, -1.0, -1.0, "")
	calibrationValue ("calibrationValue", SensorCategory.SENSOR_INPUTS, FieldType.INT, 124, 1.0, 0.0, 0.0, "")
	calibrationMode ("calibrationMode", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 128, 1.0, 0.0, 0.0, "")
	idleStepperTargetPosition ("Idle: Stepper target position", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 129, 1.0, 0.0, 0.0, "")
	alignmentFill_at_130 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 130, 1.0, 0.0, 100.0, "units")
	totalTriggerErrorCounter ("Trigger Error Counter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 132, 1.0, 0.0, 0.0, "counter")
	orderingErrorCounter ("orderingErrorCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 136, 1.0, 0.0, 0.0, "")
	warningCounter ("Warning: counter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 140, 1.0, 0.0, 0.0, "count")
	lastErrorCode ("Warning: last", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 142, 1.0, 0.0, 0.0, "error")
	recentErrorCode1 ("Warning code 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 144, 1.0, 0.0, 0.0, "error")
	recentErrorCode2 ("Warning code 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 146, 1.0, 0.0, 0.0, "error")
	recentErrorCode3 ("Warning code 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 148, 1.0, 0.0, 0.0, "error")
	recentErrorCode4 ("Warning code 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 150, 1.0, 0.0, 0.0, "error")
	recentErrorCode5 ("Warning code 5", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 152, 1.0, 0.0, 0.0, "error")
	recentErrorCode6 ("Warning code 6", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 154, 1.0, 0.0, 0.0, "error")
	recentErrorCode7 ("Warning code 7", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 156, 1.0, 0.0, 0.0, "error")
	recentErrorCode8 ("Warning code 8", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 158, 1.0, 0.0, 0.0, "error")
	debugFloatField1 ("debugFloatField1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 160, 1.0, 0.0, 0.0, "val")
	debugFloatField2 ("debugFloatField2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 164, 1.0, 0.0, 0.0, "val")
	debugFloatField3 ("debugFloatField3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 168, 1.0, 0.0, 0.0, "val")
	debugFloatField4 ("debugFloatField4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 172, 1.0, 0.0, 0.0, "val")
	debugFloatField5 ("debugFloatField5", SensorCategory.SENSOR_INPUTS, FieldType.INT, 176, 1.0, 0.0, 0.0, "val")
	debugFloatField6 ("debugFloatField6", SensorCategory.SENSOR_INPUTS, FieldType.INT, 180, 1.0, 0.0, 0.0, "val")
	debugFloatField7 ("debugFloatField7", SensorCategory.SENSOR_INPUTS, FieldType.INT, 184, 1.0, 0.0, 0.0, "val")
	debugIntField1 ("debugIntField1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 188, 1.0, 0.0, 0.0, "val")
	debugIntField2 ("debugIntField2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 192, 1.0, 0.0, 0.0, "val")
	debugIntField3 ("debugIntField3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 196, 1.0, 0.0, 0.0, "val")
	debugIntField4 ("debugIntField4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 200, 1.0, 0.0, 0.0, "val")
	debugIntField5 ("debugIntField5", SensorCategory.SENSOR_INPUTS, FieldType.INT, 204, 1.0, 0.0, 0.0, "val")
	egt1 ("EGT 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 208, 0.25, 0.0, 0.0, "deg C")
	egt2 ("EGT 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 210, 0.25, 0.0, 0.0, "deg C")
	egt3 ("EGT 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 212, 0.25, 0.0, 0.0, "deg C")
	egt4 ("EGT 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 214, 0.25, 0.0, 0.0, "deg C")
	egt5 ("EGT 5", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 216, 0.25, 0.0, 0.0, "deg C")
	egt6 ("EGT 6", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 218, 0.25, 0.0, 0.0, "deg C")
	egt7 ("EGT 7", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 220, 0.25, 0.0, 0.0, "deg C")
	egt8 ("EGT 8", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 222, 0.25, 0.0, 0.0, "deg C")
	rawTps1Primary ("rawTps1Primary", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 224, 0.001, 0.0, 5.0, "V")
	rawClt ("rawClt", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 226, 0.001, 0.0, 5.0, "V")
	rawIat ("rawIat", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 228, 0.001, 0.0, 5.0, "V")
	rawOilPressure ("rawOilPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 230, 0.001, 0.0, 5.0, "V")
	rawAcPressure ("rawAcPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 232, 0.001, 0.0, 5.0, "V")
	rawFuelLevel ("rawFuelLevel", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 234, 0.001, 0.0, 5.0, "V")
	rawPpsPrimary ("rawPpsPrimary", SensorCategory.SENSOR_INPUTS, FieldType.INT, 236, 1.0, 0.0, 5.0, "V")
	rawPpsSecondary ("rawPpsSecondary", SensorCategory.SENSOR_INPUTS, FieldType.INT, 240, 1.0, 0.0, 5.0, "V")
	rawRawPpsPrimary ("rawRawPpsPrimary", SensorCategory.SENSOR_INPUTS, FieldType.INT, 244, 1.0, 0.0, 5.0, "V")
	rawRawPpsSecondary ("rawRawPpsSecondary", SensorCategory.SENSOR_INPUTS, FieldType.INT, 248, 1.0, 0.0, 5.0, "V")
	idlePositionSensor ("Idle: Position sensor", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 252, 0.01, 0.0, 0.0, "%")
	AFRValue ("Air/Fuel Ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 254, 0.001, 0.0, 0.0, "AFR")
	AFRValue2 ("Air/Fuel Ratio 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 256, 0.001, 0.0, 0.0, "AFR")
	SmoothedAFRValue ("Smoothed Air/Fuel Ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 258, 0.001, 0.0, 0.0, "AFR")
	SmoothedAFRValue2 ("Smoothed Air/Fuel Ratio 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 260, 0.001, 0.0, 0.0, "AFR")
	VssAcceleration ("Vss Accel", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 262, 0.0033333333333333335, 0.0, 0.0, "m/s2")
	lambdaValue2 ("Lambda 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 264, 1.0E-4, 0.0, 0.0, "")
	vvtPositionB1E ("VVT: bank 1 exhaust", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 266, 0.02, 0.0, 0.0, "deg")
	vvtPositionB2I ("VVT: bank 2 intake", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 268, 0.02, 0.0, 0.0, "deg")
	vvtPositionB2E ("VVT: bank 2 exhaust", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 270, 0.02, 0.0, 0.0, "deg")
	rawTps1Secondary ("rawTps1Secondary", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 272, 0.001, 0.0, 5.0, "V")
	rawTps2Primary ("rawTps2Primary", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 274, 0.001, 0.0, 5.0, "V")
	rawTps2Secondary ("rawTps2Secondary", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 276, 0.001, 0.0, 5.0, "V")
	accelerationVert ("Accel: Vertical", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 278, 0.001, 0.0, 0.0, "G")
	gyroYaw ("Gyro: Yaw rate", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 280, 0.001, 0.0, 0.0, "deg/sec")
	vvtTargets1 ("vvtTargets 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 282, 1.0, 0.0, 0.0, "deg")
	vvtTargets2 ("vvtTargets 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 283, 1.0, 0.0, 0.0, "deg")
	vvtTargets3 ("vvtTargets 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 284, 1.0, 0.0, 0.0, "deg")
	vvtTargets4 ("vvtTargets 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 285, 1.0, 0.0, 0.0, "deg")
	turboSpeed ("Turbocharger Speed", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 286, 1.0, 0.0, 0.0, "hz")
	ignitionAdvanceCyl1 ("Ign: Timing Cyl 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 288, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl2 ("Ign: Timing Cyl 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 290, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl3 ("Ign: Timing Cyl 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 292, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl4 ("Ign: Timing Cyl 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 294, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl5 ("Ign: Timing Cyl 5", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 296, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl6 ("Ign: Timing Cyl 6", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 298, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl7 ("Ign: Timing Cyl 7", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 300, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl8 ("Ign: Timing Cyl 8", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 302, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl9 ("Ign: Timing Cyl 9", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 304, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl10 ("Ign: Timing Cyl 10", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 306, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl11 ("Ign: Timing Cyl 11", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 308, 0.02, 0.0, 0.0, "deg")
	ignitionAdvanceCyl12 ("Ign: Timing Cyl 12", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 310, 0.02, 0.0, 0.0, "deg")
	tps1Split ("tps1Split", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 312, 0.01, 0.0, 0.0, "%")
	tps2Split ("tps2Split", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 314, 0.01, 0.0, 0.0, "%")
	tps12Split ("tps12Split", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 316, 0.01, 0.0, 0.0, "%")
	accPedalSplit ("accPedalSplit", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 318, 0.01, 0.0, 0.0, "%")
	accPedalUnfiltered ("accPedalUnfiltered", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 320, 0.01, 0.0, 0.0, "%")
	sparkCutReason ("Ign: Cut Code", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 322, 1.0, 0.0, 0.0, "code")
	fuelCutReason ("Fuel: Cut Code", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 323, 1.0, 0.0, 0.0, "code")
	mafEstimate ("Air: Flow estimate", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 324, 0.1, 0.0, 0.0, "kg/h")
	instantRpm ("sync: instant RPM", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 326, 1.0, 0.0, 0.0, "rpm")
	rawMap ("rawMap", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 328, 0.001, 0.0, 5.0, "V")
	rawMapFast ("rawMapFast", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 330, 0.001, 0.0, 5.0, "V")
	rawAfr ("rawAfr", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 332, 0.001, 0.0, 5.0, "V")
	alignmentFill_at_334 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 334, 1.0, 0.0, 100.0, "units")
	calibrationValue2 ("calibrationValue2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 336, 1.0, 0.0, 0.0, "")
	luaInvocationCounter ("Lua: Tick counter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 340, 1.0, 0.0, 0.0, "count")
	luaLastCycleDuration ("Lua: Last tick duration", SensorCategory.SENSOR_INPUTS, FieldType.INT, 344, 1.0, 0.0, 0.0, "nt")
	vssEdgeCounter ("vssEdgeCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 348, 1.0, -1.0, -1.0, "")
	issEdgeCounter ("issEdgeCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 352, 1.0, -1.0, -1.0, "")
	auxLinear1 ("Aux linear #1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 356, 1.0, 0.0, 0.0, "")
	auxLinear2 ("Aux linear #2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 360, 1.0, 0.0, 0.0, "")
	auxLinear3 ("Aux linear #3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 364, 1.0, 0.0, 0.0, "")
	auxLinear4 ("Aux linear #4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 368, 1.0, 0.0, 0.0, "")
	fallbackMap ("fallbackMap", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 372, 0.1, 0.0, 1000.0, "kPa")
	effectiveMap ("Effective MAP", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 374, 0.1, 0.0, 1000.0, "kPa")
	instantMAPValue ("Instant MAP", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 376, 0.03333333333333333, 0.0, 655.0, "kPa")
	maxLockedDuration ("maxLockedDuration", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 378, 1.0, 0.0, 65535.0, "us")
	canWriteOk ("CAN: Tx OK", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 380, 1.0, 0.0, 64000.0, "")
	canWriteNotOk ("CAN: Tx err", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 382, 1.0, 0.0, 64000.0, "")
	triggerPrimaryFall ("triggerPrimaryFall", SensorCategory.SENSOR_INPUTS, FieldType.INT, 384, 1.0, 0.0, 10000.0, "")
	triggerPrimaryRise ("triggerPrimaryRise", SensorCategory.SENSOR_INPUTS, FieldType.INT, 388, 1.0, 0.0, 10000.0, "")
	triggerSecondaryFall ("triggerSecondaryFall", SensorCategory.SENSOR_INPUTS, FieldType.INT, 392, 1.0, 0.0, 10000.0, "")
	triggerSecondaryRise ("triggerSecondaryRise", SensorCategory.SENSOR_INPUTS, FieldType.INT, 396, 1.0, 0.0, 10000.0, "")
	starterState ("starterState", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 400, 1.0, 0.0, 100.0, "")
	starterRelayDisable ("starterRelayDisable", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 401, 1.0, 0.0, 100.0, "")
	multiSparkCounter ("Ign: Multispark count", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 402, 1.0, 0.0, 100.0, "")
	extiOverflowCount ("extiOverflowCount", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 403, 1.0, 0.0, 255.0, "")
	alternatorStatus ("alternatorStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT, 404, 1.0, -1.0, -1.0, "")
	idleStatus ("idleStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT, 420, 1.0, -1.0, -1.0, "")
	etbStatus ("etbStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT, 436, 1.0, -1.0, -1.0, "")
	boostStatus ("boostStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT, 452, 1.0, -1.0, -1.0, "")
	wastegateDcStatus ("wastegateDcStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT, 468, 1.0, -1.0, -1.0, "")
	vvtStatus1 ("vvtStatus 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 484, 1.0, -1.0, -1.0, "")
	vvtStatus2 ("vvtStatus 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 500, 1.0, -1.0, -1.0, "")
	vvtStatus3 ("vvtStatus 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 516, 1.0, -1.0, -1.0, "")
	vvtStatus4 ("vvtStatus 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 532, 1.0, -1.0, -1.0, "")
	auxSpeed1 ("Aux speed 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 548, 1.0, 0.0, 0.0, "s")
	auxSpeed2 ("Aux speed 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 550, 1.0, 0.0, 0.0, "s")
	ISSValue ("TCU: Input Shaft Speed", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 552, 1.0, 0.0, 8000.0, "RPM")
	rawAnalogInput1 ("rawAnalogInput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 554, 0.001, 0.0, 5.0, "V")
	rawAnalogInput2 ("rawAnalogInput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 556, 0.001, 0.0, 5.0, "V")
	rawAnalogInput3 ("rawAnalogInput 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 558, 0.001, 0.0, 5.0, "V")
	rawAnalogInput4 ("rawAnalogInput 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 560, 0.001, 0.0, 5.0, "V")
	rawAnalogInput5 ("rawAnalogInput 5", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 562, 0.001, 0.0, 5.0, "V")
	rawAnalogInput6 ("rawAnalogInput 6", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 564, 0.001, 0.0, 5.0, "V")
	rawAnalogInput7 ("rawAnalogInput 7", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 566, 0.001, 0.0, 5.0, "V")
	rawAnalogInput8 ("rawAnalogInput 8", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 568, 0.001, 0.0, 5.0, "V")
	gppwmOutput1 ("GPPWM Output 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 570, 0.5, 0.0, 100.0, "%")
	gppwmOutput2 ("GPPWM Output 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 571, 0.5, 0.0, 100.0, "%")
	gppwmOutput3 ("GPPWM Output 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 572, 0.5, 0.0, 100.0, "%")
	gppwmOutput4 ("GPPWM Output 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 573, 0.5, 0.0, 100.0, "%")
	gppwmXAxis1 ("gppwmXAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 574, 1.0, -30000.0, 30000.0, "")
	gppwmXAxis2 ("gppwmXAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 576, 1.0, -30000.0, 30000.0, "")
	gppwmXAxis3 ("gppwmXAxis 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 578, 1.0, -30000.0, 30000.0, "")
	gppwmXAxis4 ("gppwmXAxis 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 580, 1.0, -30000.0, 30000.0, "")
	gppwmYAxis1 ("gppwmYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 582, 0.1, -1000.0, 1000.0, "")
	gppwmYAxis2 ("gppwmYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 584, 0.1, -1000.0, 1000.0, "")
	gppwmYAxis3 ("gppwmYAxis 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 586, 0.1, -1000.0, 1000.0, "")
	gppwmYAxis4 ("gppwmYAxis 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 588, 0.1, -1000.0, 1000.0, "")
	rawBattery ("rawBattery", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 590, 0.001, 0.0, 5.0, "V")
	ignBlendParameter1 ("ignBlendParameter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 592, 0.1, -1000.0, 1000.0, "")
	ignBlendParameter2 ("ignBlendParameter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 594, 0.1, -1000.0, 1000.0, "")
	ignBlendParameter3 ("ignBlendParameter 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 596, 0.1, -1000.0, 1000.0, "")
	ignBlendParameter4 ("ignBlendParameter 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 598, 0.1, -1000.0, 1000.0, "")
	ignBlendBias1 ("ignBlendBias 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 600, 0.5, 0.0, 100.0, "%")
	ignBlendBias2 ("ignBlendBias 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 601, 0.5, 0.0, 100.0, "%")
	ignBlendBias3 ("ignBlendBias 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 602, 0.5, 0.0, 100.0, "%")
	ignBlendBias4 ("ignBlendBias 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 603, 0.5, 0.0, 100.0, "%")
	ignBlendOutput1 ("ignBlendOutput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 604, 0.01, -300.0, 300.0, "deg")
	ignBlendOutput2 ("ignBlendOutput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 606, 0.01, -300.0, 300.0, "deg")
	ignBlendOutput3 ("ignBlendOutput 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 608, 0.01, -300.0, 300.0, "deg")
	ignBlendOutput4 ("ignBlendOutput 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 610, 0.01, -300.0, 300.0, "deg")
	ignBlendYAxis1 ("ignBlendYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 612, 0.1, -1000.0, 1000.0, "")
	ignBlendYAxis2 ("ignBlendYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 614, 0.1, -1000.0, 1000.0, "")
	ignBlendYAxis3 ("ignBlendYAxis 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 616, 0.1, -1000.0, 1000.0, "")
	ignBlendYAxis4 ("ignBlendYAxis 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 618, 0.1, -1000.0, 1000.0, "")
	veBlendParameter1 ("veBlendParameter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 620, 0.1, -1000.0, 1000.0, "")
	veBlendParameter2 ("veBlendParameter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 622, 0.1, -1000.0, 1000.0, "")
	veBlendParameter3 ("veBlendParameter 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 624, 0.1, -1000.0, 1000.0, "")
	veBlendParameter4 ("veBlendParameter 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 626, 0.1, -1000.0, 1000.0, "")
	veBlendBias1 ("veBlendBias 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 628, 0.5, 0.0, 100.0, "%")
	veBlendBias2 ("veBlendBias 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 629, 0.5, 0.0, 100.0, "%")
	veBlendBias3 ("veBlendBias 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 630, 0.5, 0.0, 100.0, "%")
	veBlendBias4 ("veBlendBias 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 631, 0.5, 0.0, 100.0, "%")
	veBlendOutput1 ("veBlendOutput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 632, 0.01, -50.0, 50.0, "%")
	veBlendOutput2 ("veBlendOutput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 634, 0.01, -50.0, 50.0, "%")
	veBlendOutput3 ("veBlendOutput 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 636, 0.01, -50.0, 50.0, "%")
	veBlendOutput4 ("veBlendOutput 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 638, 0.01, -50.0, 50.0, "%")
	veBlendYAxis1 ("veBlendYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 640, 0.1, -1000.0, 1000.0, "")
	veBlendYAxis2 ("veBlendYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 642, 0.1, -1000.0, 1000.0, "")
	veBlendYAxis3 ("veBlendYAxis 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 644, 0.1, -1000.0, 1000.0, "")
	veBlendYAxis4 ("veBlendYAxis 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 646, 0.1, -1000.0, 1000.0, "")
	boostOpenLoopBlendParameter1 ("boostOpenLoopBlendParameter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 648, 0.1, -1000.0, 1000.0, "")
	boostOpenLoopBlendParameter2 ("boostOpenLoopBlendParameter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 650, 0.1, -1000.0, 1000.0, "")
	boostOpenLoopBlendBias1 ("boostOpenLoopBlendBias 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 652, 0.5, 0.0, 100.0, "%")
	boostOpenLoopBlendBias2 ("boostOpenLoopBlendBias 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 653, 0.5, 0.0, 100.0, "%")
	boostOpenLoopBlendOutput1 ("boostOpenLoopBlendOutput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 654, 1.0, -100.0, 100.0, "%")
	boostOpenLoopBlendOutput2 ("boostOpenLoopBlendOutput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 655, 1.0, -100.0, 100.0, "%")
	boostOpenLoopBlendYAxis1 ("boostOpenLoopBlendYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 656, 0.1, -1000.0, 1000.0, "")
	boostOpenLoopBlendYAxis2 ("boostOpenLoopBlendYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 658, 0.1, -1000.0, 1000.0, "")
	boostClosedLoopBlendParameter1 ("boostClosedLoopBlendParameter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 660, 0.1, -1000.0, 1000.0, "")
	boostClosedLoopBlendParameter2 ("boostClosedLoopBlendParameter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 662, 0.1, -1000.0, 1000.0, "")
	boostClosedLoopBlendBias1 ("boostClosedLoopBlendBias 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 664, 0.5, 0.0, 100.0, "%")
	boostClosedLoopBlendBias2 ("boostClosedLoopBlendBias 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 665, 0.5, 0.0, 100.0, "%")
	boostClosedLoopBlendOutput1 ("boostClosedLoopBlendOutput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 666, 0.1, -1000.0, 1000.0, "%")
	boostClosedLoopBlendOutput2 ("boostClosedLoopBlendOutput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 668, 0.1, -1000.0, 1000.0, "%")
	boostClosedLoopBlendYAxis1 ("boostClosedLoopBlendYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 670, 0.1, -1000.0, 1000.0, "")
	boostClosedLoopBlendYAxis2 ("boostClosedLoopBlendYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 672, 0.1, -1000.0, 1000.0, "")
	targetAfrBlendParameter1 ("targetAfrBlendParameter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 674, 0.1, -1000.0, 1000.0, "")
	targetAfrBlendParameter2 ("targetAfrBlendParameter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 676, 0.1, -1000.0, 1000.0, "")
	targetAfrBlendBias1 ("targetAfrBlendBias 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 678, 0.5, 0.0, 100.0, "%")
	targetAfrBlendBias2 ("targetAfrBlendBias 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 679, 0.5, 0.0, 100.0, "%")
	targetAfrBlendOutput1 ("targetAfrBlendOutput 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 680, 0.1, -1000.0, 1000.0, "%")
	targetAfrBlendOutput2 ("targetAfrBlendOutput 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 682, 0.1, -1000.0, 1000.0, "%")
	targetAfrBlendYAxis1 ("targetAfrBlendYAxis 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 684, 0.1, -1000.0, 1000.0, "")
	targetAfrBlendYAxis2 ("targetAfrBlendYAxis 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 686, 0.1, -1000.0, 1000.0, "")
	outputRequestPeriod ("outputRequestPeriod", SensorCategory.SENSOR_INPUTS, FieldType.INT, 692, 1.0, -1.0, -1.0, "")
	mapFast ("mapFast", SensorCategory.SENSOR_INPUTS, FieldType.INT, 696, 1.0, -1.0, -1.0, "")
	luaGauges1 ("Lua: Gauge 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 700, 1.0, 0.0, 50000.0, "value")
	luaGauges2 ("Lua: Gauge 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 704, 1.0, 0.0, 50000.0, "value")
	luaGauges3 ("Lua: Gauge 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 708, 1.0, 0.0, 50000.0, "value")
	luaGauges4 ("Lua: Gauge 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 712, 1.0, 0.0, 50000.0, "value")
	luaGauges5 ("Lua: Gauge 5", SensorCategory.SENSOR_INPUTS, FieldType.INT, 716, 1.0, 0.0, 50000.0, "value")
	luaGauges6 ("Lua: Gauge 6", SensorCategory.SENSOR_INPUTS, FieldType.INT, 720, 1.0, 0.0, 50000.0, "value")
	luaGauges7 ("Lua: Gauge 7", SensorCategory.SENSOR_INPUTS, FieldType.INT, 724, 1.0, 0.0, 50000.0, "value")
	luaGauges8 ("Lua: Gauge 8", SensorCategory.SENSOR_INPUTS, FieldType.INT, 728, 1.0, 0.0, 50000.0, "value")
	rawMaf2 ("rawMaf2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 732, 0.001, 0.0, 5.0, "V")
	mafMeasured2 ("MAF #2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 734, 0.1, 0.0, 0.0, "kg/h")
	schedulingUsedCount ("schedulingUsedCount", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 736, 1.0, 0.0, 0.0, "")
	vehicleSpeedKph ("Vehicle Speed", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 738, 0.01, 0.0, 0.0, "kph")
	Gego ("Gego", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 740, 0.01, 50.0, 150.0, "%")
	testBenchIter ("testBenchIter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 742, 1.0, 0.0, 0.0, "count")
	oilTemp ("oilTemp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 744, 0.01, 0.0, 0.0, "deg C")
	fuelTemp ("fuelTemp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 746, 0.01, 0.0, 0.0, "deg C")
	ambientTemp ("ambientTemp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 748, 0.01, 0.0, 0.0, "deg C")
	compressorDischargeTemp ("compressorDischargeTemp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 750, 0.01, 0.0, 0.0, "deg C")
	compressorDischargePressure ("compressorDischargePressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 752, 0.03333333333333333, 0.0, 0.0, "kPa")
	throttleInletPressure ("throttleInletPressure", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 754, 0.03333333333333333, 0.0, 0.0, "kPa")
	ignitionOnTime ("ignitionOnTime", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 756, 1.0, 0.0, 0.0, "sec")
	engineRunTime ("engineRunTime", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 758, 1.0, 0.0, 0.0, "sec")
	distanceTraveled ("distanceTraveled", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 760, 0.1, 0.0, 0.0, "km")
	afrGasolineScale ("Air/Fuel Ratio (Gas Scale)", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 762, 0.001, 0.0, 0.0, "AFR")
	afr2GasolineScale ("Air/Fuel Ratio 2 (Gas Scale)", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 764, 0.001, 0.0, 0.0, "AFR")
	alignmentFill_at_766 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 766, 1.0, 0.0, 100.0, "units")
	wheelSlipRatio ("wheelSlipRatio", SensorCategory.SENSOR_INPUTS, FieldType.INT, 768, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic1 ("ignitorDiagnostic 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 772, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic2 ("ignitorDiagnostic 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 773, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic3 ("ignitorDiagnostic 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 774, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic4 ("ignitorDiagnostic 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 775, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic5 ("ignitorDiagnostic 5", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 776, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic6 ("ignitorDiagnostic 6", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 777, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic7 ("ignitorDiagnostic 7", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 778, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic8 ("ignitorDiagnostic 8", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 779, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic9 ("ignitorDiagnostic 9", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 780, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic10 ("ignitorDiagnostic 10", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 781, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic11 ("ignitorDiagnostic 11", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 782, 1.0, -1.0, -1.0, "")
	ignitorDiagnostic12 ("ignitorDiagnostic 12", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 783, 1.0, -1.0, -1.0, "")
	injectorDiagnostic1 ("injectorDiagnostic 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 784, 1.0, -1.0, -1.0, "")
	injectorDiagnostic2 ("injectorDiagnostic 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 785, 1.0, -1.0, -1.0, "")
	injectorDiagnostic3 ("injectorDiagnostic 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 786, 1.0, -1.0, -1.0, "")
	injectorDiagnostic4 ("injectorDiagnostic 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 787, 1.0, -1.0, -1.0, "")
	injectorDiagnostic5 ("injectorDiagnostic 5", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 788, 1.0, -1.0, -1.0, "")
	injectorDiagnostic6 ("injectorDiagnostic 6", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 789, 1.0, -1.0, -1.0, "")
	injectorDiagnostic7 ("injectorDiagnostic 7", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 790, 1.0, -1.0, -1.0, "")
	injectorDiagnostic8 ("injectorDiagnostic 8", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 791, 1.0, -1.0, -1.0, "")
	injectorDiagnostic9 ("injectorDiagnostic 9", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 792, 1.0, -1.0, -1.0, "")
	injectorDiagnostic10 ("injectorDiagnostic 10", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 793, 1.0, -1.0, -1.0, "")
	injectorDiagnostic11 ("injectorDiagnostic 11", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 794, 1.0, -1.0, -1.0, "")
	injectorDiagnostic12 ("injectorDiagnostic 12", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 795, 1.0, -1.0, -1.0, "")
	actualLastInjectionStage2 ("Fuel: Last inj pulse width stg 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 796, 0.0033333333333333335, 0.0, 0.0, "ms")
	alignmentFill_at_798 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 798, 1.0, 0.0, 100.0, "units")
	actualLastInjectionRatioStage2 ("Fuel: Last inj pulse growth stg 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 800, 1.0, 0.0, 0.0, "")
	injectorDutyCycleStage2 ("Fuel: injector duty cycle stage 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 804, 0.5, 0.0, 0.0, "%")
	rawFlexFreq ("rawFlexFreq", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 805, 1.0, -1.0, -1.0, "")
	canReWidebandCmdStatus ("canReWidebandCmdStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 806, 1.0, -1.0, -1.0, "")
	deviceUid ("deviceUid", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 807, 1.0, -1.0, -1.0, "")
	mc33810spiErrorCounter ("mc33810spiErrorCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 808, 1.0, -1.0, -1.0, "")
	sadDwellRatioCounter ("sadDwellRatioCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 810, 1.0, -1.0, -1.0, "")
	injectionPrimingCounter ("injectionPrimingCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 811, 1.0, -1.0, -1.0, "")
	tempLogging2 ("tempLogging2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 812, 1.0, -1.0, -1.0, "")
	alignmentFill_at_813 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 813, 1.0, 0.0, 100.0, "units")
	acPressure ("A/C pressure", SensorCategory.SENSOR_INPUTS, FieldType.INT, 816, 1.0, 0.0, 0.0, "kPa")
	rawAuxAnalog1 ("rawAuxAnalog1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 820, 0.001, 0.0, 5.0, "V")
	rawAuxAnalog2 ("rawAuxAnalog2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 822, 0.001, 0.0, 5.0, "V")
	rawAuxAnalog3 ("rawAuxAnalog3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 824, 0.001, 0.0, 5.0, "V")
	rawAuxAnalog4 ("rawAuxAnalog4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 826, 0.001, 0.0, 5.0, "V")
	fastAdcErrorCount ("ECU: Fast ADC errors", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 828, 1.0, 0.0, 255.0, "")
	slowAdcErrorCount ("ECU: Slow ADC errors", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 829, 1.0, 0.0, 255.0, "")
	rawAuxTemp1 ("rawAuxTemp1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 830, 0.001, 0.0, 5.0, "V")
	rawAuxTemp2 ("rawAuxTemp2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 832, 0.001, 0.0, 5.0, "V")
	rawAmbientTemp ("rawAmbientTemp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 834, 0.001, 0.0, 5.0, "V")
	rtcUnixEpochTime ("rtcUnixEpochTime", SensorCategory.SENSOR_INPUTS, FieldType.INT, 836, 1.0, -1.0, -1.0, "")
	sparkCutReasonBlinker ("sparkCutReasonBlinker", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 840, 1.0, -1.0, -1.0, "")
	fuelCutReasonBlinker ("fuelCutReasonBlinker", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 841, 1.0, -1.0, -1.0, "")
	hp ("hp", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 842, 1.0, -1.0, -1.0, "")
	torque ("torque", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 844, 1.0, -1.0, -1.0, "")
	alignmentFill_at_846 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 846, 1.0, 0.0, 100.0, "units")
	throttlePressureRatio ("throttlePressureRatio", SensorCategory.SENSOR_INPUTS, FieldType.INT, 848, 1.0, -1.0, -1.0, "")
	throttleEffectiveAreaOpening ("throttleEffectiveAreaOpening", SensorCategory.SENSOR_INPUTS, FieldType.INT, 852, 1.0, -1.0, -1.0, "")
	mcuSerial ("mcuSerial", SensorCategory.SENSOR_INPUTS, FieldType.INT, 856, 1.0, 0.0, 4.294967295E9, "")
	sd_error ("sd_error", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 860, 1.0, -1.0, -1.0, "")
	fastAdcOverrunCount ("ECU: Fast ADC overruns", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 861, 1.0, 0.0, 255.0, "")
	slowAdcOverrunCount ("ECU: Slow ADC overruns", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 862, 1.0, 0.0, 255.0, "")
	fastAdcLastError ("ECU: Fast ADC error type", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 863, 1.0, 0.0, 255.0, "")
	fastAdcPeriod ("ECU: Fast ADC period", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 864, 1.0, 0.0, 1000.0, "ticks")
	fastAdcConversionCount ("ECU: Fast ADC conversions", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 866, 1.0, 0.0, 65535.0, "N")
	canReWidebandVersion ("canReWidebandVersion", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 868, 1.0, -1.0, -1.0, "")
	canReWidebandFwDay ("canReWidebandFwDay", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 869, 1.0, -1.0, -1.0, "")
	canReWidebandFwMon ("canReWidebandFwMon", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 870, 1.0, -1.0, -1.0, "")
	canReWidebandFwYear ("canReWidebandFwYear", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 871, 1.0, -1.0, -1.0, "")
	transitionEventCode ("transitionEventCode", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 872, 1.0, -1.0, -1.0, "")
	transitionEventsCounter ("transitionEventsCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 874, 1.0, -1.0, -1.0, "")
	mapPerCylinder1 ("mapPerCylinder 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 876, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder2 ("mapPerCylinder 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 877, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder3 ("mapPerCylinder 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 878, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder4 ("mapPerCylinder 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 879, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder5 ("mapPerCylinder 5", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 880, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder6 ("mapPerCylinder 6", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 881, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder7 ("mapPerCylinder 7", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 882, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder8 ("mapPerCylinder 8", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 883, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder9 ("mapPerCylinder 9", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 884, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder10 ("mapPerCylinder 10", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 885, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder11 ("mapPerCylinder 11", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 886, 1.0, 0.0, 0.0, "kPa")
	mapPerCylinder12 ("mapPerCylinder 12", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 887, 1.0, 0.0, 0.0, "kPa")
	totalFuelCorrection ("Fuel: Total correction", SensorCategory.SENSOR_INPUTS, FieldType.INT, 888, 1.0, 0.0, 3.0, "mult")
	running ("running", SensorCategory.SENSOR_INPUTS, FieldType.INT, 892, 1.0, -1.0, -1.0, "")
	afrTableYAxis ("afrTableYAxis", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 912, 0.01, 0.0, 0.0, "%")
	targetLambda ("Fuel: target lambda", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 914, 1.0E-4, 0.5, 1.5, "")
	targetAFR ("Fuel: target AFR", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 916, 0.001, 10.0, 20.0, "ratio")
	stoichiometricRatio ("Fuel: Stoich ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 918, 0.001, 0.0, 0.0, "ratio")
	sdTcharge_coff ("sdTcharge_coff", SensorCategory.SENSOR_INPUTS, FieldType.INT, 920, 1.0, -1.0, -1.0, "")
	sdAirMassInOneCylinder ("Air: Cylinder airmass", SensorCategory.SENSOR_INPUTS, FieldType.INT, 924, 1.0, 0.0, 0.0, "g")
	normalizedCylinderFilling ("Air: Normalized cyl filling", SensorCategory.SENSOR_INPUTS, FieldType.INT, 928, 1.0, 0.0, 100.0, "%")
	brokenInjector ("brokenInjector", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 932, 1.0, -1.0, -1.0, "")
	unused88 ("unused88", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 933, 1.0, -1.0, -1.0, "")
	idealEngineTorque ("idealEngineTorque", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 934, 1.0, -1.0, -1.0, "")
	baseDwell ("Ignition: base dwell", SensorCategory.SENSOR_INPUTS, FieldType.INT, 940, 1.0, 0.0, 30.0, "ms")
	sparkDwell ("Ignition: coil charge time", SensorCategory.SENSOR_INPUTS, FieldType.INT, 944, 1.0, 0.0, 30.0, "ms")
	dwellDurationAngle ("Ignition: dwell duration\nas crankshaft angle\nNAN if engine is stopped\nSee also sparkDwell", SensorCategory.SENSOR_INPUTS, FieldType.INT, 948, 1.0, 0.0, 120.0, "deg")
	cltTimingCorrection ("Ign: CLT correction", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 952, 0.01, -20.0, 20.0, "deg")
	timingIatCorrection ("Ign: IAT correction", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 954, 0.01, -20.0, 20.0, "deg")
	timingPidCorrection ("Idle: Timing adjustment", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 956, 0.01, -20.0, 20.0, "deg")
	dfcoTimingRetard ("DFCO: Timing retard", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 958, 0.01, 0.0, 50.0, "deg")
	baseIgnitionAdvance ("Timing: base ignition", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 960, 0.02, 0.0, 0.0, "deg")
	correctedIgnitionAdvance ("Timing: ignition", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 962, 0.02, 0.0, 0.0, "deg")
	tractionAdvanceDrop ("Traction: timing correction", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 964, 0.02, 0.0, 0.0, "deg")
	alignmentFill_at_26 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 966, 1.0, 0.0, 100.0, "units")
	dwellVoltageCorrection ("Ign: Dwell voltage correction", SensorCategory.SENSOR_INPUTS, FieldType.INT, 968, 1.0, -1.0, -1.0, "")
	luaTimingAdd ("Ign: Lua timing add", SensorCategory.SENSOR_INPUTS, FieldType.INT, 972, 1.0, -20.0, 20.0, "deg")
	luaTimingMult ("Ign: Lua timing mult", SensorCategory.SENSOR_INPUTS, FieldType.INT, 976, 1.0, -20.0, 20.0, "deg")
	trailingSparkAngle ("Ign: Trailing spark deg", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 984, 0.01, -20.0, 20.0, "deg")
	rpmForIgnitionTableDot ("rpmForIgnitionTableDot", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 986, 1.0, -1.0, -1.0, "")
	rpmForIgnitionIdleTableDot ("rpmForIgnitionIdleTableDot", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 988, 1.0, -1.0, -1.0, "")
	alignmentFill_at_50 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 990, 1.0, 0.0, 100.0, "units")
	loadForIgnitionTableDot ("loadForIgnitionTableDot", SensorCategory.SENSOR_INPUTS, FieldType.INT, 992, 1.0, -1.0, -1.0, "")
	m_knockLevel ("Knock: Current level", SensorCategory.SENSOR_INPUTS, FieldType.INT, 996, 1.0, 0.0, 0.0, "Volts")
	m_knockCyl1 ("Knock: Cyl 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1000, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl2 ("Knock: Cyl 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1001, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl3 ("Knock: Cyl 3", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1002, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl4 ("Knock: Cyl 4", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1003, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl5 ("Knock: Cyl 5", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1004, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl6 ("Knock: Cyl 6", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1005, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl7 ("Knock: Cyl 7", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1006, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl8 ("Knock: Cyl 8", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1007, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl9 ("Knock: Cyl 9", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1008, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl10 ("Knock: Cyl 10", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1009, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl11 ("Knock: Cyl 11", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1010, 1.0, 0.0, 0.0, "dBv")
	m_knockCyl12 ("Knock: Cyl 12", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1011, 1.0, 0.0, 0.0, "dBv")
	m_knockRetard ("Knock: Retard", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1012, 1.0, 0.0, 0.0, "deg")
	m_knockThreshold ("Knock: Threshold", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1016, 1.0, -1.0, -1.0, "")
	m_knockCount ("Knock: Count", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1020, 1.0, 0.0, 0.0, "")
	m_maximumRetard ("Knock: Max retard", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1024, 1.0, -1.0, -1.0, "")
	m_knockSpectrum1 ("Knock: SpectrumData 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1028, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum2 ("Knock: SpectrumData 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1032, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum3 ("Knock: SpectrumData 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1036, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum4 ("Knock: SpectrumData 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1040, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum5 ("Knock: SpectrumData 5", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1044, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum6 ("Knock: SpectrumData 6", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1048, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum7 ("Knock: SpectrumData 7", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1052, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum8 ("Knock: SpectrumData 8", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1056, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum9 ("Knock: SpectrumData 9", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1060, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum10 ("Knock: SpectrumData 10", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1064, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum11 ("Knock: SpectrumData 11", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1068, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum12 ("Knock: SpectrumData 12", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1072, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum13 ("Knock: SpectrumData 13", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1076, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum14 ("Knock: SpectrumData 14", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1080, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum15 ("Knock: SpectrumData 15", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1084, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrum16 ("Knock: SpectrumData 16", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1088, 1.0, 0.0, 0.0, "compressed data")
	m_knockSpectrumChannelCyl ("Knock: ChannelAndCylNumber", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1092, 1.0, 0.0, 0.0, "compressed N + N")
	m_knockFrequencyStart ("Knock: Start Freq", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1094, 1.0, 0.0, 0.0, "Hz")
	m_knockFrequencyStep ("Knock: Step Freq", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1096, 1.0, 0.0, 0.0, "Hz")
	m_knockFuelTrimMultiplier ("Knock: Fuel trim when knock", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1100, 1.0, 0.0, 0.0, "multiplier")
	tcuCurrentGear ("TCU: Current Gear", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1108, 1.0, -1.0, 10.0, "gear")
	alignmentFill_at_1 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1109, 1.0, 0.0, 100.0, "units")
	tcRatio ("TCU: Torque Converter Ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1110, 0.01, 0.0, 0.0, "value")
	lastShiftTime ("lastShiftTime", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1112, 1.0, -1.0, -1.0, "")
	tcu_currentRange ("TCU: Current Range", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1116, 1.0, 0.0, 0.0, "")
	pressureControlDuty ("TCU: EPC Duty", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1117, 1.0, 0.0, 100.0, "%")
	torqueConverterDuty ("TCU: TC Duty", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1118, 1.0, 0.0, 100.0, "%")
	alignmentFill_at_11 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1119, 1.0, 0.0, 100.0, "units")
	throttleModelCrossoverAngle ("Air: Throttle crossover pos", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1128, 0.01, 0.0, 100.0, "%")
	alignmentFill_at_6 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1130, 1.0, 0.0, 100.0, "units")
	throttleEstimatedFlow ("Air: Throttle flow estimate", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1132, 1.0, 0.0, 5.0, "g/s")
	m_requested_pump ("GDI: HPFP duration\nComputed requested pump duration in degrees (not including deadtime)", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1136, 1.0, -1.0, -1.0, "")
	fuel_requested_percent ("GDI: HPFP requested duty", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1140, 1.0, 0.0, 100.0, "%")
	fuel_requested_percent_pi ("GDI: percent_pi", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1144, 1.0, -1.0, -1.0, "")
	m_pressureTarget_kPa ("GDI: target pressure", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1152, 1.0, -1.0, -1.0, "")
	hpfp_p_control_percent ("hpfp_p_control_percent", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1156, 1.0, -1.0, -1.0, "")
	hpfp_i_control_percent ("hpfp_i_control_percent", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1160, 1.0, -1.0, -1.0, "")
	nextLobe ("GDI: next lobe N", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1164, 1.0, -1.0, -1.0, "")
	di_nextStart ("GDI: valve activation angle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1168, 1.0, 0.0, 100.0, "v")
	HpfdActivationPhase ("GDI: HPFP activation angle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1172, 1.0, -1.0, -1.0, "")
	HpfdDeactivationPhase ("GDI: HPFP deactivation angle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1176, 1.0, -1.0, -1.0, "")
	m_deadtime ("Fuel: injector lag", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1180, 1.0, 0.0, 0.0, "ms")
	pressureDelta ("Fuel: Injector pressure delta", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1184, 1.0, -1000.0, 1000.0, "kPa")
	pressureRatio ("Fuel: Injector pressure ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1188, 1.0, 0.0, 100.0, "")
	pressureCorrectionReference ("Fuel: corr reference pressure", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1192, 1.0, 0.0, 1000.0, "kPa")
	retardThresholdRpm ("Launch: Retard threshold RPM", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1196, 1.0, -1.0, -1.0, "")
	fuelALSCorrection ("fuelALSCorrection", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1212, 1.0, -1.0, -1.0, "")
	timingALSCorrection ("timingALSCorrection", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1216, 0.01, -20.0, 20.0, "deg")
	timingALSSkip ("timingALSSkip", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1218, 0.01, 0.0, 50.0, "deg")
	luaTargetAdd ("Boost: Lua target add", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1224, 0.5, -100.0, 100.0, "percent")
	alignmentFill_at_6 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1226, 1.0, 0.0, 100.0, "units")
	luaTargetMult ("Boost: Lua target mult", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1228, 1.0, -100.0, 100.0, "")
	boostControlTarget ("Boost: Target", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1232, 0.03333333333333333, 0.0, 300.0, "kPa")
	alignmentFill_at_14 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1234, 1.0, 0.0, 100.0, "units")
	openLoopPart ("Boost: Open loop", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1236, 1.0, -100.0, 100.0, "percent")
	luaOpenLoopAdd ("Boost: Lua open loop add", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1240, 1.0, -100.0, 100.0, "percent")
	boostControllerClosedLoopPart ("Boost: Closed loop", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1244, 0.5, -50.0, 50.0, "%")
	alignmentFill_at_25 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1245, 1.0, 0.0, 100.0, "units")
	boostOutput ("Boost: Output", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1246, 0.01, -100.0, 100.0, "percent")
	acButtonState ("AC switch", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1248, 1.0, -1.0, -1.0, "")
	alignmentFill_at_1 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1249, 1.0, 0.0, 100.0, "units")
	radiatorFanStatus ("radiatorFanStatus", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1264, 1.0, -1.0, -1.0, "")
	alignmentFill_at_5 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1265, 1.0, 0.0, 100.0, "units")
	injectionMass1 ("injectionMass 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1284, 1.0, -1.0, -1.0, "")
	injectionMass2 ("injectionMass 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1288, 1.0, -1.0, -1.0, "")
	injectionMass3 ("injectionMass 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1292, 1.0, -1.0, -1.0, "")
	injectionMass4 ("injectionMass 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1296, 1.0, -1.0, -1.0, "")
	injectionMass5 ("injectionMass 5", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1300, 1.0, -1.0, -1.0, "")
	injectionMass6 ("injectionMass 6", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1304, 1.0, -1.0, -1.0, "")
	injectionMass7 ("injectionMass 7", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1308, 1.0, -1.0, -1.0, "")
	injectionMass8 ("injectionMass 8", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1312, 1.0, -1.0, -1.0, "")
	injectionMass9 ("injectionMass 9", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1316, 1.0, -1.0, -1.0, "")
	injectionMass10 ("injectionMass 10", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1320, 1.0, -1.0, -1.0, "")
	injectionMass11 ("injectionMass 11", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1324, 1.0, -1.0, -1.0, "")
	injectionMass12 ("injectionMass 12", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1328, 1.0, -1.0, -1.0, "")
	lua ("lua", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1332, 1.0, -1.0, -1.0, "")
	sd ("sd", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1344, 1.0, -1.0, -1.0, "")
	crankingFuel ("crankingFuel", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1352, 1.0, -1.0, -1.0, "")
	baroCorrection ("Fuel: Barometric pressure mult", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1364, 1.0, -1.0, -1.0, "")
	hellenBoardId ("Detected Board ID", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1368, 1.0, 0.0, 3000.0, "id")
	clutchUpState ("Clutch: up", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1370, 1.0, -1.0, -1.0, "")
	brakePedalState ("Brake switch", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1371, 1.0, -1.0, -1.0, "")
	startStopState ("startStopState", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1372, 1.0, -1.0, -1.0, "")
	smartChipState ("smartChipState", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1373, 1.0, -1.0, -1.0, "")
	smartChipRestartCounter ("smartChipRestartCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1374, 1.0, -1.0, -1.0, "")
	smartChipAliveCounter ("smartChipAliveCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1375, 1.0, -1.0, -1.0, "")
	startStopStateToggleCounter ("startStopStateToggleCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1380, 1.0, -1.0, -1.0, "")
	currentVe ("currentVe", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1384, 1.0, -1.0, -1.0, "")
	luaSoftSparkSkip ("luaSoftSparkSkip", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1388, 1.0, -1.0, -1.0, "")
	luaHardSparkSkip ("luaHardSparkSkip", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1392, 1.0, -1.0, -1.0, "")
	tractionControlSparkSkip ("tractionControlSparkSkip", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1396, 1.0, -1.0, -1.0, "")
	fuelInjectionCounter ("Fuel: Injection counter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1400, 1.0, -1.0, -1.0, "")
	globalSparkCounter ("Ign: Spark counter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1404, 1.0, -1.0, -1.0, "")
	fuelingLoad ("Fuel: Load", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1408, 1.0, -1.0, -1.0, "")
	ignitionLoad ("Ignition: load", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1412, 1.0, -1.0, -1.0, "")
	veTableYAxis ("veTableYAxis", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1416, 0.01, 0.0, 0.0, "%")
	overDwellCounter ("overDwellCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1418, 1.0, -1.0, -1.0, "")
	overDwellNotScheduledCounter ("overDwellNotScheduledCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1419, 1.0, -1.0, -1.0, "")
	sparkOutOfOrderCounter ("sparkOutOfOrderCounter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1420, 1.0, -1.0, -1.0, "")
	alignmentFill_at_137 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1421, 1.0, 0.0, 100.0, "units")
	stftCorrection1 ("STFT: Bank 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1424, 1.0, 50.0, 150.0, "%")
	stftCorrection2 ("STFT: Bank 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1428, 1.0, 50.0, 150.0, "%")
	tpsFrom ("Fuel: TPS AE from", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1432, 1.0, -1.0, -1.0, "")
	tpsTo ("Fuel: TPS AE to", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1436, 1.0, -1.0, -1.0, "")
	deltaTps ("Fuel: TPS AE change", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1440, 1.0, -1.0, -1.0, "")
	extraFuel ("Fuel: TPS extraFuel", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1444, 1.0, -1.0, -1.0, "")
	valueFromTable ("Fuel: TPS valueFromTable", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1448, 1.0, -1.0, -1.0, "")
	fractionalInjFuel ("Fuel: TPS AE fractionalInjFuel", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1456, 1.0, -1.0, -1.0, "")
	accumulatedValue ("accumulatedValue", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1460, 1.0, -1.0, -1.0, "")
	maxExtraPerCycle ("maxExtraPerCycle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1464, 1.0, -1.0, -1.0, "")
	maxExtraPerPeriod ("maxExtraPerPeriod", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1468, 1.0, -1.0, -1.0, "")
	maxInjectedPerPeriod ("maxInjectedPerPeriod", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1472, 1.0, -1.0, -1.0, "")
	cycleCnt ("cycleCnt", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1476, 1.0, -1.0, -1.0, "")
	hwEventCounters1 ("Hardware events since boot 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1480, 1.0, -1.0, -1.0, "")
	hwEventCounters2 ("Hardware events since boot 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1482, 1.0, -1.0, -1.0, "")
	hwEventCounters3 ("Hardware events since boot 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1484, 1.0, -1.0, -1.0, "")
	hwEventCounters4 ("Hardware events since boot 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1486, 1.0, -1.0, -1.0, "")
	vvtEventRiseCounter1 ("vvtEventRiseCounter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1488, 1.0, -1.0, -1.0, "")
	vvtEventRiseCounter2 ("vvtEventRiseCounter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1490, 1.0, -1.0, -1.0, "")
	vvtEventRiseCounter3 ("vvtEventRiseCounter 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1492, 1.0, -1.0, -1.0, "")
	vvtEventRiseCounter4 ("vvtEventRiseCounter 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1494, 1.0, -1.0, -1.0, "")
	vvtEventFallCounter1 ("vvtEventFallCounter 1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1496, 1.0, -1.0, -1.0, "")
	vvtEventFallCounter2 ("vvtEventFallCounter 2", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1498, 1.0, -1.0, -1.0, "")
	vvtEventFallCounter3 ("vvtEventFallCounter 3", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1500, 1.0, -1.0, -1.0, "")
	vvtEventFallCounter4 ("vvtEventFallCounter 4", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1502, 1.0, -1.0, -1.0, "")
	vvtCamCounter ("Sync: total cams front counter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1504, 1.0, -1.0, -1.0, "")
	alignmentFill_at_26 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1506, 1.0, 0.0, 100.0, "units")
	mapVvt_MAP_AT_SPECIAL_POINT ("InstantMAP at readout angle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1508, 1.0, -300.0, 300.0, "kPa")
	mapVvt_MAP_AT_DIFF ("InstantMAP delta @ readout angles", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1512, 1.0, -300.0, 300.0, "kPa")
	mapVvt_MAP_AT_CYCLE_COUNT ("mapVvt_MAP_AT_CYCLE_COUNT", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1516, 1.0, -10.0, 100.0, "distance")
	mapVvt_sync_counter ("Instant MAP sync counter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1517, 1.0, 0.0, 100.0, "counter")
	mapVvt_min_point_counter ("mapVvt_min_point_counter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1518, 1.0, -1.0, -1.0, "")
	alignmentFill_at_39 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1519, 1.0, 0.0, 100.0, "units")
	temp_mapVvt_index ("temp_mapVvt_index", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1520, 1.0, -1.0, -1.0, "")
	mapVvt_CycleDelta ("mapVvt_CycleDelta", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1524, 1.0, -1.0, -1.0, "")
	currentEngineDecodedPhase ("Sync: Engine Phase", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1528, 1.0, 0.0, 0.0, "deg")
	triggerToothAngleError ("Sync: trigger angle error", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1532, 1.0, -30.0, 30.0, "deg")
	triggerIgnoredToothCount ("triggerIgnoredToothCount", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1536, 1.0, -1.0, -1.0, "")
	alignmentFill_at_57 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1537, 1.0, 0.0, 100.0, "units")
	mapCamPrevToothAngle ("Sync: MAP: prev angle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1540, 1.0, -3000.0, 3000.0, "deg")
	triggerElapsedUs ("triggerElapsedUs", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1548, 1.0, -1.0, -1.0, "")
	synchronizationCounter ("sync: wheel sync counter", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1552, 1.0, -1.0, -1.0, "")
	vvtToothDurations0 ("vvtToothDurations0", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1556, 1.0, 0.0, 100000.0, "us")
	vvtCurrentPosition ("sync: Primary Position", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1560, 1.0, -10000.0, 10000.0, "")
	vvtToothPosition1 ("sync: Cam Position 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1564, 1.0, -10000.0, 10000.0, "")
	vvtToothPosition2 ("sync: Cam Position 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1568, 1.0, -10000.0, 10000.0, "")
	vvtToothPosition3 ("sync: Cam Position 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1572, 1.0, -10000.0, 10000.0, "")
	vvtToothPosition4 ("sync: Cam Position 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1576, 1.0, -10000.0, 10000.0, "")
	triggerSyncGapRatio ("Sync: Trigger Latest Ratio", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1580, 1.0, -10000.0, 10000.0, "")
	triggerStateIndex ("triggerStateIndex", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1584, 1.0, -1.0, -1.0, "")
	triggerCountersError ("triggerCountersError", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1585, 1.0, -1.0, -1.0, "")
	alignmentFill_at_34 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1586, 1.0, 0.0, 100.0, "units")
	camResyncCounter ("sync: Phase Re-Sync Counter", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1732, 1.0, -1.0, -1.0, "")
	alignmentFill_at_1 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1733, 1.0, 0.0, 100.0, "units")
	wallFuelCorrection ("fuel wallwetting injection time\n correction to account for wall wetting effect for current cycle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1740, 1.0, -1.0, -1.0, "")
	wallFuel ("Fuel on the wall\nin ms of injector open time for each injector.", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1744, 1.0, -1.0, -1.0, "")
	emaError ("emaError", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1752, 1.0, -1.0, -1.0, "")
	liveDataExampleField ("liveDataExampleField", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1756, 1.0, -1.0, -1.0, "")
	idleState ("idleState", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1760, 1.0, -1.0, -1.0, "")
	baseIdlePosition ("idle: base value\ncurrent position without adjustments (iacByTpsTaper, afterCrankingIACtaperDuration)", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1764, 1.0, -1.0, -1.0, "")
	iacByTpsTaper ("idle: iacByTpsTaper portion", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1768, 1.0, -1.0, -1.0, "")
	idleTarget ("Idle: Target RPM", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1776, 1.0, -1.0, -1.0, "")
	idleEntryRpm ("Idle: Entry threshold", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1778, 1.0, -1.0, -1.0, "")
	idleExitRpm ("Idle: Exit threshold", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1780, 1.0, -1.0, -1.0, "")
	alignmentFill_at_22 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1782, 1.0, 0.0, 100.0, "units")
	targetRpmByClt ("Idle: Target RPM base", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1784, 1.0, -1.0, -1.0, "")
	targetRpmAc ("Idle: Target A/C RPM", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1788, 1.0, -1.0, -1.0, "")
	iacByRpmTaper ("idle: iacByRpmTaper portion", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1792, 1.0, -1.0, -1.0, "")
	luaAdd ("idle: Lua Adder", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1796, 1.0, -1.0, -1.0, "")
	m_lastTargetRpm ("m_lastTargetRpm", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1800, 1.0, -1.0, -1.0, "")
	idleClosedLoop ("Closed loop", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1804, 1.0, -1.0, -1.0, "")
	currentIdlePosition ("Idle: Position", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1808, 1.0, 0.0, 0.0, "%")
	idleTargetAirmass ("Target airmass", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1812, 1.0, 0.0, 0.0, "mg")
	idleTargetFlow ("Target airflow", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1814, 0.01, 0.0, 0.0, "kg/h")
	targetWithIdlePosition ("ETB: target with idle", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1816, 1.0, 0.0, 10.0, "%")
	trim ("ETB: trim", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1820, 1.0, -1.0, -1.0, "")
	boardEtbAdjustment ("boardEtbAdjustment", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1824, 1.0, -1.0, -1.0, "")
	luaAdjustment ("ETB: luaAdjustment", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1828, 1.0, 0.0, 3.0, "%")
	m_wastegatePosition ("DC: wastegatePosition", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1832, 1.0, 0.0, 3.0, "%")
	m_lastPidDtMs ("EBT: last PID dT", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1836, 1.0, 0.0, 4.0, "mS")
	etbFeedForward ("etbFeedForward", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1840, 1.0, -1.0, -1.0, "")
	integralError ("Integral error", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1844, 1.0, 0.0, 100.0, "")
	etbCurrentTarget ("ETB: target for current pedal", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1848, 1.0, -10000.0, 10000.0, "%")
	m_adjustedTarget ("Adjusted target", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1852, 0.01, -100.0, 100.0, "%")
	alignmentFill_at_38 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1854, 1.0, 0.0, 100.0, "units")
	etbTpsErrorCounter ("ETB TPS error counter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1860, 1.0, 0.0, 3.0, "count")
	etbPpsErrorCounter ("ETB pedal error counter", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1862, 1.0, 0.0, 3.0, "count")
	etbErrorCode ("etbErrorCode", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1864, 1.0, -1.0, -1.0, "")
	etbErrorCodeBlinker ("etbErrorCodeBlinker", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1865, 1.0, -1.0, -1.0, "")
	tcEtbDrop ("ETB traction control", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1866, 1.0, 0.0, 100.0, "%")
	alignmentFill_at_51 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1867, 1.0, 0.0, 100.0, "units")
	jamTimer ("ETB jam timer", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1868, 0.01, 0.0, 100.0, "sec")
	adjustedEtbTarget ("ETB with adjustments", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1870, 1.0, 0.0, 100.0, "%")
	state ("state", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1871, 1.0, -1.0, -1.0, "")
	faultCode ("WBO: Fault code", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1928, 1.0, -1.0, -1.0, "")
	heaterDuty ("WBO: Heater duty", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1929, 1.0, 0.0, 100.0, "%")
	pumpDuty ("WBO: Pump duty", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1930, 1.0, 0.0, 100.0, "%")
	alignmentFill_at_3 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1931, 1.0, 0.0, 100.0, "units")
	tempC ("WBO: Temperature", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1936, 1.0, 500.0, 1000.0, "C")
	nernstVoltage ("WBO: Nernst Voltage", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1938, 0.001, 0.0, 1.0, "V")
	esr ("WBO: ESR", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1940, 1.0, 0.0, 10000.0, "ohm")
	alignmentFill_at_14 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1942, 1.0, 0.0, 100.0, "units")
	dcOutput0 ("DC: output0", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1960, 1.0, -1.0, 1.0, "%")
	isEnabled0_int ("DC: en0", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1964, 1.0, 0.0, 10.0, "%")
	alignmentFill_at_5 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1965, 1.0, 0.0, 100.0, "units")
	value0 ("SENT ch0 value0", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1972, 1.0, 0.0, 4095.0, "RAW")
	value1 ("SENT ch0 value1", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1974, 1.0, 0.0, 4095.0, "RAW")
	errorRate ("SENT ch0 error rate", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1976, 1.0, 0.0, 100.0, "% (don't belive me)")
	vvtTarget ("vvtTarget", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1980, 0.1, -90.0, 90.0, "deg")
	vvtOutput ("vvtOutput", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1982, 0.5, 100.0, 1.0, "%")
	alignmentFill_at_3 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1983, 1.0, 0.0, 100.0, "units")
	lambdaTimeSinceGood ("lambdaTimeSinceGood", SensorCategory.SENSOR_INPUTS, FieldType.INT16, 1988, 0.01, 0.0, 1.0, "sec")
	alignmentFill_at_6 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 1990, 1.0, 0.0, 100.0, "units")
	sparkDuration1 ("Spark duration 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1992, 1.0, 0.0, 5.0, "ms")
	sparkDuration2 ("Spark duration 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 1996, 1.0, 0.0, 5.0, "ms")
	sparkDuration3 ("Spark duration 3", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2000, 1.0, 0.0, 5.0, "ms")
	sparkDuration4 ("Spark duration 4", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2004, 1.0, 0.0, 5.0, "ms")
	ltftCntHit ("LTFT learning: hits", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2008, 1.0, 0.0, 10000.0, "cnt")
	ltftCntMiss ("LTFT learning: miss", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2012, 1.0, 0.0, 10000.0, "cnt")
	ltftCntDeadband ("LTFT learning: in deadband", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2016, 1.0, 0.0, 10000.0, "cnt")
	ltftCorrection1 ("LTFT: Bank 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2024, 1.0, 50.0, 150.0, "%")
	ltftCorrection2 ("LTFT: Bank 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2028, 1.0, 50.0, 150.0, "%")
	ltftAccummulatedCorrection1 ("LTFT: Total Bank 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2032, 1.0, 50.0, 150.0, "%")
	ltftAccummulatedCorrection2 ("LTFT: Total Bank 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2036, 1.0, 50.0, 150.0, "%")
	stftCorrectionBinIdx ("STFT: used bin", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2040, 1.0, 0.0, 0.0, "Bin")
	stftLearningBinIdx ("STFT: learning bin", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2041, 1.0, 0.0, 0.0, "Bin")
	stftCorrectionState ("stftCorrectionState", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2042, 1.0, -1.0, -1.0, "")
	stftLearningState1 ("stftLearningState 1", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2043, 1.0, -1.0, -1.0, "")
	stftLearningState2 ("stftLearningState 2", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2044, 1.0, -1.0, -1.0, "")
	alignmentFill_at_5 ("need 4 byte alignment", SensorCategory.SENSOR_INPUTS, FieldType.INT8, 2045, 1.0, 0.0, 100.0, "units")
	stftInputError1 ("STFT: input Lambda error 1", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2048, 1.0, 50.0, 150.0, "%")
	stftInputError2 ("STFT: input Lambda error 2", SensorCategory.SENSOR_INPUTS, FieldType.INT, 2052, 1.0, 50.0, 150.0, "%")

Function Documentation

acButtonState()

acButtonState ( "AC switch"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1248  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

accelerationLat()

accelerationLat ( "Accel: Lateral"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 104  , 0.  001, 0.  0, 0.  0, "G"    )

package

accelerationLon()

accelerationLon ( "Accel: Longitudinal"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 106  , 0.  001, 0.  0, 0.  0, "G"    )

package

accelerationVert()

accelerationVert ( "Accel: Vertical"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 278  , 0.  001, 0.  0, 0.  0, "G"    )

package

accPedalSplit()

accPedalSplit ( "accPedalSplit"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 318  , 0.  01, 0.  0, 0.  0, "%"    )

package

accPedalUnfiltered()

accPedalUnfiltered ( "accPedalUnfiltered"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 320  , 0.  01, 0.  0, 0.  0, "%"    )

package

accumulatedValue()

accumulatedValue ( "accumulatedValue"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1460  , 1.  0, -1.  0, -1.  0, ""    )

package

acPressure()

acPressure ( "A/C pressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 816  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

Referenced by AcController.getAcState().

Here is the caller graph for this function:

actualLastInjection()

actualLastInjection ( "Fuel: Last inj pulse width"\nActual last injection time - including all compensation and injection  mode, SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 44  , 0.  0033333333333333335, 0.  0, 0.  0, "ms"    )

package

actualLastInjectionRatio()

actualLastInjectionRatio ( "Fuel: Last inj pulse growth"\nLast injection time divided to previous injection  time, SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 48  , 1.  0, 0.  0, 0.  0, ""    )

package

actualLastInjectionRatioStage2()

actualLastInjectionRatioStage2 ( "Fuel: Last inj pulse growth stg 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 800  , 1.  0, 0.  0, 0.  0, ""    )

package

actualLastInjectionStage2()

actualLastInjectionStage2 ( "Fuel: Last inj pulse width stg 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 796  , 0.  0033333333333333335, 0.  0, 0.  0, "ms"    )

package

adjustedEtbTarget()

adjustedEtbTarget ( "ETB with adjustments"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1870  , 1.  0, 0.  0, 100.  0, "%"    )

package

afr2GasolineScale()

afr2GasolineScale ( "Air/Fuel Ratio 2 (Gas Scale)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 764  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

afrGasolineScale()

afrGasolineScale ( "Air/Fuel Ratio (Gas Scale)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 762  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

afrTableYAxis()

afrTableYAxis ( "afrTableYAxis"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 912  , 0.  01, 0.  0, 0.  0, "%"    )

package

AFRValue()

AFRValue ( "Air/Fuel Ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 254  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

AFRValue2()

AFRValue2 ( "Air/Fuel Ratio 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 256  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

alignmentFill_at_1() [1/3]

alignmentFill_at_1 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1109  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_1() [2/3]

alignmentFill_at_1 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1249  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_1() [3/3]

alignmentFill_at_1 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1733  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_11()

alignmentFill_at_11 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1119  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_130()

alignmentFill_at_130 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 130  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_137()

alignmentFill_at_137 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1421  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_14() [1/2]

alignmentFill_at_14 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1234  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_14() [2/2]

alignmentFill_at_14 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1942  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_22()

alignmentFill_at_22 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1782  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_25()

alignmentFill_at_25 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1245  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_26() [1/2]

alignmentFill_at_26 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1506  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_26() [2/2]

alignmentFill_at_26 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 966  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_3() [1/2]

alignmentFill_at_3 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1931  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_3() [2/2]

alignmentFill_at_3 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1983  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_334()

alignmentFill_at_334 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 334  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_34()

alignmentFill_at_34 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1586  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_38()

alignmentFill_at_38 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1854  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_39()

alignmentFill_at_39 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1519  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_46()

alignmentFill_at_46 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 46  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_5() [1/3]

alignmentFill_at_5 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1265  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_5() [2/3]

alignmentFill_at_5 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1965  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_5() [3/3]

alignmentFill_at_5 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2045  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_50()

alignmentFill_at_50 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 990  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_51()

alignmentFill_at_51 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1867  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_55()

alignmentFill_at_55 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 55  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_57()

alignmentFill_at_57 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1537  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_6() [1/3]

alignmentFill_at_6 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1130  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_6() [2/3]

alignmentFill_at_6 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1226  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_6() [3/3]

alignmentFill_at_6 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1990  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_766()

alignmentFill_at_766 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 766  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_798()

alignmentFill_at_798 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 798  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_813()

alignmentFill_at_813 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 813  , 1.  0, 0.  0, 100.  0, "units"    )

package

alignmentFill_at_846()

alignmentFill_at_846 ( "need 4 byte alignment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 846  , 1.  0, 0.  0, 100.  0, "units"    )

package

alternatorStatus()

alternatorStatus ( "alternatorStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 404  , 1.  0, -1.  0, -1.  0, ""    )

package

ambientTemp()

ambientTemp ( "ambientTemp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 748  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

auxLinear1()

auxLinear1 ( "Aux linear #1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 356  , 1.  0, 0.  0, 0.  0, ""    )

package

auxLinear2()

auxLinear2 ( "Aux linear #2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 360  , 1.  0, 0.  0, 0.  0, ""    )

package

auxLinear3()

auxLinear3 ( "Aux linear #3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 364  , 1.  0, 0.  0, 0.  0, ""    )

package

auxLinear4()

auxLinear4 ( "Aux linear #4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 368  , 1.  0, 0.  0, 0.  0, ""    )

package

auxSpeed1()

auxSpeed1 ( "Aux speed 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 548  , 1.  0, 0.  0, 0.  0, "s"    )

package

auxSpeed2()

auxSpeed2 ( "Aux speed 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 550  , 1.  0, 0.  0, 0.  0, "s"    )

package

auxTemp1()

auxTemp1 ( "auxTemp1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 18  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

auxTemp2()

auxTemp2 ( "auxTemp2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 20  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

baroCorrection()

baroCorrection ( "Fuel: Barometric pressure mult"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1364  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getRunningFuel().

Here is the caller graph for this function:

baroPressure()

baroPressure ( "baroPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 34  , 0.  03333333333333333, 0.  0, 0.  0, "kPa"    )

package

baseDwell()

baseDwell ( "Ignition: base dwell"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 940  , 1.  0, 0.  0, 30.  0, "ms"    )

package

baseIdlePosition()

baseIdlePosition ( "idle: base value\ncurrent position without adjustments (iacByTpsTaper, afterCrankingIACtaperDuration)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1764  , 1.  0, -1.  0, -1.  0, ""    )

package

baseIgnitionAdvance()

baseIgnitionAdvance ( "Timing: base ignition"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 960  , 0.  02, 0.  0, 0.  0, "deg"    )

package

boardEtbAdjustment()

boardEtbAdjustment ( "boardEtbAdjustment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1824  , 1.  0, -1.  0, -1.  0, ""    )

package

boostClosedLoopBlendBias1()

boostClosedLoopBlendBias1 ( "boostClosedLoopBlendBias 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 664  , 0.  5, 0.  0, 100.  0, "%"    )

package

boostClosedLoopBlendBias2()

boostClosedLoopBlendBias2 ( "boostClosedLoopBlendBias 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 665  , 0.  5, 0.  0, 100.  0, "%"    )

package

boostClosedLoopBlendOutput1()

boostClosedLoopBlendOutput1 ( "boostClosedLoopBlendOutput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 666  , 0.  1, -1000.  0, 1000.  0, "%"    )

package

boostClosedLoopBlendOutput2()

boostClosedLoopBlendOutput2 ( "boostClosedLoopBlendOutput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 668  , 0.  1, -1000.  0, 1000.  0, "%"    )

package

boostClosedLoopBlendParameter1()

boostClosedLoopBlendParameter1 ( "boostClosedLoopBlendParameter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 660  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostClosedLoopBlendParameter2()

boostClosedLoopBlendParameter2 ( "boostClosedLoopBlendParameter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 662  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostClosedLoopBlendYAxis1()

boostClosedLoopBlendYAxis1 ( "boostClosedLoopBlendYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 670  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostClosedLoopBlendYAxis2()

boostClosedLoopBlendYAxis2 ( "boostClosedLoopBlendYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 672  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostControllerClosedLoopPart()

boostControllerClosedLoopPart ( "Boost: Closed loop"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1244  , 0.  5, -50.  0, 50.  0, "%"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

boostControlTarget()

boostControlTarget ( "Boost: Target"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1232  , 0.  03333333333333333, 0.  0, 300.  0, "kPa"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

boostOpenLoopBlendBias1()

boostOpenLoopBlendBias1 ( "boostOpenLoopBlendBias 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 652  , 0.  5, 0.  0, 100.  0, "%"    )

package

boostOpenLoopBlendBias2()

boostOpenLoopBlendBias2 ( "boostOpenLoopBlendBias 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 653  , 0.  5, 0.  0, 100.  0, "%"    )

package

boostOpenLoopBlendOutput1()

boostOpenLoopBlendOutput1 ( "boostOpenLoopBlendOutput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 654  , 1.  0, -100.  0, 100.  0, "%"    )

package

boostOpenLoopBlendOutput2()

boostOpenLoopBlendOutput2 ( "boostOpenLoopBlendOutput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 655  , 1.  0, -100.  0, 100.  0, "%"    )

package

boostOpenLoopBlendParameter1()

boostOpenLoopBlendParameter1 ( "boostOpenLoopBlendParameter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 648  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostOpenLoopBlendParameter2()

boostOpenLoopBlendParameter2 ( "boostOpenLoopBlendParameter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 650  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostOpenLoopBlendYAxis1()

boostOpenLoopBlendYAxis1 ( "boostOpenLoopBlendYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 656  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostOpenLoopBlendYAxis2()

boostOpenLoopBlendYAxis2 ( "boostOpenLoopBlendYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 658  , 0.  1, -1000.  0, 1000.  0, ""    )

package

boostOutput()

boostOutput ( "Boost: Output"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1246  , 0.  01, -100.  0, 100.  0, "percent"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

boostStatus()

boostStatus ( "boostStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 452  , 1.  0, -1.  0, -1.  0, ""    )

package

brakePedalState()

brakePedalState ( "Brake switch"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1371  , 1.  0, -1.  0, -1.  0, ""    )

package

brokenInjector()

brokenInjector ( "brokenInjector"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 932  , 1.  0, -1.  0, -1.  0, ""    )

package

calibrationMode()

calibrationMode ( "calibrationMode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 128  , 1.  0, 0.  0, 0.  0, ""    )

package

calibrationValue()

calibrationValue ( "calibrationValue"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 124  , 1.  0, 0.  0, 0.  0, ""    )

package

calibrationValue2()

calibrationValue2 ( "calibrationValue2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 336  , 1.  0, 0.  0, 0.  0, ""    )

package

camResyncCounter()

camResyncCounter ( "sync: Phase Re-Sync Counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1732  , 1.  0, -1.  0, -1.  0, ""    )

package

canReadCounter()

canReadCounter ( "CAN: Rx"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 66  , 1.  0, 0.  0, 64000.  0, ""    )

package

canReWidebandCmdStatus()

canReWidebandCmdStatus ( "canReWidebandCmdStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 806  , 1.  0, -1.  0, -1.  0, ""    )

package

canReWidebandFwDay()

canReWidebandFwDay ( "canReWidebandFwDay"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 869  , 1.  0, -1.  0, -1.  0, ""    )

package

canReWidebandFwMon()

canReWidebandFwMon ( "canReWidebandFwMon"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 870  , 1.  0, -1.  0, -1.  0, ""    )

package

canReWidebandFwYear()

canReWidebandFwYear ( "canReWidebandFwYear"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 871  , 1.  0, -1.  0, -1.  0, ""    )

package

canReWidebandVersion()

canReWidebandVersion ( "canReWidebandVersion"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 868  , 1.  0, -1.  0, -1.  0, ""    )

package

canWriteNotOk()

canWriteNotOk ( "CAN: Tx err"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 382  , 1.  0, 0.  0, 64000.  0, ""    )

package

canWriteOk()

canWriteOk ( "CAN: Tx OK"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 380  , 1.  0, 0.  0, 64000.  0, ""    )

package

cltTimingCorrection()

cltTimingCorrection ( "Ign: CLT correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 952  , 0.  01, -20.  0, 20.  0, "deg"    )

package

clutchUpState()

clutchUpState ( "Clutch: up"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1370  , 1.  0, -1.  0, -1.  0, ""    )

package

coilDutyCycle()

coilDutyCycle ( "Ignition: coil duty cycle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 72  , 0.  01, 0.  0, 0.  0, "%"    )

package

compressorDischargePressure()

compressorDischargePressure ( "compressorDischargePressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 752  , 0.  03333333333333333, 0.  0, 0.  0, "kPa"    )

package

compressorDischargeTemp()

compressorDischargeTemp ( "compressorDischargeTemp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 750  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

coolant()

coolant ( "CLT"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 14  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

correctedIgnitionAdvance()

correctedIgnitionAdvance ( "Timing: ignition"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 962  , 0.  02, 0.  0, 0.  0, "deg"    )

package

Referenced by EngineState.periodicFastCallback().

Here is the caller graph for this function:

crankingFuel()

crankingFuel ( "crankingFuel"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1352  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getCrankingFuel3().

Here is the caller graph for this function:

currentEngineDecodedPhase()

currentEngineDecodedPhase ( "Sync: Engine Phase"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1528  , 1.  0, 0.  0, 0.  0, "deg"    )

package

currentIdlePosition()

currentIdlePosition ( "Idle: Position"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1808  , 1.  0, 0.  0, 0.  0, "%"    )

package

currentIgnitionMode()

currentIgnitionMode ( "Ignition: Mode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 70  , 1.  0, -1.  0, -1.  0, ""    )

package

currentInjectionMode()

currentInjectionMode ( "Fuel: Injection mode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 71  , 1.  0, -1.  0, -1.  0, ""    )

package

currentVe()

currentVe ( "currentVe"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1384  , 1.  0, -1.  0, -1.  0, ""    )

package

cycleCnt()

cycleCnt ( "cycleCnt"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1476  , 1.  0, -1.  0, -1.  0, ""    )

package

dcOutput0()

dcOutput0 ( "DC: output0"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1960  , 1.  0, -1.  0, 1.  0, "%"    )

package

debugFloatField1()

debugFloatField1 ( "debugFloatField1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 160  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField2()

debugFloatField2 ( "debugFloatField2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 164  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField3()

debugFloatField3 ( "debugFloatField3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 168  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField4()

debugFloatField4 ( "debugFloatField4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 172  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField5()

debugFloatField5 ( "debugFloatField5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 176  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField6()

debugFloatField6 ( "debugFloatField6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 180  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugFloatField7()

debugFloatField7 ( "debugFloatField7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 184  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugIntField1()

debugIntField1 ( "debugIntField1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 188  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugIntField2()

debugIntField2 ( "debugIntField2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 192  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugIntField3()

debugIntField3 ( "debugIntField3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 196  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugIntField4()

debugIntField4 ( "debugIntField4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 200  , 1.  0, 0.  0, 0.  0, "val"    )

package

debugIntField5()

debugIntField5 ( "debugIntField5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 204  , 1.  0, 0.  0, 0.  0, "val"    )

package

deltaTps()

deltaTps ( "Fuel: TPS AE change"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1440  , 1.  0, -1.  0, -1.  0, ""    )

package

detectedGear()

detectedGear ( "Detected Gear"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 108  , 1.  0, 0.  0, 10.  0, ""    )

package

deviceUid()

deviceUid ( "deviceUid"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 807  , 1.  0, -1.  0, -1.  0, ""    )

package

dfcoTimingRetard()

dfcoTimingRetard ( "DFCO: Timing retard"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 958  , 0.  01, 0.  0, 50.  0, "deg"    )

package

di_nextStart()

di_nextStart ( "GDI: valve activation angle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1168  , 1.  0, 0.  0, 100.  0, "v"    )

package

distanceTraveled()

distanceTraveled ( "distanceTraveled"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 760  , 0.  1, 0.  0, 0.  0, "km"    )

package

dwellDurationAngle()

dwellDurationAngle ( "Ignition: dwell duration\nas crankshaft angle\nNAN if engine is stopped\nSee also sparkDwell"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 948  , 1.  0, 0.  0, 120.  0, "deg"    )

package

dwellVoltageCorrection()

dwellVoltageCorrection ( "Ign: Dwell voltage correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 968  , 1.  0, -1.  0, -1.  0, ""    )

package

effectiveMap()

effectiveMap ( "Effective MAP"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 374  , 0.  1, 0.  0, 1000.  0, "kPa"    )

package

Referenced by SpeedDensityAirmass.getPredictiveMap().

Here is the caller graph for this function:

egt1()

egt1 ( "EGT 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 208  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt2()

egt2 ( "EGT 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 210  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt3()

egt3 ( "EGT 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 212  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt4()

egt4 ( "EGT 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 214  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt5()

egt5 ( "EGT 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 216  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt6()

egt6 ( "EGT 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 218  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt7()

egt7 ( "EGT 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 220  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

egt8()

egt8 ( "EGT 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 222  , 0.  25, 0.  0, 0.  0, "deg C"    )

package

emaError()

emaError ( "emaError"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1752  , 1.  0, -1.  0, -1.  0, ""    )

package

engineMakeCodeNameCrc16()

engineMakeCodeNameCrc16 ( "Engine CRC16"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 58  , 1.  0, 0.  0, 0.  0, "crc16"    )

package

engineMode()

engineMode ( "Engine Mode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 92  , 1.  0, 0.  0, 0.  0, "em"    )

package

engineRunTime()

engineRunTime ( "engineRunTime"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 758  , 1.  0, 0.  0, 0.  0, "sec"    )

package

errorRate()

errorRate ( "SENT ch0 error rate"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1976  , 1.  0, 0.  0, 100.  0, "% (don't belive me)"    )

package

esr()

esr ( "WBO: ESR"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1940  , 1.  0, 0.  0, 10000.  0, "ohm"    )

package

Referenced by canHwInfo().

Here is the caller graph for this function:

etb1DutyCycle()

etb1DutyCycle ( "ETB: Duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 74  , 0.  01, 0.  0, 0.  0, "%"    )

package

etbCurrentTarget()

etbCurrentTarget ( "ETB: target for current pedal"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1848  , 1.  0, -10000.  0, 10000.  0, "%"    )

package

etbErrorCode()

etbErrorCode ( "etbErrorCode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1864  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by blinkEtbErrorCodes().

Here is the caller graph for this function:

etbErrorCodeBlinker()

etbErrorCodeBlinker ( "etbErrorCodeBlinker"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1865  , 1.  0, -1.  0, -1.  0, ""    )

package

etbFeedForward()

etbFeedForward ( "etbFeedForward"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1840  , 1.  0, -1.  0, -1.  0, ""    )

package

etbPpsErrorCounter()

etbPpsErrorCounter ( "ETB pedal error counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1862  , 1.  0, 0.  0, 3.  0, "count"    )

package

etbStatus()

etbStatus ( "etbStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 436  , 1.  0, -1.  0, -1.  0, ""    )

package

etbTpsErrorCounter()

etbTpsErrorCounter ( "ETB TPS error counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1860  , 1.  0, 0.  0, 3.  0, "count"    )

package

extiOverflowCount()

extiOverflowCount ( "extiOverflowCount"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 403  , 1.  0, 0.  0, 255.  0, ""    )

package

extraFuel()

extraFuel ( "Fuel: TPS extraFuel"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1444  , 1.  0, -1.  0, -1.  0, ""    )

package

fallbackMap()

fallbackMap ( "fallbackMap"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 372  , 0.  1, 0.  0, 1000.  0, "kPa"    )

package

Referenced by SpeedDensityAirmass.logAndGetFallback().

Here is the caller graph for this function:

fastAdcConversionCount()

fastAdcConversionCount ( "ECU: Fast ADC conversions"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 866  , 1.  0, 0.  0, 65535.  0, "N"    )

package

fastAdcErrorCount()

fastAdcErrorCount ( "ECU: Fast ADC errors"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 828  , 1.  0, 0.  0, 255.  0, ""    )

package

fastAdcLastError()

fastAdcLastError ( "ECU: Fast ADC error type"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 863  , 1.  0, 0.  0, 255.  0, ""    )

package

fastAdcOverrunCount()

fastAdcOverrunCount ( "ECU: Fast ADC overruns"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 861  , 1.  0, 0.  0, 255.  0, ""    )

package

fastAdcPeriod()

fastAdcPeriod ( "ECU: Fast ADC period"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 864  , 1.  0, 0.  0, 1000.  0, "ticks"    )

package

faultCode()

faultCode ( "WBO: Fault code"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1928  , 1.  0, -1.  0, -1.  0, ""    )

package

firmwareVersion()

firmwareVersion ( "firmware"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 96  , 1.  0, 0.  0, 0.  0, "version_f"    )

package

flexPercent()

flexPercent ( "Flex Ethanol %"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 117  , 0.  5, 0.  0, 0.  0, "%"    )

package

fractionalInjFuel()

fractionalInjFuel ( "Fuel: TPS AE fractionalInjFuel"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1456  , 1.  0, -1.  0, -1.  0, ""    )

package

fuel_requested_percent()

fuel_requested_percent ( "GDI: HPFP requested duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1140  , 1.  0, 0.  0, 100.  0, "%"    )

package

fuel_requested_percent_pi()

fuel_requested_percent_pi ( "GDI: percent_pi"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1144  , 1.  0, -1.  0, -1.  0, ""    )

package

fuelALSCorrection()

fuelALSCorrection ( "fuelALSCorrection"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1212  , 1.  0, -1.  0, -1.  0, ""    )

package

fuelCutReason()

fuelCutReason ( "Fuel: Cut Code"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 323  , 1.  0, 0.  0, 0.  0, "code"    )

package

fuelCutReasonBlinker()

fuelCutReasonBlinker ( "fuelCutReasonBlinker"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 841  , 1.  0, -1.  0, -1.  0, ""    )

package

fuelFlowRate()

fuelFlowRate ( "Fuel: Flow rate"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 80  , 0.  005, 0.  0, 0.  0, "gram/s"    )

package

fuelingLoad()

fuelingLoad ( "Fuel: Load"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1408  , 1.  0, -1.  0, -1.  0, ""    )

package

fuelInjectionCounter()

fuelInjectionCounter ( "Fuel: Injection counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1400  , 1.  0, -1.  0, -1.  0, ""    )

package

fuelTankLevel()

fuelTankLevel ( "Fuel level"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 76  , 0.  01, 0.  0, 0.  0, "%"    )

package

fuelTemp()

fuelTemp ( "fuelTemp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 746  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

Gego()

Gego ( "Gego"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 740  , 0.  01, 50.  0, 150.  0, "%"    )

package

globalSparkCounter()

globalSparkCounter ( "Ign: Spark counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1404  , 1.  0, -1.  0, -1.  0, ""    )

package

gppwmOutput1()

gppwmOutput1 ( "GPPWM Output 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 570  , 0.  5, 0.  0, 100.  0, "%"    )

package

gppwmOutput2()

gppwmOutput2 ( "GPPWM Output 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 571  , 0.  5, 0.  0, 100.  0, "%"    )

package

gppwmOutput3()

gppwmOutput3 ( "GPPWM Output 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 572  , 0.  5, 0.  0, 100.  0, "%"    )

package

gppwmOutput4()

gppwmOutput4 ( "GPPWM Output 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 573  , 0.  5, 0.  0, 100.  0, "%"    )

package

gppwmXAxis1()

gppwmXAxis1 ( "gppwmXAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 574  , 1.  0, -30000.  0, 30000.  0, ""    )

package

gppwmXAxis2()

gppwmXAxis2 ( "gppwmXAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 576  , 1.  0, -30000.  0, 30000.  0, ""    )

package

gppwmXAxis3()

gppwmXAxis3 ( "gppwmXAxis 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 578  , 1.  0, -30000.  0, 30000.  0, ""    )

package

gppwmXAxis4()

gppwmXAxis4 ( "gppwmXAxis 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 580  , 1.  0, -30000.  0, 30000.  0, ""    )

package

gppwmYAxis1()

gppwmYAxis1 ( "gppwmYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 582  , 0.  1, -1000.  0, 1000.  0, ""    )

package

gppwmYAxis2()

gppwmYAxis2 ( "gppwmYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 584  , 0.  1, -1000.  0, 1000.  0, ""    )

package

gppwmYAxis3()

gppwmYAxis3 ( "gppwmYAxis 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 586  , 0.  1, -1000.  0, 1000.  0, ""    )

package

gppwmYAxis4()

gppwmYAxis4 ( "gppwmYAxis 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 588  , 0.  1, -1000.  0, 1000.  0, ""    )

package

gyroYaw()

gyroYaw ( "Gyro: Yaw rate"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 280  , 0.  001, 0.  0, 0.  0, "deg/sec"    )

package

heaterDuty()

heaterDuty ( "WBO: Heater duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1929  , 1.  0, 0.  0, 100.  0, "%"    )

package

hellenBoardId()

hellenBoardId ( "Detected Board ID"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1368  , 1.  0, 0.  0, 3000.  0, "id"    )

package

Referenced by alphax_2chan_ConfigOverrides(), getBoardId(), hellen154_hyundai_boardConfigOverrides(), is_F_OrOlder(), and isMegaModuleRevision().

Here is the caller graph for this function:

highFuelPressure()

highFuelPressure ( "Fuel pressure (high)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 120  , 0.  1, 0.  0, 0.  0, "bar"    )

package

hp()

hp ( "hp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 842  , 1.  0, -1.  0, -1.  0, ""    )

package

HpfdActivationPhase()

HpfdActivationPhase ( "GDI: HPFP activation angle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1172  , 1.  0, -1.  0, -1.  0, ""    )

package

HpfdDeactivationPhase()

HpfdDeactivationPhase ( "GDI: HPFP deactivation angle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1176  , 1.  0, -1.  0, -1.  0, ""    )

package

hpfp_i_control_percent()

hpfp_i_control_percent ( "hpfp_i_control_percent"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1160  , 1.  0, -1.  0, -1.  0, ""    )

package

hpfp_p_control_percent()

hpfp_p_control_percent ( "hpfp_p_control_percent"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1156  , 1.  0, -1.  0, -1.  0, ""    )

package

hwEventCounters1()

hwEventCounters1 ( "Hardware events since boot 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1480  , 1.  0, -1.  0, -1.  0, ""    )

package

hwEventCounters2()

hwEventCounters2 ( "Hardware events since boot 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1482  , 1.  0, -1.  0, -1.  0, ""    )

package

hwEventCounters3()

hwEventCounters3 ( "Hardware events since boot 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1484  , 1.  0, -1.  0, -1.  0, ""    )

package

hwEventCounters4()

hwEventCounters4 ( "Hardware events since boot 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1486  , 1.  0, -1.  0, -1.  0, ""    )

package

iacByRpmTaper()

iacByRpmTaper ( "idle: iacByRpmTaper portion"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1792  , 1.  0, -1.  0, -1.  0, ""    )

package

iacByTpsTaper()

iacByTpsTaper ( "idle: iacByTpsTaper portion"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1768  , 1.  0, -1.  0, -1.  0, ""    )

package

idealEngineTorque()

idealEngineTorque ( "idealEngineTorque"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 934  , 1.  0, -1.  0, -1.  0, ""    )

package

idleClosedLoop()

idleClosedLoop ( "Closed loop"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1804  , 1.  0, -1.  0, -1.  0, ""    )

package

idleEntryRpm()

idleEntryRpm ( "Idle: Entry threshold"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1778  , 1.  0, -1.  0, -1.  0, ""    )

package

idleExitRpm()

idleExitRpm ( "Idle: Exit threshold"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1780  , 1.  0, -1.  0, -1.  0, ""    )

package

idlePositionSensor()

idlePositionSensor ( "Idle: Position sensor"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 252  , 0.  01, 0.  0, 0.  0, "%"    )

package

idleState()

idleState ( "idleState"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1760  , 1.  0, -1.  0, -1.  0, ""    )

package

idleStatus()

idleStatus ( "idleStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 420  , 1.  0, -1.  0, -1.  0, ""    )

package

idleStepperTargetPosition()

idleStepperTargetPosition ( "Idle: Stepper target position"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 129  , 1.  0, 0.  0, 0.  0, ""    )

package

idleTarget()

idleTarget ( "Idle: Target RPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1776  , 1.  0, -1.  0, -1.  0, ""    )

package

idleTargetAirmass()

idleTargetAirmass ( "Target airmass"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1812  , 1.  0, 0.  0, 0.  0, "mg"    )

package

idleTargetFlow()

idleTargetFlow ( "Target airflow"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1814  , 0.  01, 0.  0, 0.  0, "kg/h"    )

package

ignBlendBias1()

ignBlendBias1 ( "ignBlendBias 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 600  , 0.  5, 0.  0, 100.  0, "%"    )

package

ignBlendBias2()

ignBlendBias2 ( "ignBlendBias 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 601  , 0.  5, 0.  0, 100.  0, "%"    )

package

ignBlendBias3()

ignBlendBias3 ( "ignBlendBias 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 602  , 0.  5, 0.  0, 100.  0, "%"    )

package

ignBlendBias4()

ignBlendBias4 ( "ignBlendBias 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 603  , 0.  5, 0.  0, 100.  0, "%"    )

package

ignBlendOutput1()

ignBlendOutput1 ( "ignBlendOutput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 604  , 0.  01, -300.  0, 300.  0, "deg"    )

package

ignBlendOutput2()

ignBlendOutput2 ( "ignBlendOutput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 606  , 0.  01, -300.  0, 300.  0, "deg"    )

package

ignBlendOutput3()

ignBlendOutput3 ( "ignBlendOutput 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 608  , 0.  01, -300.  0, 300.  0, "deg"    )

package

ignBlendOutput4()

ignBlendOutput4 ( "ignBlendOutput 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 610  , 0.  01, -300.  0, 300.  0, "deg"    )

package

ignBlendParameter1()

ignBlendParameter1 ( "ignBlendParameter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 592  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendParameter2()

ignBlendParameter2 ( "ignBlendParameter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 594  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendParameter3()

ignBlendParameter3 ( "ignBlendParameter 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 596  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendParameter4()

ignBlendParameter4 ( "ignBlendParameter 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 598  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendYAxis1()

ignBlendYAxis1 ( "ignBlendYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 612  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendYAxis2()

ignBlendYAxis2 ( "ignBlendYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 614  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendYAxis3()

ignBlendYAxis3 ( "ignBlendYAxis 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 616  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignBlendYAxis4()

ignBlendYAxis4 ( "ignBlendYAxis 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 618  , 0.  1, -1000.  0, 1000.  0, ""    )

package

ignitionAdvanceCyl1()

ignitionAdvanceCyl1 ( "Ign: Timing Cyl 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 288  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl10()

ignitionAdvanceCyl10 ( "Ign: Timing Cyl 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 306  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl11()

ignitionAdvanceCyl11 ( "Ign: Timing Cyl 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 308  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl12()

ignitionAdvanceCyl12 ( "Ign: Timing Cyl 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 310  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl2()

ignitionAdvanceCyl2 ( "Ign: Timing Cyl 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 290  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl3()

ignitionAdvanceCyl3 ( "Ign: Timing Cyl 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 292  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl4()

ignitionAdvanceCyl4 ( "Ign: Timing Cyl 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 294  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl5()

ignitionAdvanceCyl5 ( "Ign: Timing Cyl 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 296  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl6()

ignitionAdvanceCyl6 ( "Ign: Timing Cyl 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 298  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl7()

ignitionAdvanceCyl7 ( "Ign: Timing Cyl 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 300  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl8()

ignitionAdvanceCyl8 ( "Ign: Timing Cyl 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 302  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionAdvanceCyl9()

ignitionAdvanceCyl9 ( "Ign: Timing Cyl 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 304  , 0.  02, 0.  0, 0.  0, "deg"    )

package

ignitionLoad()

ignitionLoad ( "Ignition: load"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1412  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getCylinderIgnitionTrim(), IgnitionState.getInterpolatedIgnitionAngle(), and IgnitionState.getInterpolatedIgnitionTrim().

Here is the caller graph for this function:

ignitionOnTime()

ignitionOnTime ( "ignitionOnTime"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 756  , 1.  0, 0.  0, 0.  0, "sec"    )

package

ignitorDiagnostic1()

ignitorDiagnostic1 ( "ignitorDiagnostic 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 772  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic10()

ignitorDiagnostic10 ( "ignitorDiagnostic 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 781  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic11()

ignitorDiagnostic11 ( "ignitorDiagnostic 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 782  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic12()

ignitorDiagnostic12 ( "ignitorDiagnostic 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 783  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic2()

ignitorDiagnostic2 ( "ignitorDiagnostic 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 773  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic3()

ignitorDiagnostic3 ( "ignitorDiagnostic 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 774  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic4()

ignitorDiagnostic4 ( "ignitorDiagnostic 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 775  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic5()

ignitorDiagnostic5 ( "ignitorDiagnostic 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 776  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic6()

ignitorDiagnostic6 ( "ignitorDiagnostic 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 777  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic7()

ignitorDiagnostic7 ( "ignitorDiagnostic 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 778  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic8()

ignitorDiagnostic8 ( "ignitorDiagnostic 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 779  , 1.  0, -1.  0, -1.  0, ""    )

package

ignitorDiagnostic9()

ignitorDiagnostic9 ( "ignitorDiagnostic 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 780  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass1()

injectionMass1 ( "injectionMass 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1284  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass10()

injectionMass10 ( "injectionMass 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1320  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass11()

injectionMass11 ( "injectionMass 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1324  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass12()

injectionMass12 ( "injectionMass 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1328  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass2()

injectionMass2 ( "injectionMass 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1288  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass3()

injectionMass3 ( "injectionMass 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1292  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass4()

injectionMass4 ( "injectionMass 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1296  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass5()

injectionMass5 ( "injectionMass 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1300  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass6()

injectionMass6 ( "injectionMass 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1304  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass7()

injectionMass7 ( "injectionMass 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1308  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass8()

injectionMass8 ( "injectionMass 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1312  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionMass9()

injectionMass9 ( "injectionMass 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1316  , 1.  0, -1.  0, -1.  0, ""    )

package

injectionOffset()

injectionOffset ( "Fuel: Injection timing SOI"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 56  , 1.  0, 0.  0, 0.  0, "deg"    )

package

Referenced by InjectionEvent.computeInjectionAngle().

Here is the caller graph for this function:

injectionPrimingCounter()

injectionPrimingCounter ( "injectionPrimingCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 811  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic1()

injectorDiagnostic1 ( "injectorDiagnostic 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 784  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic10()

injectorDiagnostic10 ( "injectorDiagnostic 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 793  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic11()

injectorDiagnostic11 ( "injectorDiagnostic 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 794  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic12()

injectorDiagnostic12 ( "injectorDiagnostic 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 795  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic2()

injectorDiagnostic2 ( "injectorDiagnostic 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 785  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic3()

injectorDiagnostic3 ( "injectorDiagnostic 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 786  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic4()

injectorDiagnostic4 ( "injectorDiagnostic 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 787  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic5()

injectorDiagnostic5 ( "injectorDiagnostic 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 788  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic6()

injectorDiagnostic6 ( "injectorDiagnostic 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 789  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic7()

injectorDiagnostic7 ( "injectorDiagnostic 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 790  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic8()

injectorDiagnostic8 ( "injectorDiagnostic 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 791  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDiagnostic9()

injectorDiagnostic9 ( "injectorDiagnostic 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 792  , 1.  0, -1.  0, -1.  0, ""    )

package

injectorDutyCycle()

injectorDutyCycle ( "Fuel: injector duty cycle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 53  , 0.  5, 0.  0, 0.  0, "%"    )

package

injectorDutyCycleStage2()

injectorDutyCycleStage2 ( "Fuel: injector duty cycle stage 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 804  , 0.  5, 0.  0, 0.  0, "%"    )

package

instantMAPValue()

instantMAPValue ( "Instant MAP"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 376  , 0.  03333333333333333, 0.  0, 655.  0, "kPa"    )

package

instantRpm()

instantRpm ( "sync: instant RPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 326  , 1.  0, 0.  0, 0.  0, "rpm"    )

package

Referenced by InstantRpmCalculator.calculateInstantRpm(), getAdvanceCorrections(), and rpmShaftPositionCallback().

Here is the caller graph for this function:

intake()

intake ( "IAT"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 16  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

integralError()

integralError ( "Integral error"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1844  , 1.  0, 0.  0, 100.  0, ""    )

package

internalMcuTemperature()

internalMcuTemperature ( "ECU: CPU Temperature"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 11  , 1.  0, 0.  0, 0.  0, "deg C"    )

package

internalVref()

internalVref ( "internalVref"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 12  , 0.  001, 0.  0, 5.  0, "V"    )

package

isEnabled0_int()

isEnabled0_int ( "DC: en0"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1964  , 1.  0, 0.  0, 10.  0, "%"    )

package

issEdgeCounter()

issEdgeCounter ( "issEdgeCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 352  , 1.  0, -1.  0, -1.  0, ""    )

package

ISSValue()

ISSValue ( "TCU: Input Shaft Speed"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 552  , 1.  0, 0.  0, 8000.  0, "RPM"    )

package

jamTimer()

jamTimer ( "ETB jam timer"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1868  , 0.  01, 0.  0, 100.  0, "sec"    )

package

lambdaTimeSinceGood()

lambdaTimeSinceGood ( "lambdaTimeSinceGood"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1988  , 0.  01, 0.  0, 1.  0, "sec"    )

package

lambdaValue()

lambdaValue ( "Lambda"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 36  , 1.0E-  4, 0.  0, 0.  0, ""    )

package

Referenced by updateLambda().

Here is the caller graph for this function:

lambdaValue2()

lambdaValue2 ( "Lambda 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 264  , 1.0E-  4, 0.  0, 0.  0, ""    )

package

lastErrorCode()

lastErrorCode ( "Warning: last"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 142  , 1.  0, 0.  0, 0.  0, "error"    )

package

lastShiftTime()

lastShiftTime ( "lastShiftTime"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1112  , 1.  0, -1.  0, -1.  0, ""    )

package

liveDataExampleField()

liveDataExampleField ( "liveDataExampleField"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1756  , 1.  0, -1.  0, -1.  0, ""    )

package

loadForIgnitionTableDot()

loadForIgnitionTableDot ( "loadForIgnitionTableDot"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 992  , 1.  0, -1.  0, -1.  0, ""    )

package

lowFuelPressure()

lowFuelPressure ( "Fuel pressure (low)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 114  , 0.  03333333333333333, 0.  0, 0.  0, "kpa"    )

package

ltftAccummulatedCorrection1()

ltftAccummulatedCorrection1 ( "LTFT: Total Bank 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2032  , 1.  0, 50.  0, 150.  0, "%"    )

package

ltftAccummulatedCorrection2()

ltftAccummulatedCorrection2 ( "LTFT: Total Bank 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2036  , 1.  0, 50.  0, 150.  0, "%"    )

package

ltftCntDeadband()

ltftCntDeadband ( "LTFT learning: in deadband"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2016  , 1.  0, 0.  0, 10000.  0, "cnt"    )

package

Referenced by LtftState.load().

Here is the caller graph for this function:

ltftCntHit()

ltftCntHit ( "LTFT learning: hits"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2008  , 1.  0, 0.  0, 10000.  0, "cnt"    )

package

Referenced by LtftState.load().

Here is the caller graph for this function:

ltftCntMiss()

ltftCntMiss ( "LTFT learning: miss"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2012  , 1.  0, 0.  0, 10000.  0, "cnt"    )

package

Referenced by LtftState.load().

Here is the caller graph for this function:

ltftCorrection1()

ltftCorrection1 ( "LTFT: Bank 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2024  , 1.  0, 50.  0, 150.  0, "%"    )

package

ltftCorrection2()

ltftCorrection2 ( "LTFT: Bank 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2028  , 1.  0, 50.  0, 150.  0, "%"    )

package

lua()

lua ( "lua"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1332  , 1.  0, -1.  0, -1.  0, ""    )

package

luaAdd()

luaAdd ( "idle: Lua Adder"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1796  , 1.  0, -1.  0, -1.  0, ""    )

package

luaAdjustment()

luaAdjustment ( "ETB: luaAdjustment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1828  , 1.  0, 0.  0, 3.  0, "%"    )

package

Referenced by configureRusefiLuaHooks().

Here is the caller graph for this function:

luaGauges1()

luaGauges1 ( "Lua: Gauge 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 700  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges2()

luaGauges2 ( "Lua: Gauge 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 704  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges3()

luaGauges3 ( "Lua: Gauge 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 708  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges4()

luaGauges4 ( "Lua: Gauge 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 712  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges5()

luaGauges5 ( "Lua: Gauge 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 716  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges6()

luaGauges6 ( "Lua: Gauge 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 720  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges7()

luaGauges7 ( "Lua: Gauge 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 724  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaGauges8()

luaGauges8 ( "Lua: Gauge 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 728  , 1.  0, 0.  0, 50000.  0, "value"    )

package

luaHardSparkSkip()

luaHardSparkSkip ( "luaHardSparkSkip"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1392  , 1.  0, -1.  0, -1.  0, ""    )

package

luaInvocationCounter()

luaInvocationCounter ( "Lua: Tick counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 340  , 1.  0, 0.  0, 0.  0, "count"    )

package

luaLastCycleDuration()

luaLastCycleDuration ( "Lua: Last tick duration"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 344  , 1.  0, 0.  0, 0.  0, "nt"    )

package

luaOpenLoopAdd()

luaOpenLoopAdd ( "Boost: Lua open loop add"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1240  , 1.  0, -100.  0, 100.  0, "percent"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

luaSoftSparkSkip()

luaSoftSparkSkip ( "luaSoftSparkSkip"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1388  , 1.  0, -1.  0, -1.  0, ""    )

package

luaTargetAdd()

luaTargetAdd ( "Boost: Lua target add"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1224  , 0.  5, -100.  0, 100.  0, "percent"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

luaTargetMult()

luaTargetMult ( "Boost: Lua target mult"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1228  , 1.  0, -100.  0, 100.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

luaTimingAdd()

luaTimingAdd ( "Ign: Lua timing add"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 972  , 1.  0, -20.  0, 20.  0, "deg"    )

package

luaTimingMult()

luaTimingMult ( "Ign: Lua timing mult"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 976  , 1.  0, -20.  0, 20.  0, "deg"    )

package

m_adjustedTarget()

m_adjustedTarget ( "Adjusted target"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1852  , 0.  01, -100.  0, 100.  0, "%"    )

package

m_deadtime()

m_deadtime ( "Fuel: injector lag"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1180  , 1.  0, 0.  0, 0.  0, "ms"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_knockCount()

m_knockCount ( "Knock: Count"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1020  , 1.  0, 0.  0, 0.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_knockCyl1()

m_knockCyl1 ( "Knock: Cyl 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1000  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl10()

m_knockCyl10 ( "Knock: Cyl 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1009  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl11()

m_knockCyl11 ( "Knock: Cyl 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1010  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl12()

m_knockCyl12 ( "Knock: Cyl 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1011  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl2()

m_knockCyl2 ( "Knock: Cyl 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1001  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl3()

m_knockCyl3 ( "Knock: Cyl 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1002  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl4()

m_knockCyl4 ( "Knock: Cyl 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1003  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl5()

m_knockCyl5 ( "Knock: Cyl 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1004  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl6()

m_knockCyl6 ( "Knock: Cyl 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1005  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl7()

m_knockCyl7 ( "Knock: Cyl 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1006  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl8()

m_knockCyl8 ( "Knock: Cyl 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1007  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockCyl9()

m_knockCyl9 ( "Knock: Cyl 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1008  , 1.  0, 0.  0, 0.  0, "dBv"    )

package

m_knockFrequencyStart()

m_knockFrequencyStart ( "Knock: Start Freq"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1094  , 1.  0, 0.  0, 0.  0, "Hz"    )

package

Referenced by getOutputValueByHash(), and initSoftwareKnock().

Here is the caller graph for this function:

m_knockFrequencyStep()

m_knockFrequencyStep ( "Knock: Step Freq"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1096  , 1.  0, 0.  0, 0.  0, "Hz"    )

package

Referenced by getOutputValueByHash(), and initSoftwareKnock().

Here is the caller graph for this function:

m_knockFuelTrimMultiplier()

m_knockFuelTrimMultiplier ( "Knock: Fuel trim when knock"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1100  , 1.  0, 0.  0, 0.  0, "multiplier"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_knockLevel()

m_knockLevel ( "Knock: Current level"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 996  , 1.  0, 0.  0, 0.  0, "Volts"    )

package

Referenced by canDashboardHaltech(), getOutputValueByHash(), and populateFrame().

Here is the caller graph for this function:

m_knockRetard()

m_knockRetard ( "Knock: Retard"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1012  , 1.  0, 0.  0, 0.  0, "deg"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_knockSpectrum1()

m_knockSpectrum1 ( "Knock: SpectrumData 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1028  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum10()

m_knockSpectrum10 ( "Knock: SpectrumData 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1064  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum11()

m_knockSpectrum11 ( "Knock: SpectrumData 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1068  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum12()

m_knockSpectrum12 ( "Knock: SpectrumData 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1072  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum13()

m_knockSpectrum13 ( "Knock: SpectrumData 13"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1076  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum14()

m_knockSpectrum14 ( "Knock: SpectrumData 14"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1080  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum15()

m_knockSpectrum15 ( "Knock: SpectrumData 15"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1084  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum16()

m_knockSpectrum16 ( "Knock: SpectrumData 16"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1088  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum2()

m_knockSpectrum2 ( "Knock: SpectrumData 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1032  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum3()

m_knockSpectrum3 ( "Knock: SpectrumData 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1036  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum4()

m_knockSpectrum4 ( "Knock: SpectrumData 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1040  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum5()

m_knockSpectrum5 ( "Knock: SpectrumData 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1044  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum6()

m_knockSpectrum6 ( "Knock: SpectrumData 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1048  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum7()

m_knockSpectrum7 ( "Knock: SpectrumData 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1052  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum8()

m_knockSpectrum8 ( "Knock: SpectrumData 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1056  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrum9()

m_knockSpectrum9 ( "Knock: SpectrumData 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1060  , 1.  0, 0.  0, 0.  0, "compressed data"    )

package

m_knockSpectrumChannelCyl()

m_knockSpectrumChannelCyl ( "Knock: ChannelAndCylNumber"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1092  , 1.  0, 0.  0, 0.  0, "compressed N + N"    )

package

Referenced by getOutputValueByHash(), and processLastKnockEvent().

Here is the caller graph for this function:

m_knockThreshold()

m_knockThreshold ( "Knock: Threshold"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1016  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_lastPidDtMs()

m_lastPidDtMs ( "EBT: last PID dT"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1836  , 1.  0, 0.  0, 4.  0, "mS"    )

package

m_lastTargetRpm()

m_lastTargetRpm ( "m_lastTargetRpm"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1800  , 1.  0, -1.  0, -1.  0, ""    )

package

m_maximumRetard()

m_maximumRetard ( "Knock: Max retard"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1024  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

m_pressureTarget_kPa()

m_pressureTarget_kPa ( "GDI: target pressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1152  , 1.  0, -1.  0, -1.  0, ""    )

package

m_requested_pump()

m_requested_pump ( "GDI: HPFP duration\nComputed requested pump duration in degrees (not including deadtime)"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1136  , 1.  0, -1.  0, -1.  0, ""    )

package

m_wastegatePosition()

m_wastegatePosition ( "DC: wastegatePosition"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1832  , 1.  0, 0.  0, 3.  0, "%"    )

package

mafEstimate()

mafEstimate ( "Air: Flow estimate"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 324  , 0.  1, 0.  0, 0.  0, "kg/h"    )

package

mafMeasured()

mafMeasured ( "MAF"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 30  , 0.  1, 0.  0, 0.  0, "kg/h"    )

package

mafMeasured2()

mafMeasured2 ( "MAF #2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 734  , 0.  1, 0.  0, 0.  0, "kg/h"    )

package

mapCamPrevToothAngle()

mapCamPrevToothAngle ( "Sync: MAP: prev angle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1540  , 1.  0, -3000.  0, 3000.  0, "deg"    )

package

mapFast()

mapFast ( "mapFast"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 696  , 1.  0, -1.  0, -1.  0, ""    )

package

mapPerCylinder1()

mapPerCylinder1 ( "mapPerCylinder 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 876  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder10()

mapPerCylinder10 ( "mapPerCylinder 10"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 885  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder11()

mapPerCylinder11 ( "mapPerCylinder 11"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 886  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder12()

mapPerCylinder12 ( "mapPerCylinder 12"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 887  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder2()

mapPerCylinder2 ( "mapPerCylinder 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 877  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder3()

mapPerCylinder3 ( "mapPerCylinder 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 878  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder4()

mapPerCylinder4 ( "mapPerCylinder 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 879  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder5()

mapPerCylinder5 ( "mapPerCylinder 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 880  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder6()

mapPerCylinder6 ( "mapPerCylinder 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 881  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder7()

mapPerCylinder7 ( "mapPerCylinder 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 882  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder8()

mapPerCylinder8 ( "mapPerCylinder 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 883  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

mapPerCylinder9()

mapPerCylinder9 ( "mapPerCylinder 9"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 884  , 1.  0, 0.  0, 0.  0, "kPa"    )

package

MAPValue()

MAPValue ( "MAP"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 32  , 0.  03333333333333333, 0.  0, 0.  0, "kPa"    )

package

mapVvt_CycleDelta()

mapVvt_CycleDelta ( "mapVvt_CycleDelta"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1524  , 1.  0, -1.  0, -1.  0, ""    )

package

mapVvt_MAP_AT_CYCLE_COUNT()

mapVvt_MAP_AT_CYCLE_COUNT ( "mapVvt_MAP_AT_CYCLE_COUNT"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1516  , 1.  0, -10.  0, 100.  0, "distance"    )

package

mapVvt_MAP_AT_DIFF()

mapVvt_MAP_AT_DIFF ( "InstantMAP delta @ readout angles"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1512  , 1.  0, -300.  0, 300.  0, "kPa"    )

package

mapVvt_MAP_AT_SPECIAL_POINT()

mapVvt_MAP_AT_SPECIAL_POINT ( "InstantMAP at readout angle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1508  , 1.  0, -300.  0, 300.  0, "kPa"    )

package

mapVvt_min_point_counter()

mapVvt_min_point_counter ( "mapVvt_min_point_counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1518  , 1.  0, -1.  0, -1.  0, ""    )

package

mapVvt_sync_counter()

mapVvt_sync_counter ( "Instant MAP sync counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1517  , 1.  0, 0.  0, 100.  0, "counter"    )

package

maxExtraPerCycle()

maxExtraPerCycle ( "maxExtraPerCycle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1464  , 1.  0, -1.  0, -1.  0, ""    )

package

maxExtraPerPeriod()

maxExtraPerPeriod ( "maxExtraPerPeriod"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1468  , 1.  0, -1.  0, -1.  0, ""    )

package

maxInjectedPerPeriod()

maxInjectedPerPeriod ( "maxInjectedPerPeriod"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1472  , 1.  0, -1.  0, -1.  0, ""    )

package

maxLockedDuration()

maxLockedDuration ( "maxLockedDuration"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 378  , 1.  0, 0.  0, 65535.  0, "us"    )

package

maxTriggerReentrant()

maxTriggerReentrant ( "maxTriggerReentrant"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 109  , 1.  0, 0.  0, 100.  0, ""    )

package

mc33810spiErrorCounter()

mc33810spiErrorCounter ( "mc33810spiErrorCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 808  , 1.  0, -1.  0, -1.  0, ""    )

package

mcuSerial()

mcuSerial ( "mcuSerial"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 856  , 1.  0, 0.  0, 4.  294967295E9, ""    )

package

multiSparkCounter()

multiSparkCounter ( "Ign: Multispark count"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 402  , 1.  0, 0.  0, 100.  0, ""    )

package

nernstVoltage()

nernstVoltage ( "WBO: Nernst Voltage"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1938  , 0.  001, 0.  0, 1.  0, "V"    )

package

nextLobe()

nextLobe ( "GDI: next lobe N"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1164  , 1.  0, -1.  0, -1.  0, ""    )

package

normalizedCylinderFilling()

normalizedCylinderFilling ( "Air: Normalized cyl filling"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 928  , 1.  0, 0.  0, 100.  0, "%"    )

package

Referenced by getBaseFuelMass().

Here is the caller graph for this function:

oilPressure()

oilPressure ( "Oil Pressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 40  , 0.  03333333333333333, 0.  0, 0.  0, "kPa"    )

package

oilTemp()

oilTemp ( "oilTemp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 744  , 0.  01, 0.  0, 0.  0, "deg C"    )

package

Referenced by updateTempSensors().

Here is the caller graph for this function:

openLoopPart()

openLoopPart ( "Boost: Open loop"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1236  , 1.  0, -100.  0, 100.  0, "percent"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

orderingErrorCounter()

orderingErrorCounter ( "orderingErrorCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 136  , 1.  0, 0.  0, 0.  0, ""    )

package

outputRequestPeriod()

outputRequestPeriod ( "outputRequestPeriod"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 692  , 1.  0, -1.  0, -1.  0, ""    )

package

overDwellCounter()

overDwellCounter ( "overDwellCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1418  , 1.  0, -1.  0, -1.  0, ""    )

package

overDwellNotScheduledCounter()

overDwellNotScheduledCounter ( "overDwellNotScheduledCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1419  , 1.  0, -1.  0, -1.  0, ""    )

package

pressureControlDuty()

pressureControlDuty ( "TCU: EPC Duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1117  , 1.  0, 0.  0, 100.  0, "%"    )

package

pressureCorrectionReference()

pressureCorrectionReference ( "Fuel: corr reference pressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1192  , 1.  0, 0.  0, 1000.  0, "kPa"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

pressureDelta()

pressureDelta ( "Fuel: Injector pressure delta"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1184  , 1.  0, -1000.  0, 1000.  0, "kPa"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

pressureRatio()

pressureRatio ( "Fuel: Injector pressure ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1188  , 1.  0, 0.  0, 100.  0, ""    )

package

Referenced by ThrottleModelBase.estimateThrottleFlow(), flowCorrections(), getOutputValueByHash(), ThrottleModelBase.partThrottleFlow(), and ThrottleModelBase.throttlePositionForFlow().

Here is the caller graph for this function:

pumpDuty()

pumpDuty ( "WBO: Pump duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1930  , 1.  0, 0.  0, 100.  0, "%"    )

package

radiatorFanStatus()

radiatorFanStatus ( "radiatorFanStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1264  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

rawAcPressure()

rawAcPressure ( "rawAcPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 232  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAfr()

rawAfr ( "rawAfr"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 332  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAmbientTemp()

rawAmbientTemp ( "rawAmbientTemp"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 834  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput1()

rawAnalogInput1 ( "rawAnalogInput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 554  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput2()

rawAnalogInput2 ( "rawAnalogInput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 556  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput3()

rawAnalogInput3 ( "rawAnalogInput 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 558  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput4()

rawAnalogInput4 ( "rawAnalogInput 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 560  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput5()

rawAnalogInput5 ( "rawAnalogInput 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 562  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput6()

rawAnalogInput6 ( "rawAnalogInput 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 564  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput7()

rawAnalogInput7 ( "rawAnalogInput 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 566  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAnalogInput8()

rawAnalogInput8 ( "rawAnalogInput 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 568  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxAnalog1()

rawAuxAnalog1 ( "rawAuxAnalog1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 820  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxAnalog2()

rawAuxAnalog2 ( "rawAuxAnalog2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 822  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxAnalog3()

rawAuxAnalog3 ( "rawAuxAnalog3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 824  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxAnalog4()

rawAuxAnalog4 ( "rawAuxAnalog4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 826  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxTemp1()

rawAuxTemp1 ( "rawAuxTemp1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 830  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawAuxTemp2()

rawAuxTemp2 ( "rawAuxTemp2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 832  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawBattery()

rawBattery ( "rawBattery"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 590  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawClt()

rawClt ( "rawClt"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 226  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawFlexFreq()

rawFlexFreq ( "rawFlexFreq"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 805  , 1.  0, -1.  0, -1.  0, ""    )

package

rawFuelLevel()

rawFuelLevel ( "rawFuelLevel"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 234  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawHighFuelPressure()

rawHighFuelPressure ( "rawHighFuelPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 112  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawIat()

rawIat ( "rawIat"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 228  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawIdlePositionSensor()

rawIdlePositionSensor ( "rawIdlePositionSensor"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 100  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawLowFuelPressure()

rawLowFuelPressure ( "rawLowFuelPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 110  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawMaf()

rawMaf ( "rawMaf"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 28  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawMaf2()

rawMaf2 ( "rawMaf2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 732  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawMap()

rawMap ( "rawMap"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 328  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawMapFast()

rawMapFast ( "rawMapFast"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 330  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawOilPressure()

rawOilPressure ( "rawOilPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 230  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawPpsPrimary()

rawPpsPrimary ( "rawPpsPrimary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 236  , 1.  0, 0.  0, 5.  0, "V"    )

package

rawPpsSecondary()

rawPpsSecondary ( "rawPpsSecondary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 240  , 1.  0, 0.  0, 5.  0, "V"    )

package

rawRawPpsPrimary()

rawRawPpsPrimary ( "rawRawPpsPrimary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 244  , 1.  0, 0.  0, 5.  0, "V"    )

package

rawRawPpsSecondary()

rawRawPpsSecondary ( "rawRawPpsSecondary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 248  , 1.  0, 0.  0, 5.  0, "V"    )

package

rawTps1Primary()

rawTps1Primary ( "rawTps1Primary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 224  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawTps1Secondary()

rawTps1Secondary ( "rawTps1Secondary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 272  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawTps2Primary()

rawTps2Primary ( "rawTps2Primary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 274  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawTps2Secondary()

rawTps2Secondary ( "rawTps2Secondary"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 276  , 0.  001, 0.  0, 5.  0, "V"    )

package

rawWastegatePosition()

rawWastegatePosition ( "rawWastegatePosition"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 102  , 0.  001, 0.  0, 5.  0, "V"    )

package

recentErrorCode1()

recentErrorCode1 ( "Warning code 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 144  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode2()

recentErrorCode2 ( "Warning code 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 146  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode3()

recentErrorCode3 ( "Warning code 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 148  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode4()

recentErrorCode4 ( "Warning code 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 150  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode5()

recentErrorCode5 ( "Warning code 5"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 152  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode6()

recentErrorCode6 ( "Warning code 6"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 154  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode7()

recentErrorCode7 ( "Warning code 7"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 156  , 1.  0, 0.  0, 0.  0, "error"    )

package

recentErrorCode8()

recentErrorCode8 ( "Warning code 8"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 158  , 1.  0, 0.  0, 0.  0, "error"    )

package

retardThresholdRpm()

retardThresholdRpm ( "Launch: Retard threshold RPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1196  , 1.  0, -1.  0, -1.  0, ""    )

package

revolutionCounterSinceStart()

revolutionCounterSinceStart ( "revolutionCounterSinceStart"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 64  , 1.  0, 0.  0, 0.  0, ""    )

package

Referenced by getCrankingFuel3().

Here is the caller graph for this function:

rpmAcceleration()

rpmAcceleration ( "dRPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 6  , 1.  0, 0.  0, 5.  0, "RPM acceleration/Rate of Change/ROC"    )

package

rpmForIgnitionIdleTableDot()

rpmForIgnitionIdleTableDot ( "rpmForIgnitionIdleTableDot"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 988  , 1.  0, -1.  0, -1.  0, ""    )

package

rpmForIgnitionTableDot()

rpmForIgnitionTableDot ( "rpmForIgnitionTableDot"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 986  , 1.  0, -1.  0, -1.  0, ""    )

package

RPMValue()

RPMValue ( "RPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 4  , 1.  0, 0.  0, 8000.  0, "RPM"    )

package

rtcUnixEpochTime()

rtcUnixEpochTime ( "rtcUnixEpochTime"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 836  , 1.  0, -1.  0, -1.  0, ""    )

package

running()

running ( "running"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 892  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by executeTSCommand(), IdleController.getOpenLoop(), and IdleController.getRunningOpenLoop().

Here is the caller graph for this function:

sadDwellRatioCounter()

sadDwellRatioCounter ( "sadDwellRatioCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 810  , 1.  0, -1.  0, -1.  0, ""    )

package

schedulingUsedCount()

schedulingUsedCount ( "schedulingUsedCount"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 736  , 1.  0, 0.  0, 0.  0, ""    )

package

sd()

sd ( "sd"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1344  , 1.  0, -1.  0, -1.  0, ""    )

package

sd_error()

sd_error ( "sd_error"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 860  , 1.  0, -1.  0, -1.  0, ""    )

package

sdAirMassInOneCylinder()

sdAirMassInOneCylinder ( "Air: Cylinder airmass"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 924  , 1.  0, 0.  0, 0.  0, "g"    )

package

sdTcharge_coff()

sdTcharge_coff ( "sdTcharge_coff"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 920  , 1.  0, -1.  0, -1.  0, ""    )

package

seconds()

seconds ( "Uptime"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 88  , 1.  0, 0.  0, 0.  0, "sec"    )

package

slowAdcErrorCount()

slowAdcErrorCount ( "ECU: Slow ADC errors"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 829  , 1.  0, 0.  0, 255.  0, ""    )

package

slowAdcOverrunCount()

slowAdcOverrunCount ( "ECU: Slow ADC overruns"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 862  , 1.  0, 0.  0, 255.  0, ""    )

package

smartChipAliveCounter()

smartChipAliveCounter ( "smartChipAliveCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1375  , 1.  0, -1.  0, -1.  0, ""    )

package

smartChipRestartCounter()

smartChipRestartCounter ( "smartChipRestartCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1374  , 1.  0, -1.  0, -1.  0, ""    )

package

smartChipState()

smartChipState ( "smartChipState"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1373  , 1.  0, -1.  0, -1.  0, ""    )

package

SmoothedAFRValue()

SmoothedAFRValue ( "Smoothed Air/Fuel Ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 258  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

SmoothedAFRValue2()

SmoothedAFRValue2 ( "Smoothed Air/Fuel Ratio 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 260  , 0.  001, 0.  0, 0.  0, "AFR"    )

package

sparkCutReason()

sparkCutReason ( "Ign: Cut Code"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 322  , 1.  0, 0.  0, 0.  0, "code"    )

package

sparkCutReasonBlinker()

sparkCutReasonBlinker ( "sparkCutReasonBlinker"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 840  , 1.  0, -1.  0, -1.  0, ""    )

package

sparkDuration1()

sparkDuration1 ( "Spark duration 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1992  , 1.  0, 0.  0, 5.  0, "ms"    )

package

sparkDuration2()

sparkDuration2 ( "Spark duration 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1996  , 1.  0, 0.  0, 5.  0, "ms"    )

package

sparkDuration3()

sparkDuration3 ( "Spark duration 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2000  , 1.  0, 0.  0, 5.  0, "ms"    )

package

sparkDuration4()

sparkDuration4 ( "Spark duration 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2004  , 1.  0, 0.  0, 5.  0, "ms"    )

package

sparkDwell()

sparkDwell ( "Ignition: coil charge time"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 944  , 1.  0, 0.  0, 30.  0, "ms"    )

package

Referenced by fireSparkAndPrepareNextSchedule(), initializeIgnitionActions(), and prepareCylinderIgnitionSchedule().

Here is the caller graph for this function:

sparkOutOfOrderCounter()

sparkOutOfOrderCounter ( "sparkOutOfOrderCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1420  , 1.  0, -1.  0, -1.  0, ""    )

package

speedToRpmRatio()

speedToRpmRatio ( "Gearbox Ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 8  , 0.  01, 0.  0, 0.  0, "value"    )

package

starterRelayDisable()

starterRelayDisable ( "starterRelayDisable"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 401  , 1.  0, 0.  0, 100.  0, ""    )

package

starterState()

starterState ( "starterState"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 400  , 1.  0, 0.  0, 100.  0, ""    )

package

startStopState()

startStopState ( "startStopState"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1372  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by slowStartStopButtonCallback().

Here is the caller graph for this function:

startStopStateToggleCounter()

startStopStateToggleCounter ( "startStopStateToggleCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1380  , 1.  0, -1.  0, -1.  0, ""    )

package

state()

state ( "state"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1871  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by adc_in_out(), TriggerWaveform.addEvent(), TriggerWaveform.addEvent360(), TriggerWaveform.addEvent720(), TriggerWaveform.addEventAngle(), applyPinState(), applyVvtPinState(), TriggerStimulatorHelper.assertSyncPosition(), canStreamAddToTxTimeout(), canStreamFlushTx(), canStreamReceiveTimeout(), configureRusefiLuaHooks(), copyPwmParameters(), createRequest(), emulatorApplyPinState(), TriggerStimulatorHelper.feedSimulatedEvent(), TriggerStimulatorHelper.findTriggerSyncPoint(), FLEXNVM_GetSecurityState(), FTFx_REG_GetSecurityState(), getNextSwitchTimeNt(), getValue(), PwmConfig.handleCycleStart(), hellenBoardIdInputCallback(), init_adc_mcp3208(), TriggerWaveform.initializeSyncPoint(), LtftState.load(), LogTriggerCoilState(), LogTriggerInjectorState(), lua_getAuxDigital(), lua_getDigital(), HellenBoardIdFinder< NumPins >.measureChargingTimes(), SensorChecker.onSlowCallback(), requestAdcValue(), requestAdcValueI(), MultiChannelStateSequenceWithData< max_phase >.setChannelState(), InjectorOutputPin.setHigh(), InjectorOutputPin.setLow(), setMockState(), slowAdcGetNextState(), spiCallback(), startSimplePwm(), startSimplePwmExt(), startSimplePwmHard(), timerCallback(), PwmConfig.togglePwmState(), and updateTriggerWaveformIfNeeded().

Here is the caller graph for this function:

stftCorrection1()

stftCorrection1 ( "STFT: Bank 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1424  , 1.  0, 50.  0, 150.  0, "%"    )

package

stftCorrection2()

stftCorrection2 ( "STFT: Bank 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1428  , 1.  0, 50.  0, 150.  0, "%"    )

package

stftCorrectionBinIdx()

stftCorrectionBinIdx ( "STFT: used bin"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2040  , 1.  0, 0.  0, 0.  0, "Bin"    )

package

stftCorrectionState()

stftCorrectionState ( "stftCorrectionState"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2042  , 1.  0, -1.  0, -1.  0, ""    )

package

stftInputError1()

stftInputError1 ( "STFT: input Lambda error 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2048  , 1.  0, 50.  0, 150.  0, "%"    )

package

stftInputError2()

stftInputError2 ( "STFT: input Lambda error 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 2052  , 1.  0, 50.  0, 150.  0, "%"    )

package

stftLearningBinIdx()

stftLearningBinIdx ( "STFT: learning bin"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2041  , 1.  0, 0.  0, 0.  0, "Bin"    )

package

stftLearningState1()

stftLearningState1 ( "stftLearningState 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2043  , 1.  0, -1.  0, -1.  0, ""    )

package

stftLearningState2()

stftLearningState2 ( "stftLearningState 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 2044  , 1.  0, -1.  0, -1.  0, ""    )

package

stoichiometricRatio()

stoichiometricRatio ( "Fuel: Stoich ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 918  , 0.  001, 0.  0, 0.  0, "ratio"    )

package

stopEngineCode()

stopEngineCode ( "stopEngineCode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 52  , 1.  0, -1.  0, -1.  0, ""    )

package

synchronizationCounter()

synchronizationCounter ( "sync: wheel sync counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1552  , 1.  0, -1.  0, -1.  0, ""    )

package

targetAFR()

targetAFR ( "Fuel: target AFR"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 916  , 0.  001, 10.  0, 20.  0, "ratio"    )

package

targetAfrBlendBias1()

targetAfrBlendBias1 ( "targetAfrBlendBias 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 678  , 0.  5, 0.  0, 100.  0, "%"    )

package

targetAfrBlendBias2()

targetAfrBlendBias2 ( "targetAfrBlendBias 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 679  , 0.  5, 0.  0, 100.  0, "%"    )

package

targetAfrBlendOutput1()

targetAfrBlendOutput1 ( "targetAfrBlendOutput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 680  , 0.  1, -1000.  0, 1000.  0, "%"    )

package

targetAfrBlendOutput2()

targetAfrBlendOutput2 ( "targetAfrBlendOutput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 682  , 0.  1, -1000.  0, 1000.  0, "%"    )

package

targetAfrBlendParameter1()

targetAfrBlendParameter1 ( "targetAfrBlendParameter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 674  , 0.  1, -1000.  0, 1000.  0, ""    )

package

targetAfrBlendParameter2()

targetAfrBlendParameter2 ( "targetAfrBlendParameter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 676  , 0.  1, -1000.  0, 1000.  0, ""    )

package

targetAfrBlendYAxis1()

targetAfrBlendYAxis1 ( "targetAfrBlendYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 684  , 0.  1, -1000.  0, 1000.  0, ""    )

package

targetAfrBlendYAxis2()

targetAfrBlendYAxis2 ( "targetAfrBlendYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 686  , 0.  1, -1000.  0, 1000.  0, ""    )

package

targetLambda()

targetLambda ( "Fuel: target lambda"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 914  , 1.0E-  4, 0.  5, 1.  5, ""    )

package

targetRpmAc()

targetRpmAc ( "Idle: Target A/C RPM"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1788  , 1.  0, -1.  0, -1.  0, ""    )

package

targetRpmByClt()

targetRpmByClt ( "Idle: Target RPM base"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1784  , 1.  0, -1.  0, -1.  0, ""    )

package

targetWithIdlePosition()

targetWithIdlePosition ( "ETB: target with idle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1816  , 1.  0, 0.  0, 10.  0, "%"    )

package

tcEtbDrop()

tcEtbDrop ( "ETB traction control"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1866  , 1.  0, 0.  0, 100.  0, "%"    )

package

tcRatio()

tcRatio ( "TCU: Torque Converter Ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1110  , 0.  01, 0.  0, 0.  0, "value"    )

package

tcu_currentRange()

tcu_currentRange ( "TCU: Current Range"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1116  , 1.  0, 0.  0, 0.  0, ""    )

package

tcuCurrentGear()

tcuCurrentGear ( "TCU: Current Gear"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1108  , 1.  0, -1.  0, 10.  0, "gear"    )

package

tcuDesiredGear()

tcuDesiredGear ( "TCU: Desired Gear"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 116  , 1.  0, -1.  0, 10.  0, "gear"    )

package

temp_mapVvt_index()

temp_mapVvt_index ( "temp_mapVvt_index"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1520  , 1.  0, -1.  0, -1.  0, ""    )

package

tempC()

tempC ( "WBO: Temperature"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1936  , 1.  0, 500.  0, 1000.  0, "C"    )

package

Referenced by flexCallback(), and HellaOilLevelSensor.onEdge().

Here is the caller graph for this function:

tempLogging1()

tempLogging1 ( "tempLogging1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 54  , 1.  0, -1.  0, -1.  0, ""    )

package

tempLogging2()

tempLogging2 ( "tempLogging2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 812  , 1.  0, -1.  0, -1.  0, ""    )

package

tempLogging3()

tempLogging3 ( "tempLogging3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 122  , 1.  0, -1.  0, -1.  0, ""    )

package

tempLogging4()

tempLogging4 ( "tempLogging4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 123  , 1.  0, -1.  0, -1.  0, ""    )

package

testBenchIter()

testBenchIter ( "testBenchIter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 742  , 1.  0, 0.  0, 0.  0, "count"    )

package

throttleEffectiveAreaOpening()

throttleEffectiveAreaOpening ( "throttleEffectiveAreaOpening"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 852  , 1.  0, -1.  0, -1.  0, ""    )

package

throttleEstimatedFlow()

throttleEstimatedFlow ( "Air: Throttle flow estimate"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1132  , 1.  0, 0.  0, 5.  0, "g/s"    )

package

throttleInletPressure()

throttleInletPressure ( "throttleInletPressure"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 754  , 0.  03333333333333333, 0.  0, 0.  0, "kPa"    )

package

throttleModelCrossoverAngle()

throttleModelCrossoverAngle ( "Air: Throttle crossover pos"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1128  , 0.  01, 0.  0, 100.  0, "%"    )

package

throttlePedalPosition()

throttlePedalPosition ( "Throttle pedal position"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 24  , 0.  01, 0.  0, 0.  0, "%"    )

package

throttlePressureRatio()

throttlePressureRatio ( "throttlePressureRatio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 848  , 1.  0, -1.  0, -1.  0, ""    )

package

timingALSCorrection()

timingALSCorrection ( "timingALSCorrection"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1216  , 0.  01, -20.  0, 20.  0, "deg"    )

package

timingALSSkip()

timingALSSkip ( "timingALSSkip"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1218  , 0.  01, 0.  0, 50.  0, "deg"    )

package

timingIatCorrection()

timingIatCorrection ( "Ign: IAT correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 954  , 0.  01, -20.  0, 20.  0, "deg"    )

package

timingPidCorrection()

timingPidCorrection ( "Idle: Timing adjustment"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 956  , 0.  01, -20.  0, 20.  0, "deg"    )

package

torque()

torque ( "torque"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 844  , 1.  0, -1.  0, -1.  0, ""    )

package

torqueConverterDuty()

torqueConverterDuty ( "TCU: TC Duty"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1118  , 1.  0, 0.  0, 100.  0, "%"    )

package

totalFuelConsumption()

totalFuelConsumption ( "Fuel: Total consumed"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 78  , 1.  0, 0.  0, 0.  0, "grams"    )

package

totalFuelCorrection()

totalFuelCorrection ( "Fuel: Total correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 888  , 1.  0, 0.  0, 3.  0, "mult"    )

package

totalTriggerErrorCounter()

totalTriggerErrorCounter ( "Trigger Error Counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 132  , 1.  0, 0.  0, 0.  0, "counter"    )

package

tps12Split()

tps12Split ( "tps12Split"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 316  , 0.  01, 0.  0, 0.  0, "%"    )

package

tps1Split()

tps1Split ( "tps1Split"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 312  , 0.  01, 0.  0, 0.  0, "%"    )

package

tps2Split()

tps2Split ( "tps2Split"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 314  , 0.  01, 0.  0, 0.  0, "%"    )

package

TPS2Value()

TPS2Value ( "TPS2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 82  , 0.  01, 0.  0, 0.  0, "%"    )

package

tpsAccelFuel()

tpsAccelFuel ( "Fuel: TPS acceleration add fuel ms"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 68  , 0.  0033333333333333335, 0.  0, 0.  0, "ms"    )

package

tpsADC()

tpsADC ( "tpsADC"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 26  , 1.  0, 0.  0, 0.  0, "ADC"    )

package

tpsFrom()

tpsFrom ( "Fuel: TPS AE from"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1432  , 1.  0, -1.  0, -1.  0, ""    )

package

tpsTo()

tpsTo ( "Fuel: TPS AE to"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1436  , 1.  0, -1.  0, -1.  0, ""    )

package

TPSValue()

TPSValue ( "TPS"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 22  , 0.  01, 0.  0, 0.  0, "%"    )

package

Referenced by KnockControllerBase.onFastCallback().

Here is the caller graph for this function:

tractionAdvanceDrop()

tractionAdvanceDrop ( "Traction: timing correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 964  , 0.  02, 0.  0, 0.  0, "deg"    )

package

tractionControlSparkSkip()

tractionControlSparkSkip ( "tractionControlSparkSkip"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1396  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by SoftSparkLimiter.updateTargetSkipRatio().

Here is the caller graph for this function:

trailingSparkAngle()

trailingSparkAngle ( "Ign: Trailing spark deg"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 984  , 0.  01, -20.  0, 20.  0, "deg"    )

package

transitionEventCode()

transitionEventCode ( "transitionEventCode"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 872  , 1.  0, -1.  0, -1.  0, ""    )

package

transitionEventsCounter()

transitionEventsCounter ( "transitionEventsCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 874  , 1.  0, -1.  0, -1.  0, ""    )

package

triggerCountersError()

triggerCountersError ( "triggerCountersError"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1585  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by isTriggerCounterError().

Here is the caller graph for this function:

triggerElapsedUs()

triggerElapsedUs ( "triggerElapsedUs"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1548  , 1.  0, -1.  0, -1.  0, ""    )

package

triggerIgnoredToothCount()

triggerIgnoredToothCount ( "triggerIgnoredToothCount"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1536  , 1.  0, -1.  0, -1.  0, ""    )

package

triggerPrimaryFall()

triggerPrimaryFall ( "triggerPrimaryFall"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 384  , 1.  0, 0.  0, 10000.  0, ""    )

package

triggerPrimaryRise()

triggerPrimaryRise ( "triggerPrimaryRise"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 388  , 1.  0, 0.  0, 10000.  0, ""    )

package

triggerSecondaryFall()

triggerSecondaryFall ( "triggerSecondaryFall"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 392  , 1.  0, 0.  0, 10000.  0, ""    )

package

triggerSecondaryRise()

triggerSecondaryRise ( "triggerSecondaryRise"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 396  , 1.  0, 0.  0, 10000.  0, ""    )

package

triggerStateIndex()

triggerStateIndex ( "triggerStateIndex"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1584  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by Engine.OnTriggerStateProperState().

Here is the caller graph for this function:

triggerSyncGapRatio()

triggerSyncGapRatio ( "Sync: Trigger Latest Ratio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1580  , 1.  0, -10000.  0, 10000.  0, ""    )

package

triggerToothAngleError()

triggerToothAngleError ( "Sync: trigger angle error"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1532  , 1.  0, -30.  0, 30.  0, "deg"    )

package

trim()

trim ( "ETB: trim"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1820  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by LtftState.load().

Here is the caller graph for this function:

tuneCrc16()

tuneCrc16 ( "Tune CRC16"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 84  , 1.  0, 0.  0, 0.  0, "crc16"    )

package

turboSpeed()

turboSpeed ( "Turbocharger Speed"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 286  , 1.  0, 0.  0, 0.  0, "hz"    )

package

unused88()

unused88 ( "unused88"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 933  , 1.  0, -1.  0, -1.  0, ""    )

package

unusedVehicleSpeedKph()

unusedVehicleSpeedKph ( "Vehicle Speed"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 10  , 1.  0, 0.  0, 0.  0, "kph"    )

package

value0()

value0 ( "SENT ch0 value0"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1972  , 1.  0, 0.  0, 4095.  0, "RAW"    )

package

value1()

value1 ( "SENT ch0 value1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1974  , 1.  0, 0.  0, 4095.  0, "RAW"    )

package

Referenced by handleActionWithParameter().

Here is the caller graph for this function:

valueFromTable()

valueFromTable ( "Fuel: TPS valueFromTable"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1448  , 1.  0, -1.  0, -1.  0, ""    )

package

VBatt()

VBatt ( "VBatt"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 38  , 0.  001, 0.  0, 0.  0, "V"    )

package

veBlendBias1()

veBlendBias1 ( "veBlendBias 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 628  , 0.  5, 0.  0, 100.  0, "%"    )

package

veBlendBias2()

veBlendBias2 ( "veBlendBias 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 629  , 0.  5, 0.  0, 100.  0, "%"    )

package

veBlendBias3()

veBlendBias3 ( "veBlendBias 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 630  , 0.  5, 0.  0, 100.  0, "%"    )

package

veBlendBias4()

veBlendBias4 ( "veBlendBias 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 631  , 0.  5, 0.  0, 100.  0, "%"    )

package

veBlendOutput1()

veBlendOutput1 ( "veBlendOutput 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 632  , 0.  01, -50.  0, 50.  0, "%"    )

package

veBlendOutput2()

veBlendOutput2 ( "veBlendOutput 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 634  , 0.  01, -50.  0, 50.  0, "%"    )

package

veBlendOutput3()

veBlendOutput3 ( "veBlendOutput 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 636  , 0.  01, -50.  0, 50.  0, "%"    )

package

veBlendOutput4()

veBlendOutput4 ( "veBlendOutput 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 638  , 0.  01, -50.  0, 50.  0, "%"    )

package

veBlendParameter1()

veBlendParameter1 ( "veBlendParameter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 620  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendParameter2()

veBlendParameter2 ( "veBlendParameter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 622  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendParameter3()

veBlendParameter3 ( "veBlendParameter 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 624  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendParameter4()

veBlendParameter4 ( "veBlendParameter 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 626  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendYAxis1()

veBlendYAxis1 ( "veBlendYAxis 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 640  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendYAxis2()

veBlendYAxis2 ( "veBlendYAxis 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 642  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendYAxis3()

veBlendYAxis3 ( "veBlendYAxis 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 644  , 0.  1, -1000.  0, 1000.  0, ""    )

package

veBlendYAxis4()

veBlendYAxis4 ( "veBlendYAxis 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 646  , 0.  1, -1000.  0, 1000.  0, ""    )

package

vehicleSpeedKph()

vehicleSpeedKph ( "Vehicle Speed"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 738  , 0.  01, 0.  0, 0.  0, "kph"    )

package

veTableYAxis()

veTableYAxis ( "veTableYAxis"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1416  , 0.  01, 0.  0, 0.  0, "%"    )

package

veValue()

veValue ( "Fuel: VE"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 86  , 0.  1, 0.  0, 0.  0, "ratio"    )

package

VssAcceleration()

VssAcceleration ( "Vss Accel"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 262  , 0.  0033333333333333335, 0.  0, 0.  0, "m/s2"    )

package

vssEdgeCounter()

vssEdgeCounter ( "vssEdgeCounter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 348  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtCamCounter()

vvtCamCounter ( "Sync: total cams front counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1504  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtCurrentPosition()

vvtCurrentPosition ( "sync: Primary Position"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1560  , 1.  0, -10000.  0, 10000.  0, ""    )

package

vvtEventFallCounter1()

vvtEventFallCounter1 ( "vvtEventFallCounter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1496  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventFallCounter2()

vvtEventFallCounter2 ( "vvtEventFallCounter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1498  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventFallCounter3()

vvtEventFallCounter3 ( "vvtEventFallCounter 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1500  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventFallCounter4()

vvtEventFallCounter4 ( "vvtEventFallCounter 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1502  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventRiseCounter1()

vvtEventRiseCounter1 ( "vvtEventRiseCounter 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1488  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventRiseCounter2()

vvtEventRiseCounter2 ( "vvtEventRiseCounter 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1490  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventRiseCounter3()

vvtEventRiseCounter3 ( "vvtEventRiseCounter 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1492  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtEventRiseCounter4()

vvtEventRiseCounter4 ( "vvtEventRiseCounter 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1494  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtOutput()

vvtOutput ( "vvtOutput"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 1982  , 0.  5, 100.  0, 1.  0, "%"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

vvtPositionB1E()

vvtPositionB1E ( "VVT: bank 1 exhaust"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 266  , 0.  02, 0.  0, 0.  0, "deg"    )

package

vvtPositionB1I()

vvtPositionB1I ( "VVT: bank 1 intake"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 42  , 0.  02, 0.  0, 0.  0, "deg"    )

package

vvtPositionB2E()

vvtPositionB2E ( "VVT: bank 2 exhaust"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 270  , 0.  02, 0.  0, 0.  0, "deg"    )

package

vvtPositionB2I()

vvtPositionB2I ( "VVT: bank 2 intake"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 268  , 0.  02, 0.  0, 0.  0, "deg"    )

package

vvtStatus1()

vvtStatus1 ( "vvtStatus 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 484  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtStatus2()

vvtStatus2 ( "vvtStatus 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 500  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtStatus3()

vvtStatus3 ( "vvtStatus 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 516  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtStatus4()

vvtStatus4 ( "vvtStatus 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 532  , 1.  0, -1.  0, -1.  0, ""    )

package

vvtTarget()

vvtTarget ( "vvtTarget"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 1980  , 0.  1, -90.  0, 90.  0, "deg"    )

package

Referenced by getOutputValueByHash().

Here is the caller graph for this function:

vvtTargets1()

vvtTargets1 ( "vvtTargets 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 282  , 1.  0, 0.  0, 0.  0, "deg"    )

package

vvtTargets2()

vvtTargets2 ( "vvtTargets 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 283  , 1.  0, 0.  0, 0.  0, "deg"    )

package

vvtTargets3()

vvtTargets3 ( "vvtTargets 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 284  , 1.  0, 0.  0, 0.  0, "deg"    )

package

vvtTargets4()

vvtTargets4 ( "vvtTargets 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT8, 285  , 1.  0, 0.  0, 0.  0, "deg"    )

package

vvtToothDurations0()

vvtToothDurations0 ( "vvtToothDurations0"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1556  , 1.  0, 0.  0, 100000.  0, "us"    )

package

vvtToothPosition1()

vvtToothPosition1 ( "sync: Cam Position 1"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1564  , 1.  0, -10000.  0, 10000.  0, ""    )

package

vvtToothPosition2()

vvtToothPosition2 ( "sync: Cam Position 2"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1568  , 1.  0, -10000.  0, 10000.  0, ""    )

package

vvtToothPosition3()

vvtToothPosition3 ( "sync: Cam Position 3"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1572  , 1.  0, -10000.  0, 10000.  0, ""    )

package

vvtToothPosition4()

vvtToothPosition4 ( "sync: Cam Position 4"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1576  , 1.  0, -10000.  0, 10000.  0, ""    )

package

wallFuel()

wallFuel ( "Fuel on the wall\nin ms of injector open time for each injector."  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1744  , 1.  0, -1.  0, -1.  0, ""    )

package

Referenced by updateFuelInfo().

Here is the caller graph for this function:

wallFuelAmount()

wallFuelAmount ( "Fuel: wall amount"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 60  , 0.  01, 0.  0, 0.  0, "mg"    )

package

wallFuelCorrection()

wallFuelCorrection ( "fuel wallwetting injection time\n correction to account for wall wetting effect for current cycle"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 1740  , 1.  0, -1.  0, -1.  0, ""    )

package

wallFuelCorrectionValue()

wallFuelCorrectionValue ( "Fuel: wall correction"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 62  , 0.  01, 0.  0, 0.  0, "mg"    )

package

warningCounter()

warningCounter ( "Warning: counter"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 140  , 1.  0, 0.  0, 0.  0, "count"    )

package

wastegateDcStatus()

wastegateDcStatus ( "wastegateDcStatus"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 468  , 1.  0, -1.  0, -1.  0, ""    )

package

wastegatePositionSensor()

wastegatePositionSensor ( "Wastegate position sensor"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT16, 118  , 0.  01, 0.  0, 0.  0, "%"    )

package

wheelSlipRatio()

wheelSlipRatio ( "wheelSlipRatio"  , SensorCategory.  SENSOR_INPUTS, FieldType.  INT, 768  , 1.  0, -1.  0, -1.  0, ""    )

package

Go to the source code of this file.
