Lps25Sensor Class Reference

#include <Lps25Sensor.h>

Inheritance diagram for Lps25Sensor:

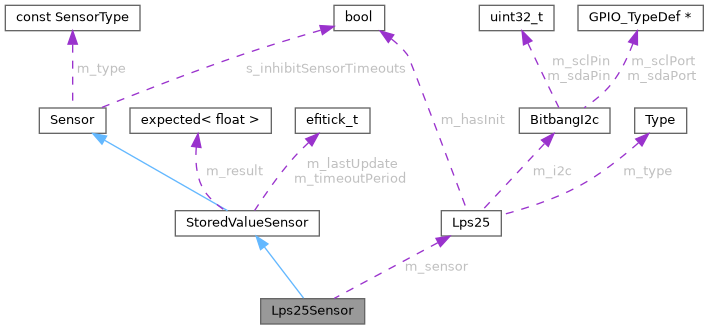

Collaboration diagram for Lps25Sensor:

Public Member Functions
	Lps25Sensor (Lps25 &sensor)
void	update ()
void	showInfo (const char *sensorName) const override
Public Member Functions inherited from StoredValueSensor
SensorResult	get () const final override
	StoredValueSensor (SensorType type, efidur_t timeoutNt)
void	invalidate ()
void	invalidate (UnexpectedCode why)
void	setValidValue (float value, efitick_t timestamp)
void	showInfo (const char *sensorName) const override
virtual void	setTimeout (int timeoutMs)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual bool	hasSensor () const
virtual float	getRaw () const
virtual bool	isRedundant () const
void	unregister ()
SensorType	type () const

Private Attributes
Lps25 *	m_sensor

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

Definition at line 6 of file Lps25Sensor.h.

Constructor & Destructor Documentation

Lps25Sensor()

Lps25Sensor::Lps25Sensor ( Lps25 &  sensor )

explicit

Definition at line 9 of file Lps25Sensor.cpp.

    : StoredValueSensor(SensorType::BarometricPressure, MS2NT(1000))
    , m_sensor(&sensor)
{
}

Member Function Documentation

showInfo()

void Lps25Sensor::showInfo ( const char *  sensorName ) const

overridevirtual

Implements Sensor.

Definition at line 78 of file sensor_info_printing.cpp.

                                                       {
    efiPrintf("%s: LPS25 baro %.2f kPa", sensorName, get().Value);
}

Here is the call graph for this function:

update()

void Lps25Sensor::update

(

)

Definition at line 15 of file Lps25Sensor.cpp.

                         {
    auto result = m_sensor->readPressureKpa();

    if (result) {
        setValidValue(result.Value, getTimeNowNt());
    } else {
        invalidate();
    }
}

Referenced by baroLps25Update().

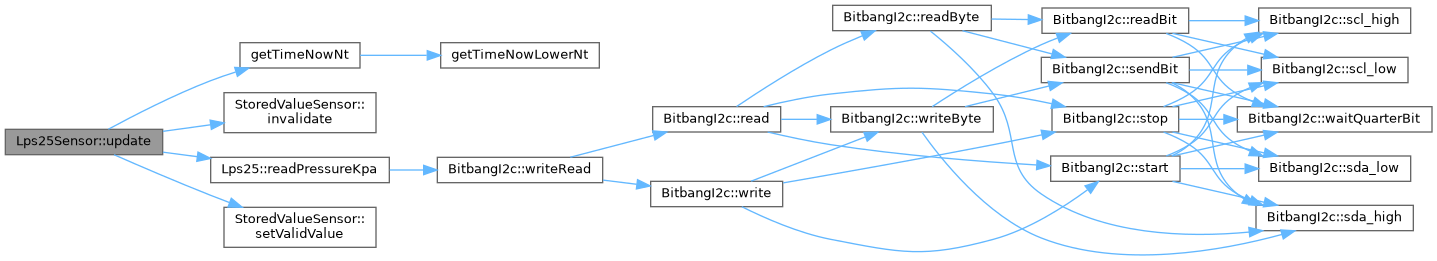

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

m_sensor

Lps25* Lps25Sensor::m_sensor

private

Definition at line 14 of file Lps25Sensor.h.

Referenced by update().

---

The documentation for this class was generated from the following files:

• controllers/sensors/impl/Lps25Sensor.h
• controllers/sensors/impl/Lps25Sensor.cpp
• controllers/sensors/sensor_info_printing.cpp
