MultiChannelStateSequenceWithData< max_phase > Class Template Reference

#include <state_sequence.h>

Inheritance diagram for MultiChannelStateSequenceWithData< max_phase >:

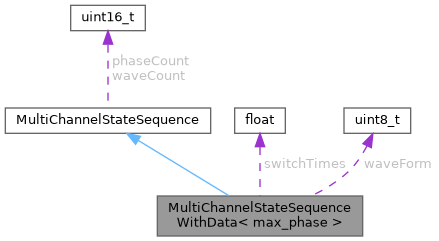

Collaboration diagram for MultiChannelStateSequenceWithData< max_phase >:

Public Member Functions
float	getSwitchTime (int phaseIndex) const override
pin_state_t	getChannelState (int channelIndex, int phaseIndex) const override
void	reset ()
void	setSwitchTime (const int phaseIndex, const float value)
void	setChannelState (const int channelIndex, const int phaseIndex, pin_state_t state)
Public Member Functions inherited from MultiChannelStateSequence
void	checkSwitchTimes (float scale) const
expected< int >	findAngleMatch (float angle) const
int	findInsertionAngle (float angle) const

Private Attributes
float	switchTimes [max_phase]
uint8_t	waveForm [max_phase]

Additional Inherited Members
Data Fields inherited from MultiChannelStateSequence
uint16_t	phaseCount = 0
uint16_t	waveCount = 0

Detailed Description

template<unsigned max_phase>
class MultiChannelStateSequenceWithData< max_phase >

Definition at line 77 of file state_sequence.h.

Member Function Documentation

getChannelState()

template<unsigned max_phase>

pin_state_t MultiChannelStateSequenceWithData< max_phase >::getChannelState ( int  channelIndex, int  phaseIndex  ) const

inlineoverridevirtual

Implements MultiChannelStateSequence.

Definition at line 83 of file state_sequence.h.

                                                                                 {
        if (channelIndex >= waveCount) {
            // todo: would be nice to get this asserting working
            //criticalError("channel index %d/%d", channelIndex, waveCount);
        }
        return ((waveForm[phaseIndex] >> channelIndex) & 1) ? TriggerValue::RISE : TriggerValue::FALL;
    }

Referenced by TriggerWaveform::addEvent().

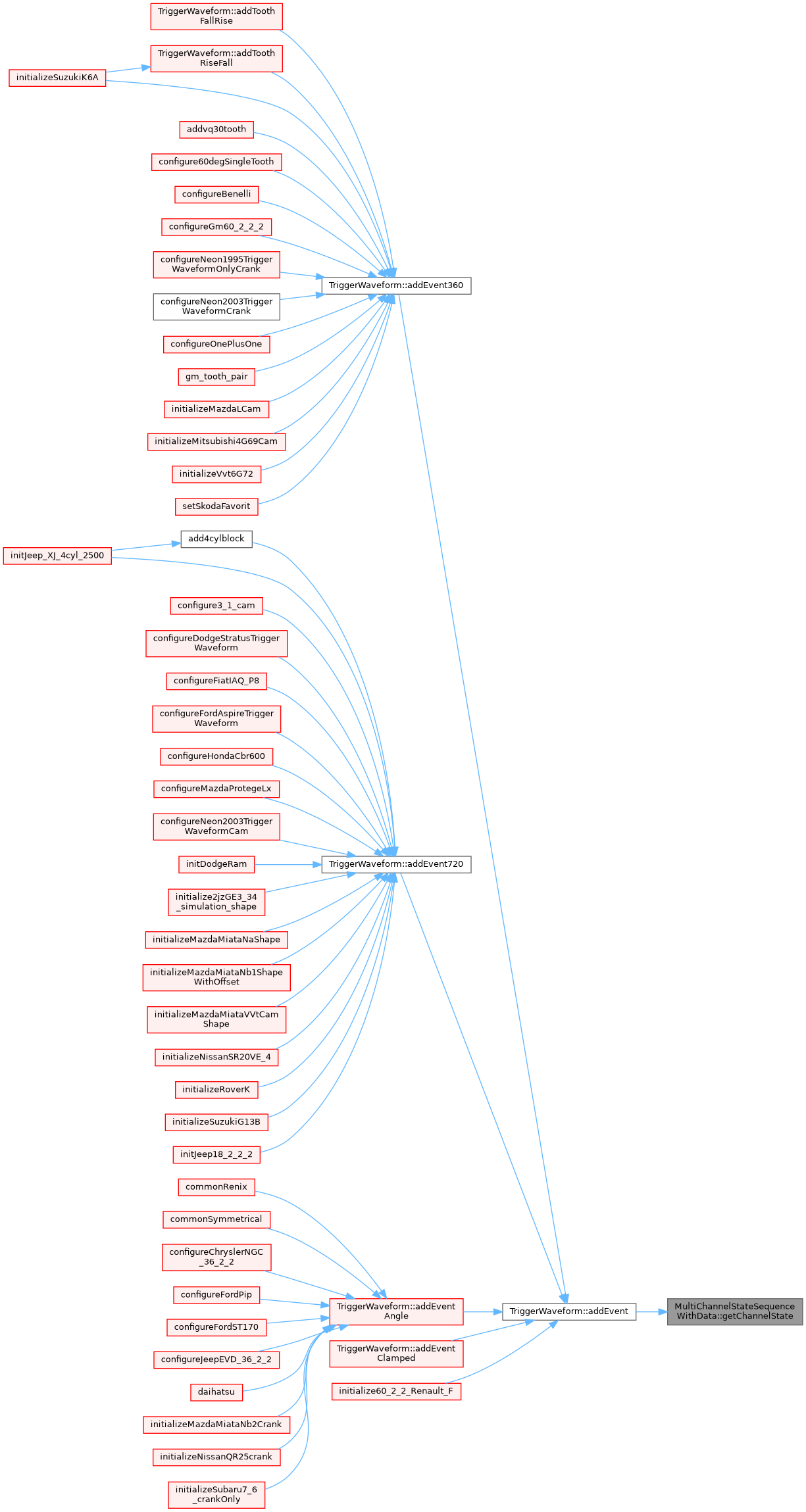

Here is the caller graph for this function:

getSwitchTime()

template<unsigned max_phase>

float MultiChannelStateSequenceWithData< max_phase >::getSwitchTime ( int  phaseIndex ) const

inlineoverridevirtual

values in the (0..1] range which refer to points within the period at at which pin state should be changed So, in the simplest case we turn pin off at 0.3 and turn it on at 1 - that would give us a 70% duty cycle PWM

Implements MultiChannelStateSequence.

Definition at line 79 of file state_sequence.h.

                                                       {
        return switchTimes[phaseIndex];
    }

Referenced by getSimulatedEventTime(), and TriggerWaveform::getSwitchAngle().

Here is the caller graph for this function:

reset()

template<unsigned max_phase>

void MultiChannelStateSequenceWithData< max_phase >::reset ( )

inline

Definition at line 91 of file state_sequence.h.

                 {
        waveCount = 0;
    }

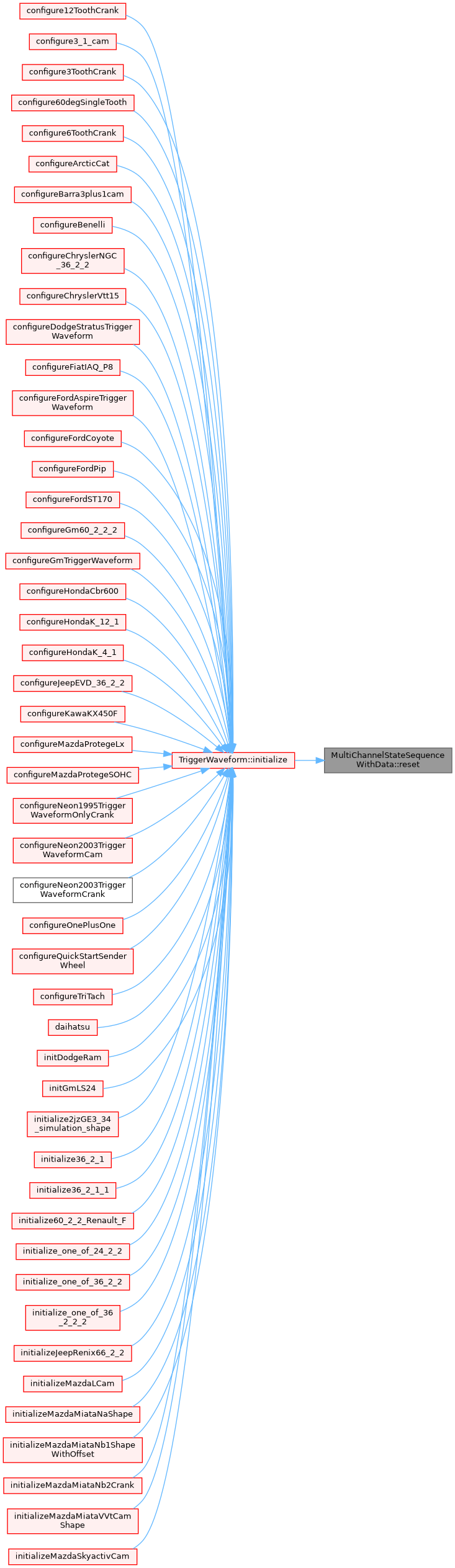

Referenced by TriggerWaveform::initialize().

Here is the caller graph for this function:

setChannelState()

template<unsigned max_phase>

void MultiChannelStateSequenceWithData< max_phase >::setChannelState ( const int  channelIndex, const int  phaseIndex, pin_state_t  state  )

inline

Definition at line 99 of file state_sequence.h.

                                                                                          {
        if (channelIndex >= waveCount) {
            // todo: would be nice to get this asserting working
            //criticalError("channel index %d/%d", channelIndex, waveCount);
        }
        uint8_t & ref = waveForm[phaseIndex];
        ref = (ref & ~(1U << channelIndex)) | ((state == TriggerValue::RISE ? 1 : 0) << channelIndex);
    }

Referenced by TriggerWaveform::addEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

setSwitchTime()

template<unsigned max_phase>

void MultiChannelStateSequenceWithData< max_phase >::setSwitchTime ( const int  phaseIndex, const float  value  )

inline

Definition at line 95 of file state_sequence.h.

                                                                {
        switchTimes[phaseIndex] = value;
    }

Referenced by TriggerWaveform::addEvent(), and SimplePwm::setSimplePwmDutyCycle().

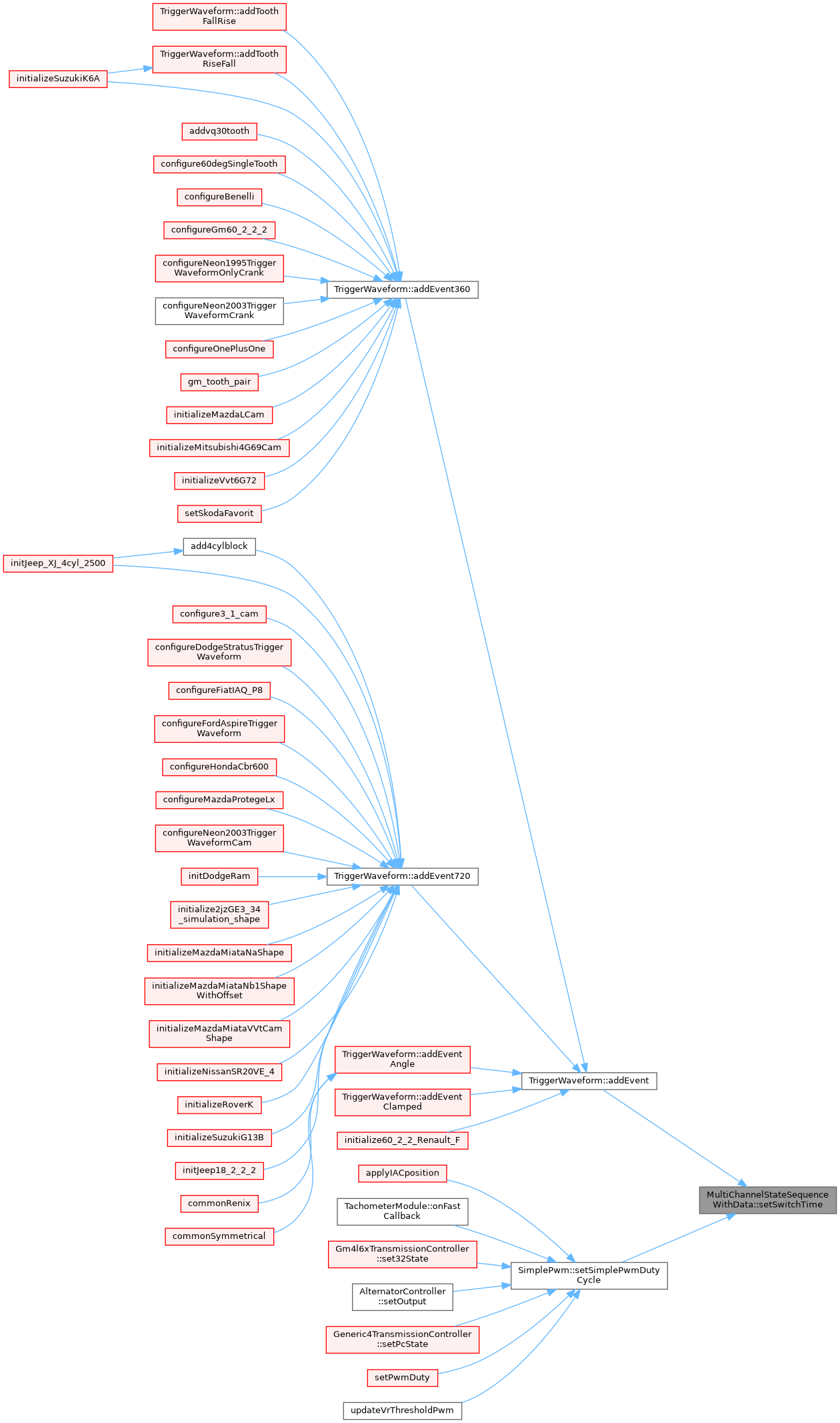

Here is the caller graph for this function:

Field Documentation

switchTimes

template<unsigned max_phase>

float MultiChannelStateSequenceWithData< max_phase >::switchTimes[max_phase]

private

Definition at line 109 of file state_sequence.h.

Referenced by MultiChannelStateSequenceWithData< max_phase >::getSwitchTime(), and MultiChannelStateSequenceWithData< max_phase >::setSwitchTime().

waveForm

template<unsigned max_phase>

uint8_t MultiChannelStateSequenceWithData< max_phase >::waveForm[max_phase]

private

Definition at line 110 of file state_sequence.h.

Referenced by MultiChannelStateSequenceWithData< max_phase >::getChannelState(), and MultiChannelStateSequenceWithData< max_phase >::setChannelState().

---

The documentation for this class was generated from the following file:

• controllers/core/state_sequence.h
