ProxySensor Class Reference

#include <proxy_sensor.h>

Inheritance diagram for ProxySensor:

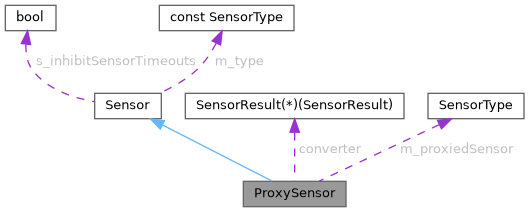

Collaboration diagram for ProxySensor:

Public Types
typedef SensorResult(*	functionFunctionPtr) (SensorResult)

Public Member Functions
	ProxySensor (SensorType type)
void	setProxiedSensor (SensorType proxiedSensor)
void	showInfo (const char *sensorName) const override
bool	isRedundant () const override
void	setConverter (functionFunctionPtr p_converter)
Public Member Functions inherited from Sensor
bool	Register ()
const char *	getSensorName () const
virtual float	getRaw () const
void	unregister ()
SensorType	type () const

Private Member Functions
SensorResult	get () const override
bool	hasSensor () const override

Private Attributes
functionFunctionPtr	converter
SensorType	m_proxiedSensor = SensorType::Invalid

Additional Inherited Members
Static Public Member Functions inherited from Sensor
static void	showAllSensorInfo ()
static void	showInfo (SensorType type)
static void	resetRegistry ()
static const Sensor *	getSensorOfType (SensorType type)
static SensorResult	get (SensorType type)
static float	getOrZero (SensorType type)
static float	getRaw (SensorType type)
static bool	isRedundant (SensorType type)
static bool	hasSensor (SensorType type)
static void	setMockValue (SensorType type, float value, bool mockRedundant=false)
static void	setInvalidMockValue (SensorType type)
static void	resetMockValue (SensorType type)
static void	resetAllMocks ()
static void	inhibitTimeouts (bool inhibit)
static const char *	getSensorName (SensorType type)
Protected Member Functions inherited from Sensor
	Sensor (SensorType type)
Static Protected Attributes inherited from Sensor
static bool	s_inhibitSensorTimeouts = false

Detailed Description

Definition at line 16 of file proxy_sensor.h.

Member Typedef Documentation

functionFunctionPtr

typedef SensorResult(* ProxySensor::functionFunctionPtr) (SensorResult)

Definition at line 31 of file proxy_sensor.h.

Constructor & Destructor Documentation

ProxySensor()

ProxySensor::ProxySensor ( SensorType  type )

inlineexplicit

Definition at line 18 of file proxy_sensor.h.

: Sensor(type) {}

Member Function Documentation

get()

SensorResult ProxySensor::get ( ) const

inlineoverrideprivatevirtual

Implements Sensor.

Definition at line 42 of file proxy_sensor.h.

                                      {
        SensorResult proxiedValue = Sensor::get(m_proxiedSensor);
        return converter(proxiedValue);
    }

Here is the call graph for this function:

hasSensor()

bool ProxySensor::hasSensor ( ) const

inlineoverrideprivatevirtual

Reimplemented from Sensor.

Definition at line 47 of file proxy_sensor.h.

                                    {
        // query if the underlying sensor exists
        return Sensor::hasSensor(m_proxiedSensor);
    }

Here is the call graph for this function:

isRedundant()

bool ProxySensor::isRedundant ( ) const

inlineoverridevirtual

Reimplemented from Sensor.

Definition at line 26 of file proxy_sensor.h.

                                      {
        const Sensor *proxied = getSensorOfType(m_proxiedSensor);
        return proxied ? proxied->isRedundant() : false;
    }

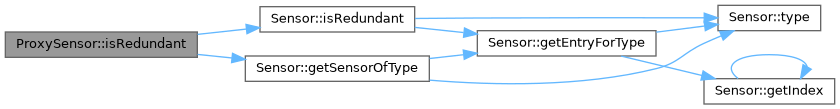

Here is the call graph for this function:

setConverter()

void ProxySensor::setConverter ( functionFunctionPtr  p_converter )

inline

Definition at line 33 of file proxy_sensor.h.

                                                       {
        converter = p_converter;
    }

Referenced by initTps().

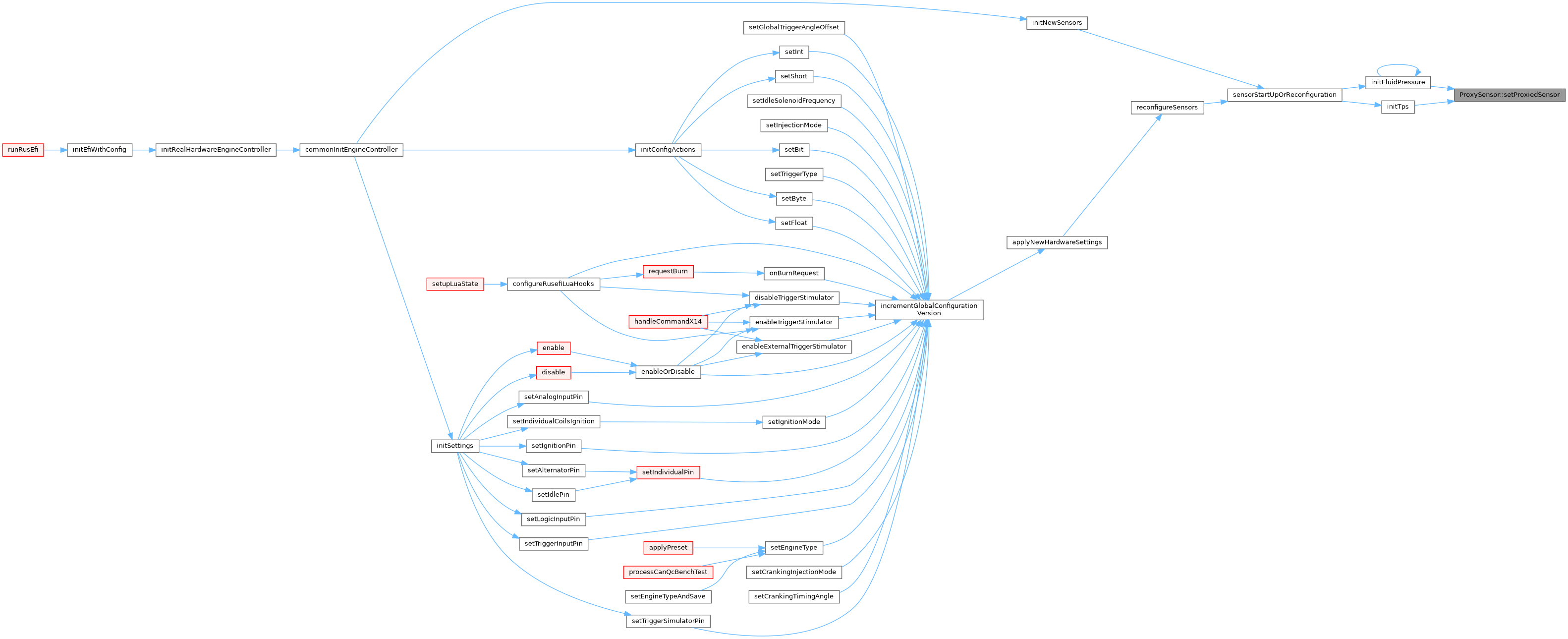

Here is the caller graph for this function:

setProxiedSensor()

void ProxySensor::setProxiedSensor ( SensorType  proxiedSensor )

inline

Definition at line 20 of file proxy_sensor.h.

                                                    {
        m_proxiedSensor = proxiedSensor;
    }

Referenced by initFluidPressure(), and initTps().

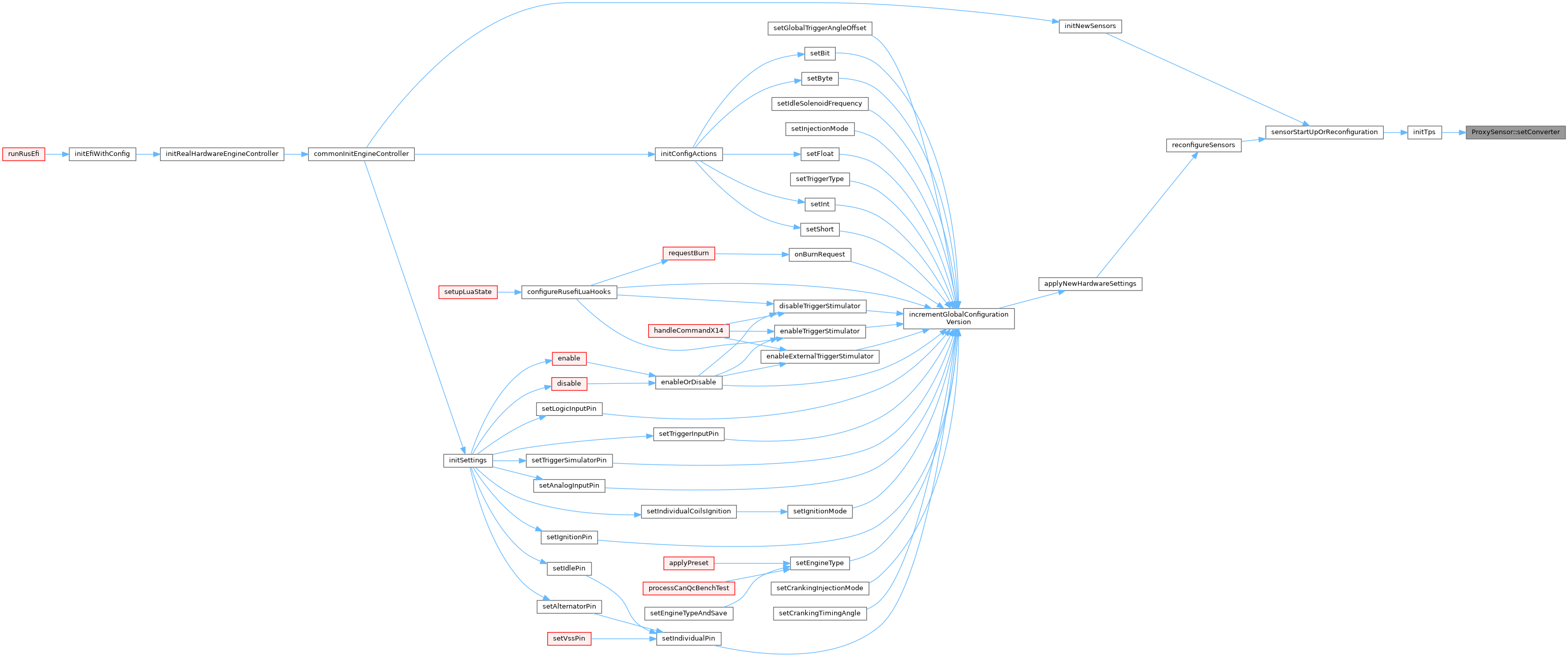

Here is the caller graph for this function:

showInfo()

void ProxySensor::showInfo ( const char *  sensorName ) const

overridevirtual

Implements Sensor.

Definition at line 22 of file sensor_info_printing.cpp.

                                                       {
    efiPrintf("Sensor \"%s\" proxied from sensor \"%s\"", sensorName, getSensorName(m_proxiedSensor));
}

Here is the call graph for this function:

Field Documentation

converter

functionFunctionPtr ProxySensor::converter

private

Initial value:

= [](SensorResult arg) {
        return arg;
    }

Definition at line 38 of file proxy_sensor.h.

                                                         {
        return arg;
    };

Referenced by get(), and setConverter().

m_proxiedSensor

SensorType ProxySensor::m_proxiedSensor = SensorType::Invalid

private

Definition at line 52 of file proxy_sensor.h.

Referenced by get(), hasSensor(), isRedundant(), setProxiedSensor(), and showInfo().

---

The documentation for this class was generated from the following files:

• controllers/sensors/core/proxy_sensor.h
• controllers/sensors/sensor_info_printing.cpp
