#include <efi_gpio.h>

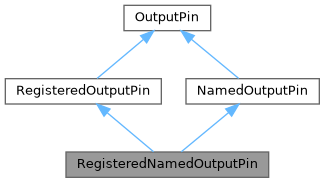

Inheritance diagram for RegisteredNamedOutputPin:

[legend]

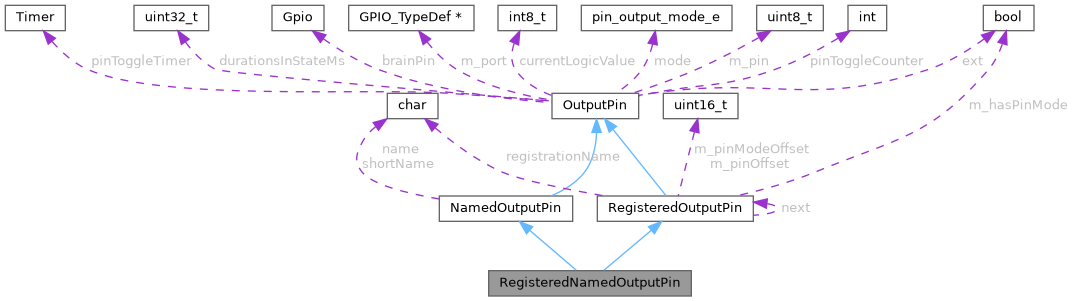

Collaboration diagram for RegisteredNamedOutputPin:

[legend]

Public Member Functions
	RegisteredNamedOutputPin (const char *name, size_t pinOffset, size_t pinModeOffset)

	RegisteredNamedOutputPin (const char *name, size_t pinOffset)

Public Member Functions inherited from RegisteredOutputPin
	RegisteredOutputPin (const char *registrationName, size_t pinOffset, size_t pinModeOffset)

	RegisteredOutputPin (const char *registrationName, size_t pinOffset)

void	init ()

void	unregister ()

const char *	getRegistrationName () const

Public Member Functions inherited from OutputPin
void	initPin (const char *msg, brain_pin_e brainPin, pin_output_mode_e outputMode, bool forceInitWithFatalError=false)

void	initPin (const char *msg, brain_pin_e brainPin)

void	deInit ()

bool	isInitialized () const

bool	getAndSet (int logicValue)

void	setValue (const char *msg, int logicValue, bool isForce=false)

TEST_VIRTUAL void	setValue (int logicValue, bool isForce=false)

void	toggle ()

bool	getLogicValue () const

brain_pin_diag_e	getDiag () const

void	resetToggleStats ()

Public Member Functions inherited from NamedOutputPin
	NamedOutputPin ()

	NamedOutputPin (const char *name)

virtual void	setHigh (const char *msg)

virtual void	setLow (const char *msg)

virtual void	setHigh ()

virtual void	setLow ()

const char *	getName () const

void	setName (const char *)

const char *	getShortName () const

bool	stop ()

Additional Inherited Members
Data Fields inherited from RegisteredOutputPin
RegisteredOutputPin *const	next

Data Fields inherited from OutputPin
ioportid_t	m_port = 0

uint8_t	m_pin = 0

int	pinToggleCounter = 0

Timer	pinToggleTimer

uint32_t	durationsInStateMs [2]

brain_pin_e	brainPin = Gpio::Unassigned

bool	ext = false

int8_t	currentLogicValue = INITIAL_PIN_STATE

Data Fields inherited from NamedOutputPin
const char *	shortName = nullptr

Detailed Description

Definition at line 60 of file efi_gpio.h.

Constructor & Destructor Documentation

RegisteredNamedOutputPin::RegisteredNamedOutputPin	(	const char *	name,
		size_t	pinOffset,
		size_t	pinModeOffset
	)

Definition at line 66 of file efi_gpio.cpp.

67 : RegisteredOutputPin(p_name, pinOffset, pinModeOffset) {

68}

Definition efi_gpio.h:42

RegisteredNamedOutputPin::RegisteredNamedOutputPin	(	const char *	name,
		size_t	pinOffset
	)

Definition at line 70 of file efi_gpio.cpp.

                                                                                       :
    RegisteredOutputPin(p_name, pinOffset) {
}

The documentation for this class was generated from the following files:
