NamedOutputPin Class Reference

#include <efi_output.h>

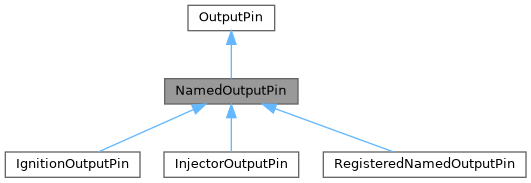

Inheritance diagram for NamedOutputPin:

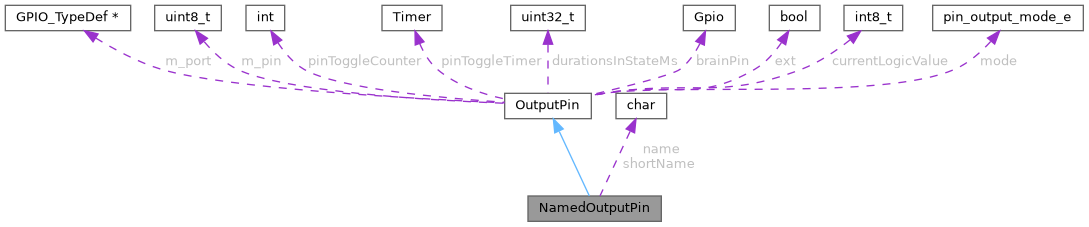

Collaboration diagram for NamedOutputPin:

Public Member Functions
	NamedOutputPin ()
	NamedOutputPin (const char *name)
virtual void	setHigh (const char *msg)
virtual void	setLow (const char *msg)
virtual void	setHigh ()
virtual void	setLow ()
const char *	getName () const
void	setName (const char *)
const char *	getShortName () const
bool	stop ()
Public Member Functions inherited from OutputPin
void	initPin (const char *msg, brain_pin_e brainPin, pin_output_mode_e outputMode, bool forceInitWithFatalError=false)
void	initPin (const char *msg, brain_pin_e brainPin)
void	deInit ()
bool	isInitialized () const
bool	getAndSet (int logicValue)
void	setValue (const char *msg, int logicValue, bool isForce=false)
TEST_VIRTUAL void	setValue (int logicValue, bool isForce=false)
void	toggle ()
bool	getLogicValue () const
brain_pin_diag_e	getDiag () const
void	resetToggleStats ()

Data Fields
const char *	shortName = nullptr
Data Fields inherited from OutputPin
ioportid_t	m_port = 0
uint8_t	m_pin = 0
int	pinToggleCounter = 0
Timer	pinToggleTimer
uint32_t	durationsInStateMs [2]
brain_pin_e	brainPin = Gpio::Unassigned
bool	ext = false
int8_t	currentLogicValue = INITIAL_PIN_STATE

Private Attributes
const char *	name = nullptr

Detailed Description

OutputPin which is reported on Engine Sniffer

Definition at line 111 of file efi_output.h.

Constructor & Destructor Documentation

NamedOutputPin() [1/2]

NamedOutputPin::NamedOutputPin

(

)

Definition at line 392 of file efi_gpio.cpp.

                               : OutputPin() {
}

NamedOutputPin() [2/2]

NamedOutputPin::NamedOutputPin ( const char *  name )

explicit

Definition at line 395 of file efi_gpio.cpp.

                                                 : OutputPin() {
    name = p_name;
}

Member Function Documentation

getName()

const char * NamedOutputPin::getName

(

)

const

Definition at line 399 of file efi_gpio.cpp.

                                          {
    return name;
}

Referenced by assertPinAssigned(), chargeTrailingSpark(), InjectorOutputPin::close(), fireSparkBySettingPinLow(), fireTrailingSpark(), InjectionEvent::onTriggerTooth(), InjectorOutputPin::open(), overFireSparkAndPrepareNextSchedule(), prepareCylinderIgnitionSchedule(), scheduleSparkEvent(), EnginePins::startAuxValves(), startDwellByTurningSparkPinHigh(), EnginePins::startIgnitionPins(), EnginePins::startInjectionPins(), and InjectionEvent::update().

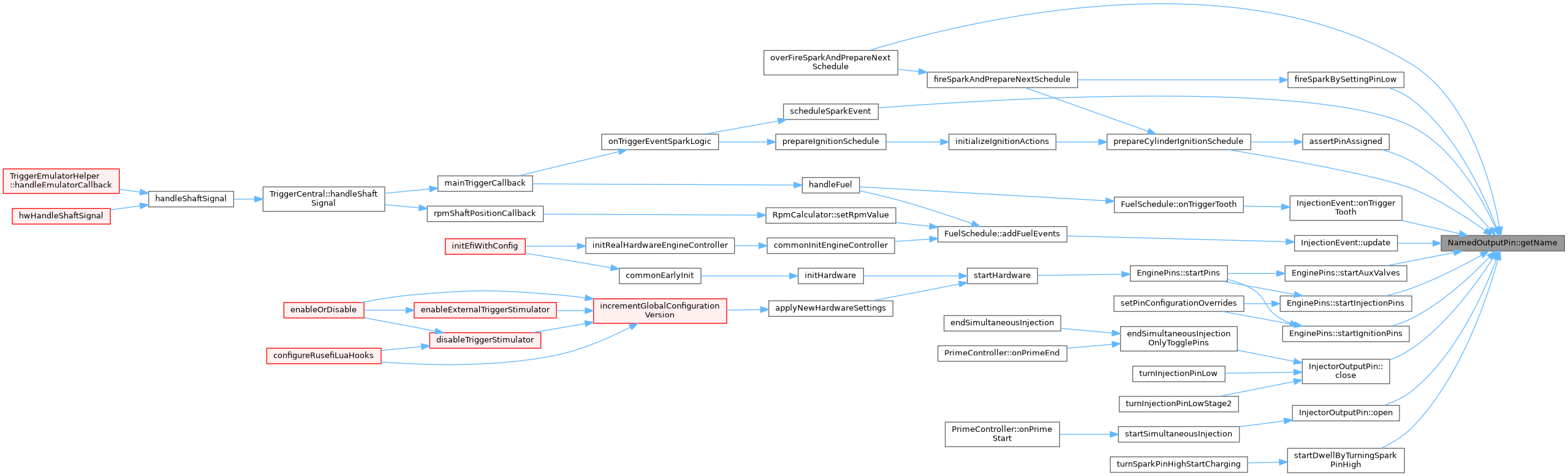

Here is the caller graph for this function:

getShortName()

const char * NamedOutputPin::getShortName

(

)

const

Definition at line 407 of file efi_gpio.cpp.

                                               {
    return shortName == nullptr ? name : shortName;
}

Referenced by addEngineSnifferOutputPinEvent(), and printEngineSnifferPinMappings().

Here is the caller graph for this function:

setHigh() [1/2]

void NamedOutputPin::setHigh ( )

virtual

Reimplemented in InjectorOutputPin, and IgnitionOutputPin.

Definition at line 415 of file efi_gpio.cpp.

                             {
    setHigh(nullptr);
}

Referenced by IgnitionOutputPin::setHigh(), and InjectorOutputPin::setHigh().

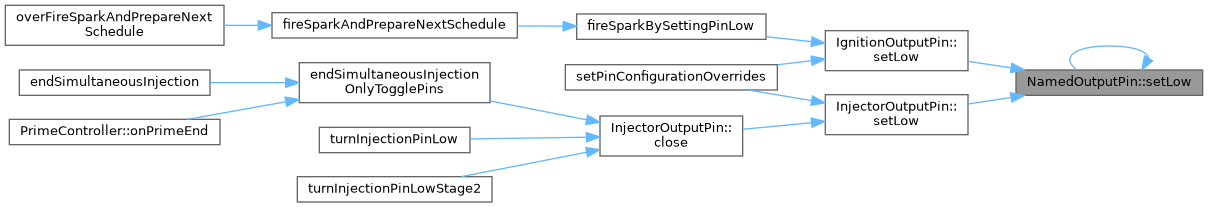

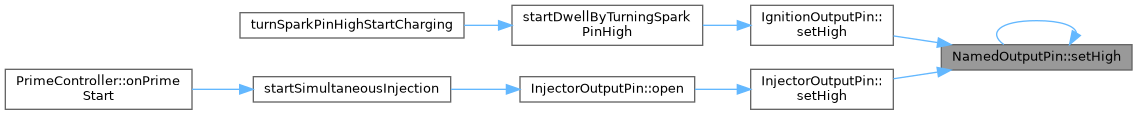

Here is the caller graph for this function:

setHigh() [2/2]

void NamedOutputPin::setHigh ( const char *  msg )

virtual

Definition at line 419 of file efi_gpio.cpp.

                                            {
#if EFI_UNIT_TEST
    if (verboseMode) {
        efiPrintf("pin %s goes high", name);
    }
#endif // EFI_UNIT_TEST
#if EFI_DEFAILED_LOGGING
//  signal->hi_time = hTimeNow();
#endif /* EFI_DEFAILED_LOGGING */

    // turn the output level ACTIVE
    setValue(msg, true);

#if EFI_ENGINE_SNIFFER
    addEngineSnifferOutputPinEvent(this, FrontDirection::UP);
#endif /* EFI_ENGINE_SNIFFER */
}

Referenced by auxPlainPinTurnOn(), HpfpController::pinTurnOn(), and startIntegration().

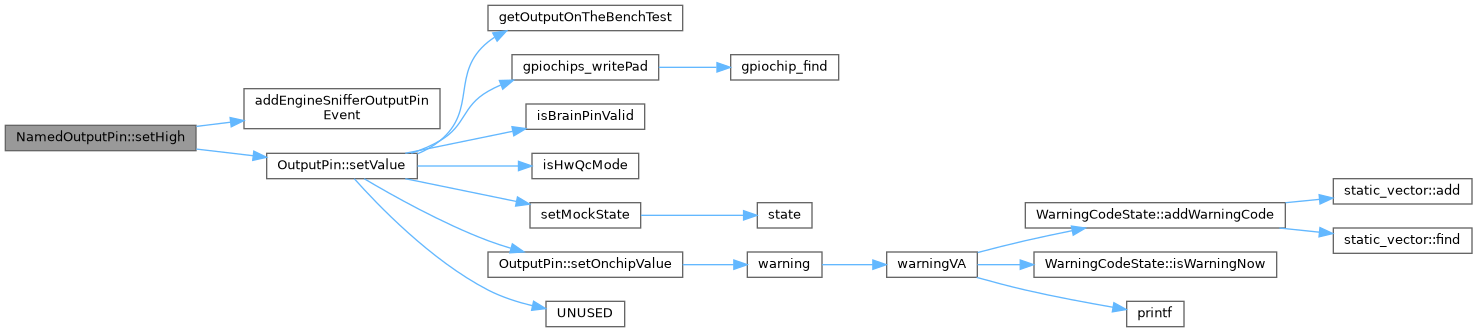

Here is the call graph for this function:

Here is the caller graph for this function:

setLow() [1/2]

void NamedOutputPin::setLow ( )

virtual

Reimplemented in InjectorOutputPin, and IgnitionOutputPin.

Definition at line 437 of file efi_gpio.cpp.

                            {
    setLow(nullptr);
}

Referenced by IgnitionOutputPin::setLow(), and InjectorOutputPin::setLow().

Here is the caller graph for this function:

setLow() [2/2]

void NamedOutputPin::setLow ( const char *  msg )

virtual

Definition at line 441 of file efi_gpio.cpp.

                                           {
#if EFI_UNIT_TEST
    if (verboseMode) {
        efiPrintf("pin %s goes low", name);
    }
#endif // EFI_UNIT_TEST

    // turn off the output
    setValue(msg, false);

#if EFI_ENGINE_SNIFFER
    addEngineSnifferOutputPinEvent(this, FrontDirection::DOWN);
#endif /* EFI_ENGINE_SNIFFER */
}

Referenced by endIntegration(), HpfpController::pinTurnOff(), and plainPinTurnOff().

Here is the call graph for this function:

Here is the caller graph for this function:

setName()

void NamedOutputPin::setName

(

const char *

p_name

)

Definition at line 403 of file efi_gpio.cpp.

                                               {
    name = p_name;
}

Referenced by EnginePins::EnginePins().

Here is the caller graph for this function:

stop()

bool NamedOutputPin::stop

(

)

Returns

true if pin was stopped

Definition at line 456 of file efi_gpio.cpp.

                          {
#if EFI_GPIO_HARDWARE
    if (isInitialized() && getLogicValue()) {
        setValue("stop", false);
        efiPrintf("turning off %s", name);
        return true;
    }
#endif /* EFI_GPIO_HARDWARE */
    return false;
}

Referenced by EnginePins::stopPins().

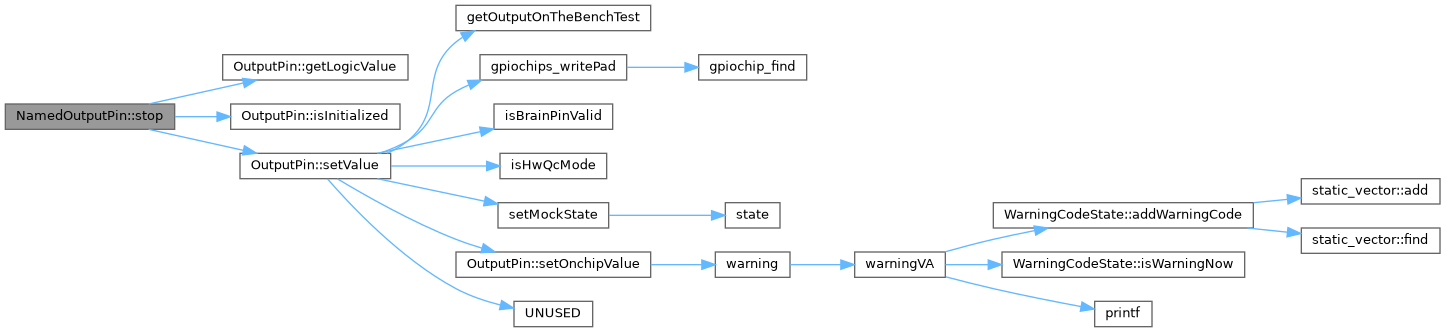

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

name

const char* NamedOutputPin::name = nullptr

private

Definition at line 133 of file efi_output.h.

Referenced by getName(), getShortName(), NamedOutputPin(), setHigh(), setLow(), setName(), and stop().

shortName

const char* NamedOutputPin::shortName = nullptr

rusEfi Engine Sniffer protocol uses these short names to reduce bytes usage

Definition at line 129 of file efi_output.h.

Referenced by EnginePins::EnginePins(), and getShortName().

---

The documentation for this class was generated from the following files:

• controllers/system/efi_output.h
• controllers/system/efi_gpio.cpp
