spark_logic.cpp File Reference

Functions
static void	fireSparkBySettingPinLow (IgnitionEvent *event, IgnitionOutputPin *output)
static void	assertPinAssigned (IgnitionOutputPin *output)
static int	getIgnitionPinForIndex (int cylinderIndex, ignition_mode_e ignitionMode)
static void	prepareCylinderIgnitionSchedule (angle_t dwellAngleDuration, floatms_t sparkDwell, IgnitionEvent *event)
static void	chargeTrailingSpark (IgnitionOutputPin *pin)
static void	fireTrailingSpark (IgnitionOutputPin *pin)
static void	overFireSparkAndPrepareNextSchedule (IgnitionEvent *event)
void	fireSparkAndPrepareNextSchedule (IgnitionEvent *event)
static bool	startDwellByTurningSparkPinHigh (IgnitionEvent *event, IgnitionOutputPin *output)
void	turnSparkPinHighStartCharging (IgnitionEvent *event)
static void	scheduleSparkEvent (bool limitedSpark, IgnitionEvent *event, float rpm, float dwellMs, float dwellAngle, float sparkAngle, efitick_t edgeTimestamp, float currentPhase, float nextPhase)
void	initializeIgnitionActions ()
static void	prepareIgnitionSchedule ()
void	onTriggerEventSparkLogic (float rpm, efitick_t edgeTimestamp, float currentPhase, float nextPhase)
int	getNumberOfSparks (ignition_mode_e mode)
percent_t	getCoilDutyCycle (float rpm)

Variables
bool	verboseMode
bool	printFuelDebug
static const char *	prevSparkName = nullptr

Function Documentation

assertPinAssigned()

static void assertPinAssigned ( IgnitionOutputPin *  output )

static

Definition at line 54 of file spark_logic.cpp.

                                                         {
    if (!output->isInitialized()) {
        warning(ObdCode::CUSTOM_OBD_COIL_PIN_NOT_ASSIGNED, "Pin Not Assigned check configuration #%s", output->getName()); \
    }
}

Referenced by prepareCylinderIgnitionSchedule().

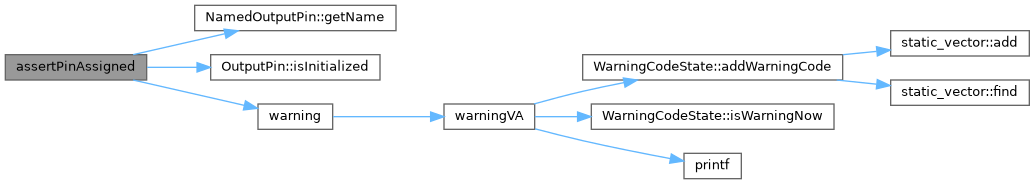

Here is the call graph for this function:

Here is the caller graph for this function:

chargeTrailingSpark()

static void chargeTrailingSpark ( IgnitionOutputPin *  pin )

static

Definition at line 172 of file spark_logic.cpp.

                                                        {
#if SPARK_EXTREME_LOGGING
    efiPrintf("chargeTrailingSpark %s", pin->getName());
#endif /* SPARK_EXTREME_LOGGING */
    pin->setHigh();
}

fireSparkAndPrepareNextSchedule()

void fireSparkAndPrepareNextSchedule

(

IgnitionEvent *

event

)

TL,DR: each IgnitionEvent is in charge of it's own scheduling forever, we plant next event while finishing handling of the current one

ratio of desired dwell duration to actual dwell duration gives us some idea of how good is input trigger jitter

Definition at line 209 of file spark_logic.cpp.

                                                           {
#if EFI_UNIT_TEST
    if (engine->onIgnitionEvent) {
        engine->onIgnitionEvent(event, false);
    }
#endif

    for (int i = 0; i< MAX_OUTPUTS_FOR_IGNITION;i++) {
        IgnitionOutputPin *output = event->outputs[i];

        if (output) {
            fireSparkBySettingPinLow(event, output);
        }
    }

    efitick_t nowNt = getTimeNowNt();

#if EFI_TOOTH_LOGGER
    LogTriggerCoilState(nowNt, false, event->coilIndex);
#endif // EFI_TOOTH_LOGGER
    if (!event->wasSparkLimited) {
        /**
         * ratio of desired dwell duration to actual dwell duration gives us some idea of how good is input trigger jitter
         */
        float actualDwellMs = event->actualDwellTimer.getElapsedSeconds(nowNt) * 1e3;
        float ratio = actualDwellMs / event->sparkDwell;

        if (ratio > 1.2) {
            engine->engineState.dwellOverChargeCounter++;
        } else if (ratio < 0.8) {
            engine->engineState.dwellUnderChargeCounter++;
        }
        engine->engineState.dwellActualRatio = ratio;
    }

    // now that we've just fired a coil let's prepare the new schedule for the next engine revolution

    angle_t dwellAngleDuration = engine->ignitionState.dwellDurationAngle;
    floatms_t sparkDwell = engine->ignitionState.getDwell();
    if (std::isnan(dwellAngleDuration) || std::isnan(sparkDwell)) {
        // we are here if engine has just stopped
        return;
    }

    // If there are more sparks to fire, schedule them
    if (event->sparksRemaining > 0) {
        event->sparksRemaining--;

        efitick_t nextDwellStart = nowNt + engine->engineState.multispark.delay;
        efitick_t nextFiring = nextDwellStart + engine->engineState.multispark.dwell;
#if SPARK_EXTREME_LOGGING
        efiPrintf("schedule multispark");
#endif /* SPARK_EXTREME_LOGGING */

        // We can schedule both of these right away, since we're going for "asap" not "particular angle"
        engine->scheduler.schedule("dwell", &event->dwellStartTimer, nextDwellStart, action_s::make<turnSparkPinHighStartCharging>( event ));
        engine->scheduler.schedule("firing", &event->sparkEvent.eventScheduling, nextFiring, action_s::make<fireSparkAndPrepareNextSchedule>( event ));
    } else {
        if (engineConfiguration->enableTrailingSparks) {
#if SPARK_EXTREME_LOGGING
            efiPrintf("scheduleByAngle TrailingSparks");
#endif /* SPARK_EXTREME_LOGGING */

            // Trailing sparks are enabled - schedule an event for the corresponding trailing coil
            scheduleByAngle(
                &event->trailingSparkFire, nowNt, engine->ignitionState.trailingSparkAngle,
                action_s::make<fireTrailingSpark>( &enginePins.trailingCoils[event->coilIndex] )
            );
        }

        // If all events have been scheduled, prepare for next time.
        prepareCylinderIgnitionSchedule(dwellAngleDuration, sparkDwell, event);
    }

    engine->onSparkFireKnockSense(event->cylinderIndex, nowNt);
}

Referenced by overFireSparkAndPrepareNextSchedule().

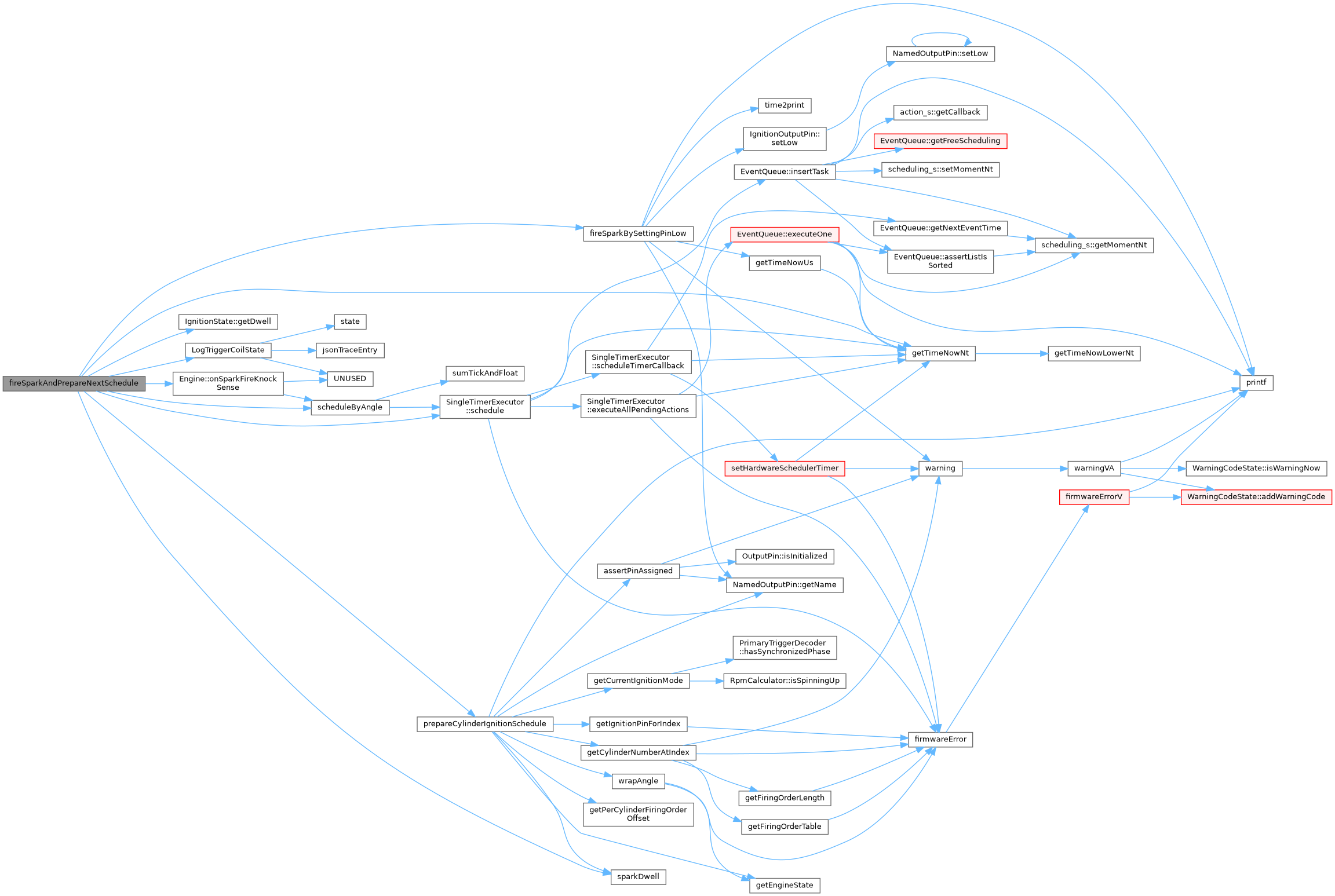

Here is the call graph for this function:

Here is the caller graph for this function:

fireSparkBySettingPinLow()

static void fireSparkBySettingPinLow ( IgnitionEvent *  event, IgnitionOutputPin *  output  )

static

there are two kinds of 'out-of-order' 1) low goes before high, everything is fine afterwards

2) we have an un-matched low followed by legit pairs

Definition at line 29 of file spark_logic.cpp.

                                                                                      {
#if SPARK_EXTREME_LOGGING
    efiPrintf("[%s] %d spark goes low revolution %d tick %d current value %d",
        event->getOutputForLoggins()->getName(), event->sparkCounter,
        getRevolutionCounter(),  time2print(getTimeNowUs()),
        output->currentLogicValue);
#endif /* SPARK_EXTREME_LOGGING */

    /**
     * there are two kinds of 'out-of-order'
     * 1) low goes before high, everything is fine afterwards
     *
     * 2) we have an un-matched low followed by legit pairs
     */
    output->signalFallSparkId = event->sparkCounter;

    if (!output->currentLogicValue && !event->wasSparkLimited && !event->wasSparkCanceled) {
#if SPARK_EXTREME_LOGGING
        efiPrintf("out-of-order coil off %s", output->getName());
#endif /* SPARK_EXTREME_LOGGING */
        warning(ObdCode::CUSTOM_OUT_OF_ORDER_COIL, "out-of-order coil off %s", output->getName());
    }
    output->setLow();
}

Referenced by fireSparkAndPrepareNextSchedule().

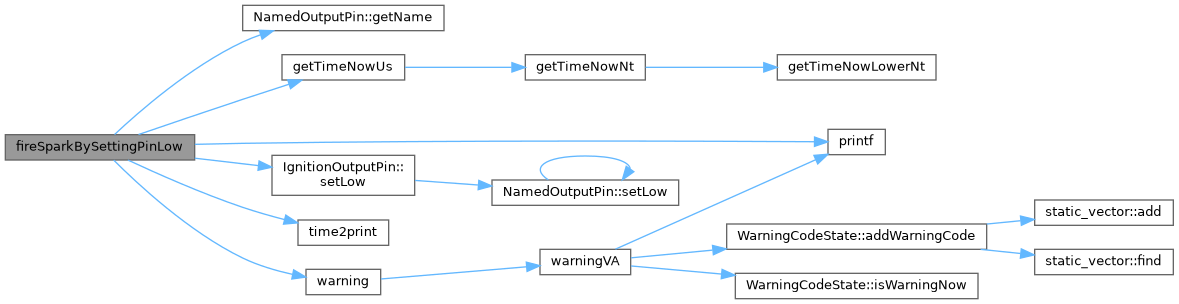

Here is the call graph for this function:

Here is the caller graph for this function:

fireTrailingSpark()

static void fireTrailingSpark ( IgnitionOutputPin *  pin )

static

Definition at line 179 of file spark_logic.cpp.

                                                      {
#if SPARK_EXTREME_LOGGING
    efiPrintf("fireTrailingSpark %s", pin->getName());
#endif /* SPARK_EXTREME_LOGGING */
    pin->setLow();
}

getCoilDutyCycle()

percent_t getCoilDutyCycle

(

float

rpm

)

See also

getInjectorDutyCycle

Definition at line 692 of file spark_logic.cpp.

                                      {
    floatms_t totalPerCycle = engine->ignitionState.getDwell() * getNumberOfSparks(getCurrentIgnitionMode());
    floatms_t engineCycleDuration = getCrankshaftRevolutionTimeMs(rpm) * (getEngineRotationState()->getOperationMode() == TWO_STROKE ? 1 : 2);
    return 100 * totalPerCycle / engineCycleDuration;
}

Referenced by populateFrame(), and updateIgnition().

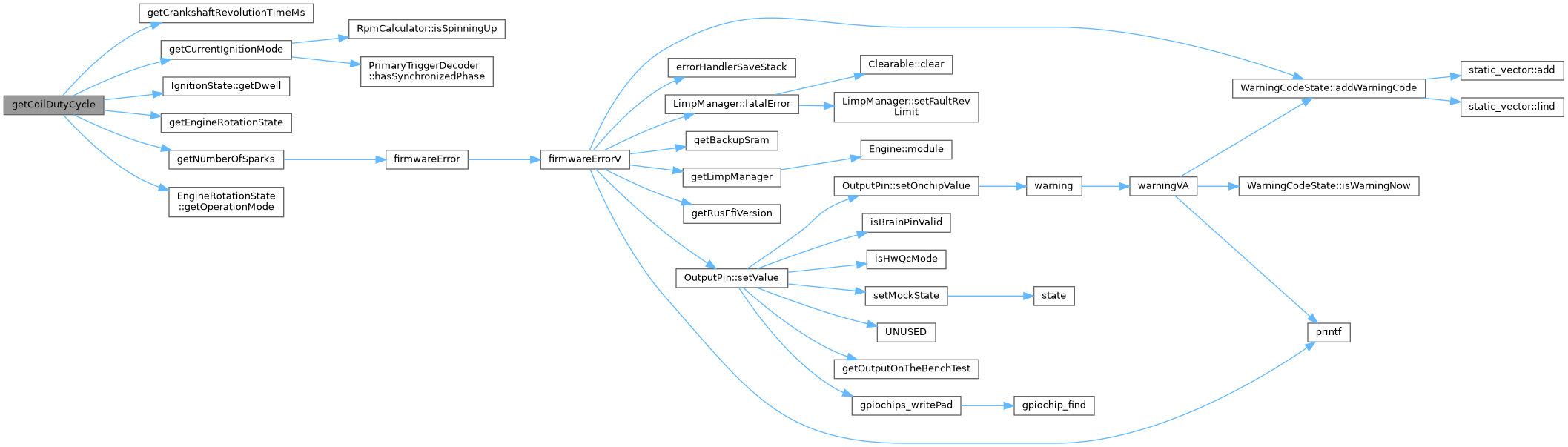

Here is the call graph for this function:

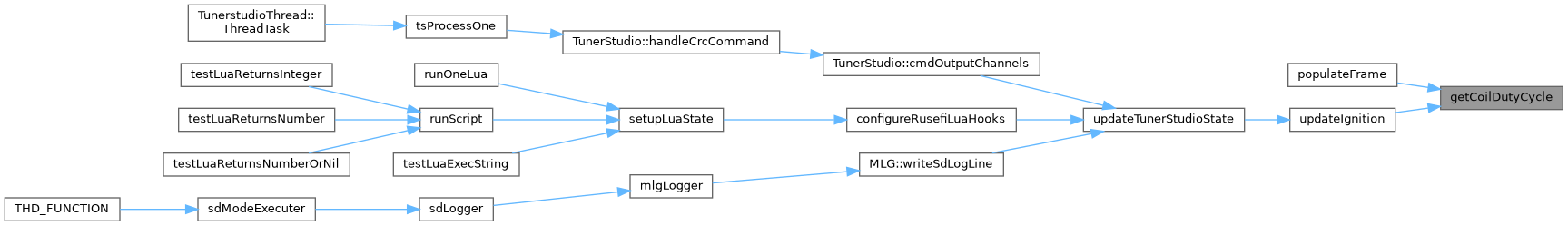

Here is the caller graph for this function:

getIgnitionPinForIndex()

static int getIgnitionPinForIndex ( int  cylinderIndex, ignition_mode_e  ignitionMode  )

static

Parameters

cylinderIndex

from 0 to cylinderCount, not cylinder number

Definition at line 63 of file spark_logic.cpp.

                                                                                   {
    switch (ignitionMode) {
    case IM_ONE_COIL:
        return 0;
    case IM_WASTED_SPARK: {
        if (engineConfiguration->cylindersCount == 1) {
            // we do not want to divide by zero
            return 0;
        }
        return cylinderIndex % (engineConfiguration->cylindersCount / 2);
    }
    case IM_INDIVIDUAL_COILS:
        return cylinderIndex;
    case IM_TWO_COILS:
        return cylinderIndex % 2;

    default:
        firmwareError(ObdCode::CUSTOM_OBD_IGNITION_MODE, "Invalid ignition mode getIgnitionPinForIndex(): %d", engineConfiguration->ignitionMode);
        return 0;
    }
}

Referenced by prepareCylinderIgnitionSchedule().

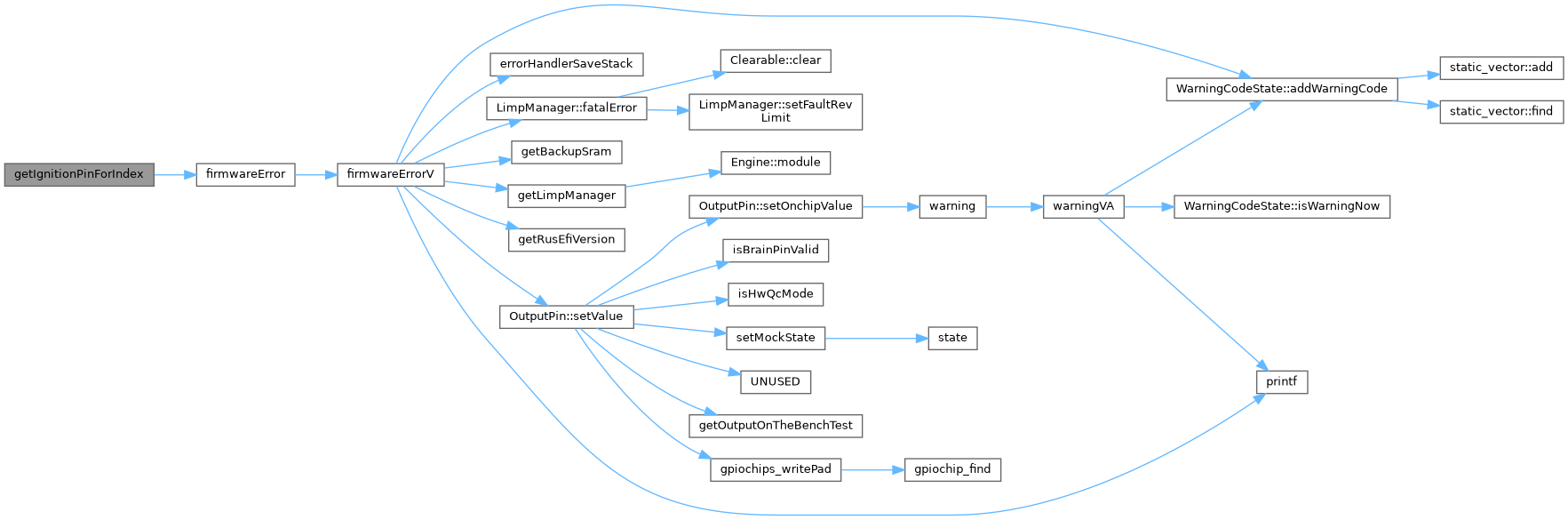

Here is the call graph for this function:

Here is the caller graph for this function:

getNumberOfSparks()

int getNumberOfSparks

(

ignition_mode_e

mode

)

Number of sparks per physical coil

See also

getNumberOfInjections

Definition at line 673 of file spark_logic.cpp.

                                            {
    switch (mode) {
    case IM_ONE_COIL:
        return engineConfiguration->cylindersCount;
    case IM_TWO_COILS:
        return engineConfiguration->cylindersCount / 2;
    case IM_INDIVIDUAL_COILS:
        return 1;
    case IM_WASTED_SPARK:
        return 2;
    default:
        firmwareError(ObdCode::CUSTOM_ERR_IGNITION_MODE, "Unexpected ignition_mode_e %d", mode);
        return 1;
    }
}

Referenced by getCoilDutyCycle().

Here is the call graph for this function:

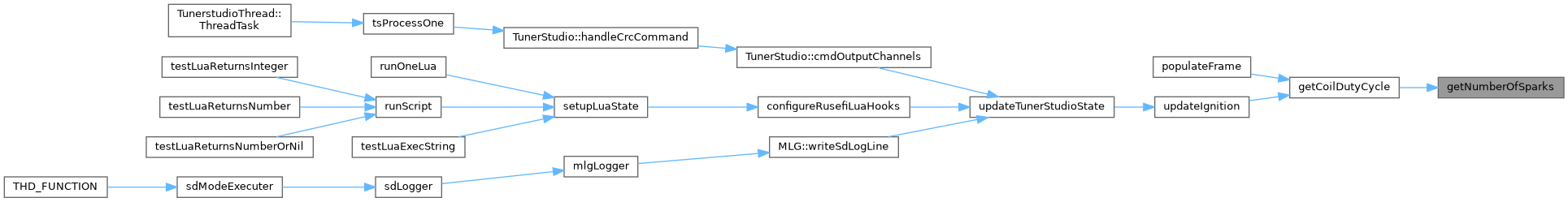

Here is the caller graph for this function:

initializeIgnitionActions()

void initializeIgnitionActions

(

)

Definition at line 513 of file spark_logic.cpp.

                                 {
    IgnitionEventList *list = &engine->ignitionEvents;
    angle_t dwellAngle = engine->ignitionState.dwellDurationAngle;
    floatms_t sparkDwell = engine->ignitionState.getDwell();
    if (std::isnan(engine->engineState.timingAdvance[0]) || std::isnan(dwellAngle)) {
        // error should already be reported
        // need to invalidate previous ignition schedule
        list->isReady = false;
        return;
    }
    efiAssertVoid(ObdCode::CUSTOM_ERR_6592, engineConfiguration->cylindersCount > 0, "cylindersCount");

    for (size_t cylinderIndex = 0; cylinderIndex < engineConfiguration->cylindersCount; cylinderIndex++) {
        list->elements[cylinderIndex].cylinderIndex = cylinderIndex;
        prepareCylinderIgnitionSchedule(dwellAngle, sparkDwell, &list->elements[cylinderIndex]);
    }
    list->isReady = true;
}

Referenced by prepareIgnitionSchedule().

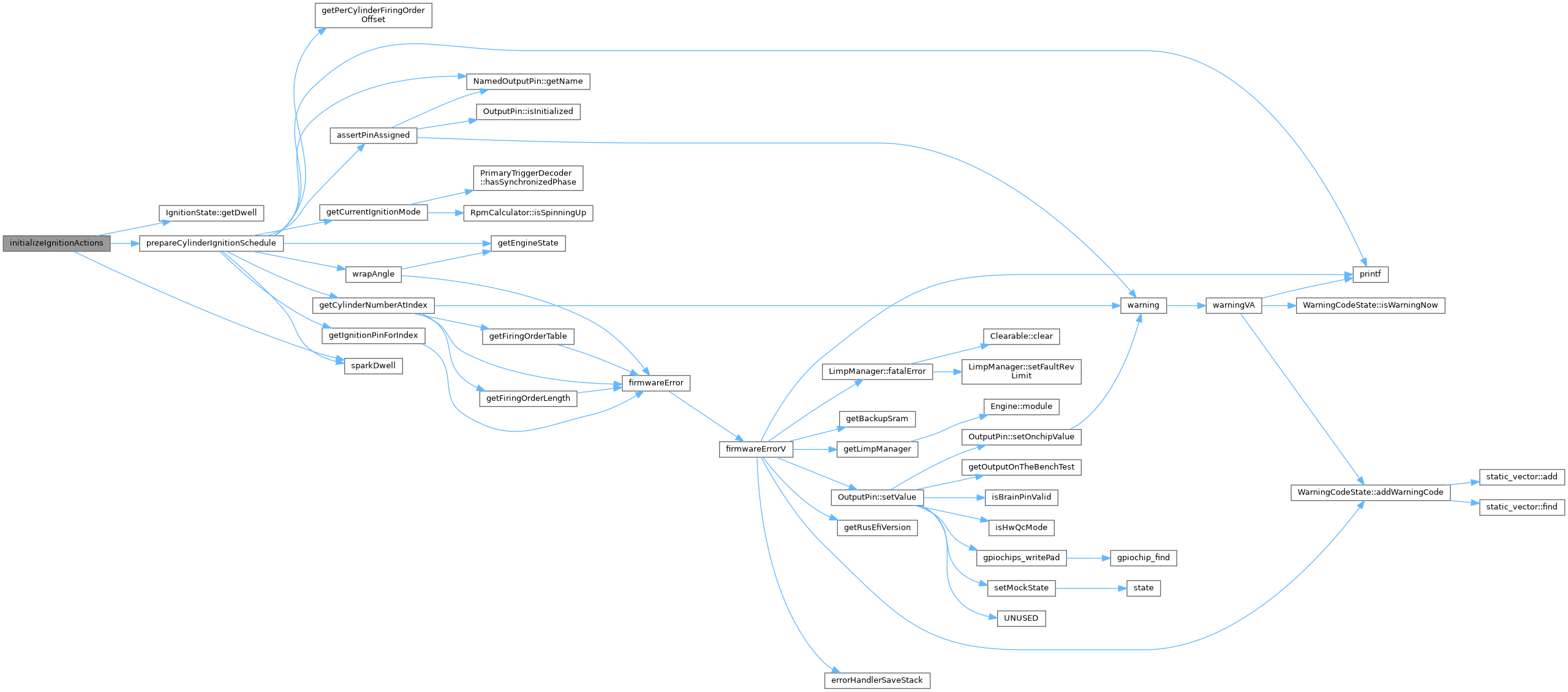

Here is the call graph for this function:

Here is the caller graph for this function:

onTriggerEventSparkLogic()

void onTriggerEventSparkLogic	(	float	rpm,
		efitick_t	edgeTimestamp,
		float	currentPhase,
		float	nextPhase
	)

Ignition schedule is defined once per revolution See initializeIgnitionActions()

Definition at line 556 of file spark_logic.cpp.

                                                                                                       {
    ScopePerf perf(PE::OnTriggerEventSparkLogic);

    if (!engineConfiguration->isIgnitionEnabled) {
        return;
    }

    LimpState limitedSparkState = getLimpManager()->allowIgnition();

    // todo: eliminate state copy logic by giving limpManager it's owm limp_manager.txt and leveraging LiveData
    engine->outputChannels.sparkCutReason = (int8_t)limitedSparkState.reason;
    bool limitedSpark = !limitedSparkState.value;

    const floatms_t dwellMs = engine->ignitionState.getDwell();
    if (std::isnan(dwellMs) || dwellMs <= 0) {
        warning(ObdCode::CUSTOM_DWELL, "invalid dwell to handle: %.2f", dwellMs);
        return;
    }

    if (!engine->ignitionEvents.isReady) {
        prepareIgnitionSchedule();
    }


    /**
     * Ignition schedule is defined once per revolution
     * See initializeIgnitionActions()
     */


    // Only apply odd cylinder count wasted logic if:
    // - odd cyl count
    // - current mode is wasted spark
    // - four stroke
    bool enableOddCylinderWastedSpark =
        engine->engineState.useOddFireWastedSpark
        && getCurrentIgnitionMode() == IM_WASTED_SPARK;

    if (engine->ignitionEvents.isReady) {
        for (size_t i = 0; i < engineConfiguration->cylindersCount; i++) {
            IgnitionEvent *event = &engine->ignitionEvents.elements[i];

            angle_t dwellAngle = event->dwellAngle;

            angle_t sparkAngle = event->sparkAngle;
            if (std::isnan(sparkAngle)) {
                warning(ObdCode::CUSTOM_ADVANCE_SPARK, "NaN advance");
                continue;
            }

            bool isOddCylWastedEvent = false;
            if (enableOddCylinderWastedSpark) {
                auto dwellAngleWastedEvent = dwellAngle + 360;
                if (dwellAngleWastedEvent > 720) {
                    dwellAngleWastedEvent -= 720;
                }

                // Check whether this event hits 360 degrees out from now (ie, wasted spark),
                // and if so, twiddle the dwell and spark angles so it happens now instead
                isOddCylWastedEvent = isPhaseInRange(dwellAngleWastedEvent, currentPhase, nextPhase);

                if (isOddCylWastedEvent) {
                    dwellAngle = dwellAngleWastedEvent;

                    sparkAngle += 360;
                    if (sparkAngle > 720) {
                        sparkAngle -= 720;
                    }
                }
            }

            if (!isOddCylWastedEvent && !isPhaseInRange(dwellAngle, currentPhase, nextPhase)) {
                continue;
            }

            if (i == 0 && engineConfiguration->artificialTestMisfire && (getRevolutionCounter() % ((int)engineConfiguration->scriptSetting[5]) == 0)) {
                // artificial misfire on cylinder #1 for testing purposes
                // enable artificialMisfire
                warning(ObdCode::CUSTOM_ARTIFICIAL_MISFIRE, "artificial misfire on cylinder #1 for testing purposes %d", engine->engineState.globalSparkCounter);
                continue;
            }
#if EFI_LAUNCH_CONTROL
            bool sparkLimited = engine->softSparkLimiter.shouldSkip() || engine->hardSparkLimiter.shouldSkip();
            engine->ignitionState.luaIgnitionSkip = sparkLimited;
            if (sparkLimited) {
                continue;
            }
#endif // EFI_LAUNCH_CONTROL

#if EFI_ANTILAG_SYSTEM && EFI_LAUNCH_CONTROL
/*
       if (engine->antilagController.isAntilagCondition) {
            if (engine->ALSsoftSparkLimiter.shouldSkip()) {
                continue;
            }
        }
        float throttleIntent = Sensor::getOrZero(SensorType::DriverThrottleIntent);
        engine->antilagController.timingALSSkip = interpolate3d(
            config->ALSIgnSkipTable,
            config->alsIgnSkipLoadBins, throttleIntent,
            config->alsIgnSkiprpmBins, rpm
        );

            auto ALSSkipRatio = engine->antilagController.timingALSSkip;
            engine->ALSsoftSparkLimiter.setTargetSkipRatio(ALSSkipRatio/100);
*/
#endif // EFI_ANTILAG_SYSTEM

            scheduleSparkEvent(limitedSpark, event, rpm, dwellMs, dwellAngle, sparkAngle, edgeTimestamp, currentPhase, nextPhase);
        }
    }
}

Referenced by mainTriggerCallback().

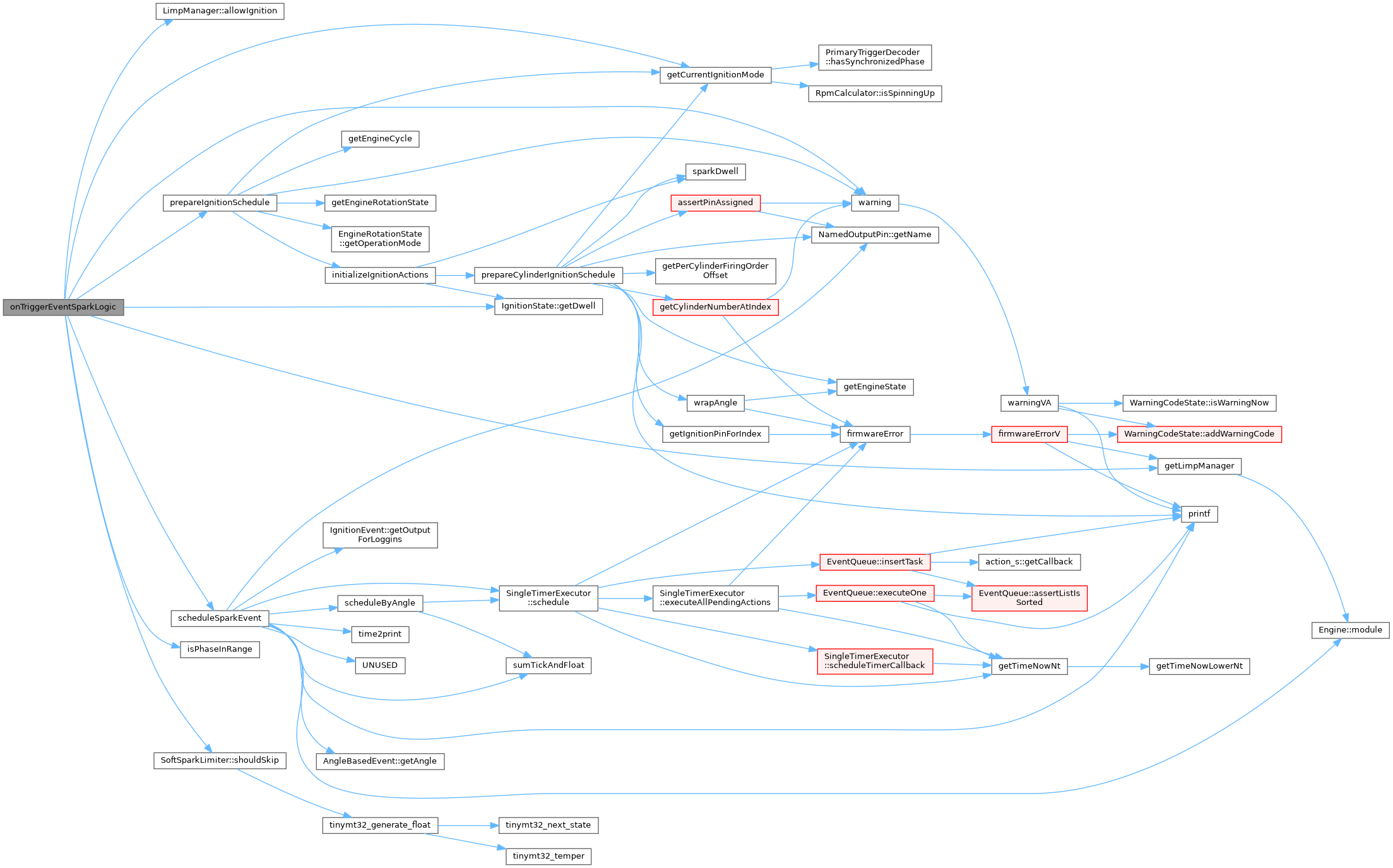

Here is the call graph for this function:

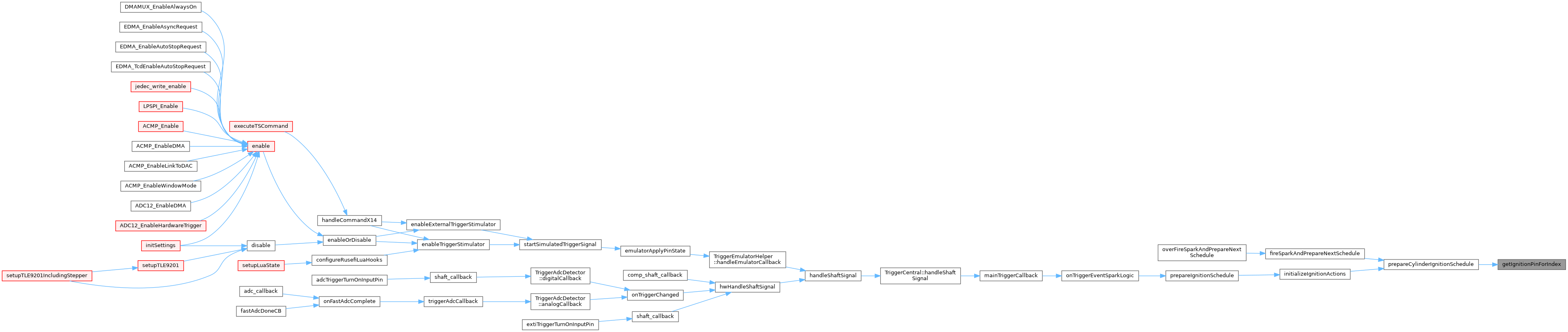

Here is the caller graph for this function:

overFireSparkAndPrepareNextSchedule()

static void overFireSparkAndPrepareNextSchedule ( IgnitionEvent *  event )

static

Definition at line 186 of file spark_logic.cpp.

                                                                      {
#if SPARK_EXTREME_LOGGING
    efiPrintf("[%s] %d %s",
        event->getOutputForLoggins()->getName(), event->sparkCounter,
        __func__);
#endif /* SPARK_EXTREME_LOGGING */
    float actualDwellMs = event->actualDwellTimer.getElapsedSeconds() * 1e3;

    warning((ObdCode)((int)ObdCode::CUSTOM_Ignition_Coil_Overcharge_1 + event->cylinderIndex),
        "cylinder %d %s overcharge %f ms",
        event->cylinderIndex + 1, event->outputs[0]->getName(), actualDwellMs);

    // kill pending fire
    engine->module<TriggerScheduler>()->cancel(&event->sparkEvent);

    engine->engineState.overDwellCanceledCounter++;
    event->wasSparkCanceled = true;
    fireSparkAndPrepareNextSchedule(event);
}

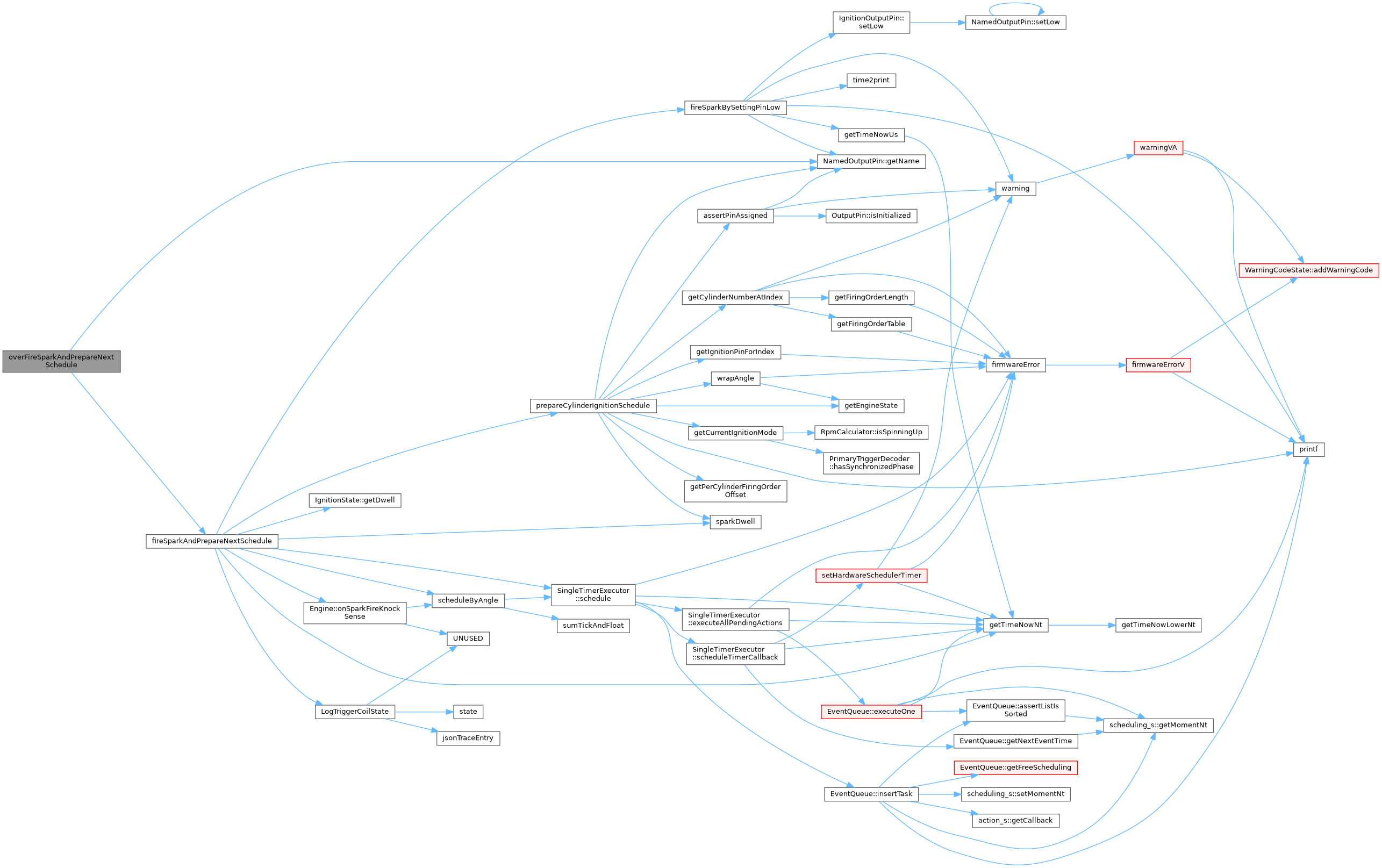

Here is the call graph for this function:

prepareCylinderIgnitionSchedule()

static void prepareCylinderIgnitionSchedule ( angle_t  dwellAngleDuration, floatms_t  sparkDwell, IgnitionEvent *  event  )

static

Definition at line 85 of file spark_logic.cpp.

                                                                                                                    {
    // todo: clean up this implementation? does not look too nice as is.

    // let's save planned duration so that we can later compare it with reality
    event->sparkDwell = sparkDwell;

    auto ignitionMode = getCurrentIgnitionMode();

    // On an odd cylinder (or odd fire) wasted spark engine, map outputs as if in sequential.
    // During actual scheduling, the events just get scheduled every 360 deg instead
    // of every 720 deg.
    if (ignitionMode == IM_WASTED_SPARK && engine->engineState.useOddFireWastedSpark) {
        ignitionMode = IM_INDIVIDUAL_COILS;
    }

    const int index = getIgnitionPinForIndex(event->cylinderIndex, ignitionMode);
    const int coilIndex = getCylinderNumberAtIndex(index);
    angle_t finalIgnitionTiming =   getEngineState()->timingAdvance[coilIndex];
    // Stash which cylinder we're scheduling so that knock sensing knows which
    // cylinder just fired
    event->coilIndex = coilIndex;

    // 10 ATDC ends up as 710, convert it to -10 so we can log and clamp correctly
    if (finalIgnitionTiming > 360) {
        finalIgnitionTiming -= 720;
    }

    // Clamp the final ignition timing to the configured limits
    // finalIgnitionTiming is deg BTDC
    // minimumIgnitionTiming limits maximum retard
    // maximumIgnitionTiming limits maximum advance
    /*
    https://github.com/rusefi/rusefi/issues/5894 disabling feature for now
    finalIgnitionTiming = clampF(engineConfiguration->minimumIgnitionTiming, finalIgnitionTiming, engineConfiguration->maximumIgnitionTiming);
    */

    engine->outputChannels.ignitionAdvanceCyl[event->cylinderIndex] = finalIgnitionTiming;

    angle_t sparkAngle =
        // Negate because timing *before* TDC, and we schedule *after* TDC
        - finalIgnitionTiming
        // Offset by this cylinder's position in the cycle
        + getPerCylinderFiringOrderOffset(event->cylinderIndex, coilIndex);

    efiAssertVoid(ObdCode::CUSTOM_SPARK_ANGLE_1, !std::isnan(sparkAngle), "sparkAngle#1");
    wrapAngle(sparkAngle, "findAngle#2", ObdCode::CUSTOM_ERR_6550);
    event->sparkAngle = sparkAngle;

    engine->outputChannels.currentIgnitionMode = static_cast<uint8_t>(ignitionMode);

    IgnitionOutputPin *output = &enginePins.coils[coilIndex];
    event->outputs[0] = output;
    IgnitionOutputPin *secondOutput;

    // We need two outputs if:
    //  - we are running wasted spark, and have "two wire" mode enabled
    //  - We are running sequential mode, but we're cranking, so we should run in two wire wasted mode (not one wire wasted)
    bool isTwoWireWasted = engineConfiguration->twoWireBatchIgnition || (engineConfiguration->ignitionMode == IM_INDIVIDUAL_COILS);
    if (ignitionMode == IM_WASTED_SPARK && isTwoWireWasted) {
        int secondIndex = index + engineConfiguration->cylindersCount / 2;
        int secondCoilIndex = getCylinderNumberAtIndex(secondIndex);
        secondOutput = &enginePins.coils[secondCoilIndex];
        assertPinAssigned(secondOutput);
    } else {
        secondOutput = nullptr;
    }

    assertPinAssigned(output);

    event->outputs[1] = secondOutput;


    angle_t dwellStartAngle = sparkAngle - dwellAngleDuration;
    efiAssertVoid(ObdCode::CUSTOM_ERR_6590, !std::isnan(dwellStartAngle), "findAngle#5");

    assertAngleRange(dwellStartAngle, "findAngle dwellStartAngle", ObdCode::CUSTOM_ERR_6550);
    wrapAngle(dwellStartAngle, "findAngle#7", ObdCode::CUSTOM_ERR_6550);
    event->dwellAngle = dwellStartAngle;

#if FUEL_MATH_EXTREME_LOGGING
    if (printFuelDebug) {
        efiPrintf("addIgnitionEvent %s angle=%.1f", output->getName(), dwellStartAngle);
    }
    //  efiPrintf("addIgnitionEvent %s ind=%d", output->name, event->dwellPosition->eventIndex);
#endif /* FUEL_MATH_EXTREME_LOGGING */
}

Referenced by fireSparkAndPrepareNextSchedule(), and initializeIgnitionActions().

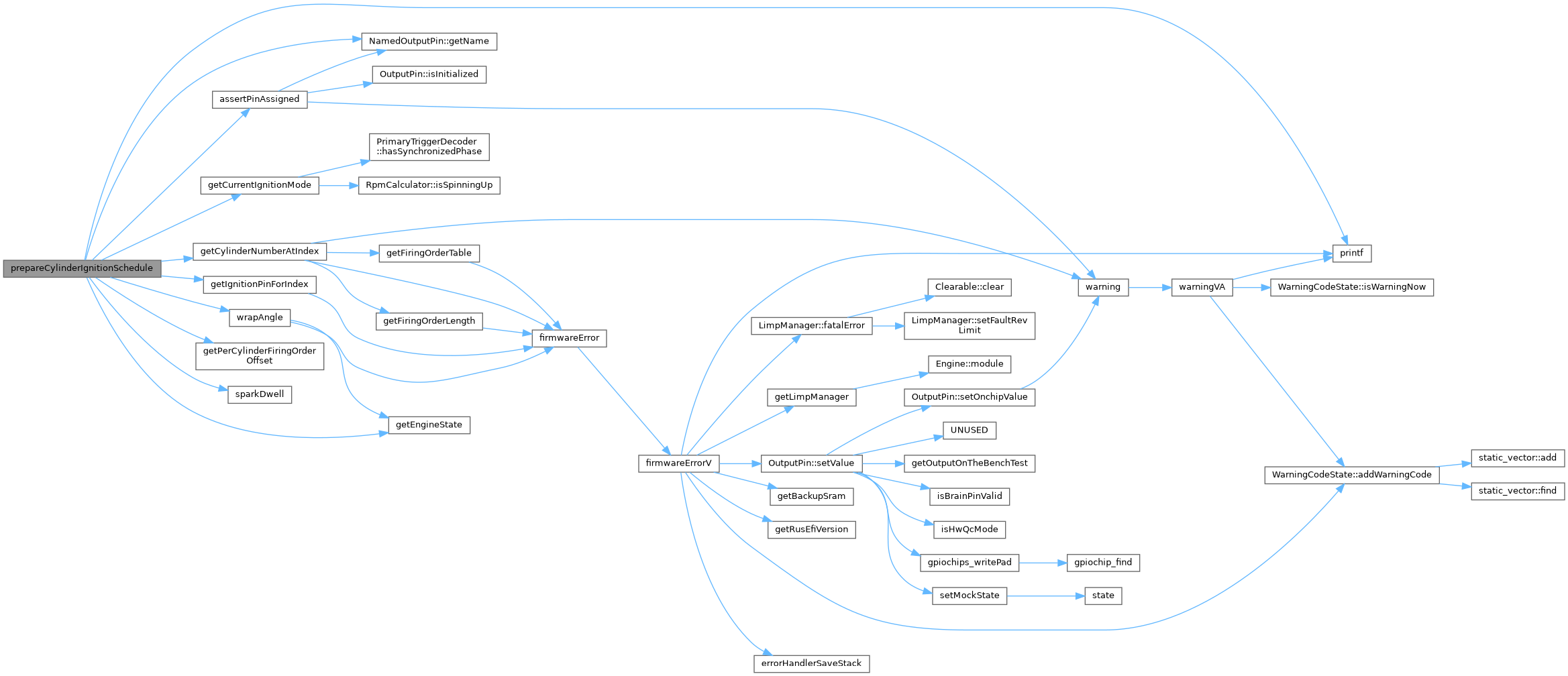

Here is the call graph for this function:

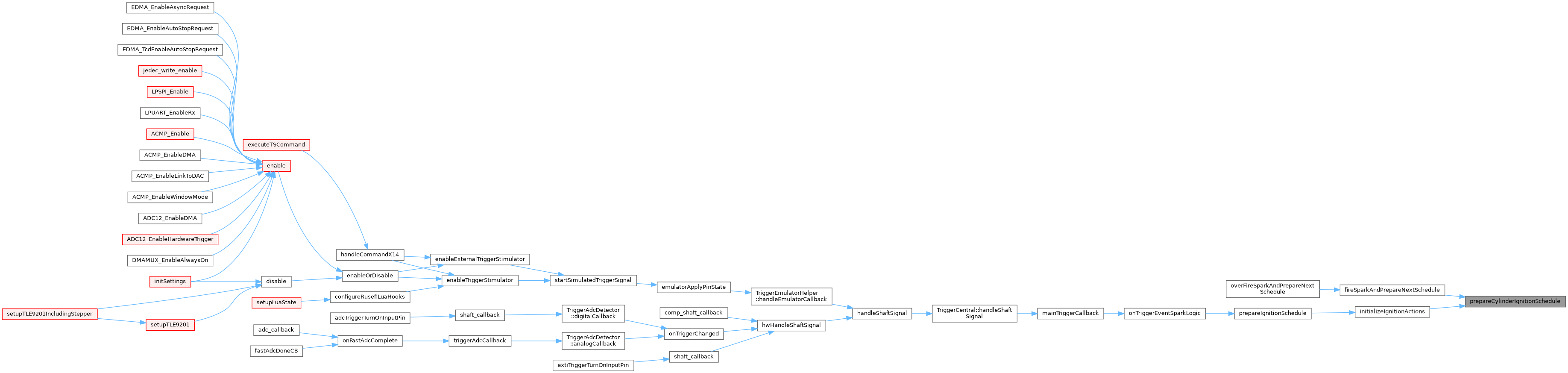

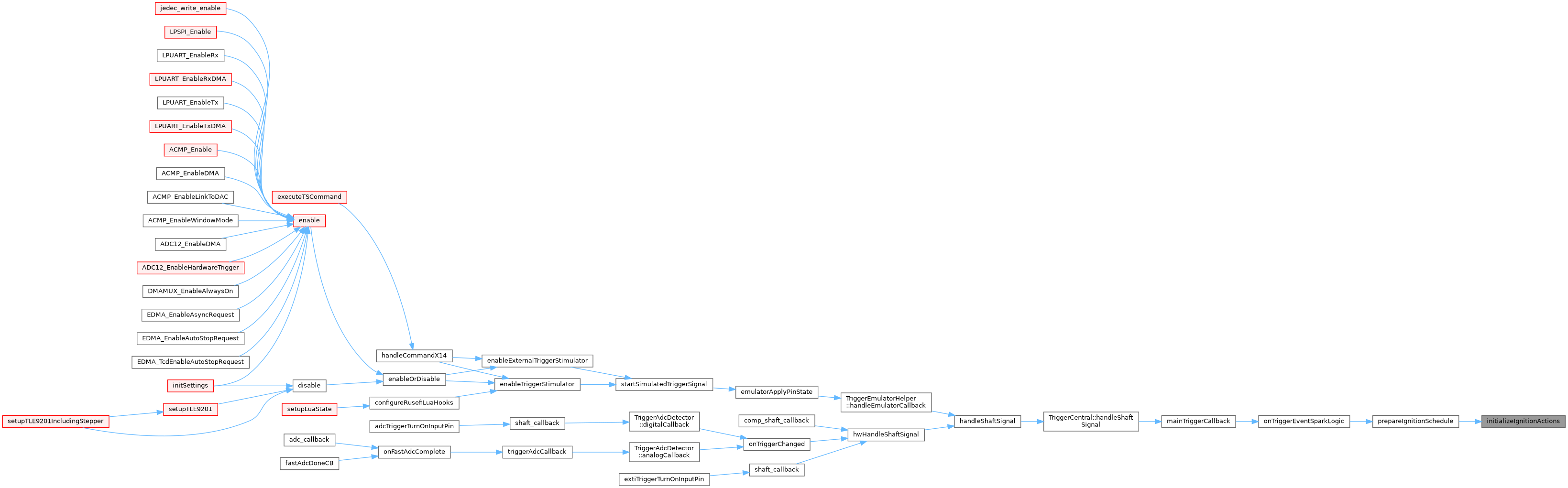

Here is the caller graph for this function:

prepareIgnitionSchedule()

static void prepareIgnitionSchedule ( )

static

Definition at line 532 of file spark_logic.cpp.

                                      {
    ScopePerf perf(PE::PrepareIgnitionSchedule);

    operation_mode_e operationMode = getEngineRotationState()->getOperationMode();
    float maxAllowedDwellAngle;

    if (getCurrentIgnitionMode() == IM_ONE_COIL) {
        maxAllowedDwellAngle = getEngineCycle(operationMode) / engineConfiguration->cylindersCount / 1.1;
    } else {
      maxAllowedDwellAngle = (int) (getEngineCycle(operationMode) / 2); // the cast is about making Coverity happy
    }

    if (engine->ignitionState.dwellDurationAngle == 0) {
        warning(ObdCode::CUSTOM_ZERO_DWELL, "dwell is zero?");
    }
    if (engine->ignitionState.dwellDurationAngle > maxAllowedDwellAngle) {
        warning(ObdCode::CUSTOM_DWELL_TOO_LONG, "dwell angle too long: %.2f", engine->ignitionState.dwellDurationAngle);
    }

    // todo: add some check for dwell overflow? like 4 times 6 ms while engine cycle is less then that

    initializeIgnitionActions();
}

Referenced by onTriggerEventSparkLogic().

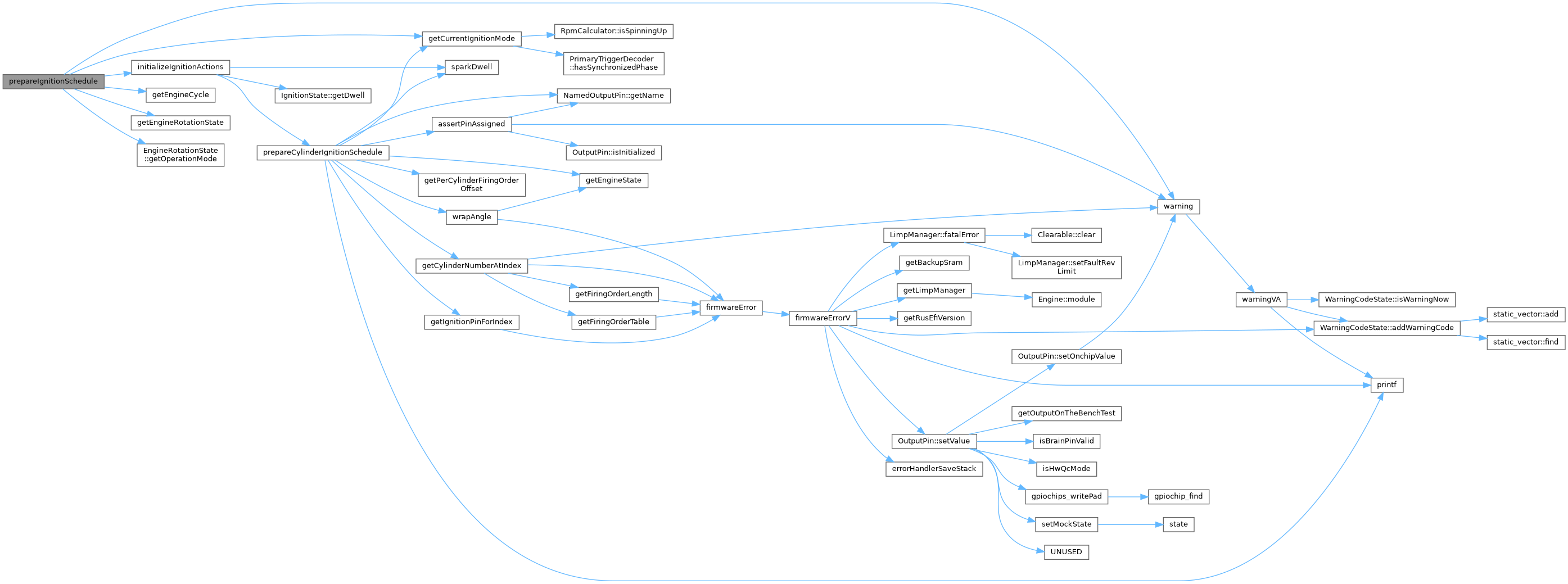

Here is the call graph for this function:

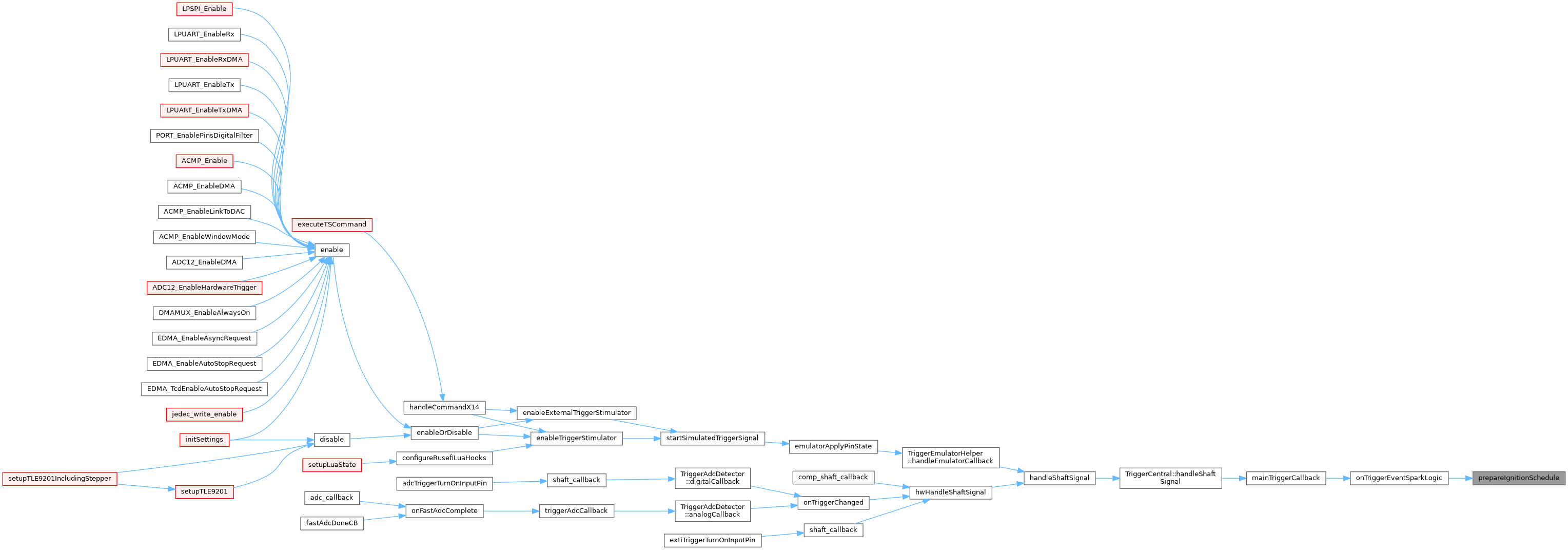

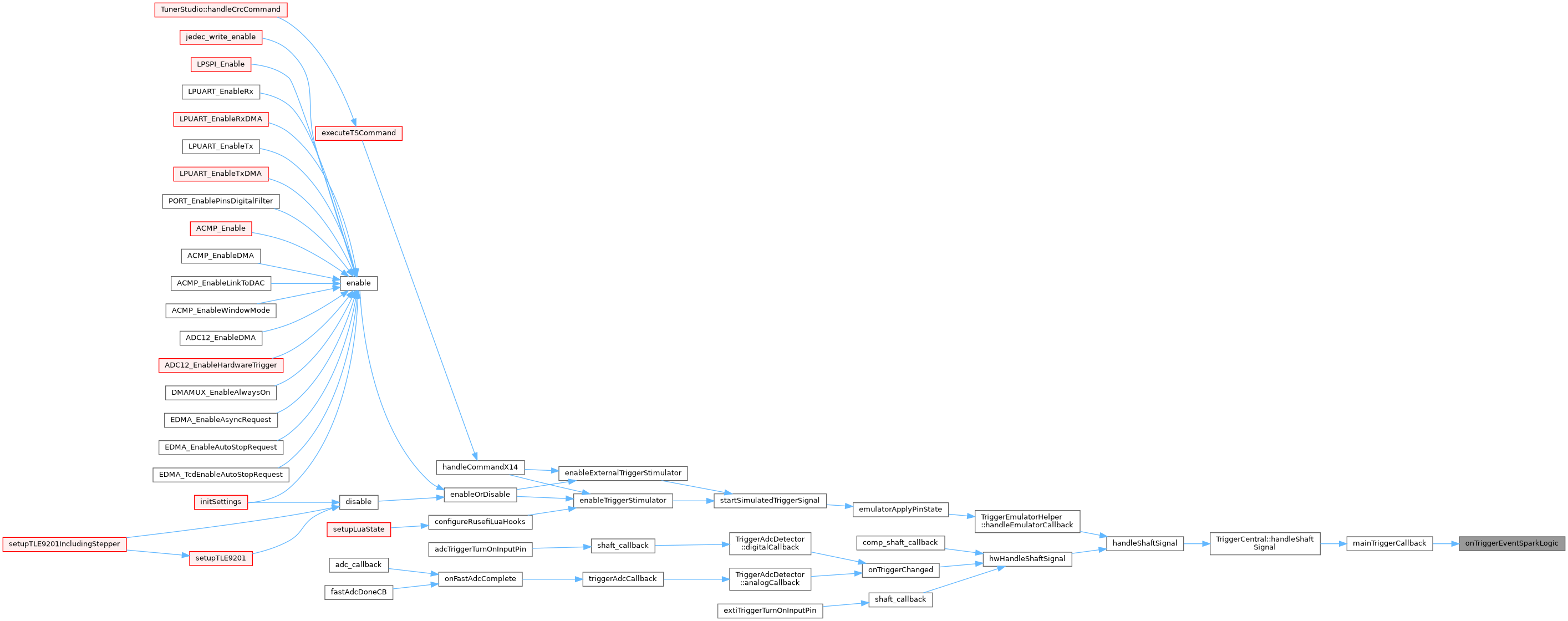

Here is the caller graph for this function:

scheduleSparkEvent()

static void scheduleSparkEvent ( bool  limitedSpark, IgnitionEvent *  event, float  rpm, float  dwellMs, float  dwellAngle, float  sparkAngle, efitick_t  edgeTimestamp, float  currentPhase, float  nextPhase  )

static

By the way 32-bit value should hold at least 400 hours of events at 6K RPM x 12 events per revolution [tag:duration_limit]

The start of charge is always within the current trigger event range, so just plain time-based scheduling

Note how we do not check if spark is limited or not while scheduling 'spark down' This way we make sure that coil dwell started while spark was enabled would fire and not burn the coil.

Spark event is often happening during a later trigger event timeframe

todo: can we please comprehend/document how this even works? we seem to be reusing 'sparkEvent.scheduling' instance and it looks like current (smart?) re-queuing is effectively cancelling out the overdwell? is that the way this was intended to work? [tag:overdwell]

Definition at line 379 of file spark_logic.cpp.

                                                                                                                                    {
    UNUSED(rpm);

    float angleOffset = dwellAngle - currentPhase;
    if (angleOffset < 0) {
        angleOffset += engine->engineState.engineCycle;
    }

    // For single-tooth triggers (currentPhase == nextPhase), all dwell angles map to the
    // same trigger tooth. When the dwell angle is just below the current phase, the offset
    // wraps to nearly a full engine cycle, scheduling the dwell far in the future
    // Clamp to 0 so the spark starts immediately.
    if (currentPhase == nextPhase && angleOffset > engine->engineState.engineCycle / 2) {
        angleOffset = 0;
#if SPARK_EXTREME_LOGGING
        efiPrintf("Clamping spark dwell to current phase due to single-tooth trigger");
#endif /* SPARK_EXTREME_LOGGING */
    }

    /**
     * By the way 32-bit value should hold at least 400 hours of events at 6K RPM x 12 events per revolution
     * [tag:duration_limit]
     */
    event->sparkCounter = engine->engineState.globalSparkCounter++;
    event->wasSparkLimited = limitedSpark;

    efitick_t chargeTime = 0;

    /**
     * The start of charge is always within the current trigger event range, so just plain time-based scheduling
     */
    if (!limitedSpark) {
#if SPARK_EXTREME_LOGGING
        efiPrintf("[%s] %d sparkUp scheduling revolution %d angle %.1f (+%.1f) later",
            event->getOutputForLoggins()->getName(), event->sparkCounter,
            getRevolutionCounter(), dwellAngle, angleOffset);
#endif /* SPARK_EXTREME_LOGGING */

        /**
         * Note how we do not check if spark is limited or not while scheduling 'spark down'
         * This way we make sure that coil dwell started while spark was enabled would fire and not burn
         * the coil.
         */
        chargeTime = scheduleByAngle(&event->dwellStartTimer, edgeTimestamp, angleOffset, action_s::make<turnSparkPinHighStartCharging>( event ));

#if EFI_UNIT_TEST
        engine->onScheduleTurnSparkPinHighStartCharging(*event, edgeTimestamp, angleOffset, chargeTime);
#endif

#if SPARK_EXTREME_LOGGING
        efitimeus_t chargeTimeUs = NT2US(chargeTime);
        efiPrintf("[%s] %d sparkUp scheduled at %d ticks (%d.%06d)",
            event->getOutputForLoggins()->getName(), event->sparkCounter,
            time2print(chargeTime), time2print(chargeTimeUs / (1000 * 1000)), time2print(chargeTimeUs % (1000 * 1000)));
#endif /* SPARK_EXTREME_LOGGING */

        event->sparksRemaining = engine->engineState.multispark.count;
    } else {
        // don't fire multispark if spark is cut completely!
        event->sparksRemaining = 0;

#if SPARK_EXTREME_LOGGING
        efiPrintf("[%s] %d sparkUp NOT scheduled because of limitedSpark",
            event->getOutputForLoggins()->getName(), event->sparkCounter);
#endif /* SPARK_EXTREME_LOGGING */
    }

    /**
     * Spark event is often happening during a later trigger event timeframe
     */

    efiAssertVoid(ObdCode::CUSTOM_ERR_6591, !std::isnan(sparkAngle), "findAngle#4");
    assertAngleRange(sparkAngle, "findAngle#a5", ObdCode::CUSTOM_ERR_6549);

#if SPARK_EXTREME_LOGGING
    efiPrintf("[%s] %d sparkDown scheduling revolution %d angle %.1f",
        event->getOutputForLoggins()->getName(), event->sparkCounter,
        getRevolutionCounter(), sparkAngle);
#endif /* FUEL_MATH_EXTREME_LOGGING */


    bool isTimeScheduled = engine->module<TriggerScheduler>()->scheduleOrQueue(
        "spark",
        &event->sparkEvent, edgeTimestamp, sparkAngle,
        action_s::make<fireSparkAndPrepareNextSchedule>( event ),
        currentPhase, nextPhase);

#if SPARK_EXTREME_LOGGING
    efiPrintf("[%s] %d sparkDown scheduled %s",
        event->getOutputForLoggins()->getName(), event->sparkCounter,
        isTimeScheduled ? "later" : "to queue");
#endif /* FUEL_MATH_EXTREME_LOGGING */

    if (isTimeScheduled) {
        // event was scheduled by time, we expect it to happen reliably
    } else {
        // event was queued in relation to some expected tooth event in the future which might just never come so we shall protect from over-dwell
        if (!limitedSpark) {
            // auto fire spark at 1.5x nominal dwell
            efitick_t fireTime = sumTickAndFloat(chargeTime, MSF2NT(1.5f * dwellMs));

#if SPARK_EXTREME_LOGGING
            efitimeus_t fireTimeUs = NT2US(fireTime);
            efiPrintf("[%s] %d overdwell scheduling at %d ticks (%d.%06d)",
                event->getOutputForLoggins()->getName(), event->sparkCounter,
                time2print(fireTime), time2print(fireTimeUs / (1000 * 1000)), time2print(fireTimeUs % (1000 * 1000)));
#endif /* SPARK_EXTREME_LOGGING */

            /**
            * todo: can we please comprehend/document how this even works? we seem to be reusing 'sparkEvent.scheduling' instance
            * and it looks like current (smart?) re-queuing is effectively cancelling out the overdwell? is that the way this was intended to work?
            * [tag:overdwell]
            */
            engine->scheduler.schedule("overdwell", &event->sparkEvent.eventScheduling, fireTime, action_s::make<overFireSparkAndPrepareNextSchedule>( event ));

#if EFI_UNIT_TEST
            engine->onScheduleOverFireSparkAndPrepareNextSchedule(*event, fireTime);
#endif
        } else {
          engine->engineState.overDwellNotScheduledCounter++;
        }
    }

#if EFI_UNIT_TEST
    if (verboseMode) {
        efiPrintf("spark dwell@ %.1f spark@ %.2f id=%d sparkCounter=%d", event->dwellAngle,
            event->sparkEvent.getAngle(),
            event->coilIndex,
            event->sparkCounter);
    }
#endif
}

Referenced by onTriggerEventSparkLogic().

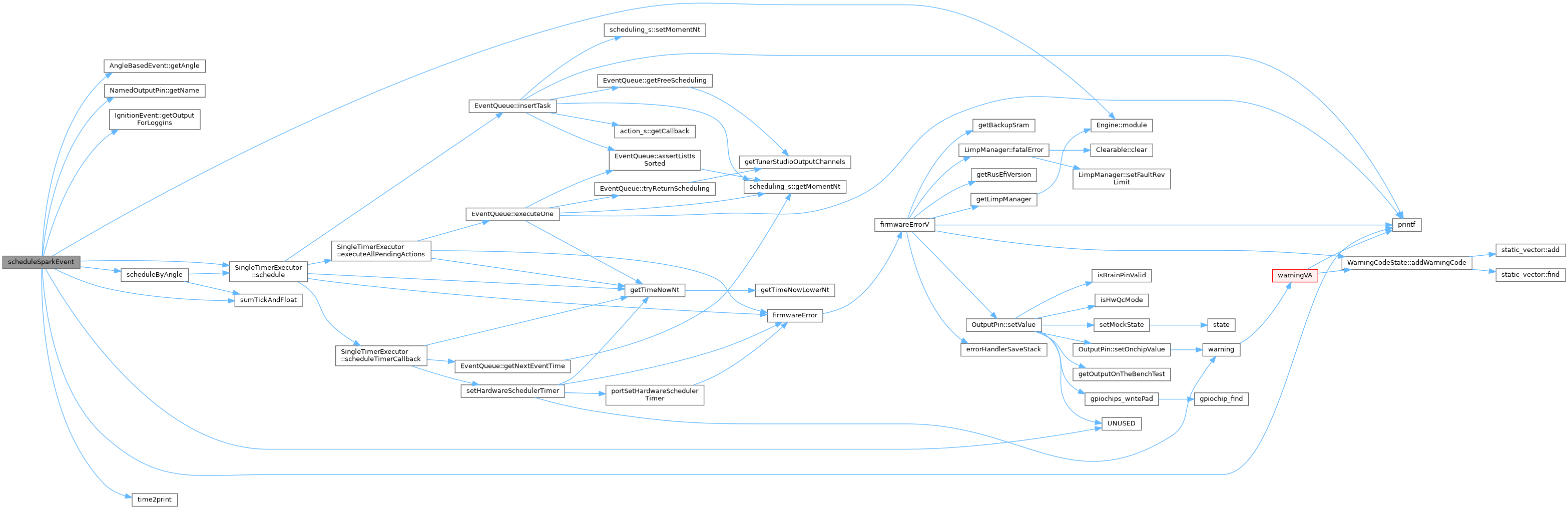

Here is the call graph for this function:

Here is the caller graph for this function:

startDwellByTurningSparkPinHigh()

static bool startDwellByTurningSparkPinHigh ( IgnitionEvent *  event, IgnitionOutputPin *  output  )

static

fact: we schedule both start of dwell and spark firing using a combination of time and trigger event domain in case of bad/noisy signal we can get unexpected trigger events and a small time delay for spark firing before we even start dwell if it scheduled with a longer time-only delay with fewer trigger events

here we are detecting such out-of-order processing and choose the safer route of not even starting dwell [tag] #6349

Definition at line 286 of file spark_logic.cpp.

                                                                                             {
    // todo: no reason for this to be disabled in unit_test mode?!
#if ! EFI_UNIT_TEST

    if (Sensor::getOrZero(SensorType::Rpm) > 2 * engineConfiguration->cranking.rpm) {
        const char *outputName = output->getName();
        if (prevSparkName == outputName && getCurrentIgnitionMode() != IM_ONE_COIL) {
            warning(ObdCode::CUSTOM_OBD_SKIPPED_SPARK, "looks like skipped spark event revolution=%d [%s]", getRevolutionCounter(), outputName);
        }
        prevSparkName = outputName;
    }
#endif /* EFI_UNIT_TEST */


#if SPARK_EXTREME_LOGGING
    efiPrintf("[%s] %d spark goes high revolution %d tick %d current value %d",
        event->getOutputForLoggins()->getName(), event->sparkCounter,
        getRevolutionCounter(), time2print(getTimeNowUs()),
        output->currentLogicValue, event->sparkCounter);
#endif /* SPARK_EXTREME_LOGGING */

    // Reset error flag(s)
    event->wasSparkCanceled = false;

    if (output->signalFallSparkId >= event->sparkCounter) {
      /**
       * fact: we schedule both start of dwell and spark firing using a combination of time and trigger event domain
       * in case of bad/noisy signal we can get unexpected trigger events and a small time delay for spark firing before
       * we even start dwell if it scheduled with a longer time-only delay with fewer trigger events
       *
       * here we are detecting such out-of-order processing and choose the safer route of not even starting dwell
       * [tag] #6349
       */

#if SPARK_EXTREME_LOGGING
        efiPrintf("[%s] bail spark dwell\n", output->getName());
#endif /* SPARK_EXTREME_LOGGING */
        // let's save this coil if things do not look right
        engine->engineState.sparkOutOfOrderCounter++;
        return true;
    }

    output->setHigh();
    return false;
}

Referenced by turnSparkPinHighStartCharging().

Here is the call graph for this function:

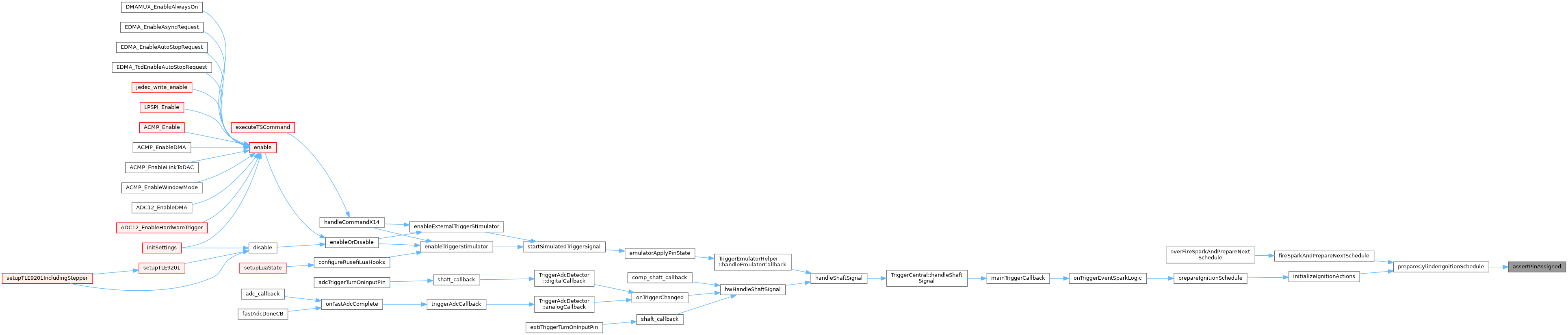

Here is the caller graph for this function:

turnSparkPinHighStartCharging()

void turnSparkPinHighStartCharging

(

IgnitionEvent *

event

)

Definition at line 332 of file spark_logic.cpp.

                                                         {
    efitick_t nowNt = getTimeNowNt();

    event->actualDwellTimer.reset(nowNt);

  bool skippedDwellDueToTriggerNoised = false;
    for (int i = 0; i< MAX_OUTPUTS_FOR_IGNITION;i++) {
        IgnitionOutputPin *output = event->outputs[i];
        if (output != NULL) {
          // at the moment we have a funny xor as if outputs could have different destiny. That's probably an over exaggeration,
          // realistically it should be enough to check the sequencing of only the first output but that would be less elegant
          //
          // maybe it would have need nicer if instead of an array of outputs we had a linked list of outputs? but that's just daydreaming.
            skippedDwellDueToTriggerNoised |= startDwellByTurningSparkPinHigh(event, output);
        }
    }

#if EFI_UNIT_TEST
    engine->incrementBailedOnDwellCount();
#endif


  if (!skippedDwellDueToTriggerNoised) {

#if EFI_UNIT_TEST
    if (engine->onIgnitionEvent) {
        engine->onIgnitionEvent(event, true);
    }
#endif

#if EFI_TOOTH_LOGGER
    LogTriggerCoilState(nowNt, true, event->coilIndex);
#endif // EFI_TOOTH_LOGGER
  }


    if (engineConfiguration->enableTrailingSparks) {
        IgnitionOutputPin *output = &enginePins.trailingCoils[event->coilIndex];
        // Trailing sparks are enabled - schedule an event for the corresponding trailing coil
        scheduleByAngle(
            &event->trailingSparkCharge, nowNt, engine->ignitionState.trailingSparkAngle,
            action_s::make<chargeTrailingSpark>( output )
        );
    }
}

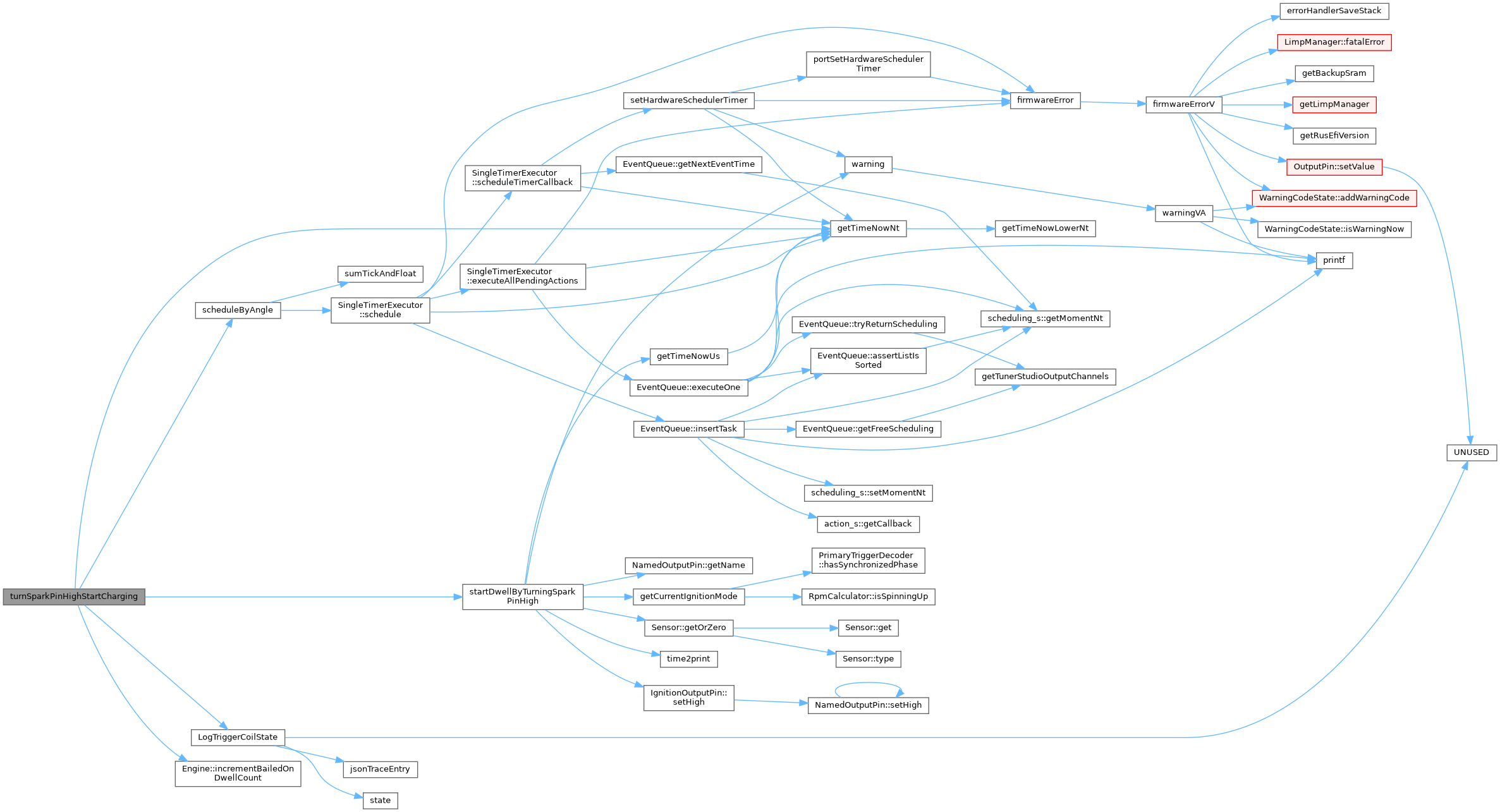

Here is the call graph for this function:

Variable Documentation

prevSparkName

const char* prevSparkName = nullptr

static

Definition at line 27 of file spark_logic.cpp.

Referenced by startDwellByTurningSparkPinHigh().

printFuelDebug

bool printFuelDebug

extern

Definition at line 27 of file main_trigger_callback.cpp.

Referenced by prepareCylinderIgnitionSchedule().

verboseMode

bool verboseMode

extern

Referenced by EventQueue::insertTask(), scheduleSparkEvent(), NamedOutputPin::setHigh(), NamedOutputPin::setLow(), and OutputPin::setValue().

Go to the source code of this file.
