#include <event_registry.h>

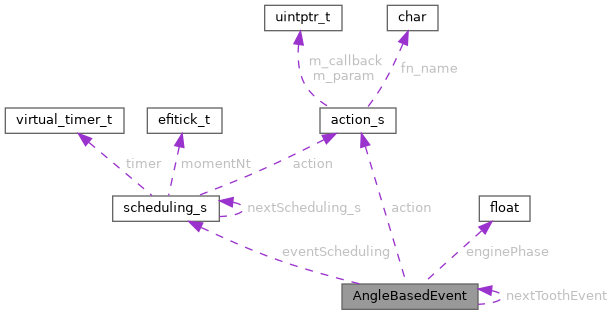

Collaboration diagram for AngleBasedEvent:

[legend]

Public Member Functions
angle_t	getAngle () const

void	setAngle (angle_t p_enginePhase)

bool	shouldSchedule (float currentPhase, float nextPhase) const

float	getAngleFromNow (float currentPhase) const

Data Fields
scheduling_s	eventScheduling

action_s	action

AngleBasedEvent *	nextToothEvent = nullptr

Private Attributes
angle_t	enginePhase

Detailed Description

Definition at line 16 of file event_registry.h.

Member Function Documentation

◆ getAngle()

angle_t AngleBasedEvent::getAngle ( ) const

inline

Definition at line 25 of file event_registry.h.

                           {
    return enginePhase;
  }

Referenced by TriggerScheduler::schedule(), and scheduleSparkEvent().

Here is the caller graph for this function:

◆ getAngleFromNow()

float AngleBasedEvent::getAngleFromNow ( float currentPhase ) const

Definition at line 164 of file trigger_scheduler.cpp.

                                                               {
    float angleOffset = this->enginePhase - currentPhase;
    if (angleOffset < 0) {
        angleOffset += engine->engineState.engineCycle;
    }

    return angleOffset;
}

Referenced by TriggerScheduler::scheduleEventsUntilNextTriggerTooth(), and TriggerScheduler::scheduleOrQueue().

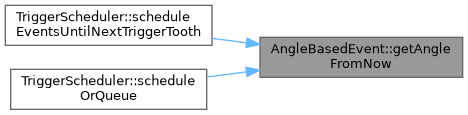

Here is the caller graph for this function:

◆ setAngle()

void AngleBasedEvent::setAngle ( angle_t p_enginePhase )

inline

Definition at line 29 of file event_registry.h.

                                         {
        enginePhase = p_enginePhase;
    }

◆ shouldSchedule()

bool AngleBasedEvent::shouldSchedule	(	float	currentPhase,
		float	nextPhase
	)		const

Definition at line 160 of file trigger_scheduler.cpp.

                                                                              {
    return isPhaseInRange(this->enginePhase, currentPhase, nextPhase);
}
