#include <efi_gpio.h>

Inheritance diagram for IgnitionOutputPin:

[legend]

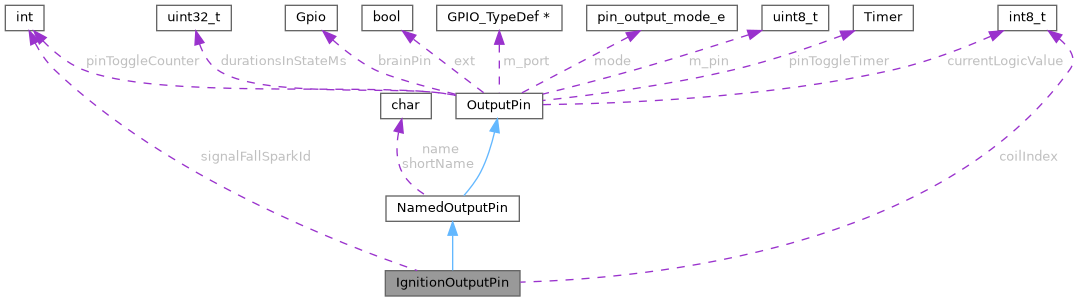

Collaboration diagram for IgnitionOutputPin:

[legend]

Public Member Functions
	IgnitionOutputPin ()

void	setHigh () override

void	setLow () override

void	reset ()

Public Member Functions inherited from NamedOutputPin
	NamedOutputPin ()

	NamedOutputPin (const char *name)

virtual void	setHigh (const char *msg)

virtual void	setLow (const char *msg)

const char *	getName () const

void	setName (const char *)

const char *	getShortName () const

bool	stop ()

Public Member Functions inherited from OutputPin
void	initPin (const char *msg, brain_pin_e brainPin, pin_output_mode_e outputMode, bool forceInitWithFatalError=false)

void	initPin (const char *msg, brain_pin_e brainPin)

void	deInit ()

bool	isInitialized () const

bool	getAndSet (int logicValue)

void	setValue (const char *msg, int logicValue, bool isForce=false)

TEST_VIRTUAL void	setValue (int logicValue, bool isForce=false)

void	toggle ()

bool	getLogicValue () const

brain_pin_diag_e	getDiag () const

void	resetToggleStats ()

Data Fields
int	signalFallSparkId

int8_t	coilIndex

Data Fields inherited from NamedOutputPin
const char *	shortName = nullptr

Data Fields inherited from OutputPin
ioportid_t	m_port = 0

uint8_t	m_pin = 0

int	pinToggleCounter = 0

Timer	pinToggleTimer

uint32_t	durationsInStateMs [2]

brain_pin_e	brainPin = Gpio::Unassigned

bool	ext = false

int8_t	currentLogicValue = INITIAL_PIN_STATE

Detailed Description

Definition at line 26 of file efi_gpio.h.

Constructor & Destructor Documentation

◆ IgnitionOutputPin()

IgnitionOutputPin::IgnitionOutputPin ( )

Definition at line 501 of file efi_gpio.cpp.

                                     {
    reset();
}

Here is the call graph for this function:

Member Function Documentation

◆ reset()

void IgnitionOutputPin::reset ( )

Definition at line 555 of file efi_gpio.cpp.

                              {
    signalFallSparkId = 0;
}

Referenced by IgnitionOutputPin(), and EnginePins::reset().

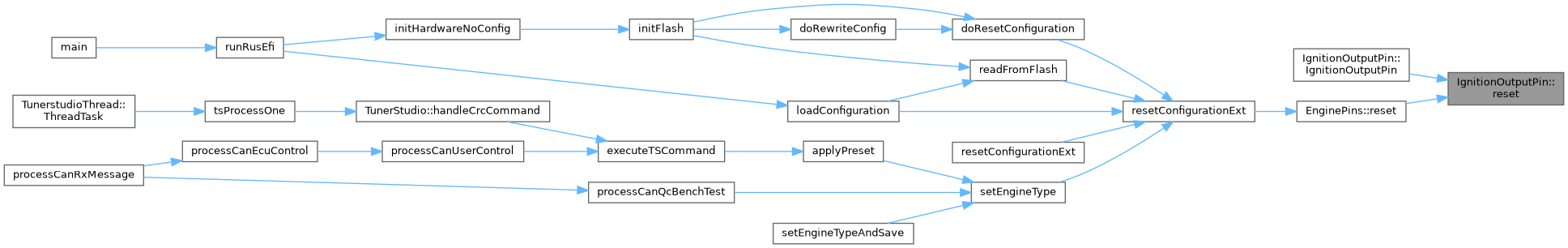

Here is the caller graph for this function:

◆ setHigh()

void IgnitionOutputPin::setHigh ( )

overridevirtual

Reimplemented from NamedOutputPin.

Definition at line 505 of file efi_gpio.cpp.

                                {
    NamedOutputPin::setHigh();
    // this is NASTY but what's the better option? bytes? At cost of 22 extra bytes in output status packet?
    switch (coilIndex) {
    case 0:
        engine->outputChannels.coilState1 = true;
        break;
    case 1:
        engine->outputChannels.coilState2 = true;
        break;
    case 2:
        engine->outputChannels.coilState3 = true;
        break;
    case 3:
        engine->outputChannels.coilState4 = true;
        break;
    case 4:
        engine->outputChannels.coilState5 = true;
        break;
    case 5:
        engine->outputChannels.coilState6 = true;
        break;
    }
}

Referenced by startDwellByTurningSparkPinHigh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLow()

void IgnitionOutputPin::setLow ( )

overridevirtual

Reimplemented from NamedOutputPin.

Definition at line 530 of file efi_gpio.cpp.

                               {
    NamedOutputPin::setLow();
    // this is NASTY but what's the better option? bytes? At cost of 22 extra bytes in output status packet?
    switch (coilIndex) {
    case 0:
        engine->outputChannels.coilState1 = false;
        break;
    case 1:
        engine->outputChannels.coilState2 = false;
        break;
    case 2:
        engine->outputChannels.coilState3 = false;
        break;
    case 3:
        engine->outputChannels.coilState4 = false;
        break;
    case 4:
        engine->outputChannels.coilState5 = false;
        break;
    case 5:
        engine->outputChannels.coilState6 = false;
        break;
    }
}
