trigger_universal.cpp File Reference

Functions
angle_t	getEngineCycle (operation_mode_e operationMode)
void	addSkippedToothTriggerEvents (TriggerWheel wheel, TriggerWaveform *s, int totalTeethCount, int skippedCount, float toothWidthPercentage, float offset, float engineCycle, float filterLeft, float filterRight)
void	initializeSkippedToothTrigger (TriggerWaveform *s, int totalTeethCount, int skippedCount, operation_mode_e operationMode, SyncEdge syncEdge)
void	configureOnePlusOne (TriggerWaveform *s)
void	configure3_1_cam (TriggerWaveform *s)
void	configureKawaKX450F (TriggerWaveform *s)
void	configureQuickStartSenderWheel (TriggerWaveform *s)
static void	commonSymmetrical (TriggerWaveform *s, int count, float gapFrom, float gapTo)
void	configure12ToothCrank (TriggerWaveform *s)
void	configure3ToothCrank (TriggerWaveform *s)
void	configure6ToothCrank (TriggerWaveform *s)

Function Documentation

addSkippedToothTriggerEvents()

void addSkippedToothTriggerEvents	(	TriggerWheel	wheel,
		TriggerWaveform *	s,
		int	totalTeethCount,
		int	skippedCount,
		float	toothWidthPercentage,
		float	offset,
		float	engineCycle,
		float	filterLeft,
		float	filterRight
	)

last fall aligned at 720 and skipped area is right before 720

Definition at line 22 of file trigger_universal.cpp.

                                                                                                          {
    criticalAssertVoid(totalTeethCount > 0, "total count");
    criticalAssertVoid(skippedCount >= 0, "skipped count");
    criticalAssertVoid(toothWidthPercentage < 1, "toothWidthPercentage");

    float oneTooth = engineCycle / totalTeethCount;

    for (int i = 0; i < totalTeethCount - skippedCount - 1; i++) {
        float angleDown = oneTooth * (i + (1 - toothWidthPercentage));
        float angleUp = oneTooth * (i + 1);
        s->addEventClamped(offset + angleDown, TriggerValue::RISE, wheel, filterLeft, filterRight);
        s->addEventClamped(offset + angleUp, TriggerValue::FALL, wheel, filterLeft, filterRight);
    }

    float angleDown = oneTooth * (totalTeethCount - skippedCount - 1 + (1 - toothWidthPercentage));
    s->addEventClamped(offset + angleDown, TriggerValue::RISE, wheel, filterLeft, filterRight);
    // custom handling of last event in order to avoid rounding error
    s->addEventClamped(offset + engineCycle, TriggerValue::FALL, wheel, filterLeft, filterRight);
}

Referenced by configureArcticCat(), configureKawaKX450F(), configureTriTach(), initDodgeRam(), initialize36_2_1(), initialize36_2_1_1(), initialize60_2_2_Renault_F(), initializeSkippedToothTrigger(), and setVwConfiguration().

Here is the call graph for this function:

Here is the caller graph for this function:

commonSymmetrical()

static void commonSymmetrical ( TriggerWaveform *  s, int  count, float  gapFrom, float  gapTo  )

static

https://github.com/rusefi/rusefi/issues/4943#issuecomment-1376289608 gaps would be nice during running but horrible during running Hopefully we do not want variable gap logic yet?

Definition at line 153 of file trigger_universal.cpp.

                                                                                         {
    s->shapeWithoutTdc = true;

    // Sync after 2 good teeth
    for (size_t i = 0; i < 2; i++) {
        /**
         * https://github.com/rusefi/rusefi/issues/4943#issuecomment-1376289608
         * gaps would be nice during running but horrible during running
         * Hopefully we do not want variable gap logic yet?
         */
        s->setTriggerSynchronizationGap3(i, gapFrom, gapTo);
    }

    float width = 360 / count;

    // Just a single tooth with 50% duty cycle
    s->addEventAngle(width / 2, TriggerValue::FALL, TriggerWheel::T_PRIMARY);
    s->addEventAngle(width, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
}

Referenced by configure12ToothCrank(), configure3ToothCrank(), and configure6ToothCrank().

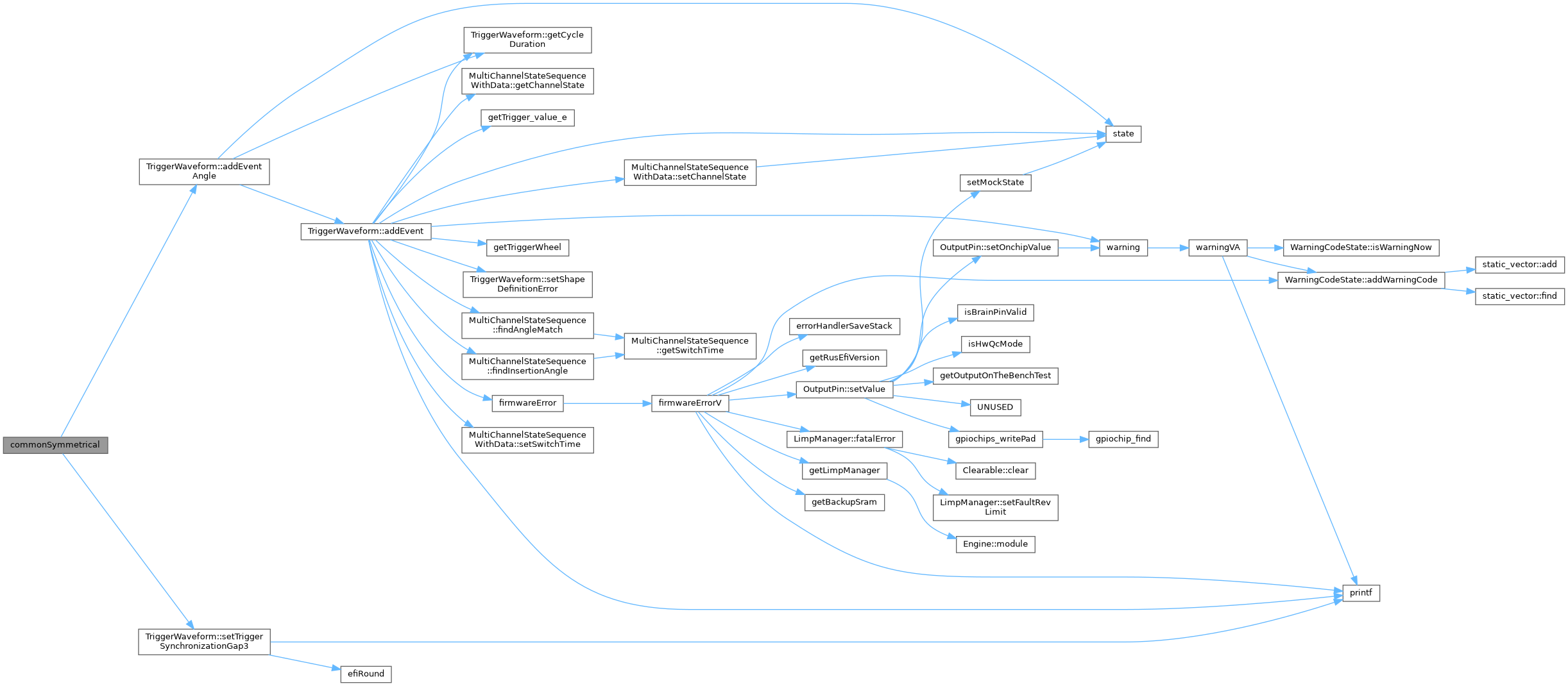

Here is the call graph for this function:

Here is the caller graph for this function:

configure12ToothCrank()

void configure12ToothCrank

(

TriggerWaveform *

s

)

Definition at line 176 of file trigger_universal.cpp.

                                               {
    s->initialize(FOUR_STROKE_TWELVE_TIMES_CRANK_SENSOR, SyncEdge::RiseOnly);

    // 2JZ would be global trigger offset 65 but same wheel could be Honda, not hard coding for now
  commonSymmetrical(s, 12, 0.2f, 3.4f);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

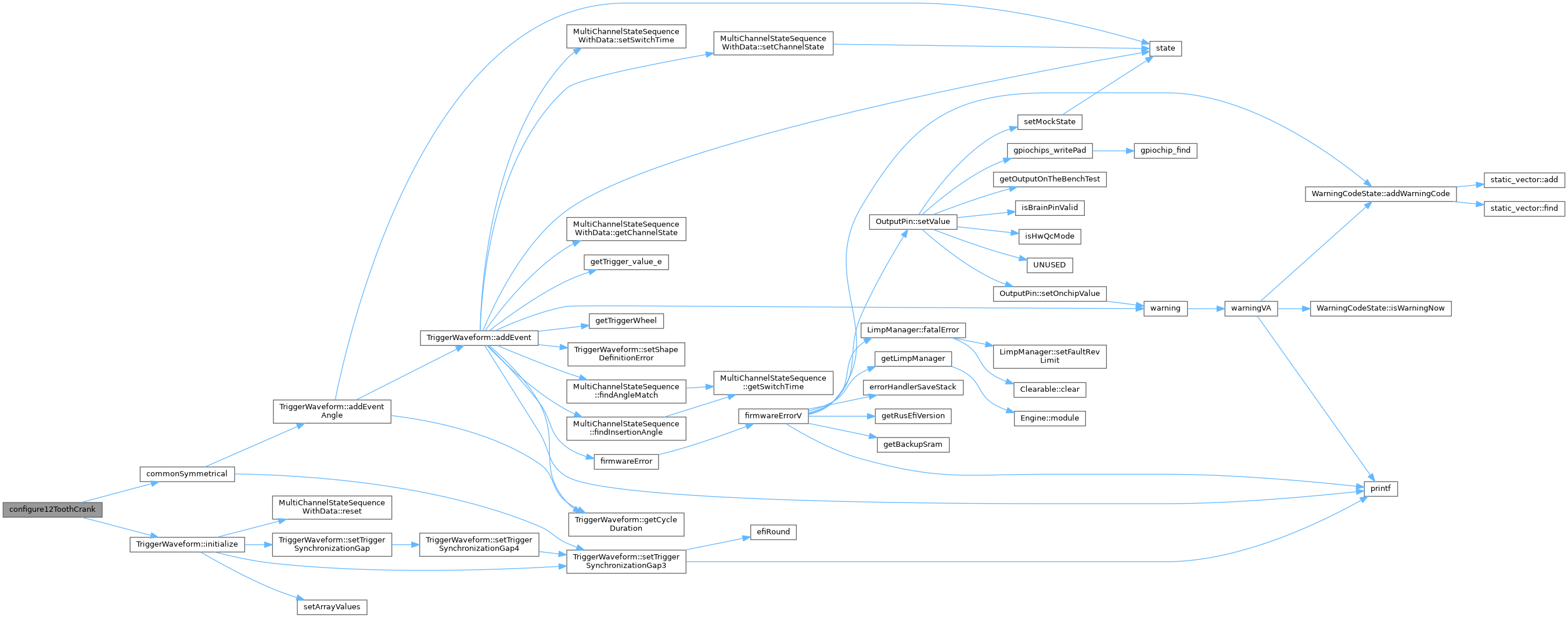

Here is the call graph for this function:

Here is the caller graph for this function:

configure3_1_cam()

void configure3_1_cam

(

TriggerWaveform *

s

)

Definition at line 85 of file trigger_universal.cpp.

                                          {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);


    const float crankW = 360 / 3 / 2;


    TriggerWheel crank = TriggerWheel::T_SECONDARY;

    s->addEvent720(10, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
    s->addEvent720(50, TriggerValue::FALL, TriggerWheel::T_PRIMARY);


    float a = 2 * crankW;

    // #1/3
    s->addEvent720(a += crankW, TriggerValue::RISE, crank);
    s->addEvent720(a += crankW, TriggerValue::FALL, crank);
    // #2/3
    s->addEvent720(a += crankW, TriggerValue::RISE, crank);
    s->addEvent720(a += crankW, TriggerValue::FALL, crank);
    // #3/3
    a += crankW;
    a += crankW;

    // 2nd #1/3
    s->addEvent720(a += crankW, TriggerValue::RISE, crank);
    s->addEvent720(a += crankW,  TriggerValue::FALL, crank);

    // 2nd #2/3
    s->addEvent720(a += crankW, TriggerValue::RISE, crank);
    s->addEvent720(a += crankW, TriggerValue::FALL, crank);

    s->isSynchronizationNeeded = false;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

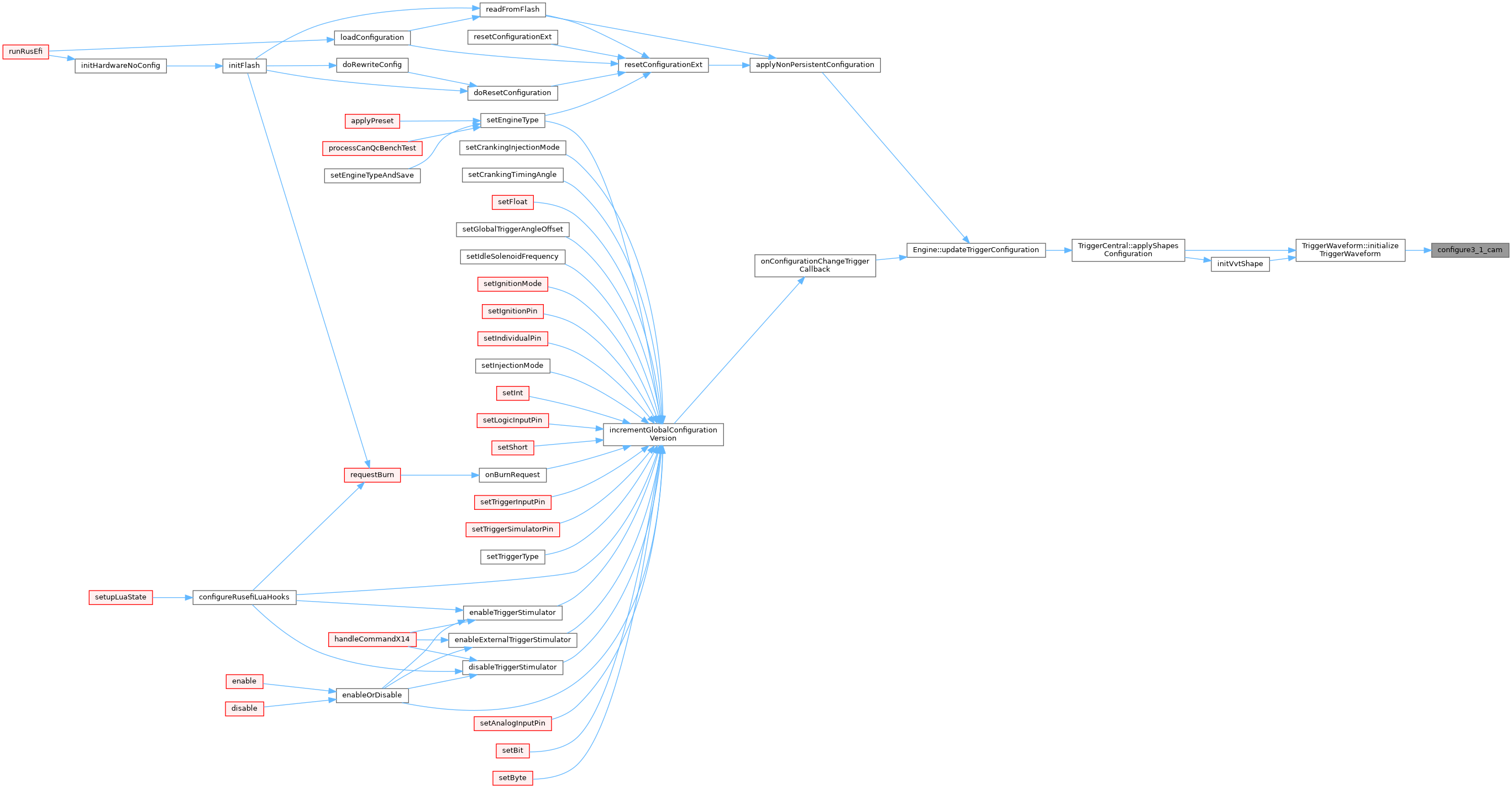

Here is the caller graph for this function:

configure3ToothCrank()

void configure3ToothCrank

(

TriggerWaveform *

s

)

Definition at line 183 of file trigger_universal.cpp.

                                              {
    s->initialize(FOUR_STROKE_THREE_TIMES_CRANK_SENSOR, SyncEdge::RiseOnly);
  commonSymmetrical(s, 3, 0.5, 1.4);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

configure6ToothCrank()

void configure6ToothCrank

(

TriggerWaveform *

s

)

Definition at line 188 of file trigger_universal.cpp.

                                              {
    s->initialize(FOUR_STROKE_SIX_TIMES_CRANK_SENSOR, SyncEdge::RiseOnly);
  commonSymmetrical(s, 6, 0.7, 1.4);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

configureKawaKX450F()

void configureKawaKX450F

(

TriggerWaveform *

s

)

https://rusefi.com/forum/viewtopic.php?f=5&t=1977

Definition at line 124 of file trigger_universal.cpp.

                                             {
    float engineCycle = FOUR_STROKE_ENGINE_CYCLE;
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::Rise);

    s->setTriggerSynchronizationGap(2.28);

    float toothWidth = 3 / 20.0;

    addSkippedToothTriggerEvents(TriggerWheel::T_PRIMARY, s, 18, 0, toothWidth, 0, engineCycle,
            NO_LEFT_FILTER, 720 - 39);

    s->addToothRiseFall(360, /* width*/10.80);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

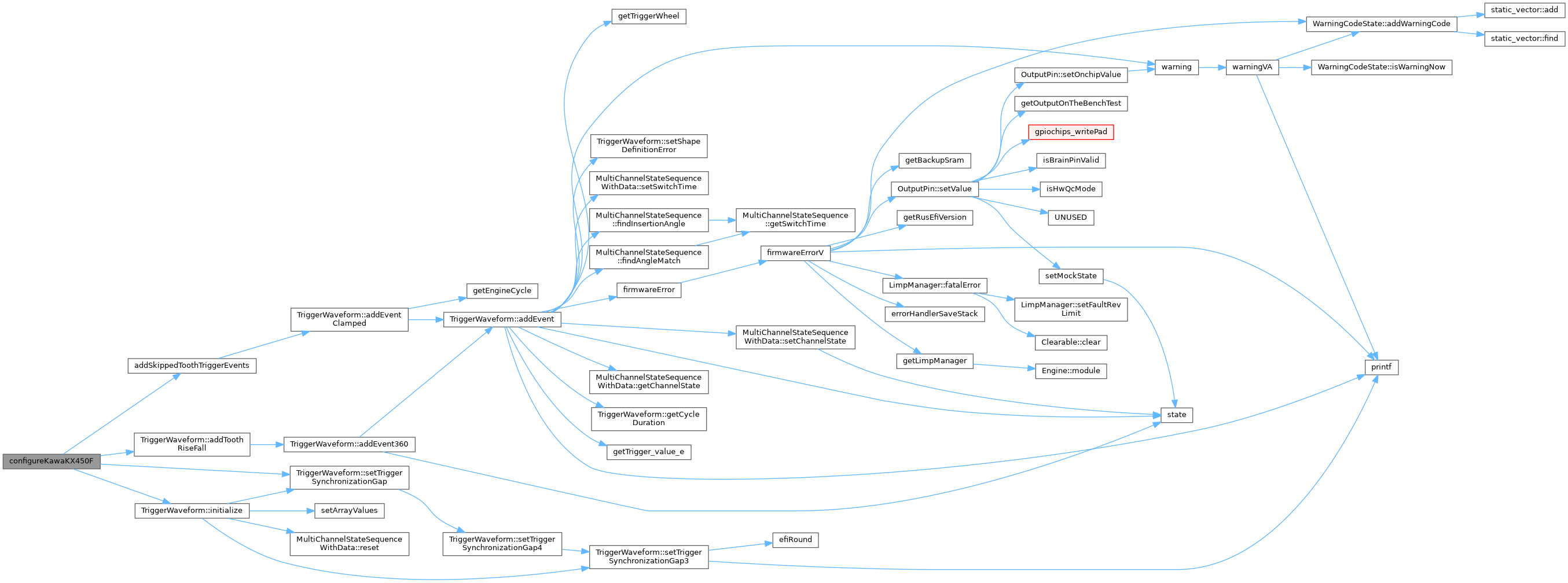

Here is the call graph for this function:

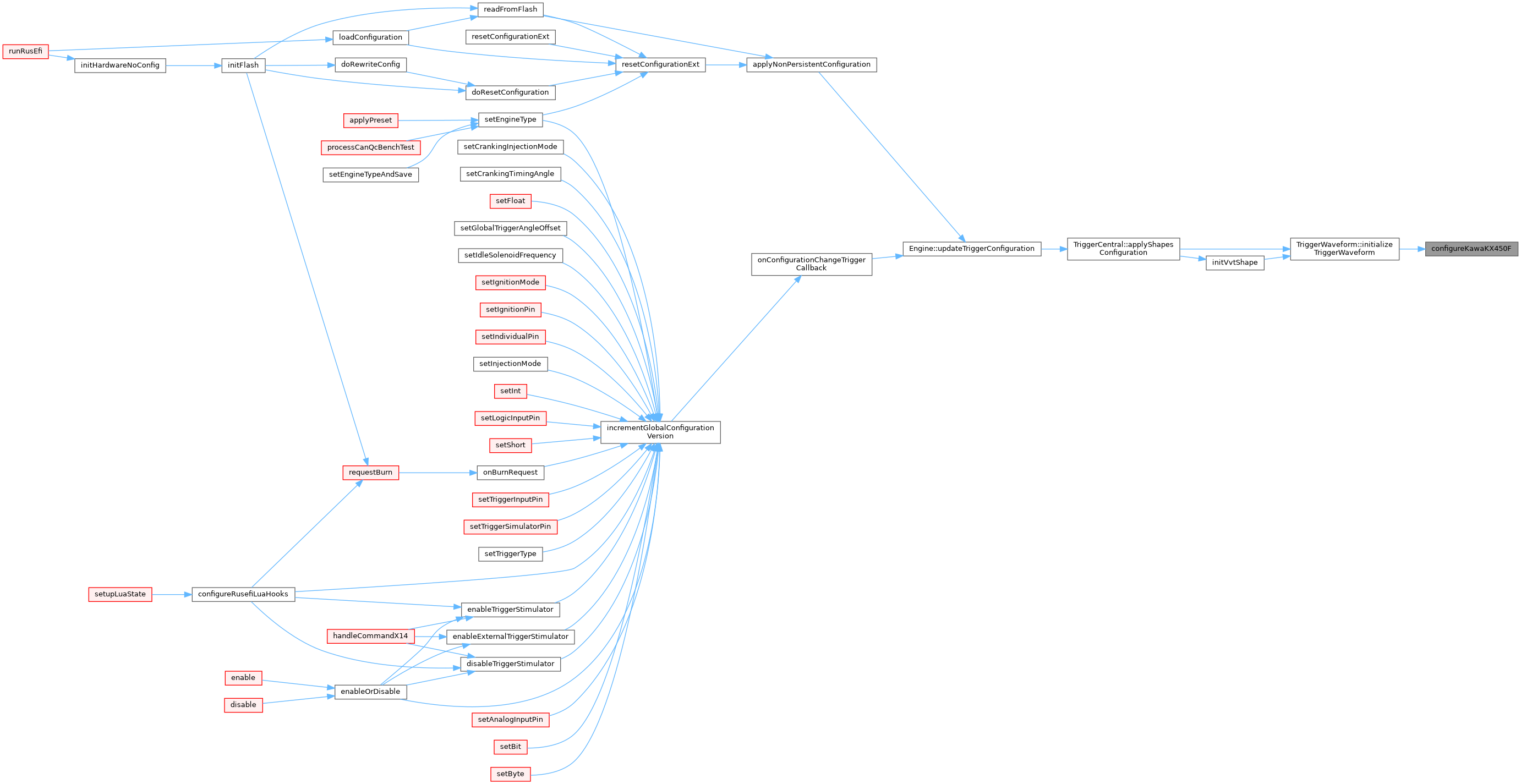

Here is the caller graph for this function:

configureOnePlusOne()

void configureOnePlusOne

(

TriggerWaveform *

s

)

Definition at line 71 of file trigger_universal.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::Rise);

    s->addEvent360( 90, TriggerValue::RISE, TriggerWheel::T_PRIMARY);
    s->addEvent360(180, TriggerValue::FALL, TriggerWheel::T_PRIMARY);

    s->addEvent360(270, TriggerValue::RISE, TriggerWheel::T_SECONDARY);
    s->addEvent360(360, TriggerValue::FALL, TriggerWheel::T_SECONDARY);

    s->isSecondWheelCam = true;
    s->isSynchronizationNeeded = false;
    s->useOnlyPrimaryForSync = true;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

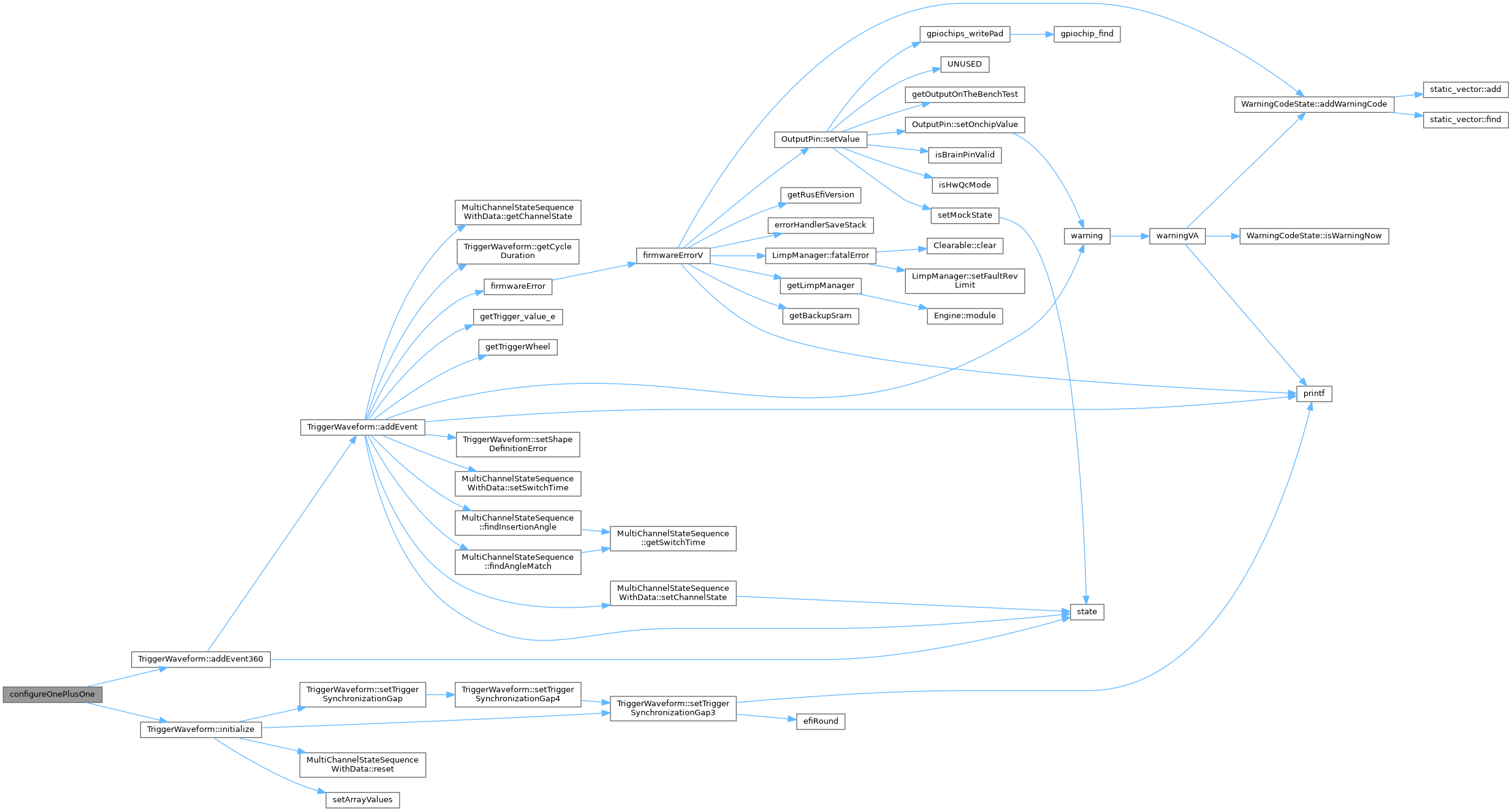

Here is the call graph for this function:

Here is the caller graph for this function:

configureQuickStartSenderWheel()

void configureQuickStartSenderWheel

(

TriggerWaveform *

s

)

Definition at line 139 of file trigger_universal.cpp.

                                                        {
    // todo: most cam wheels are defined as 'SyncEdge::Rise' or 'SyncEdge::RiseOnly' shall we unify?
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::Fall);

    // our preference is to sync not too close to crank sync point
    s->setTriggerSynchronizationGap(0.645);
    s->setSecondTriggerSynchronizationGap(1.556);

    s->addToothRiseFall(90, /* width*/ 70);
    s->addToothRiseFall(130, /* width*/ 20);
    s->addToothRiseFall(220, /* width*/ 20);
    s->addToothRiseFall(360, /* width*/ 70);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

getEngineCycle()

angle_t getEngineCycle

(

operation_mode_e

operationMode

)

See also

getCycleDuration

Definition at line 15 of file trigger_universal.cpp.

                                                       {
    return operationMode == TWO_STROKE ? 360 : FOUR_STROKE_ENGINE_CYCLE;
}

Referenced by TriggerWaveform::addEventClamped(), HpfpLobe::findNextLobe(), TriggerWaveform::getLength(), initializeSkippedToothTrigger(), prepareIgnitionSchedule(), prepareOutputSignals(), Engine::reset(), rpmShaftPositionCallback(), and TriggerCentral::syncEnginePhaseAndReport().

Here is the caller graph for this function:

initializeSkippedToothTrigger()

void initializeSkippedToothTrigger	(	TriggerWaveform *	s,
		int	totalTeethCount,
		int	skippedCount,
		operation_mode_e	operationMode,
		SyncEdge	syncEdge
	)

Definition at line 43 of file trigger_universal.cpp.

                                                           {
    if (totalTeethCount <= 0) {
        firmwareError(ObdCode::CUSTOM_OBD_TRIGGER_WAVEFORM, "Invalid total tooth count for missing tooth decoder: %d", totalTeethCount);
        s->setShapeDefinitionError(true);
        return;
    }
    efiAssertVoid(ObdCode::CUSTOM_NULL_SHAPE, s != NULL, "TriggerWaveform is NULL");

    s->initialize(operationMode, syncEdge);

#if EFI_UNIT_TEST
    s->knownOperationMode = false;
#endif // EFI_UNIT_TEST

    s->setTriggerSynchronizationGap(skippedCount + 1);
    if (totalTeethCount > 6 && skippedCount > 0) {
        // this gap is not required to synch on perfect signal but is needed to handle to reject cranking transition noise and potentially high rev noise as well
        s->setSecondTriggerSynchronizationGap(1);
    }
    s->shapeWithoutTdc = (totalTeethCount > 1) && (skippedCount == 0);
    s->isSynchronizationNeeded = (totalTeethCount > 2) && (skippedCount != 0);


    addSkippedToothTriggerEvents(TriggerWheel::T_PRIMARY, s, totalTeethCount, skippedCount, 0.5, 0, getEngineCycle(operationMode),
    NO_LEFT_FILTER, NO_RIGHT_FILTER);
}

Referenced by customTrigger(), initializeMitsubishi4gSymmetricalCrank(), and TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
