Detailed Description

rusEfi console wave sniffer logic

Here we have our own build-in logic analyzer. The data we aggregate here is sent to the java UI rusEfi Console so that it can be displayed nicely in the Sniffer tab.

Both external events (see logic_analyzer.cpp) and internal (see signal executors) are supported

Date: Jun 23, 2013

Author: Andrey Belomutskiy, (c) 2012-2020

This file is part of rusEfi - see http://rusefi.com

rusEfi is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 3 of the License, or (at your option) any later version.

rusEfi is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.

Definition in file engine_sniffer.cpp.

Functions
static void	resetNow ()

static void	printStatus ()

void	setChartSize (int newSize)

void	initWaveChart (WaveChart *chart)

void	addEngineSnifferOutputPinEvent (NamedOutputPin *pin, FrontDirection frontDirection)

void	addEngineSnifferTdcEvent (int rpm)

void	addEngineSnifferLogicAnalyzerEvent (int laIndex, FrontDirection frontDirection)

void	addEngineSnifferCrankEvent (int wheelIndex, int triggerEventIndex, FrontDirection frontDirection)

void	addEngineSnifferVvtEvent (int vvtIndex, FrontDirection frontDirection)

Variables
static char	shaft_signal_msg_index [15]

WaveChart	waveChart

static char WAVE_LOGGING_BUFFER[WAVE_LOGGING_SIZE]	CCM_OPTIONAL

int	waveChartUsedSize

static uint32_t	skipUntilEngineCycle = 0

Function Documentation

◆ addEngineSnifferCrankEvent()

void addEngineSnifferCrankEvent	(	int	wheelIndex,
		int	triggerEventIndex,
		FrontDirection	frontDirection
	)

Parameters

wheelIndex 0 or 1 @triggerEventIndex index from sync point, from 0 to number of teeth in engine cycle

Definition at line 261 of file engine_sniffer.cpp.

                                                                                                      {
    static const char *crankName[2] = { PROTOCOL_CRANK1, PROTOCOL_CRANK2 };

    shaft_signal_msg_index[0] = frontDirection == FrontDirection::UP ? 'u' : 'd';
    // shaft_signal_msg_index[1] is assigned once and forever in the init method below
    itoa10(&shaft_signal_msg_index[2], triggerEventIndex);

    addEngineSnifferEvent(crankName[wheelIndex], (char* ) shaft_signal_msg_index);
}

Referenced by reportEventToWaveChart().

Here is the call graph for this function:

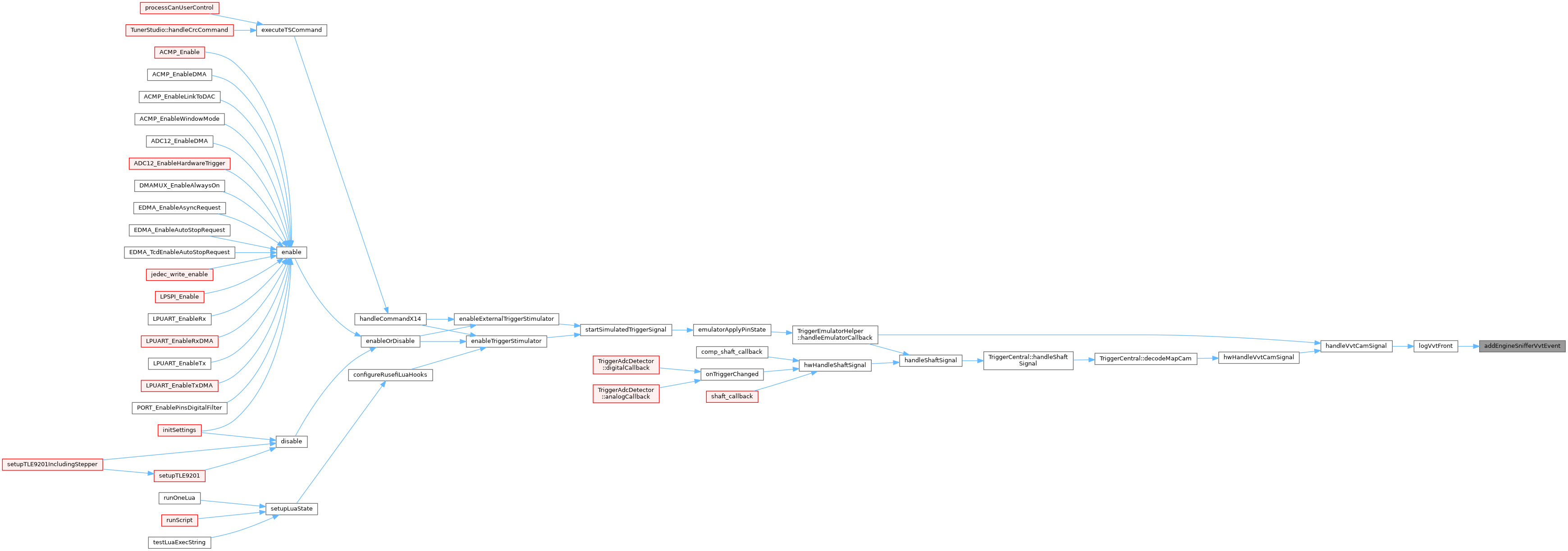

Here is the caller graph for this function:

◆ addEngineSnifferLogicAnalyzerEvent()

void addEngineSnifferLogicAnalyzerEvent	(	int	laIndex,
		FrontDirection	frontDirection
	)

Definition at line 254 of file engine_sniffer.cpp.

                                                                                    {
    extern const char *laNames[];
    const char *name = laNames[laIndex];

    addEngineSnifferEvent(name, frontDirection == FrontDirection::UP ? PROTOCOL_ES_UP : PROTOCOL_ES_DOWN);
}

Referenced by riseCallback().

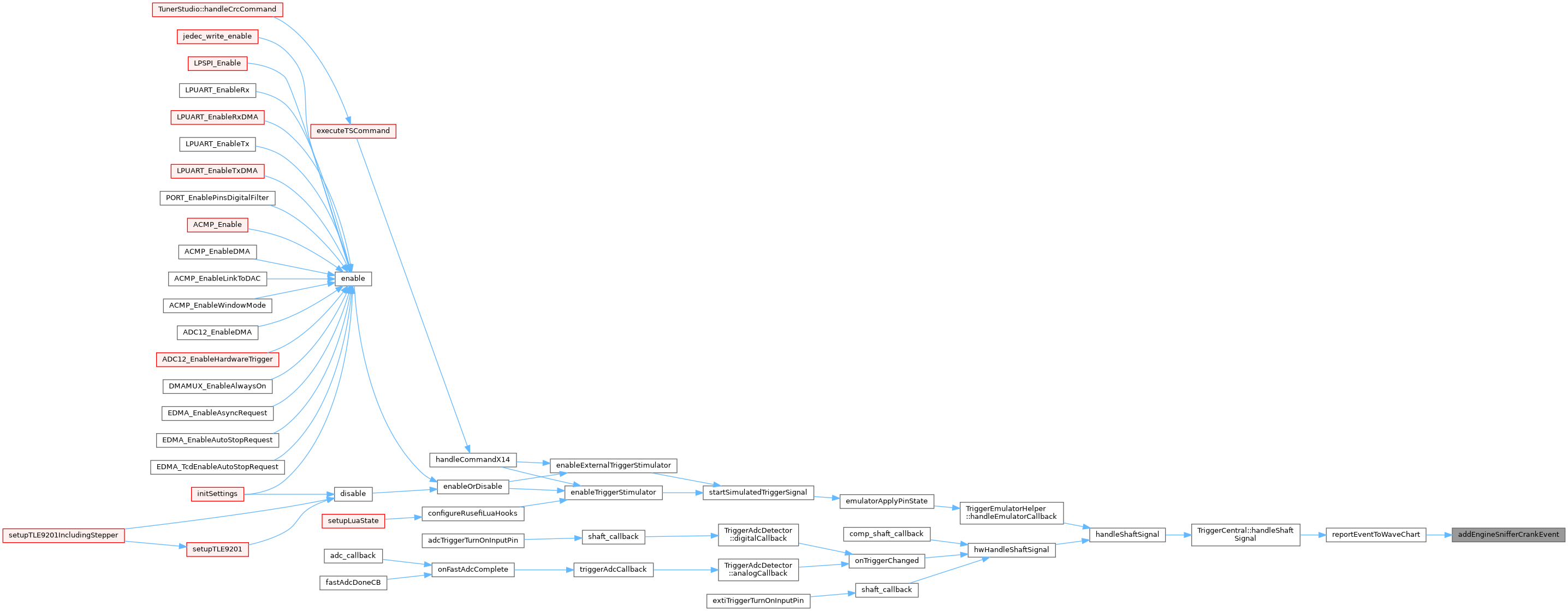

Here is the caller graph for this function:

◆ addEngineSnifferOutputPinEvent()

void addEngineSnifferOutputPinEvent	(	NamedOutputPin *	pin,
		FrontDirection	frontDirection
	)

Definition at line 239 of file engine_sniffer.cpp.

                                                                                        {
    if (!engineConfiguration->engineSnifferFocusOnInputs) {
        addEngineSnifferEvent(pin->getShortName(), frontDirection == FrontDirection::UP ? PROTOCOL_ES_UP : PROTOCOL_ES_DOWN);
    }
}

Referenced by NamedOutputPin::setHigh(), and NamedOutputPin::setLow().

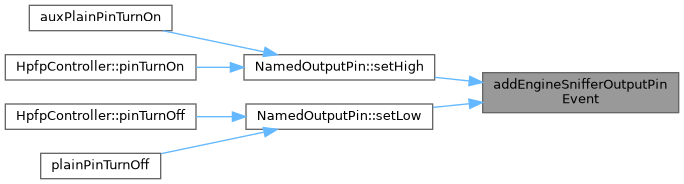

Here is the caller graph for this function:

◆ addEngineSnifferTdcEvent()

void addEngineSnifferTdcEvent ( int rpm )

Definition at line 245 of file engine_sniffer.cpp.

                                       {
    static char rpmBuffer[_MAX_FILLER];
    itoa10(rpmBuffer, rpm);
#if EFI_ENGINE_SNIFFER
    waveChart.startDataCollection();
#endif
    addEngineSnifferEvent(TOP_DEAD_CENTER_MESSAGE, (char* ) rpmBuffer);
}

Referenced by onTdcCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addEngineSnifferVvtEvent()

void addEngineSnifferVvtEvent	(	int	vvtIndex,
		FrontDirection	frontDirection
	)

Definition at line 271 of file engine_sniffer.cpp.

                                                                           {
    extern const char *vvtNames[];
    const char *vvtName = vvtNames[vvtIndex];

    addEngineSnifferEvent(vvtName, frontDirection == FrontDirection::UP ? PROTOCOL_ES_UP : PROTOCOL_ES_DOWN);
}

Referenced by logVvtFront().

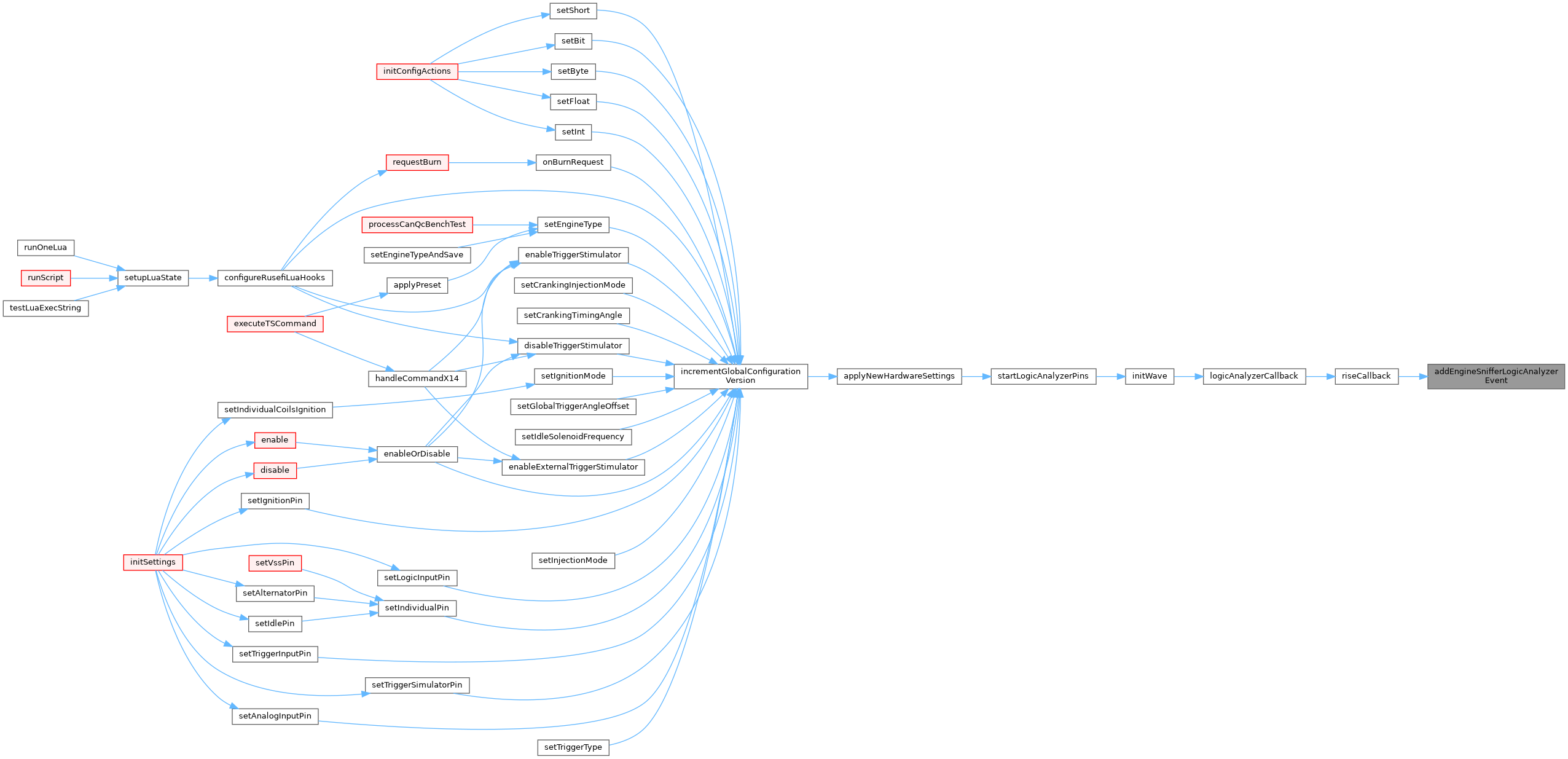

Here is the caller graph for this function:

◆ initWaveChart()

void initWaveChart ( WaveChart * chart )

constructor does not work because we need specific initialization order

Definition at line 218 of file engine_sniffer.cpp.

                                     {
    strcpy((char*) shaft_signal_msg_index, "x_");
    /**
     * constructor does not work because we need specific initialization order
     */
    chart->init();

#if EFI_HISTOGRAMS
    initHistogram(&engineSnifferHisto, "engine sniffer");
#endif /* EFI_HISTOGRAMS */

#if ! EFI_UNIT_TEST
    printStatus();
    addConsoleActionI("chartsize", setChartSize);
    // this is used by HW CI
    addConsoleAction(CMD_RESET_ENGINE_SNIFFER, resetNow);
#endif // EFI_UNIT_TEST
}

Referenced by initTriggerCentral().

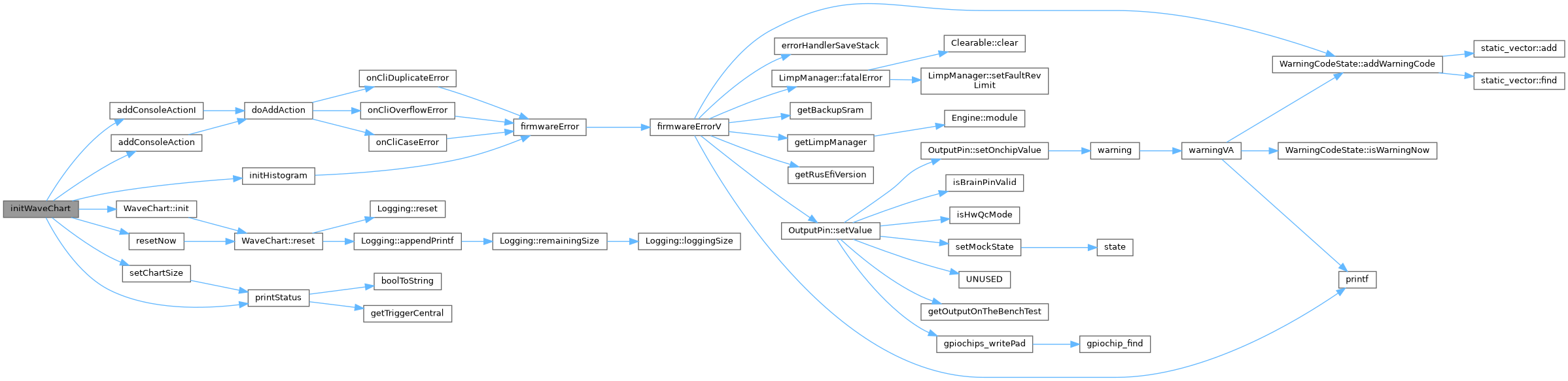

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printStatus()

static void printStatus ( )

static

Definition at line 115 of file engine_sniffer.cpp.

                          {
    efiPrintf("engine sniffer: %s", boolToString(getTriggerCentral()->isEngineSnifferEnabled));
    efiPrintf("engine sniffer size=%lu", engineConfiguration->engineChartSize);
}

Referenced by initWaveChart(), and setChartSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resetNow()

static void resetNow ( )

static

Definition at line 69 of file engine_sniffer.cpp.

                       {
    skipUntilEngineCycle = getRevolutionCounter() + 3;
    waveChart.reset();
}

Referenced by initWaveChart().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setChartSize()

void setChartSize ( int newSize )

Definition at line 120 of file engine_sniffer.cpp.

                               {
    if (newSize < 5) {
        return;
    }
    engineConfiguration->engineChartSize = newSize;
    printStatus();
}
