VvtTriggerConfiguration Class Reference

#include <trigger_decoder.h>

Inheritance diagram for VvtTriggerConfiguration:

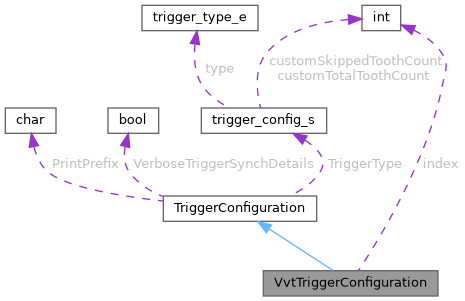

Collaboration diagram for VvtTriggerConfiguration:

Public Member Functions
	VvtTriggerConfiguration (const char *prefix, const int p_index)
Public Member Functions inherited from TriggerConfiguration
	TriggerConfiguration (const char *printPrefix)
void	update ()

Data Fields
const int	index
Data Fields inherited from TriggerConfiguration
const char *const	PrintPrefix
bool	VerboseTriggerSynchDetails
trigger_config_s	TriggerType

Protected Member Functions
bool	isVerboseTriggerSynchDetails () const override
trigger_config_s	getType () const override

Detailed Description

Definition at line 52 of file trigger_decoder.h.

Constructor & Destructor Documentation

VvtTriggerConfiguration()

VvtTriggerConfiguration::VvtTriggerConfiguration ( const char *  prefix, const int  p_index  )

inline

Definition at line 56 of file trigger_decoder.h.

                                                                    : TriggerConfiguration(prefix), index(p_index) {
    }

Member Function Documentation

getType()

trigger_config_s VvtTriggerConfiguration::getType ( ) const

overrideprotectedvirtual

Implements TriggerConfiguration.

Definition at line 302 of file engine2.cpp.

                                                        {
    // Convert from VVT type to trigger_config_s
    return { getVvtTriggerType(engineConfiguration->vvtMode[index]), 0, 0 };
}

Here is the call graph for this function:

isVerboseTriggerSynchDetails()

bool VvtTriggerConfiguration::isVerboseTriggerSynchDetails ( ) const

overrideprotectedvirtual

Implements TriggerConfiguration.

Definition at line 307 of file engine2.cpp.

                                                                 {
    return engineConfiguration->verboseVVTDecoding;
}

Field Documentation

index

const int VvtTriggerConfiguration::index

Definition at line 54 of file trigger_decoder.h.

Referenced by getType().

---

The documentation for this class was generated from the following files:

• controllers/trigger/trigger_decoder.h
• controllers/algo/engine2.cpp
