trigger_config_s Struct Reference

#include <engine_configuration_generated_structures_alphax-2chan.h>

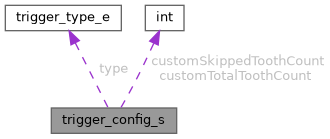

Collaboration diagram for trigger_config_s:
Collaboration graph
[legend]

Data Fields

trigger_type_e type

int customTotalToothCount

int customSkippedToothCount


Detailed Description

Definition at line 577 of file engine_configuration_generated_structures_alphax-2chan.h.

Field Documentation

◆ customSkippedToothCount

int trigger_config_s::customSkippedToothCount

units: number offset 8

Definition at line 592 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), setConfigValueByName(), setFordInline6(), setGmSbc(), setGy6139qmbDefaultEngineConfiguration(), setMiataNB2_Proteus_TCU(), setSachs(), setTestEngineIssue366both(), setTestVVTEngineConfiguration(), and triggerInfo().

◆ customTotalToothCount

int trigger_config_s::customTotalToothCount

units: number offset 4

Definition at line 587 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), setConfigValueByName(), setFordInline6(), setGmSbc(), setGy6139qmbDefaultEngineConfiguration(), setMiataNB2_Proteus_TCU(), setSachs(), setTestEngineIssue366both(), setTestVVTEngineConfiguration(), and triggerInfo().

◆ type

trigger_type_e trigger_config_s::type

https://github.com/rusefi/rusefi/wiki/All-Supported-Triggers offset 0

Definition at line 582 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by TriggerStimulatorHelper::assertSyncPosition(), commonPassatB6(), TriggerDecoderBase::decodeTriggerEvent(), RpmCalculator::getOperationMode(), m73engine(), miataNAcommonEngineSettings(), prepareOutputSignals(), printConfiguration(), proteusStimQc(), setBasicNotECUmode(), setCommonMazdaNB(), setDefaultBaseEngine(), setDodgeNeon1995EngineConfiguration(), setDodgeNeonNGCEngineConfiguration(), setDodgeRam1996(), setEngineBMW_M73_microRusEfi(), setEtbTestConfiguration(), setFordAspireEngineConfiguration(), setFordEscortGt(), setFordInline6(), setFrankensoConfiguration(), setGmSbc(), setGy6139qmbDefaultEngineConfiguration(), setHarley(), setHellen121nissanQR(), setHonda600(), setHondaK(), setHondaObd1(), setHyundaiPb(), setMaverickX3(), setMazdaMiataNB2_36(), setMiataNB2_Proteus_TCU(), setMitsubishi3A92(), setNissanVqEngineConfig(), setProteusAnalogPwmTest(), setRotary(), setSachs(), setSlingshot(), setSubaru2011(), setSubaruEG33Defaults(), setSubaruEJ18_MRE(), setTestCamEngineConfiguration(), setTestCrankEngineConfiguration(), setTestEngineBoschQuickStart(), setTestEngineIssue366both(), setTestEngineWithBoschQuickStartCam(), setTestVVTEngineConfiguration(), setToyota_2jz_vics(), setTriggerType(), setVwAba(), testEngine6451(), and triggerInfo().

The documentation for this struct was generated from the following files:
