HAL

Typedefs
typedef uint32_t	halclock_t
	Type representing a system clock frequency.
typedef uint32_t	halrtcnt_t
	Type of the realtime free counter value.

Functions
	__attribute__ ((used, section(".bcaconfig"))) const
	__attribute__ ((used, section(".cfmconfig"))) const
void	hal_lld_init (void)
	Low level HAL driver initialization.
void	ke1xf_init (void)
	KE1xF initialization.

Detailed Description

Typedef Documentation

halclock_t

typedef uint32_t halclock_t

Type representing a system clock frequency.

Definition at line 264 of file hal_lld.h.

halrtcnt_t

typedef uint32_t halrtcnt_t

Type of the realtime free counter value.

Definition at line 269 of file hal_lld.h.

Function Documentation

__attribute__() [1/2]

__attribute__

(

(used, section(".bcaconfig"))

)

const

Definition at line 48 of file hal_lld.c.

                           {
   'k',  'c',  'f',  'g', 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
  BCA_PERIPH, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
  0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
  0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
};

__attribute__() [2/2]

__attribute__

(

(used, section(".cfmconfig"))

)

const

Definition at line 56 of file hal_lld.c.

                           {
  0xFF,  /* NV_BACKKEY3: KEY=0xFF */
  0xFF,  /* NV_BACKKEY2: KEY=0xFF */
  0xFF,  /* NV_BACKKEY1: KEY=0xFF */
  0xFF,  /* NV_BACKKEY0: KEY=0xFF */
  0xFF,  /* NV_BACKKEY7: KEY=0xFF */
  0xFF,  /* NV_BACKKEY6: KEY=0xFF */
  0xFF,  /* NV_BACKKEY5: KEY=0xFF */
  0xFF,  /* NV_BACKKEY4: KEY=0xFF */
  0xFF,  /* NV_FPROT3: PROT=0xFF */
  0xFF,  /* NV_FPROT2: PROT=0xFF */
  0xFF,  /* NV_FPROT1: PROT=0xFF */
  0xFF,  /* NV_FPROT0: PROT=0xFF */
  /* [andreika][rusefi]: Warning! These two bytes are extremely important! Don't change them until 100% sure! */
  /* there is an opinion that wrong values would brick your Kinetis chip for good */
  0x7E,  /* NV_FSEC: KEYEN=1,MEEN=3,FSLACC=3,SEC=2 */
  0xFB,  /* NV_FOPT: BOOTSRC_SEL=1,res=111,RESET_PIN_CFG=1,NMI_DIS=0,BOOTPIN_OPT=1,LPBOOT=1 */

  0xFF,
  0xFF
};

hal_lld_init()

void hal_lld_init

(

void

)

Low level HAL driver initialization.

Todo:

Use a macro to define the system clock frequency.

@notapi

Definition at line 97 of file hal_lld.c.

                        {
    // Enable DMA
    dmaInit();
}

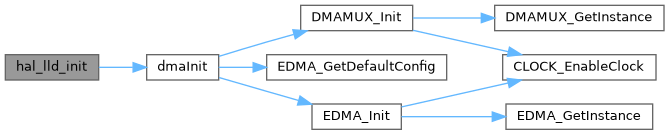

Here is the call graph for this function:

ke1xf_init()

void ke1xf_init

(

void

)

KE1xF initialization.

Note

All the involved constants come from the file board.h.

This function is meant to be invoked early during the system initialization, it is usually invoked from the file board.c.

Todo:

This function needs to be more generic.

@special

Definition at line 112 of file hal_lld.c.

                      {
#if ((__FPU_PRESENT == 1) && (__FPU_USED == 1))
    SCB->CPACR |= ((3UL << 10*2) | (3UL << 11*2));    /* set CP10, CP11 Full Access */
#endif /* ((__FPU_PRESENT == 1) && (__FPU_USED == 1)) */

    /* Disable Watchdog */
    WDOG->CNT = WDOG_UPDATE_KEY;
    WDOG->TOVAL = 0xFFFF;
    WDOG->CS = (uint32_t) ((WDOG->CS) & ~WDOG_CS_EN_MASK) | WDOG_CS_UPDATE_MASK;

    /* Initialize Cache */
    /* Enable Code Bus Cache */
    /* set command to invalidate all ways, enable write buffer and write GO bit to initiate command */
    LMEM->PCCCR |= LMEM_PCCCR_INVW1_MASK | LMEM_PCCCR_INVW0_MASK;
    LMEM->PCCCR |= LMEM_PCCCR_GO_MASK;
    /* Wait until the command completes */
    while (LMEM->PCCCR & LMEM_PCCCR_GO_MASK) {
    }
    /* Enable cache, enable write buffer */
    LMEM->PCCCR |= (LMEM_PCCCR_ENWRBUF_MASK | LMEM_PCCCR_ENCACHE_MASK);
    __ISB();
}

Referenced by __early_init().

Here is the caller graph for this function:
