init_egt.cpp File Reference

Functions
void	initEgt ()
void	stopEgt ()
void	startEgt ()

Variables
static AemXSeriesEgt	aemEgt1 (0, SensorType::EGT1)
static AemXSeriesEgt	aemEgt2 (1, SensorType::EGT2)
static AemXSeriesEgt	aemEgt3 (2, SensorType::EGT3)
static AemXSeriesEgt	aemEgt4 (3, SensorType::EGT4)
static AemXSeriesEgt	aemEgt5 (4, SensorType::EGT5)
static AemXSeriesEgt	aemEgt6 (5, SensorType::EGT6)

Function Documentation

initEgt()

void initEgt

(

)

Definition at line 16 of file init_egt.cpp.

               {
#if EFI_CAN_SUPPORT
    if (engineConfiguration->enableAemXSeriesEgt) {
        if (!engineConfiguration->canReadEnabled) {
            criticalError("CAN read is required to use CAN EGT.");
            return;
        }

        registerCanSensor(aemEgt1);
        registerCanSensor(aemEgt2);
        registerCanSensor(aemEgt3);
        registerCanSensor(aemEgt4);
        registerCanSensor(aemEgt5);
        registerCanSensor(aemEgt6);

        return;
    }
#endif

#if EFI_MAX_31855
    initMax3185x(engineConfiguration->max31855spiDevice, engineConfiguration->max31855_cs);
#endif /* EFI_MAX_31855 */
}

Referenced by initNewSensors().

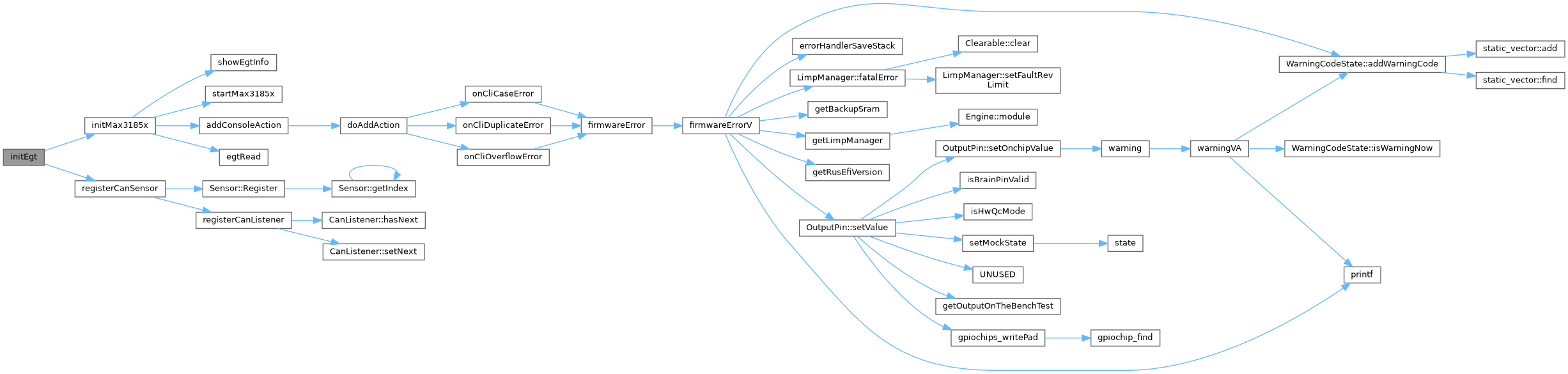

Here is the call graph for this function:

Here is the caller graph for this function:

startEgt()

void startEgt

(

)

Definition at line 47 of file init_egt.cpp.

                {
    /* TODO: also start CAN sensors */
#if EFI_MAX_31855
    startMax3185x(engineConfiguration->max31855spiDevice, engineConfiguration->max31855_cs);
#else
  criticalAssertVoid(SPI_NONE == engineConfiguration->max31855spiDevice, "not EFI_MAX_31855");
#endif /* EFI_MAX_31855 */
}

Referenced by reconfigureSensors().

Here is the call graph for this function:

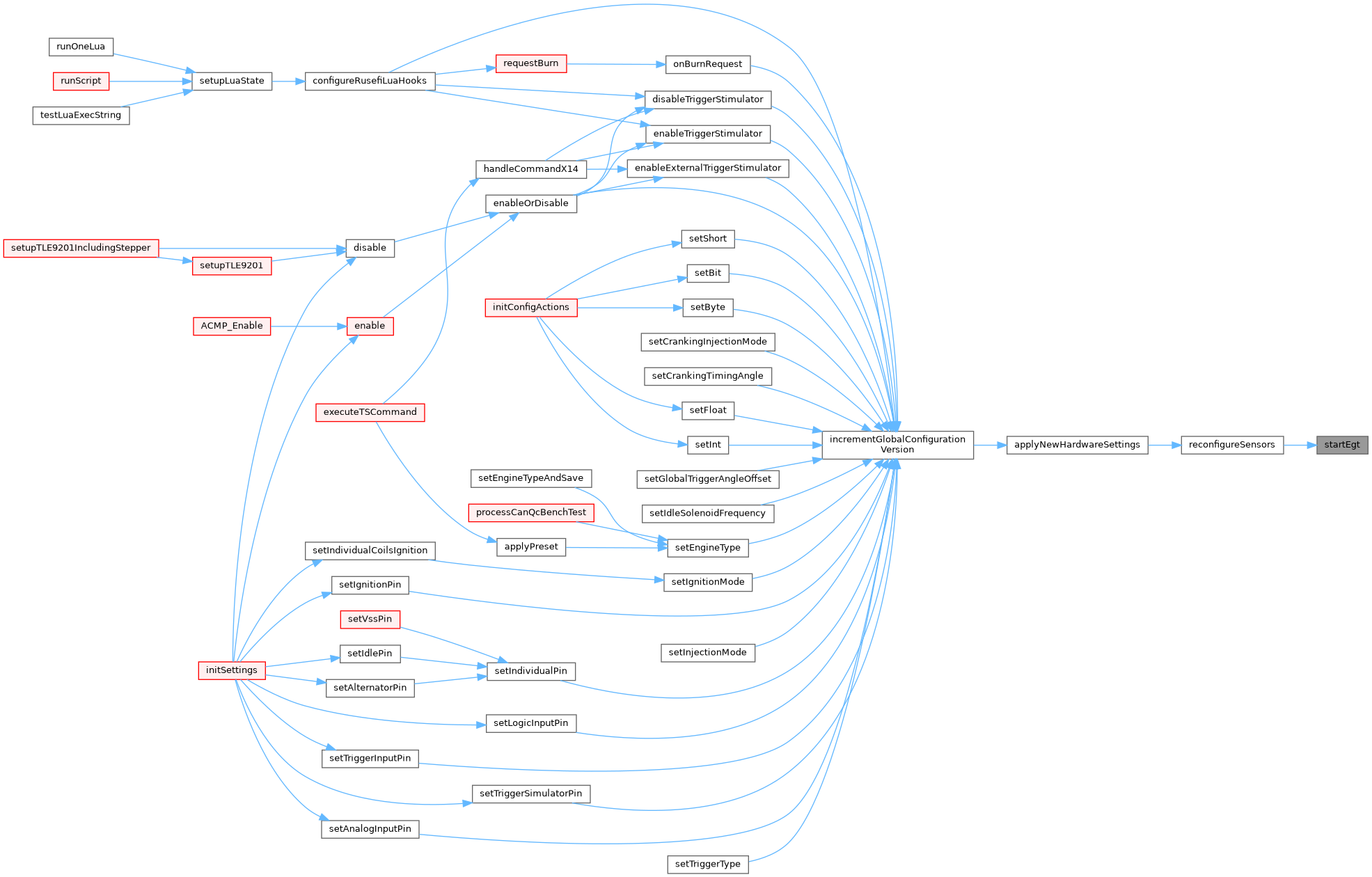

Here is the caller graph for this function:

stopEgt()

void stopEgt

(

)

Definition at line 40 of file init_egt.cpp.

               {
    /* TODO: also stop CAN sensors */
#if EFI_MAX_31855
    stopMax3185x();
#endif /* EFI_MAX_31855 */
}

Referenced by stopSensors().

Here is the call graph for this function:

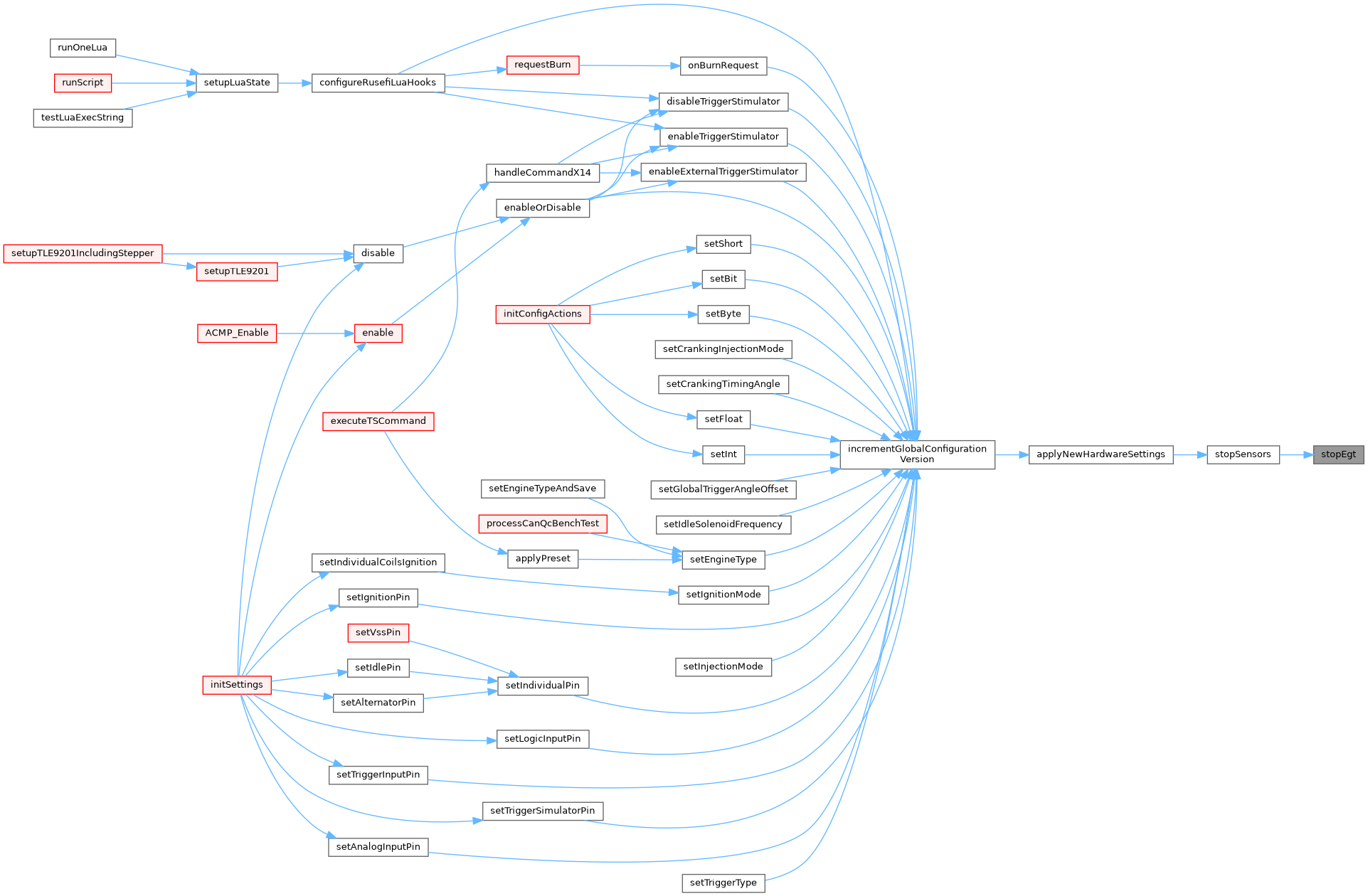

Here is the caller graph for this function:

Variable Documentation

aemEgt1

AemXSeriesEgt aemEgt1(0, SensorType::EGT1) ( 0  , SensorType::EGT1    )

static

Referenced by initEgt().

aemEgt2

AemXSeriesEgt aemEgt2(1, SensorType::EGT2) ( 1  , SensorType::EGT2    )

static

Referenced by initEgt().

aemEgt3

AemXSeriesEgt aemEgt3(2, SensorType::EGT3) ( 2  , SensorType::EGT3    )

static

Referenced by initEgt().

aemEgt4

AemXSeriesEgt aemEgt4(3, SensorType::EGT4) ( 3  , SensorType::EGT4    )

static

Referenced by initEgt().

aemEgt5

AemXSeriesEgt aemEgt5(4, SensorType::EGT5) ( 4  , SensorType::EGT5    )

static

Referenced by initEgt().

aemEgt6

AemXSeriesEgt aemEgt6(5, SensorType::EGT6) ( 5  , SensorType::EGT6    )

static

Referenced by initEgt().

Go to the source code of this file.
