maf.cpp File Reference

Functions
static int	addMafPoint (int index, float kgHrValue, float voltage)
static int	addMafPointByVoltage (int index, float voltage, float kgHrValue)
static void	fillTheRest (int i)
void	setBosch0280218037 ()
void	setBosch0280218004 ()
void	setNissanMAF0031 ()

Function Documentation

addMafPoint()

static int addMafPoint ( int  index, float  kgHrValue, float  voltage  )

static

Definition at line 3 of file maf.cpp.

                                                                  {
    config->mafDecoding[index] = kgHrValue;
    config->mafDecodingBins[index] = voltage;
    return index + 1;
}

Referenced by addMafPointByVoltage(), fillTheRest(), and setBosch0280218037().

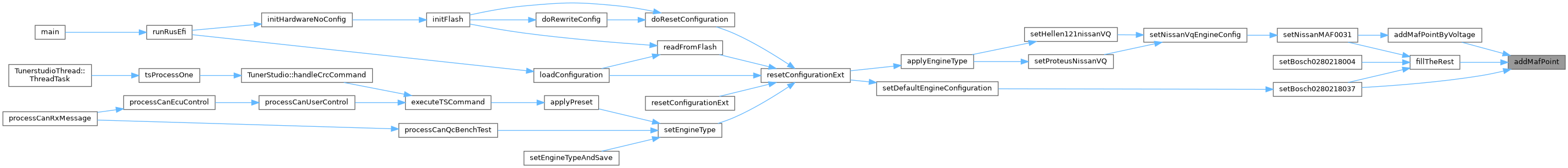

Here is the caller graph for this function:

addMafPointByVoltage()

static int addMafPointByVoltage ( int  index, float  voltage, float  kgHrValue  )

static

Definition at line 9 of file maf.cpp.

                                                                           {
    return addMafPoint(index, kgHrValue, voltage);
}

Referenced by setNissanMAF0031().

Here is the call graph for this function:

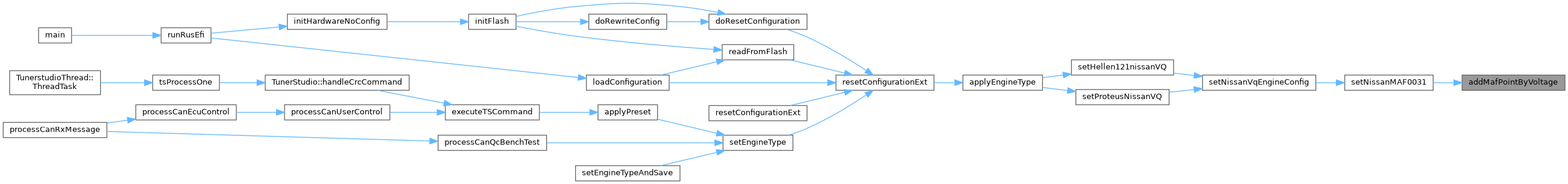

Here is the caller graph for this function:

fillTheRest()

static void fillTheRest ( int  i )

static

unrealistic values just to make binary search happy

Definition at line 13 of file maf.cpp.

                               {
    /**
     * unrealistic values just to make binary search happy
     */
    while (i < MAF_DECODING_COUNT) {
        i = addMafPoint(i, 3000, 2010 + i);
    }
}

Referenced by setBosch0280218004(), setBosch0280218037(), and setNissanMAF0031().

Here is the call graph for this function:

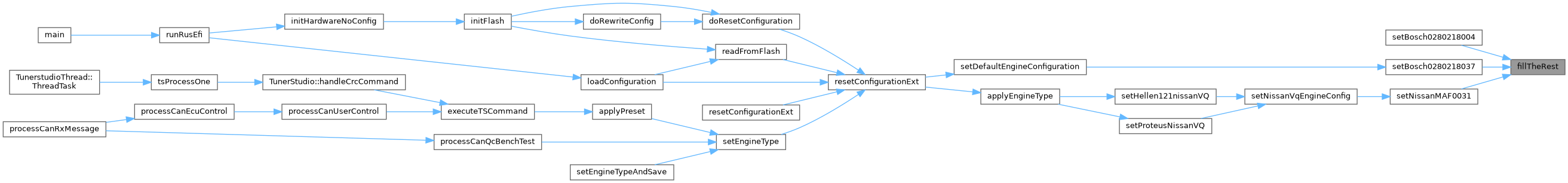

Here is the caller graph for this function:

setBosch0280218004()

void setBosch0280218004

(

)

Definition at line 45 of file maf.cpp.

                          {
    int i = 0;

    fillTheRest(i);
}

Here is the call graph for this function:

setBosch0280218037()

void setBosch0280218037

(

)

Hot-film air-mass meter, Type HFM 5

Definition at line 25 of file maf.cpp.

                          {
    int i = 0;
    i = addMafPoint(i, -34.5, 0);
    i = addMafPoint(i, -6, 0.78125);

    config->mafDecoding[i] = 10.5;
    config->mafDecodingBins[i++] = 1.38671875;

    config->mafDecoding[i] = 105.3;
    config->mafDecodingBins[i++] = 2.91015625;

    config->mafDecoding[i] = 387.5;
    config->mafDecodingBins[i++] = 4.2578125;

    config->mafDecoding[i] = 738;
    config->mafDecodingBins[i++] = 4.98046875;

    fillTheRest(i);
}

Referenced by setDefaultEngineConfiguration().

Here is the call graph for this function:

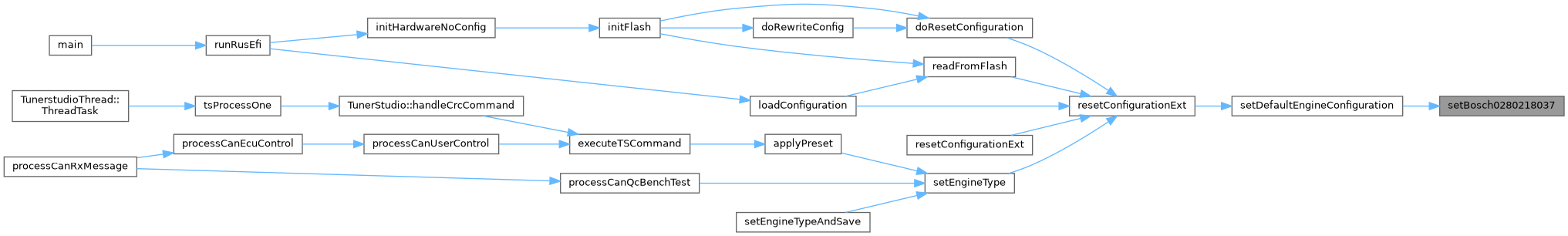

Here is the caller graph for this function:

setNissanMAF0031()

void setNissanMAF0031

(

)

22680-7S000

Definition at line 51 of file maf.cpp.

                        {
    int i = 0;
      // I am copy-pasting from a spreadsheet, it works better if voltage goes first
    i = addMafPointByVoltage(i, 0.29, 3.1768838175);
    i = addMafPointByVoltage(i, 0.49, 3.6987752861);
    i = addMafPointByVoltage(i, 0.72, 5.8013108424);
    i = addMafPointByVoltage(i, 1, 11.1849);
    i = addMafPointByVoltage(i, 1.37, 24.5646673361);
    i = addMafPointByVoltage(i, 1.66, 41.453048941);
    i = addMafPointByVoltage(i, 1.91, 61.5847903829);
    i = addMafPointByVoltage(i, 2.09, 79.7924502089);
    i = addMafPointByVoltage(i, 2.34, 110.961012317);
    i = addMafPointByVoltage(i, 2.89, 208.198652496);
    i = addMafPointByVoltage(i, 3.11, 260.1030585044);
    i = addMafPointByVoltage(i, 3.54, 387.150427974);
    i = addMafPointByVoltage(i, 3.81, 486.5363959026);
    i = addMafPointByVoltage(i, 4, 566.628);
    i = addMafPointByVoltage(i, 4.32, 722.3485684449);
    i = addMafPointByVoltage(i, 4.65, 913.0847954331);
    i = addMafPointByVoltage(i, 4.98, 1137.8746972553);
    fillTheRest(i);
}

Referenced by setNissanVqEngineConfig().

Here is the call graph for this function:

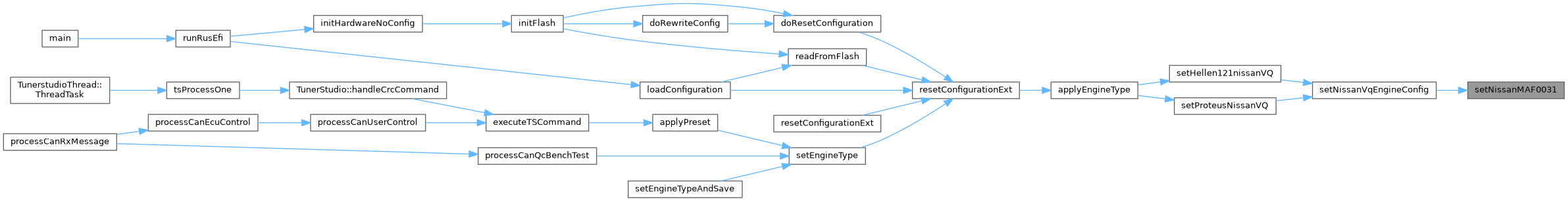

Here is the caller graph for this function:

Go to the source code of this file.
