script_impl.h File Reference

Detailed Description

Date

Oct 5, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file script_impl.h.

Typedefs
typedef Map3D< SCRIPT_TABLE_8, SCRIPT_TABLE_8, float, int16_t, int16_t >	script1_Map3D_f32t
typedef Map3D< TABLE_2_RPM_SIZE, TABLE_2_LOAD_SIZE, float, int16_t, int16_t >	script2_Map3D_f32t
typedef Map3D< SCRIPT_TABLE_8, SCRIPT_TABLE_8, uint8_t, int16_t, int16_t >	script3_Map3D_u8t
typedef Map3D< TABLE_4_RPM, SCRIPT_TABLE_8, uint8_t, int16_t, int16_t >	script4_Map3D_u8t

Functions
void	initScriptImpl ()
float	getCurveValue (int index, float key)
expected< int >	getCurveIndexByName (const char *name)
expected< int >	getTableIndexByName (const char *name)
expected< int >	getSettingIndexByName (const char *name)
ValueProvider3D *	getscriptTable (int index)

Typedef Documentation

script1_Map3D_f32t

typedef Map3D<SCRIPT_TABLE_8, SCRIPT_TABLE_8, float, int16_t, int16_t> script1_Map3D_f32t

Definition at line 12 of file script_impl.h.

script2_Map3D_f32t

typedef Map3D<TABLE_2_RPM_SIZE, TABLE_2_LOAD_SIZE, float, int16_t, int16_t> script2_Map3D_f32t

Definition at line 13 of file script_impl.h.

script3_Map3D_u8t

typedef Map3D<SCRIPT_TABLE_8, SCRIPT_TABLE_8, uint8_t, int16_t, int16_t> script3_Map3D_u8t

Definition at line 14 of file script_impl.h.

script4_Map3D_u8t

typedef Map3D<TABLE_4_RPM, SCRIPT_TABLE_8, uint8_t, int16_t, int16_t> script4_Map3D_u8t

Definition at line 15 of file script_impl.h.

Function Documentation

getCurveIndexByName()

expected< int > getCurveIndexByName

(

const char *

name

)

Returns

zero-based index of curve with given name

Definition at line 36 of file script_impl.cpp.

                                                    {
    for (int i = 0;i<SCRIPT_CURVE_COUNT;i++) {
        if (strEqualCaseInsensitive(name, engineConfiguration->scriptCurveName[i])) {
            return i;
        }
    }

    return unexpected;
}

Referenced by configureRusefiLuaUtilHooks().

Here is the caller graph for this function:

getCurveValue()

float getCurveValue	(	int	index,
		float	key
	)

Definition at line 66 of file script_impl.cpp.

                                          {
    // not great code at all :(
    switch (index) {
    default:
        return interpolate2d(key, config->scriptCurve1Bins, config->scriptCurve1);
    case 1:
        return interpolate2d(key, config->scriptCurve2Bins, config->scriptCurve2);
    case 2:
        return interpolate2d(key, config->scriptCurve3Bins, config->scriptCurve3);
    case 3:
        return interpolate2d(key, config->scriptCurve4Bins, config->scriptCurve4);
    case 4:
        return interpolate2d(key, config->scriptCurve5Bins, config->scriptCurve5);
    case 5:
        return interpolate2d(key, config->scriptCurve6Bins, config->scriptCurve6);
    }
}

Referenced by configureRusefiLuaHooks().

Here is the caller graph for this function:

getscriptTable()

ValueProvider3D * getscriptTable

(

int

index

)

Definition at line 19 of file script_impl.cpp.

                                           {
    switch (index) {
    default:
        return &scriptTable1;
    case 1:
        return &scriptTable2;
    case 2:
        return &scriptTable3;
    case 3:
        return &scriptTable4;
    }
}

Referenced by configureRusefiLuaHooks().

Here is the caller graph for this function:

getSettingIndexByName()

expected< int > getSettingIndexByName

(

const char *

name

)

Definition at line 56 of file script_impl.cpp.

                                                      {
    for (int i = 0;i<SCRIPT_SETTING_COUNT;i++) {
        if (strEqualCaseInsensitive(name, engineConfiguration->scriptSettingName[i])) {
            return i;
        }
    }

    return unexpected;
}

Referenced by configureRusefiLuaUtilHooks().

Here is the caller graph for this function:

getTableIndexByName()

expected< int > getTableIndexByName

(

const char *

name

)

Definition at line 46 of file script_impl.cpp.

                                                    {
    for (int i = 0;i<SCRIPT_TABLE_COUNT;i++) {
        if (strEqualCaseInsensitive(name, engineConfiguration->scriptTableName[i])) {
            return i;
        }
    }

    return unexpected;
}

Referenced by configureRusefiLuaUtilHooks().

Here is the caller graph for this function:

initScriptImpl()

void initScriptImpl

(

)

Definition at line 84 of file script_impl.cpp.

                      {
    scriptTable1.initTable(config->scriptTable1, config->scriptTable1RpmBins, config->scriptTable1LoadBins);
    scriptTable2.initTable(config->scriptTable2,    config->scriptTable2RpmBins, config->scriptTable2LoadBins);
    scriptTable3.initTable(config->scriptTable3,    config->scriptTable3RpmBins, config->scriptTable3LoadBins);
    scriptTable4.initTable(config->scriptTable4,    config->scriptTable4RpmBins, config->scriptTable4LoadBins);
}

Referenced by commonInitEngineController().

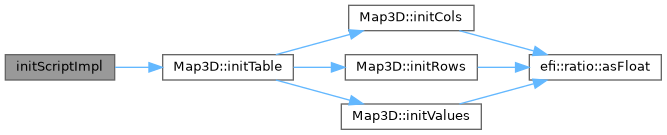

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
