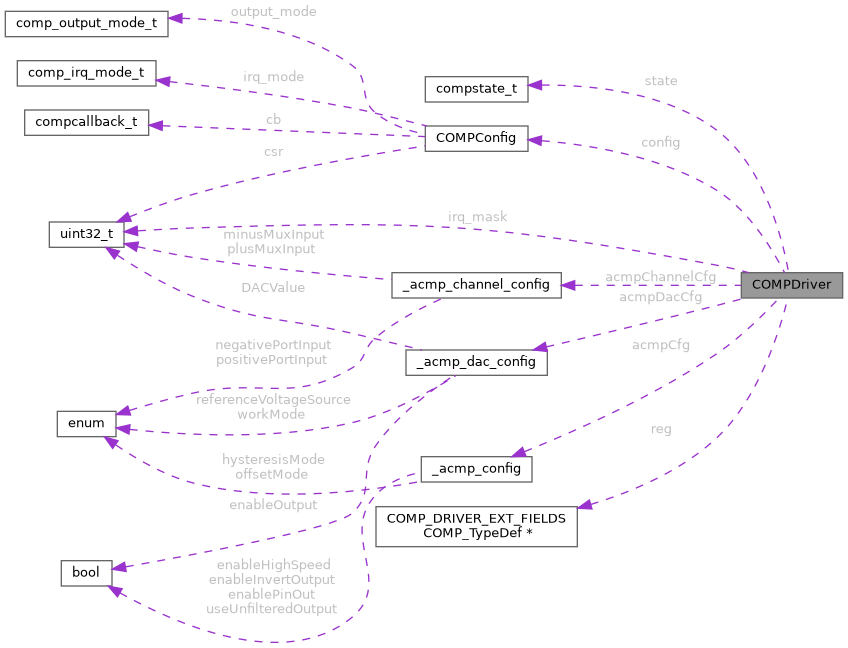

Structure representing an COMP driver. More...
#include <hal_comp_lld.h>
Data Fields | |
| compstate_t | state |
| Driver state. | |
| const COMPConfig * | config |
| Current configuration data. | |
| COMP_DRIVER_EXT_FIELDS COMP_TypeDef * | reg |
| Pointer to the COMPx registers block. | |
| acmp_config_t | acmpCfg |
| ACMP driver config. | |
| acmp_channel_config_t | acmpChannelCfg |
| ACMP driver channel config. | |
| acmp_dac_config_t | acmpDacCfg |
| ACMP driver DAC config. | |
| uint32_t | irq_mask |
Detailed Description
Structure representing an COMP driver.
Definition at line 188 of file hal_comp_lld.h.
Field Documentation
◆ acmpCfg
| acmp_config_t COMPDriver::acmpCfg |
◆ acmpChannelCfg
| acmp_channel_config_t COMPDriver::acmpChannelCfg |
ACMP driver channel config.
Definition at line 215 of file hal_comp_lld.h.
Referenced by comp_lld_channel_enable().
◆ acmpDacCfg
| acmp_dac_config_t COMPDriver::acmpDacCfg |
ACMP driver DAC config.
Definition at line 220 of file hal_comp_lld.h.
Referenced by comp_lld_set_dac_value(), and comp_lld_start().
◆ config
| const COMPConfig* COMPDriver::config |
Current configuration data.
Definition at line 196 of file hal_comp_lld.h.
Referenced by comp_lld_enable(), comp_lld_irq_handler(), and comp_lld_start().
◆ irq_mask
| uint32_t COMPDriver::irq_mask |
Definition at line 222 of file hal_comp_lld.h.
Referenced by comp_lld_disable(), comp_lld_enable(), and comp_lld_start().
◆ reg
| COMP_DRIVER_EXT_FIELDS COMP_TypeDef* COMPDriver::reg |
Pointer to the COMPx registers block.
Definition at line 204 of file hal_comp_lld.h.
Referenced by comp_lld_channel_enable(), comp_lld_disable(), comp_lld_enable(), comp_lld_get_status(), comp_lld_init(), comp_lld_set_dac_value(), comp_lld_start(), and comp_lld_stop().
◆ state
| compstate_t COMPDriver::state |
Driver state.
Definition at line 192 of file hal_comp_lld.h.
The documentation for this struct was generated from the following file:
- config/boards/kinetis/OS/os/hal/ports/KINETIS/LLD/COMPv2/hal_comp_lld.h
