tc_4.cpp File Reference

Functions
Generic4TransmissionController *	getGeneric4TransmissionController ()
void	configureTcu4R70W ()

Variables
Generic4TransmissionController	generic4TransmissionController
static SimplePwm	pcPwm ("Pressure Control")

Function Documentation

configureTcu4R70W()

void configureTcu4R70W

(

)

Definition at line 133 of file tc_4.cpp.

                         {
    // TCU Software Config
    engineConfiguration->tcuEnabled = true;
    engineConfiguration->gearControllerMode = GearControllerMode::Generic;
    engineConfiguration->transmissionControllerMode = TransmissionControllerMode::Generic4;

    // TCU Inputs
    // Buttonshift
    engineConfiguration->tcuUpshiftButtonPin = Gpio::E14;
    engineConfiguration->tcuUpshiftButtonPinMode = PI_PULLUP;
    engineConfiguration->tcuDownshiftButtonPin = Gpio::E13;
    engineConfiguration->tcuDownshiftButtonPinMode = PI_PULLUP;
    // Analog range sensor - used in early 4R70
    engineConfiguration->tcu_rangeSensorBiasResistor = 1753;
    engineConfiguration->tcu_rangeAnalogInput[0] = EFI_ADC_4;
    // Two digital for +/- add-on
    engineConfiguration->tcu_rangeInput[1] = Gpio::C6;
    engineConfiguration->tcu_rangeInputMode[1] = PI_PULLUP;
    engineConfiguration->tcu_rangeInput[2] = Gpio::E15;
    engineConfiguration->tcu_rangeInputMode[2] = PI_PULLUP;
  // Range voltages/digital states
    config->tcu_rangeR[0] = 6072.0;
    config->tcu_rangeR[1] = 0.0;
    config->tcu_rangeR[2] = 0.0;
    config->tcu_rangeP[0] = 18500.0;
    config->tcu_rangeP[1] = 0.0;
    config->tcu_rangeP[2] = 0.0;
    config->tcu_rangeN[0] = 3028.0;
    config->tcu_rangeN[1] = 0.0;
    config->tcu_rangeN[2] = 0.0;
    config->tcu_rangeD[0] = 1645.0;
    config->tcu_rangeD[1] = 0.0;
    config->tcu_rangeD[2] = 0.0;
    config->tcu_rangeM2[0] = 864.0;
    config->tcu_rangeM2[1] = 0.0;
    config->tcu_rangeM2[2] = 0.0;
    config->tcu_rangeM1[0] = 358.0;
    config->tcu_rangeM1[1] = 0.0;
    config->tcu_rangeM1[2] = 0.0;
    config->tcu_rangePlus[0] = 0.0;
    config->tcu_rangePlus[1] = 1.0;
    config->tcu_rangePlus[2] = 0.0;
    config->tcu_rangeMinus[0] = 0.0;
    config->tcu_rangeMinus[1] = 0.0;
    config->tcu_rangeMinus[2] = 1.0;
    // Disable these states
    config->tcu_rangeM[1] = 3.0;
    config->tcu_rangeM3[1] = 3.0;
    config->tcu_rangeLow[1] = 3.0;

    // TCU Outputs
    engineConfiguration->tcu_tcc_onoff_solenoid = Gpio::B8;
    engineConfiguration->tcu_tcc_onoff_solenoid_mode = OM_DEFAULT;
    engineConfiguration->tcu_pc_solenoid_pin = Gpio::E1;
    engineConfiguration->tcu_pc_solenoid_pin_mode = OM_DEFAULT;
    engineConfiguration->tcu_pc_solenoid_freq = 240;
    engineConfiguration->tcu_solenoid[0] = Gpio::B6;
    engineConfiguration->tcu_solenoid_mode[0] = OM_DEFAULT;
    engineConfiguration->tcu_solenoid[1] = Gpio::B5;
    engineConfiguration->tcu_solenoid_mode[1] = OM_DEFAULT;
    // Reverse
    config->tcuSolenoidTable[0][0] = 1;
    config->tcuSolenoidTable[1][0] = 0;
    // Neutral
    config->tcuSolenoidTable[0][1] = 1;
    config->tcuSolenoidTable[1][1] = 0;
    // 1
    config->tcuSolenoidTable[0][2] = 1;
    config->tcuSolenoidTable[1][2] = 0;
    // 2
    config->tcuSolenoidTable[0][3] = 0;
    config->tcuSolenoidTable[1][3] = 0;
    // 3
    config->tcuSolenoidTable[0][4] = 0;
    config->tcuSolenoidTable[1][4] = 1;
    // 4
    config->tcuSolenoidTable[0][5] = 1;
    config->tcuSolenoidTable[1][5] = 1;

    // Pressure Control
    config->tcu_pcAirmassBins[0] = 50.0;
    config->tcu_pcAirmassBins[1] = 110.0;
    config->tcu_pcAirmassBins[2] = 220.0;
    config->tcu_pcAirmassBins[3] = 350.0;
    config->tcu_pcAirmassBins[4] = 500.0;
    config->tcu_pcAirmassBins[5] = 750.0;
    config->tcu_pcAirmassBins[6] = 900.0;
    config->tcu_pcAirmassBins[7] = 1000.0;
    config->tcu_pcValsR[0] = 40.0;
    config->tcu_pcValsR[1] = 35.0;
    config->tcu_pcValsR[2] = 30.0;
    config->tcu_pcValsR[3] = 30.0;
    config->tcu_pcValsR[4] = 30.0;
    config->tcu_pcValsR[5] = 25.0;
    config->tcu_pcValsR[6] = 10.0;
    config->tcu_pcValsR[7] = 10.0;
    config->tcu_pcValsN[0] = 40.0;
    config->tcu_pcValsN[1] = 35.0;
    config->tcu_pcValsN[2] = 30.0;
    config->tcu_pcValsN[3] = 30.0;
    config->tcu_pcValsN[4] = 30.0;
    config->tcu_pcValsN[5] = 25.0;
    config->tcu_pcValsN[6] = 10.0;
    config->tcu_pcValsN[7] = 10.0;
    config->tcu_pcVals1[0] = 40.0;
    config->tcu_pcVals1[1] = 35.0;
    config->tcu_pcVals1[2] = 30.0;
    config->tcu_pcVals1[3] = 30.0;
    config->tcu_pcVals1[4] = 30.0;
    config->tcu_pcVals1[5] = 25.0;
    config->tcu_pcVals1[6] = 10.0;
    config->tcu_pcVals1[7] = 10.0;
    config->tcu_pcVals2[0] = 40.0;
    config->tcu_pcVals2[1] = 35.0;
    config->tcu_pcVals2[2] = 30.0;
    config->tcu_pcVals2[3] = 30.0;
    config->tcu_pcVals2[4] = 30.0;
    config->tcu_pcVals2[5] = 25.0;
    config->tcu_pcVals2[6] = 10.0;
    config->tcu_pcVals2[7] = 10.0;
    config->tcu_pcVals3[0] = 40.0;
    config->tcu_pcVals3[1] = 35.0;
    config->tcu_pcVals3[2] = 30.0;
    config->tcu_pcVals3[3] = 30.0;
    config->tcu_pcVals3[4] = 30.0;
    config->tcu_pcVals3[5] = 25.0;
    config->tcu_pcVals3[6] = 10.0;
    config->tcu_pcVals3[7] = 10.0;
    config->tcu_pcVals4[0] = 40.0;
    config->tcu_pcVals4[1] = 35.0;
    config->tcu_pcVals4[2] = 30.0;
    config->tcu_pcVals4[3] = 30.0;
    config->tcu_pcVals4[4] = 30.0;
    config->tcu_pcVals4[5] = 25.0;
    config->tcu_pcVals4[6] = 10.0;
    config->tcu_pcVals4[7] = 10.0;
    config->tcu_pcVals12[0] = 80.0;
    config->tcu_pcVals12[1] = 60.0;
    config->tcu_pcVals12[2] = 50.0;
    config->tcu_pcVals12[3] = 44.0;
    config->tcu_pcVals12[4] = 40.0;
    config->tcu_pcVals12[5] = 20.0;
    config->tcu_pcVals12[6] = 10.0;
    config->tcu_pcVals12[7] = 10.0;
    config->tcu_pcVals23[0] = 45.0;
    config->tcu_pcVals23[1] = 40.0;
    config->tcu_pcVals23[2] = 35.0;
    config->tcu_pcVals23[3] = 30.0;
    config->tcu_pcVals23[4] = 35.0;
    config->tcu_pcVals23[5] = 15.0;
    config->tcu_pcVals23[6] = 10.0;
    config->tcu_pcVals23[7] = 10.0;
    config->tcu_pcVals34[0] = 35.0;
    config->tcu_pcVals34[1] = 32.0;
    config->tcu_pcVals34[2] = 30.0;
    config->tcu_pcVals34[3] = 38.0;
    config->tcu_pcVals34[4] = 25.0;
    config->tcu_pcVals34[5] = 15.0;
    config->tcu_pcVals34[6] = 10.0;
    config->tcu_pcVals34[7] = 10.0;
    config->tcu_pcVals21[0] = 60.0;
    config->tcu_pcVals21[1] = 55.0;
    config->tcu_pcVals21[2] = 50.0;
    config->tcu_pcVals21[3] = 45.0;
    config->tcu_pcVals21[4] = 40.0;
    config->tcu_pcVals21[5] = 35.0;
    config->tcu_pcVals21[6] = 30.0;
    config->tcu_pcVals21[7] = 30.0;
    config->tcu_pcVals32[0] = 60.0;
    config->tcu_pcVals32[1] = 55.0;
    config->tcu_pcVals32[2] = 50.0;
    config->tcu_pcVals32[3] = 45.0;
    config->tcu_pcVals32[4] = 40.0;
    config->tcu_pcVals32[5] = 35.0;
    config->tcu_pcVals32[6] = 30.0;
    config->tcu_pcVals32[7] = 30.0;
    config->tcu_pcVals43[0] = 60.0;
    config->tcu_pcVals43[1] = 55.0;
    config->tcu_pcVals43[2] = 50.0;
    config->tcu_pcVals43[3] = 45.0;
    config->tcu_pcVals43[4] = 40.0;
    config->tcu_pcVals43[5] = 35.0;
    config->tcu_pcVals43[6] = 30.0;
    config->tcu_pcVals43[7] = 30.0;

    // TCC Control
    config->tcu_tccTpsBins[0] = 11.0;
    config->tcu_tccTpsBins[1] = 22.0;
    config->tcu_tccTpsBins[2] = 33.0;
    config->tcu_tccTpsBins[3] = 44.0;
    config->tcu_tccTpsBins[4] = 55.0;
    config->tcu_tccTpsBins[5] = 66.0;
    config->tcu_tccTpsBins[6] = 77.0;
    config->tcu_tccTpsBins[7] = 88.0;
    config->tcu_tccLockSpeed[0] = 40.0;
    config->tcu_tccLockSpeed[1] = 45.0;
    config->tcu_tccLockSpeed[2] = 52.0;
    config->tcu_tccLockSpeed[3] = 60.0;
    config->tcu_tccLockSpeed[4] = 70.0;
    config->tcu_tccLockSpeed[5] = 83.0;
    config->tcu_tccLockSpeed[6] = 97.0;
    config->tcu_tccLockSpeed[7] = 115.0;
    config->tcu_tccUnlockSpeed[0] = 30.0;
    config->tcu_tccUnlockSpeed[1] = 35.0;
    config->tcu_tccUnlockSpeed[2] = 41.0;
    config->tcu_tccUnlockSpeed[3] = 49.0;
    config->tcu_tccUnlockSpeed[4] = 53.0;
    config->tcu_tccUnlockSpeed[5] = 67.0;
    config->tcu_tccUnlockSpeed[6] = 78.0;
    config->tcu_tccUnlockSpeed[7] = 93.0;

    // Shift Config
    config->tcu_shiftTime = 600.0;
    config->tcu_shiftTpsBins[0] = 11.0;
    config->tcu_shiftTpsBins[1] = 22.0;
    config->tcu_shiftTpsBins[2] = 33.0;
    config->tcu_shiftTpsBins[3] = 44.0;
    config->tcu_shiftTpsBins[4] = 55.0;
    config->tcu_shiftTpsBins[5] = 67.0;
    config->tcu_shiftTpsBins[6] = 76.0;
    config->tcu_shiftTpsBins[7] = 88.0;
    config->tcu_shiftSpeed12[0] = 10.0;
    config->tcu_shiftSpeed12[1] = 12.0;
    config->tcu_shiftSpeed12[2] = 16.0;
    config->tcu_shiftSpeed12[3] = 23.0;
    config->tcu_shiftSpeed12[4] = 28.0;
    config->tcu_shiftSpeed12[5] = 32.0;
    config->tcu_shiftSpeed12[6] = 38.0;
    config->tcu_shiftSpeed12[7] = 42.0;
    config->tcu_shiftSpeed23[0] = 20.0;
    config->tcu_shiftSpeed23[1] = 25.0;
    config->tcu_shiftSpeed23[2] = 31.0;
    config->tcu_shiftSpeed23[3] = 37.0;
    config->tcu_shiftSpeed23[4] = 45.0;
    config->tcu_shiftSpeed23[5] = 55.0;
    config->tcu_shiftSpeed23[6] = 63.0;
    config->tcu_shiftSpeed23[7] = 72.0;
    config->tcu_shiftSpeed34[0] = 35.0;
    config->tcu_shiftSpeed34[1] = 40.0;
    config->tcu_shiftSpeed34[2] = 47.0;
    config->tcu_shiftSpeed34[3] = 55.0;
    config->tcu_shiftSpeed34[4] = 65.0;
    config->tcu_shiftSpeed34[5] = 78.0;
    config->tcu_shiftSpeed34[6] = 92.0;
    config->tcu_shiftSpeed34[7] = 110.0;
    config->tcu_shiftSpeed21[0] = 5.0;
    config->tcu_shiftSpeed21[1] = 7.0;
    config->tcu_shiftSpeed21[2] = 11.0;
    config->tcu_shiftSpeed21[3] = 17.0;
    config->tcu_shiftSpeed21[4] = 20.0;
    config->tcu_shiftSpeed21[5] = 23.0;
    config->tcu_shiftSpeed21[6] = 26.0;
    config->tcu_shiftSpeed21[7] = 32.0;
    config->tcu_shiftSpeed32[0] = 10.0;
    config->tcu_shiftSpeed32[1] = 13.0;
    config->tcu_shiftSpeed32[2] = 21.0;
    config->tcu_shiftSpeed32[3] = 30.0;
    config->tcu_shiftSpeed32[4] = 35.0;
    config->tcu_shiftSpeed32[5] = 45.0;
    config->tcu_shiftSpeed32[6] = 50.0;
    config->tcu_shiftSpeed32[7] = 55.0;
    config->tcu_shiftSpeed43[0] = 25.0;
    config->tcu_shiftSpeed43[1] = 30.0;
    config->tcu_shiftSpeed43[2] = 36.0;
    config->tcu_shiftSpeed43[3] = 44.0;
    config->tcu_shiftSpeed43[4] = 48.0;
    config->tcu_shiftSpeed43[5] = 62.0;
    config->tcu_shiftSpeed43[6] = 73.0;
    config->tcu_shiftSpeed43[7] = 88.0;
}

Referenced by applyEngineType().

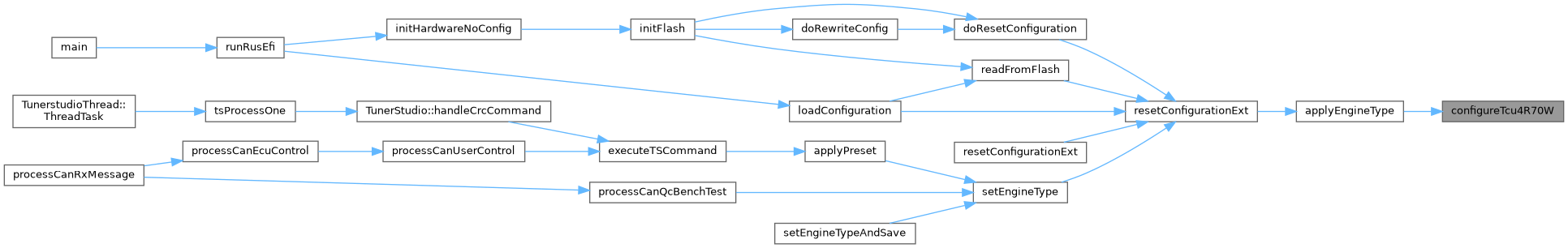

Here is the caller graph for this function:

getGeneric4TransmissionController()

Generic4TransmissionController * getGeneric4TransmissionController

(

)

Definition at line 128 of file tc_4.cpp.

                                                                    {
    return &generic4TransmissionController;
}

Referenced by GearControllerBase::initTransmissionController().

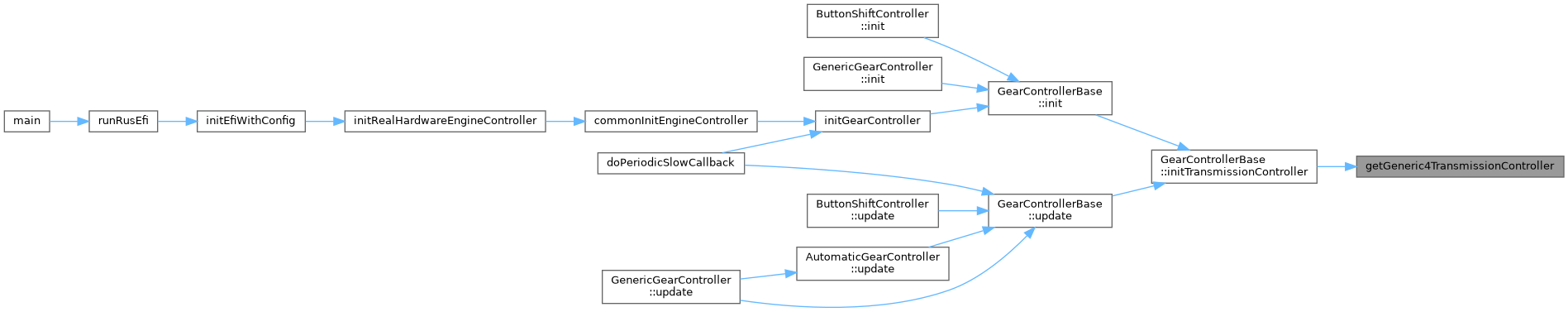

Here is the caller graph for this function:

Variable Documentation

generic4TransmissionController

Generic4TransmissionController generic4TransmissionController

Definition at line 6 of file tc_4.cpp.

Referenced by getGeneric4TransmissionController().

pcPwm

SimplePwm pcPwm("Pressure Control") ( "Pressure Control"  )

static

Referenced by Generic4TransmissionController::init(), and Generic4TransmissionController::setPcState().

Go to the source code of this file.
