Functions
static void	onGrabPedal ()

void	grabPedalIsUp ()

void	grabPedalIsWideOpen ()

void	grapTps1PrimaryIsClosed ()

void	grapTps1PrimaryIsOpen ()

float	decodeTpsSentValue (float sentValue)

void	sentTpsDecode (SentInput sentCh)

bool	isDigitalTps1 ()

Variables
SentTps	sentTps

Function Documentation

◆ decodeTpsSentValue()

float decodeTpsSentValue ( float sentValue )

Definition at line 59 of file tps.cpp.

                                          {
    switch (engineConfiguration->sentEtbType) {
        case SentEtbType::GM_TYPE_1:
            return interpolateMsg("tps", /*x1*/0xE48,                                 /*y1*/0, /*x2*/0x1A0,                                 /*y2*/POSITION_FULLY_OPEN, /*x*/sentValue);
        case SentEtbType::FORD_TYPE_1:
            return interpolateMsg("tps", /*x1*/  250,                                 /*y1*/0, /*x2*/ 3560,                                 /*y2*/POSITION_FULLY_OPEN, /*x*/sentValue);
        default:
            return interpolateMsg("tps", /*x1*/engineConfiguration->customSentTpsMin, /*y1*/0, /*x2*/engineConfiguration->customSentTpsMax, /*y2*/POSITION_FULLY_OPEN, /*x*/sentValue);
    }
}

Referenced by sentTpsDecode().

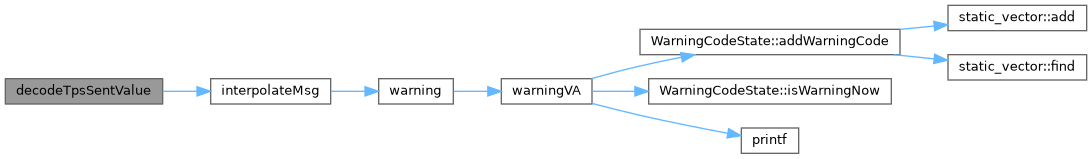

Here is the call graph for this function:

Here is the caller graph for this function:

◆ grabPedalIsUp()

void grabPedalIsUp ( )

search for 'maintainConstantValue' to find how this TS magic works

Definition at line 31 of file tps.cpp.

                     {
    /**
     * search for 'maintainConstantValue' to find how this TS magic works
     */
    tsCalibrationSetData(TsCalMode::PedalMin, Sensor::getRaw(SensorType::AcceleratorPedalPrimary), Sensor::getRaw(SensorType::AcceleratorPedalSecondary));
    onGrabPedal();
}

Referenced by handleCommandX14().

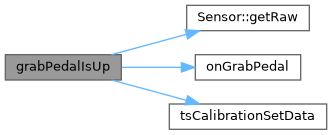

Here is the call graph for this function:

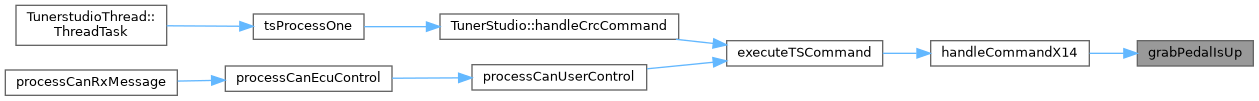

Here is the caller graph for this function:

◆ grabPedalIsWideOpen()

void grabPedalIsWideOpen ( )

Definition at line 39 of file tps.cpp.

                           {
    tsCalibrationSetData(TsCalMode::PedalMax, Sensor::getRaw(SensorType::AcceleratorPedalPrimary), Sensor::getRaw(SensorType::AcceleratorPedalSecondary));
    onGrabPedal();
}

Referenced by handleCommandX14().

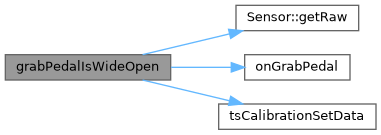

Here is the call graph for this function:

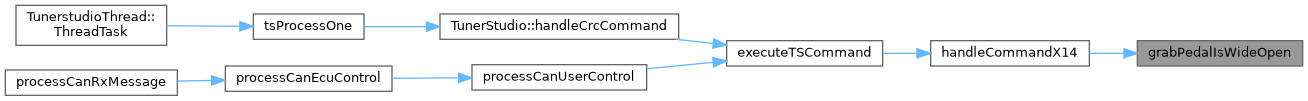

Here is the caller graph for this function:

◆ grapTps1PrimaryIsClosed()

void grapTps1PrimaryIsClosed ( )

Definition at line 45 of file tps.cpp.

{
    tsCalibrationSetData(TsCalMode::Tps1Min, Sensor::getRaw(SensorType::Tps1Primary));
}

Referenced by handleCommandX14().

Here is the call graph for this function:

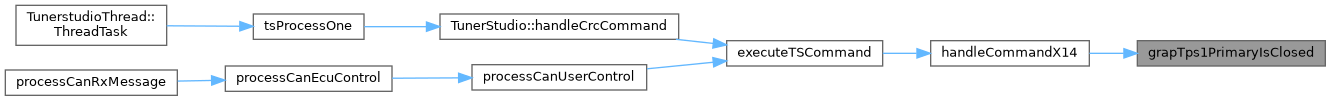

Here is the caller graph for this function:

◆ grapTps1PrimaryIsOpen()

void grapTps1PrimaryIsOpen ( )

Definition at line 50 of file tps.cpp.

{
    tsCalibrationSetData(TsCalMode::Tps1Max, Sensor::getRaw(SensorType::Tps1Primary));
}

Referenced by handleCommandX14().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isDigitalTps1()

bool isDigitalTps1 ( )

Definition at line 83 of file tps.cpp.

                     {
    return (engineConfiguration->sentEtbType != SentEtbType::NONE);
}

Referenced by initTps(), and sentTpsDecode().

Here is the caller graph for this function:

◆ onGrabPedal()

static void onGrabPedal ( )

static

Author: Andrey Belomutskiy, (c) 2012-2020

Definition at line 23 of file tps.cpp.

                          {
  static uint8_t grabPedalCounter = 0;
    grabPedalCounter++;
    if (grabPedalCounter % 2 == 0) {
      // todo fix root cause! work-around: make sure not to write bad tune since that would brick requestBurn();
    }
}

Referenced by grabPedalIsUp(), and grabPedalIsWideOpen().

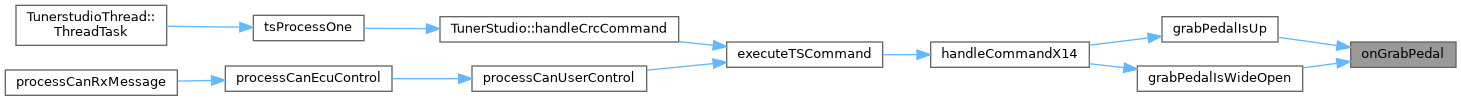

Here is the caller graph for this function:

◆ sentTpsDecode()

void sentTpsDecode ( SentInput sentCh )

Definition at line 71 of file tps.cpp.

                                     {
    if ((!isDigitalTps1()) || (engineConfiguration->EtbSentInput != sentCh)) {
        return;
    }
    // todo: move away from weird float API
    float sentValue = getSentValue(sentCh);
    float tpsValue = decodeTpsSentValue(sentValue);

    sentTps.setValidValue(tpsValue, getTimeNowNt());
}
