trigger_ford.cpp File Reference

Detailed Description

Author

Andrey Belomutskiy, (c) rusEFI LLC 2012-2023

Definition in file trigger_ford.cpp.

Functions
void	configureFordCoyote (TriggerWaveform *s)

Function Documentation

configureFordCoyote()

void configureFordCoyote

(

TriggerWaveform *

s

)

Definition at line 11 of file trigger_ford.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);

    s->setTriggerSynchronizationGap(3);
    s->setSecondTriggerSynchronizationGap(0.5);

    s->addToothRiseFall(45 /*, width = 10*/);
    s->addToothRiseFall(90);

    s->addToothRiseFall(180 - 30);
    s->addToothRiseFall(180);

    s->addToothRiseFall(270 - 30);
    s->addToothRiseFall(270);

    s->addToothRiseFall(360);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

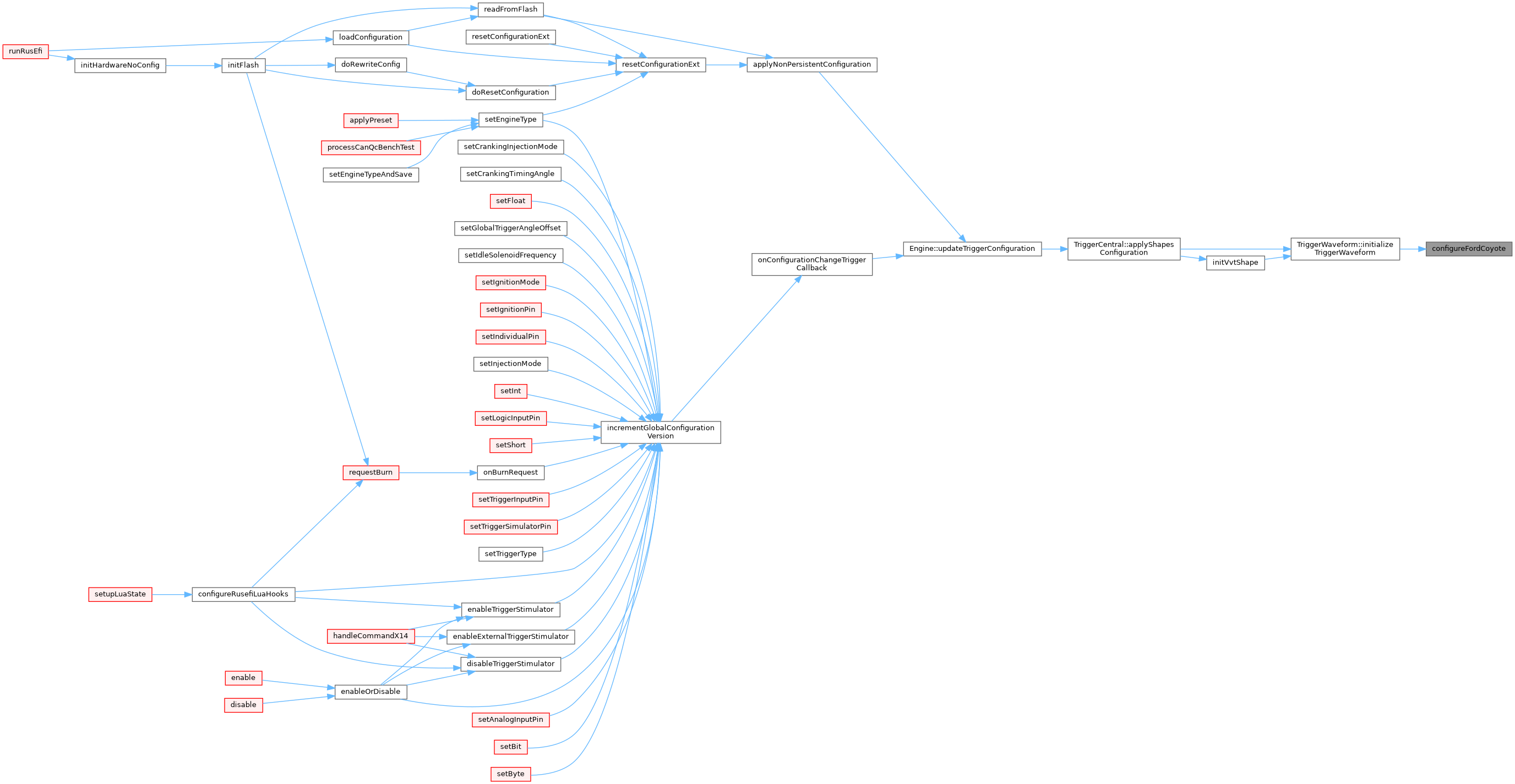

Here is the caller graph for this function:
