trigger_gm.h File Reference

Detailed Description

Date

Mar 28, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file trigger_gm.h.

Functions
void	configureGm60_2_2_2 (TriggerWaveform *s)
void	configureGmTriggerWaveform (TriggerWaveform *s)
void	initGmLS24_5deg (TriggerWaveform *s)
void	initGmLS24_3deg (TriggerWaveform *s)

Function Documentation

configureGm60_2_2_2()

void configureGm60_2_2_2

(

TriggerWaveform *

s

)

https://github.com/rusefi/rusefi/issues/2264 GM/Daewoo Distributor on the F8CV

Definition at line 23 of file trigger_gm.cpp.

                                             {
    s->initialize(FOUR_STROKE_CAM_SENSOR, SyncEdge::RiseOnly);
    s->isSynchronizationNeeded = false;
    s->isSecondWheelCam = true;

    int offset = 1;

    for (int i=0;i<12;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<18;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<18;i++) {
        offset = addTooth(offset, s);
    }

    offset += 2 * GM_60_W;

    for (int i=0;i<5;i++) {
        offset = addTooth(offset, s);
    }

    s->addEvent360(360 - GM_60_W, TriggerValue::RISE);

    offset = addTooth(offset, s);

    s->addEvent360(360, TriggerValue::FALL);

}

Referenced by TriggerWaveform::initializeTriggerWaveform().

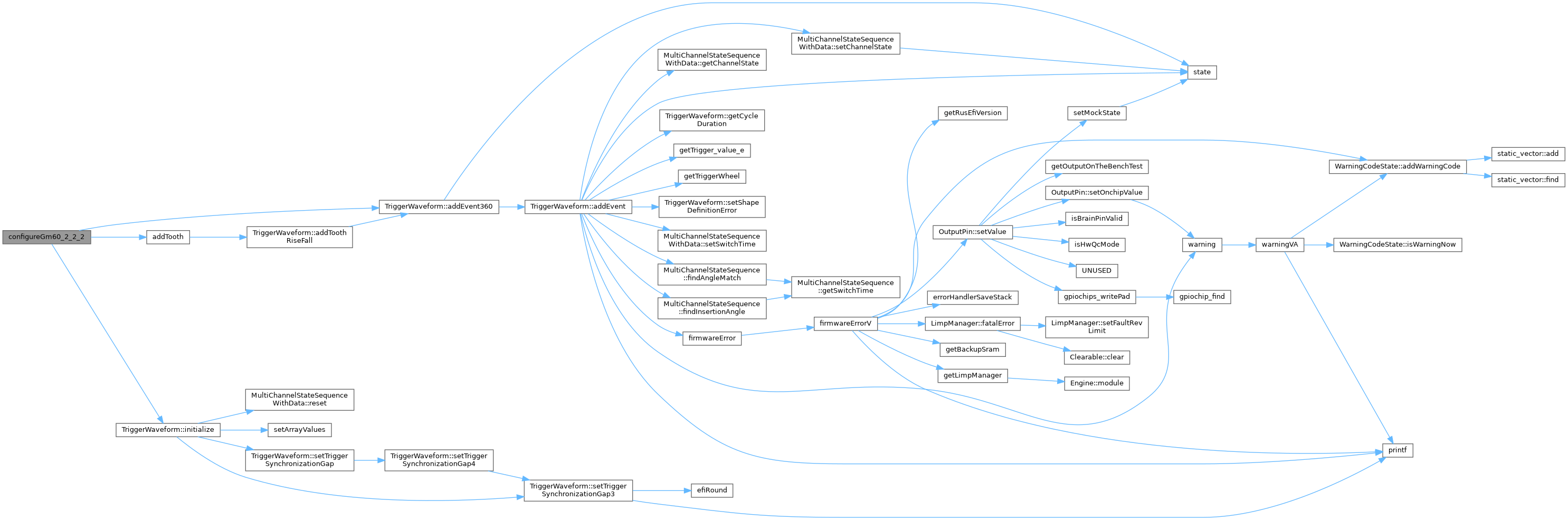

Here is the call graph for this function:

Here is the caller graph for this function:

configureGmTriggerWaveform()

void configureGmTriggerWaveform

(

TriggerWaveform *

s

)

Definition at line 60 of file trigger_gm.cpp.

                                                    {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);

    float w = 5;

    s->addToothRiseFall(60, w);

    s->addToothRiseFall(120, w);

    s->addToothRiseFall(180, w);

    s->addToothRiseFall(240, w);

    s->addToothRiseFall(300, w);

    s->addToothRiseFall(350, w);

    s->addToothRiseFall(360, w);

    s->setTriggerSynchronizationGap(6);
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

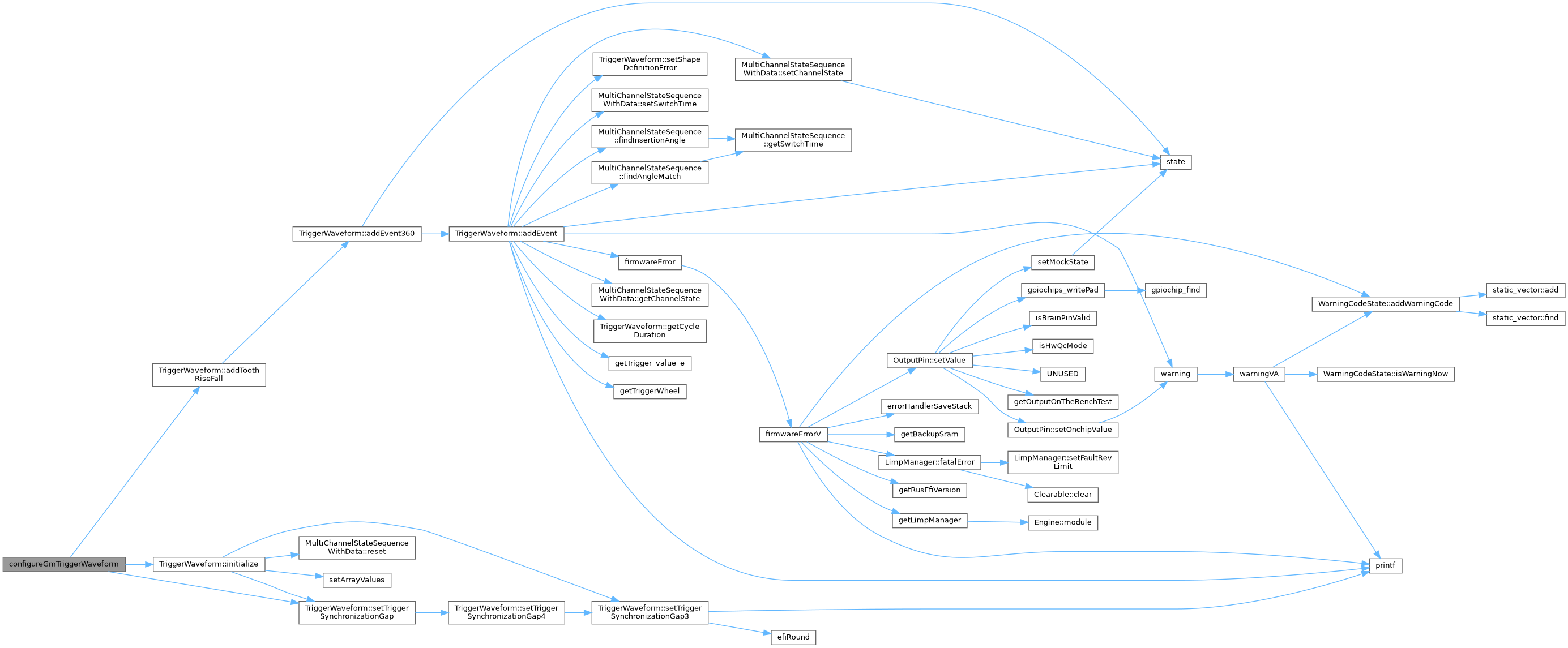

Here is the call graph for this function:

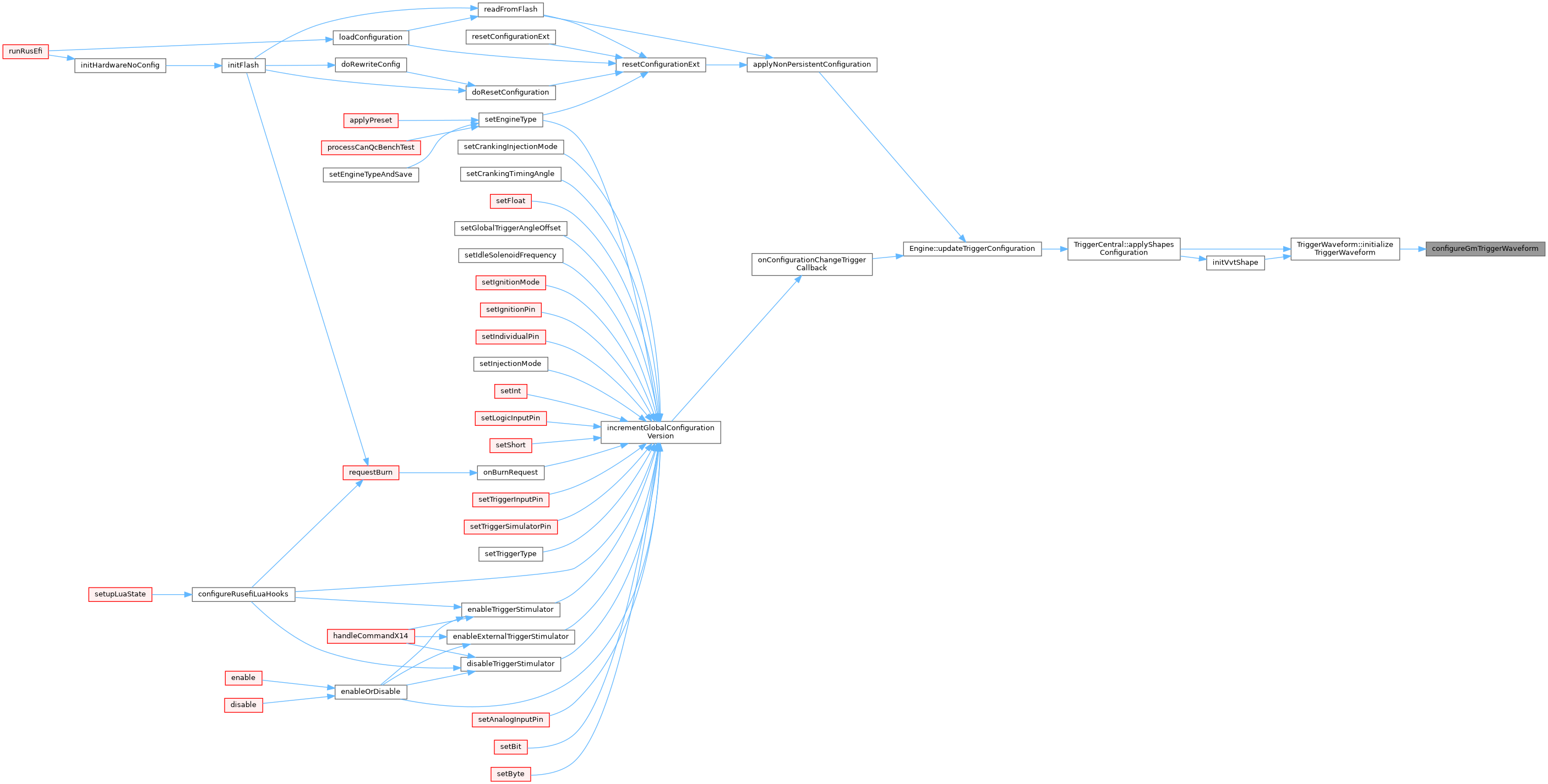

Here is the caller graph for this function:

initGmLS24_3deg()

void initGmLS24_3deg

(

TriggerWaveform *

s

)

Definition at line 159 of file trigger_gm.cpp.

                                         {
    initGmLS24(s, 3);

    // This is tooth #20, at 312 degrees ATDC #1
    s->setTriggerSynchronizationGap(4.0f);
    s->setSecondTriggerSynchronizationGap(0.25f);
    s->setThirdTriggerSynchronizationGap(4.0f);

    s->tdcPosition = 48;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

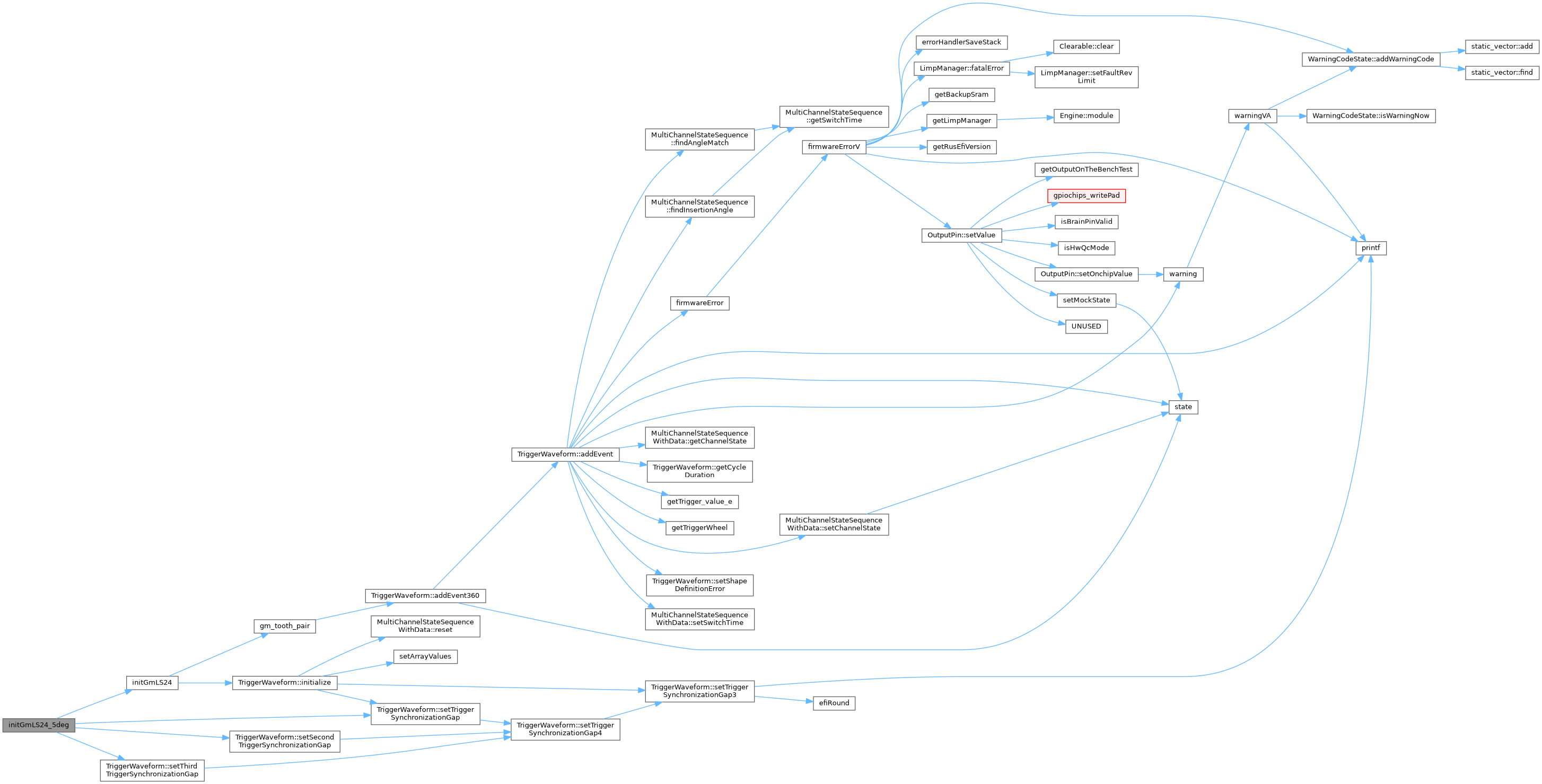

Here is the call graph for this function:

Here is the caller graph for this function:

initGmLS24_5deg()

void initGmLS24_5deg

(

TriggerWaveform *

s

)

Definition at line 147 of file trigger_gm.cpp.

                                         {
    initGmLS24(s, 5);

    // This is tooth #20, at 310 degrees ATDC #1
    s->setTriggerSynchronizationGap(2.0f);
    s->setSecondTriggerSynchronizationGap(0.5f);
    s->setThirdTriggerSynchronizationGap(2.0f);

    s->tdcPosition = 50;
}

Referenced by TriggerWaveform::initializeTriggerWaveform().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
