trigger_rover.h File Reference

Functions
void	initializeRoverK (TriggerWaveform *s)

Function Documentation

initializeRoverK()

void initializeRoverK

(

TriggerWaveform *

s

)

https://en.wikipedia.org/wiki/Rover_K-series_engine

Definition at line 16 of file trigger_rover.cpp.

                                          {
    s->initialize(FOUR_STROKE_CRANK_SENSOR, SyncEdge::RiseOnly);

    float tooth = 20;

    s->setTriggerSynchronizationGap(2.0);
    // wow that's odd
    s->setSecondTriggerSynchronizationGap2(0.0001, 100000);
    s->setThirdTriggerSynchronizationGap(2);

    float base = 0;

    for (int i = 0; i < 2; i++) {
        s->addEvent720(base + tooth / 2, TriggerValue::RISE);
        s->addEvent720(base + tooth, TriggerValue::FALL);
        base += tooth;
    }
    base += tooth;
    for (int i = 0; i < 2; i++) {
        s->addEvent720(base + tooth / 2, TriggerValue::RISE);
        s->addEvent720(base + tooth, TriggerValue::FALL);
        base += tooth;
    }
    base += tooth;
    for (int i = 0; i < 14; i++) {
        s->addEvent720(base + tooth / 2, TriggerValue::RISE);
        s->addEvent720(base + tooth, TriggerValue::FALL);
        base += tooth;
    }
    base += tooth;
    for (int i = 0; i < 3; i++) {
        s->addEvent720(base + tooth / 2, TriggerValue::RISE);
        s->addEvent720(base + tooth, TriggerValue::FALL);
        base += tooth;
    }
    base += tooth;
    for (int i = 0; i < 11; i++) {
        s->addEvent720(base + tooth / 2, TriggerValue::RISE);
        s->addEvent720(base + tooth, TriggerValue::FALL);
        base += tooth;
    }

}

Referenced by TriggerWaveform::initializeTriggerWaveform().

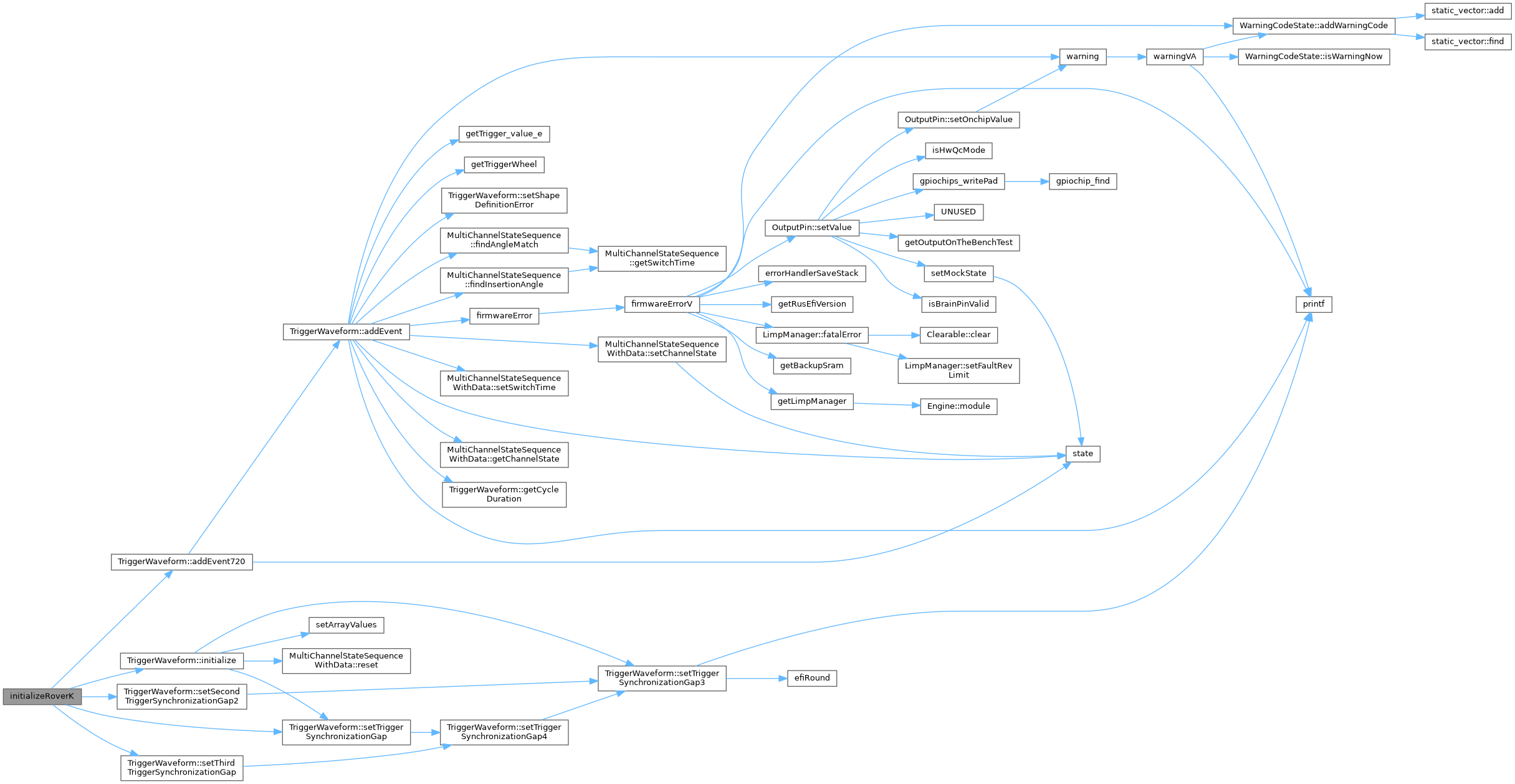

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
